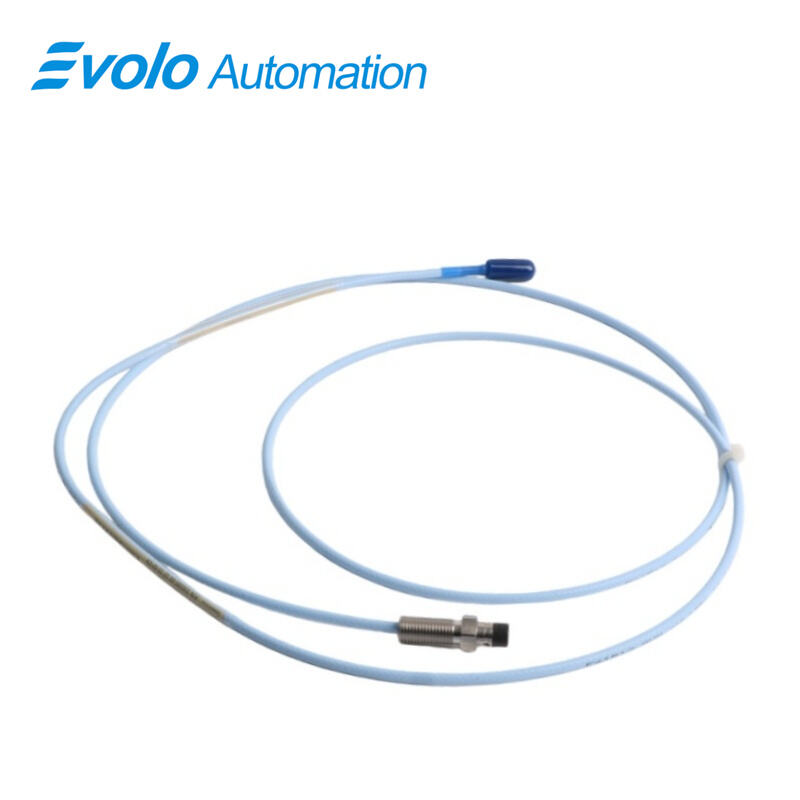

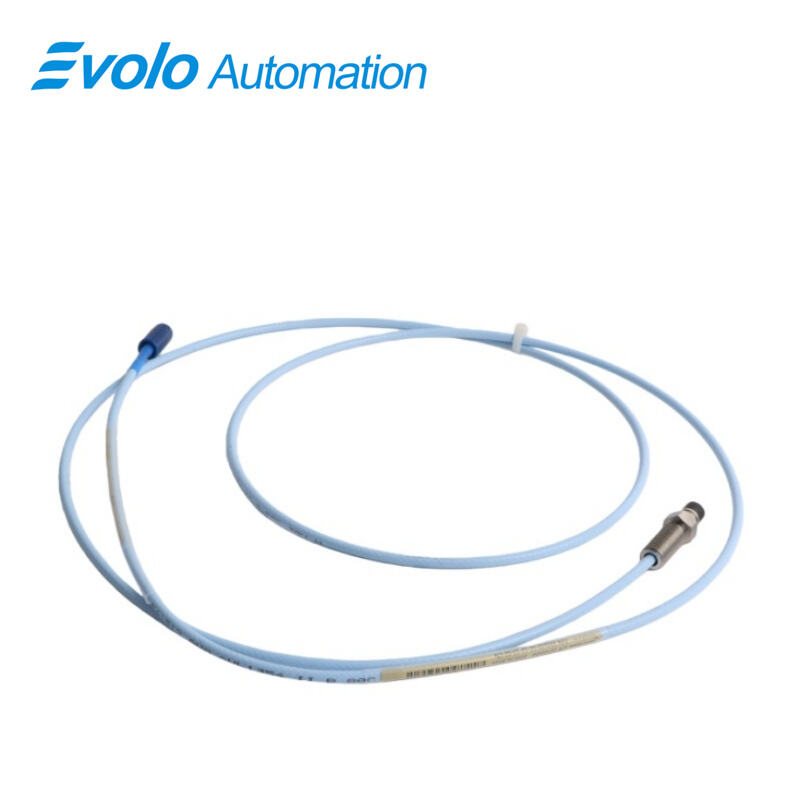

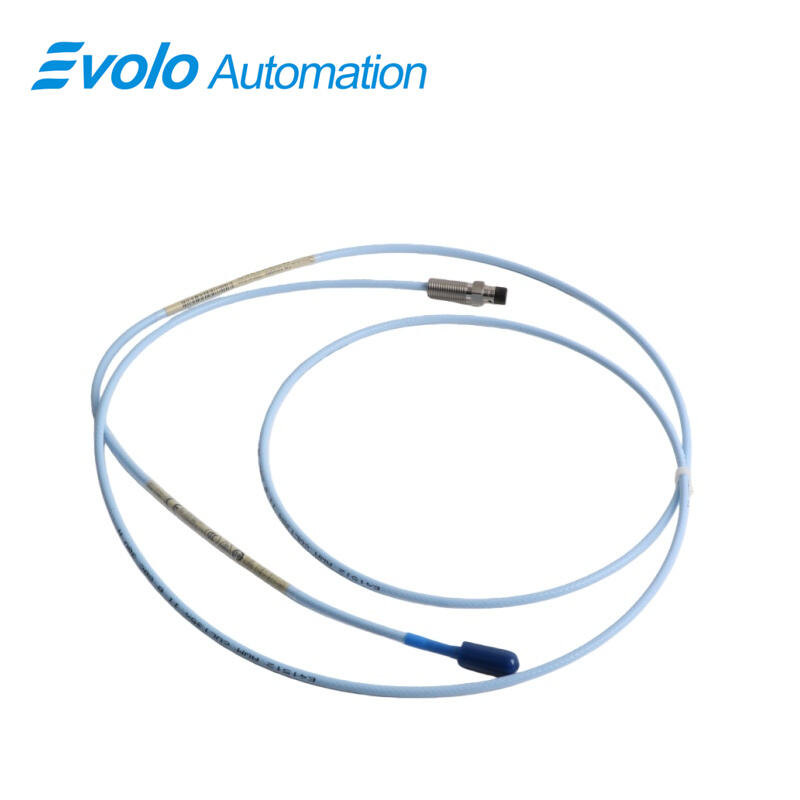

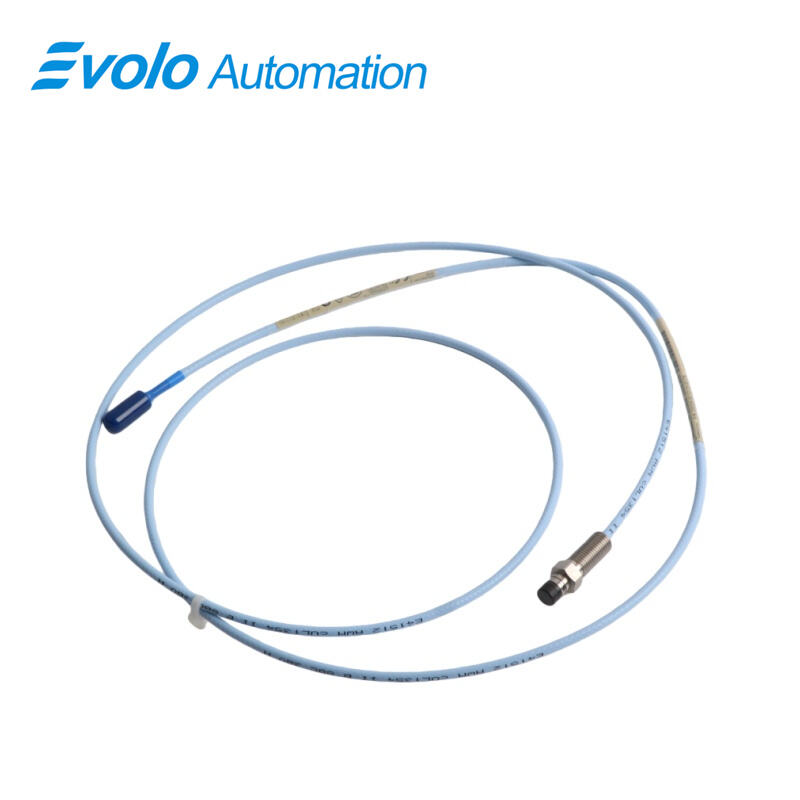

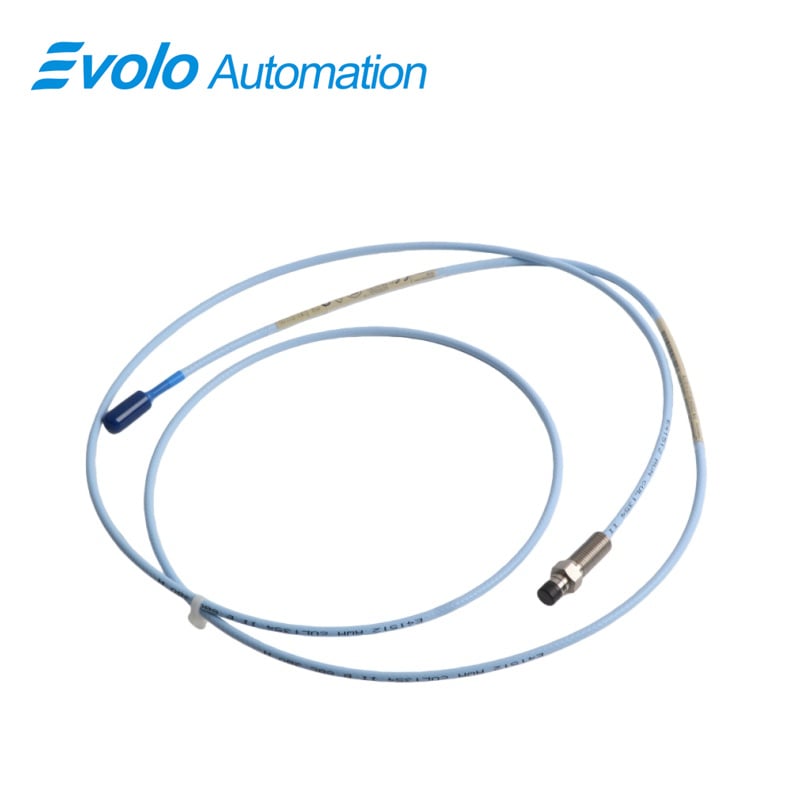

330105-02-12-15-02-05 3300 XL 8 mm Reverse Mount Probe

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	330105-02-12-15-02-05
Minimum Order Quantity:	1
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

The 330105-02-12-15-02-05 3300 XL 8 mm Reverse Mount Probe is a high-performance industrial transducer designed for precise non-contact vibration and position measurements in critical automation systems. Featuring an 8 mm tip and 3/8-24 UNF reverse mount threading, this 3300 XL probe delivers a linear range of 2 mm (80 mils) and is compatible with CSA, ATEX, and IECEx hazardous area approvals. Constructed with a polyphenylene sulfide (PPS) tip and AISI 303/304 stainless steel case, it withstands extreme temperatures from -52°C to +177°C (-62°F to +350°F). The probe integrates with miniature ClickLoc coaxial connectors and patented TipLoc and CableLoc designs, providing 330 N (75 lbf) pull strength and secure cable attachment. Optional FluidLoc cables prevent oil or liquid leakage, while full compliance with API 670 ensures mechanical stability, temperature resilience, and interchangeable compatibility with other 3300 XL system components. This reverse mount design enables flexible installation in tight or constrained spaces while maintaining advanced automation performance for fluid-film bearings, Keyphasor reference, and speed monitoring applications.

Applications

Vibration Monitoring on Fluid-Film Bearings
The reverse mount 3300 XL 8 mm probe accurately detects shaft vibration in turbines, compressors, and pumps, maintaining linearity across a 2 mm range and ensuring reliable predictive maintenance in critical automation systems.

Axial and Radial Position Measurement
Designed to measure static positions, the probe captures axial and radial displacement on rotating machinery, enabling precise shaft alignment and condition monitoring within tight installation spaces.

Keyphasor Reference and Speed Signals
The probe provides high-fidelity Keyphasor output for phase reference and tachometer applications, delivering accurate rotational speed signals for automated control and safety interlocks.

Hazardous Area Automation
With CSA, ATEX, and IECEx approvals, this 3300 XL probe can be deployed in explosive or intrinsically safe industrial environments, including oil, gas, and chemical processing plants.

Fluid Containment Applications
Optional FluidLoc cable systems prevent oil or other liquids from leaking through the probe cable interior, ensuring safe operation and maintaining signal integrity in lubricated machinery environments.

Specifications

Competitive Advantage

Compact Reverse Mount Design
The 3/8-24 UNF reverse mount configuration allows installation in confined spaces where standard probes cannot fit, providing flexibility in retrofits and constrained automation setups.

Extreme Temperature Tolerance
Operating from -52°C to +177°C (-62°F to +350°F), the probe maintains accurate measurement under harsh industrial conditions, including high-temperature bearing housings.

Robust Mechanical and Electrical Integrity
TipLoc molding and CableLoc designs provide a durable 330 N (75 lbf) pull strength connection between probe and cable, minimizing failure risk during high-vibration operation.

Full System Compatibility
Backward-compatible with other 3300 XL 5 mm and 8 mm system components, the probe supports interchangeable installation with existing transducers, extension cables, and Proximitor sensors without recalibration.

Enhanced Hazardous Area Certification
CSA, ATEX, and IECEx approvals enable safe deployment in explosive or flammable environments, ensuring compliance with international industrial automation standards.
