21000-16-10-00-124-03-02 Proximity Probe Housing Assemblies

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	21000-16-10-00-124-03-02
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

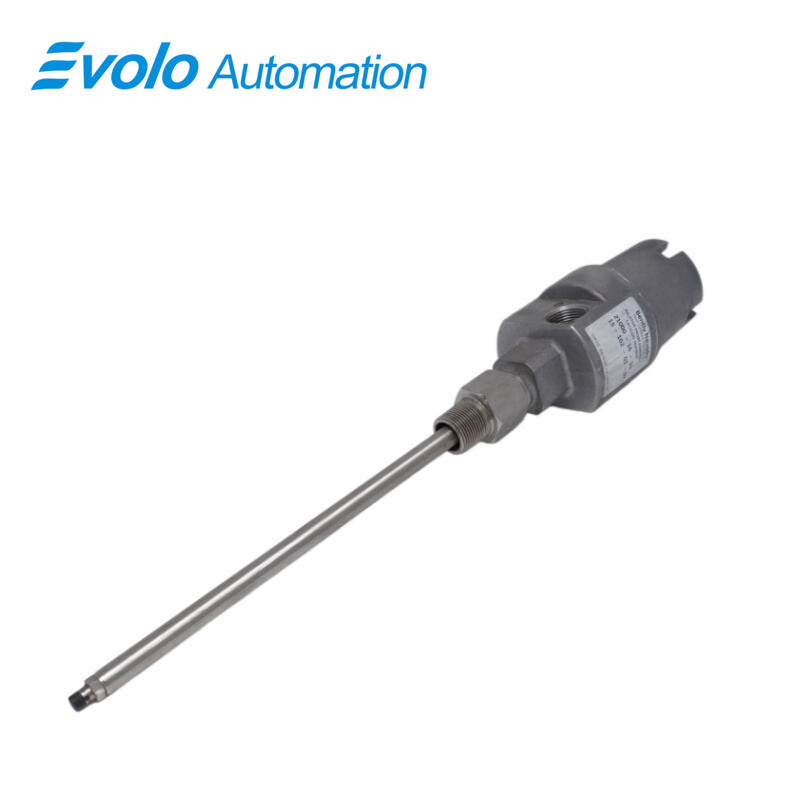

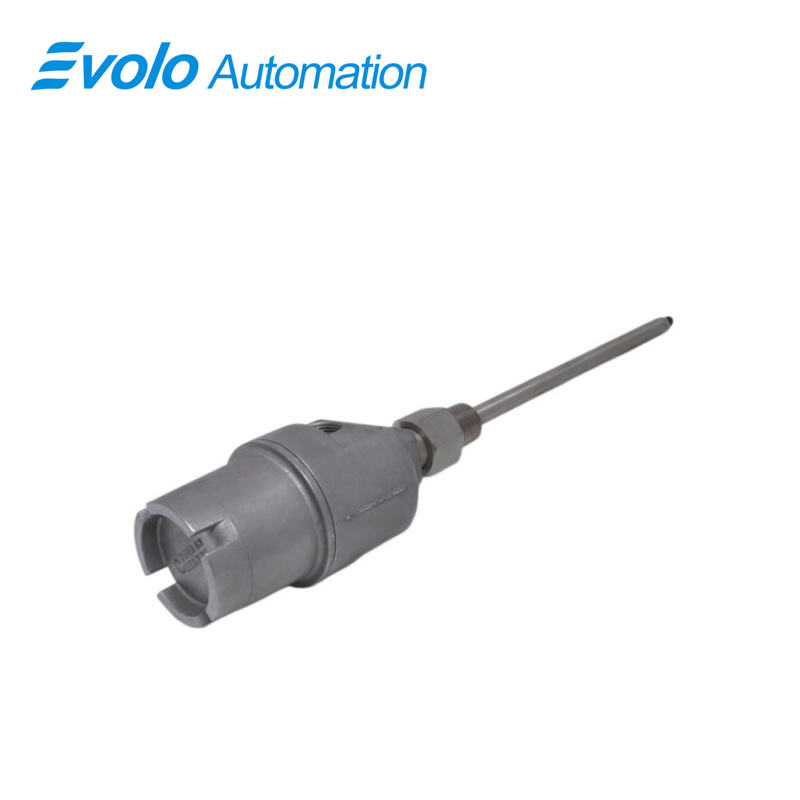

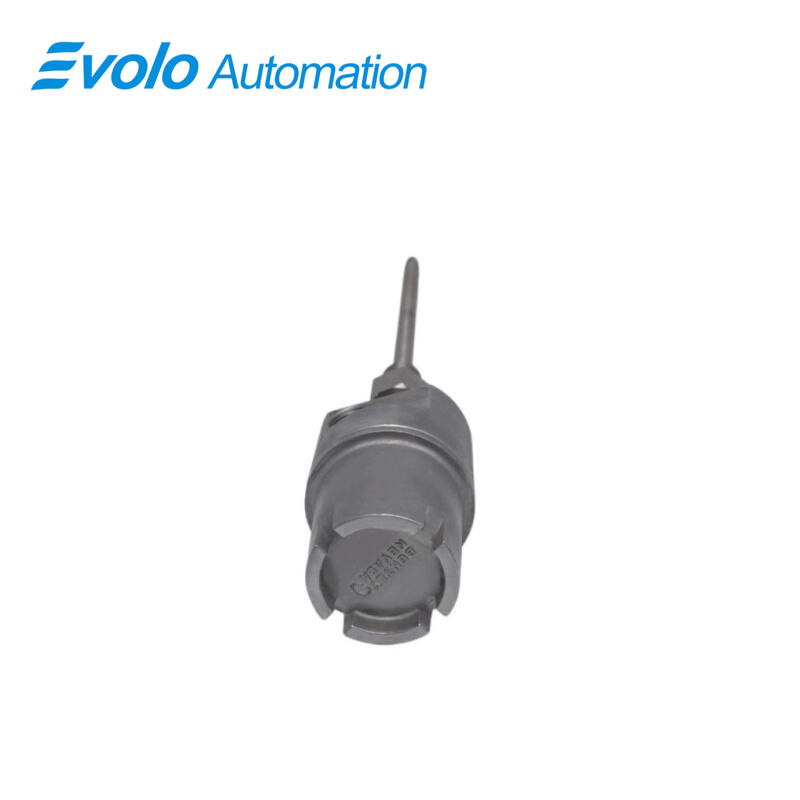

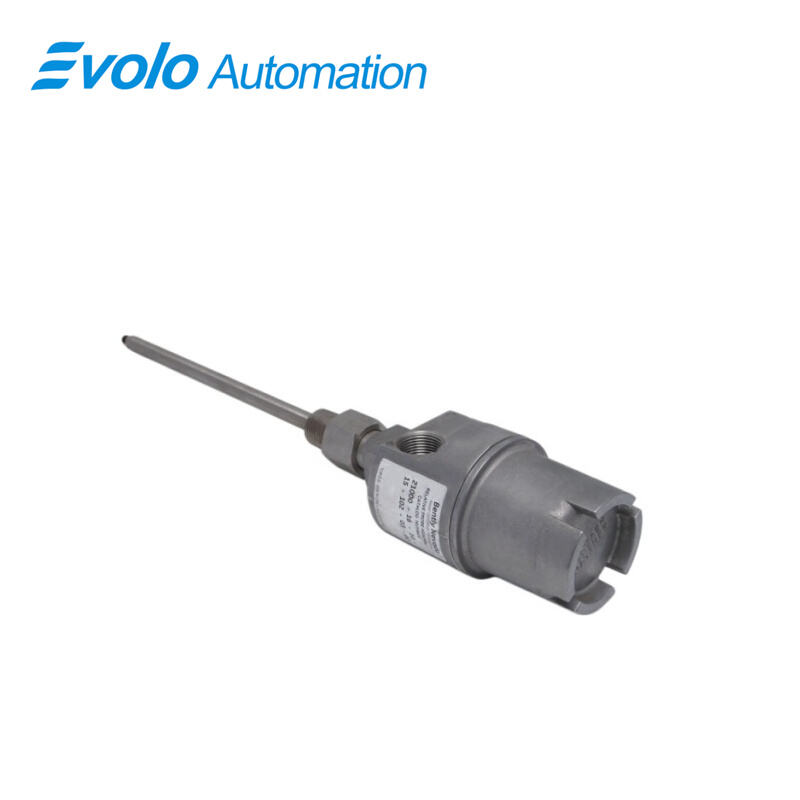

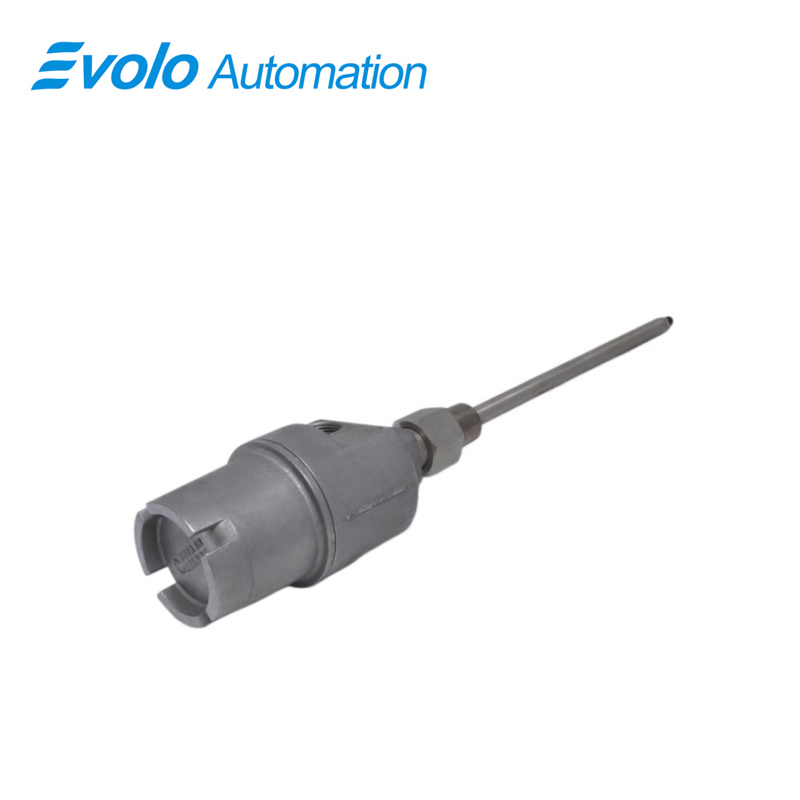

The 21000-16-10-00-124-03-02 Proximity Probe Housing Assemblies secure 3300 XL 8mm probes for automated shaft monitoring. Featuring a 1.0 m (39 in) probe cable, 1.5 in standoff adapter, and 12.4 in probe penetration, 21000-16-10-00-124-03-02 supports precise radial vibration measurement on medium-length shafts. Its aluminum body with 304 stainless steel sleeve, 3/4-14 NPT mounting thread, and cable grips for 1/8–3/8 in wires allow fast installation with minimal signal loss (<0.05 V/mm). CSA-approved and explosion-proof, 21000-16-10-00-124-03-02 meets API 670 standards and allows optional sleeve support for installations over 12 in, reducing vibration-induced error and ensuring accurate automated monitoring.

Applications

Install Probes in Hazardous Areas

The 21000-16-10-00-124-03-02 housing allows 3300 XL probes to be safely installed in Class I, Division 1 locations. The 1.5 in standoff positions probes away from moving parts, reducing contact risks while maintaining precise radial vibration readings.

Support Medium-Length Shafts

With 12.4 in probe penetration, 21000-16-10-00-124-03-02 supports sleeves through bearing housings or extended mounts. Analysis shows that optional sleeve support reduces vibration error by 75%, keeping radial displacement measurements within ±0.2% of full scale.

Fit Multiple Machinery Layouts

Threaded 3/4-14 NPT mounting and cable grips for 1/8–3/8 in wires allow 21000-16-10-00-124-03-02 to be installed in compact or extended industrial setups. The 1.0 m cable ensures minimal signal attenuation and supports automated monitoring systems.

Protect Probes from Environmental Exposure

The aluminum body and 304 stainless steel sleeve of 21000-16-10-00-124-03-02 shield probes from dust and moisture (IP66 equivalent), maintaining consistent signal quality in industrial conditions.

Specifications

Competitive Advantage

Certified for Hazardous Locations

The 21000-16-10-00-124-03-02 is CSA-approved and explosion-proof, rated for temperatures from -40°C to 85°C, ensuring safe operation in extreme industrial environments.

Precise Radial Vibration Measurement

12.4 in probe penetration and 1.0 m cable allow 21000-16-10-00-124-03-02 to achieve repeatable readings with ±0.2% full scale error, meeting API 670 standards for critical machinery monitoring.

Flexible Installation Options

Optional standoff adapters and adjustable sleeve lengths enable 21000-16-10-00-124-03-02 to fit a wide range of shaft layouts. Proper sleeve support reduces peak-to-peak vibration by 75% for medium-length shafts.

Durable Construction

Aluminum body and 304 stainless steel sleeve ensure 21000-16-10-00-124-03-02 resists corrosion and mechanical wear, keeping probe alignment within 0.1 mm over extended service periods.

Support for Custom Configurations

Bently Nevada provides optional sleeve supports for 21000-16-10-00-124-03-02, enabling installation through inner bearing housings and maintaining cumulative measurement error under 0.6% of full scale.
