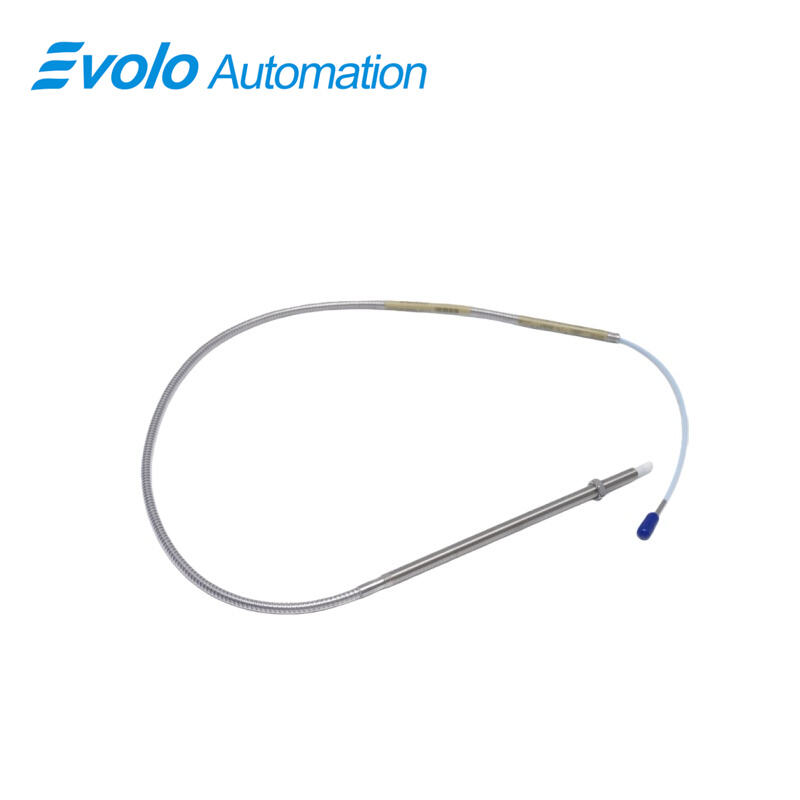

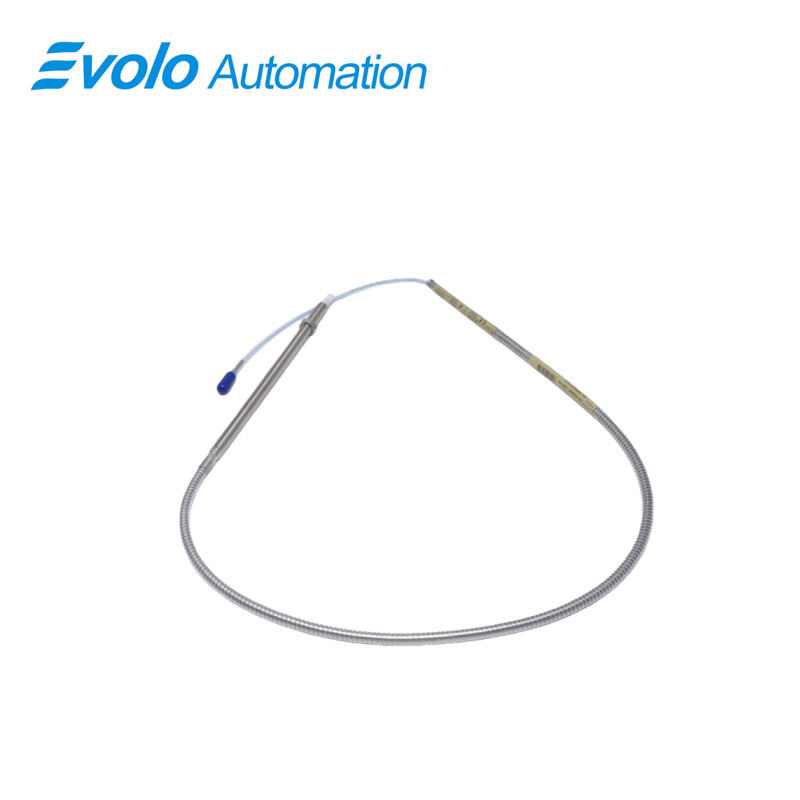

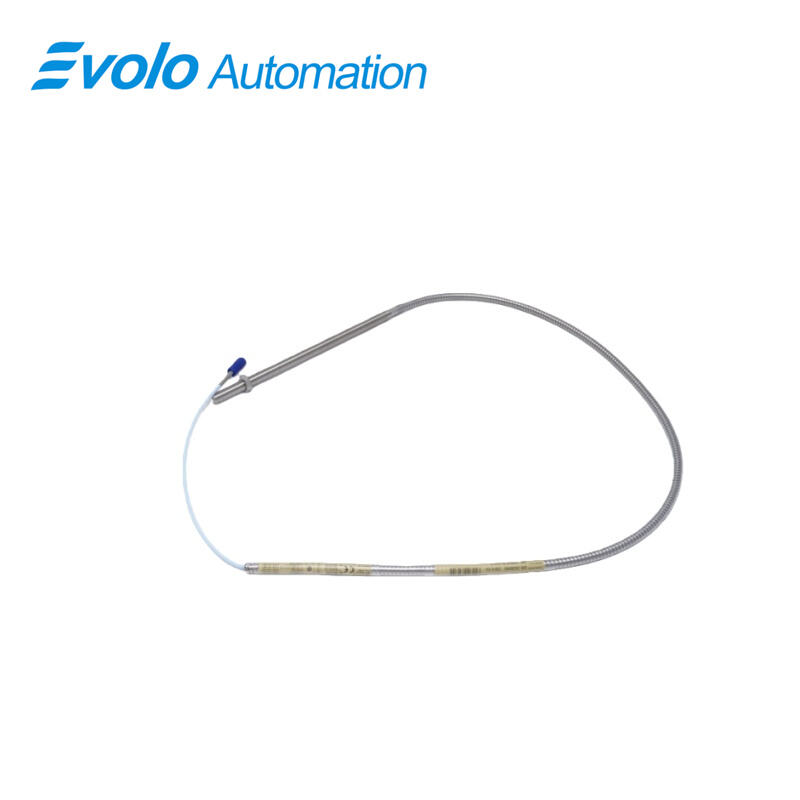

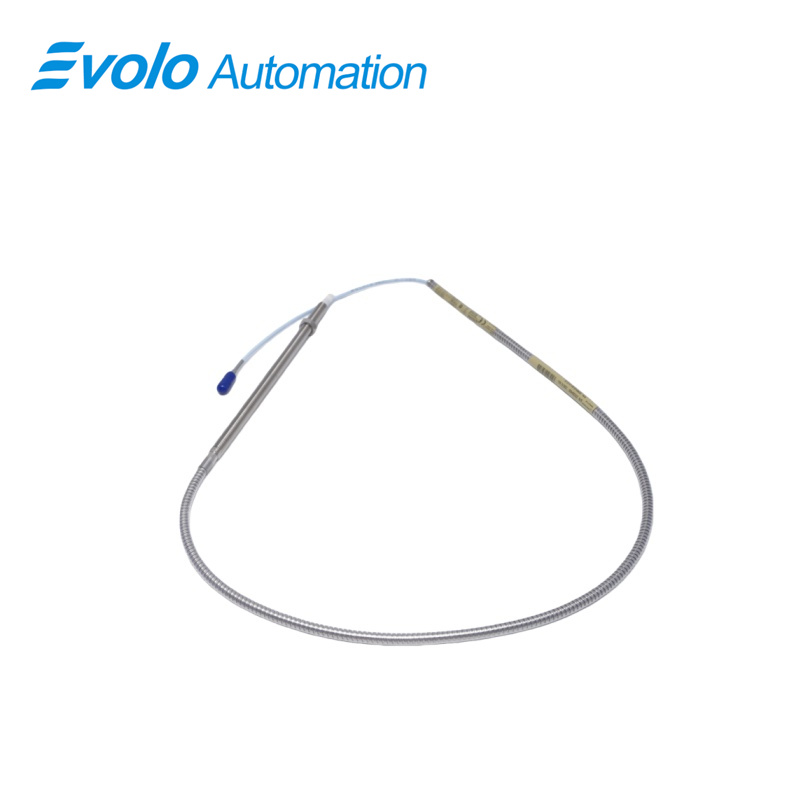

330909-00-50-10-01-05 3300 NSv Proximity Probes

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	330909-00-50-10-01-05
Minimum Order Quantity:	1
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

The 330909-00-50-10-01-05 3300 NSv Proximity Probe, together with its extension cable, delivers enhanced performance for industrial machinery monitoring while remaining fully mechanically and electrically compatible with Bently Nevada’s earlier 3300 RAM proximity probes and associated extension cables. This compatibility allows for straightforward integration into existing monitoring systems, enabling upgrades or replacements without requiring modifications to legacy installations, making the 3300 NSv Proximity Probe a reliable choice for modernizing machinery protection setups.

A key improvement of the 3300 NSv Proximity Probe is its superior chemical resistance compared to the previous 3300 RAM models. This feature ensures dependable operation in demanding process-compressor environments, where exposure to lubricants, solvents, and other industrial fluids is common. Additionally, the probe exhibits excellent side-view characteristics, surpassing the performance of the 3000-series 190 probes when installed at the same gap from the target, which guarantees consistent and accurate readings of rotor vibration and shaft displacement.

The 3300 NSv Proximity Probe is offered in a variety of probe case configurations, including both armored and unarmored options, with thread choices such as 1/4-28, 3/8-24, M8X1, and M10X1. Reverse-mount versions come standard with 3/8-24 or M10X1 threads. All transducer system components feature gold-plated brass ClickLoc connectors, which lock securely to prevent accidental disconnection. The probe also employs the TipLoc molding method, a patented process that provides a strong and reliable bond between the probe tip and body.

Applications

The 330909-00-50-10-01-05 3300 NSv Proximity Probe is engineered for precise monitoring of industrial machinery, including turbines, compressors, and pumps, providing accurate measurements of rotor displacement and vibration. With a recommended gap setting of 1.0 mm (40 mils) and a linear range of 1.5 mm (60 mils), it enables reliable condition monitoring and early detection of mechanical anomalies. The probe’s compact dimensions of 1.3 × 1.2 × 70 cm and lightweight design (0.10 kg) allow easy installation even in confined spaces, while the overall case length of 5 inches and total cable length of 1.0 meter (39 inches) provide flexibility for various mounting configurations. Equipped with a miniature coaxial ClickLoc connector with a connector protector, the probe ensures secure and dependable electrical connections, reducing the risk of signal loss or disconnection in the field. It operates effectively in harsh environments, with an operating temperature range of -52°C to +176°C (-62°F to +348°F), making it suitable for applications exposed to high temperatures, vibration, or chemical exposure. The probe maintains excellent electrical performance, featuring 50 Ω output resistance, compatibility with field wiring from 0.2 to 1.5 mm² (16 to 24 AWG), and less than 2 mV change in output voltage per volt change in input voltage, ensuring stable and accurate signal transmission to monitoring systems. With multiple agency approvals, the 3300 NSv Proximity Probe meets international safety and operational standards, allowing deployment across diverse industrial environments. Its reliable performance, adaptability, and compatibility with existing Proximitor systems make it an ideal solution for comprehensive machinery protection and vibration analysis.

Specifications

Competitive Advantage

1.Superior Chemical Resistance

The 3300 NSv Proximity Probe stands out with its enhanced chemical resistance, making it highly suitable for use in harsh industrial environments. This feature enables it to perform reliably in settings where exposure to chemicals, oils, and solvents is common. Compared to other probes, this increased resistance ensures longevity and durability, reducing the need for frequent maintenance or replacements in challenging applications like process compressors.

2.Versatile Installation Options

With an overall case length of 5 inches and total length options of 1.0 meter (39 inches), the 3300 NSv Proximity Probe offers flexibility for various installation configurations. Its miniature coaxial ClickLoc connector with a connector protector simplifies installation and ensures secure, long-lasting connections. The probe is also lightweight (0.10 kg) and compact (1.3x1.2x70 cm), making it easy to install in tight spaces without compromising on performance.

3.Proven Compatibility and Certifications

The 3300 NSv Proximity Probe is compatible with Bently Nevada’s existing Proximitor sensor systems, allowing for seamless integration into legacy systems. It comes with multiple agency approvals, ensuring its compliance with global safety and performance standards. This certification provides peace of mind for users, knowing the probe meets the required operational and safety benchmarks in various industrial settings.
