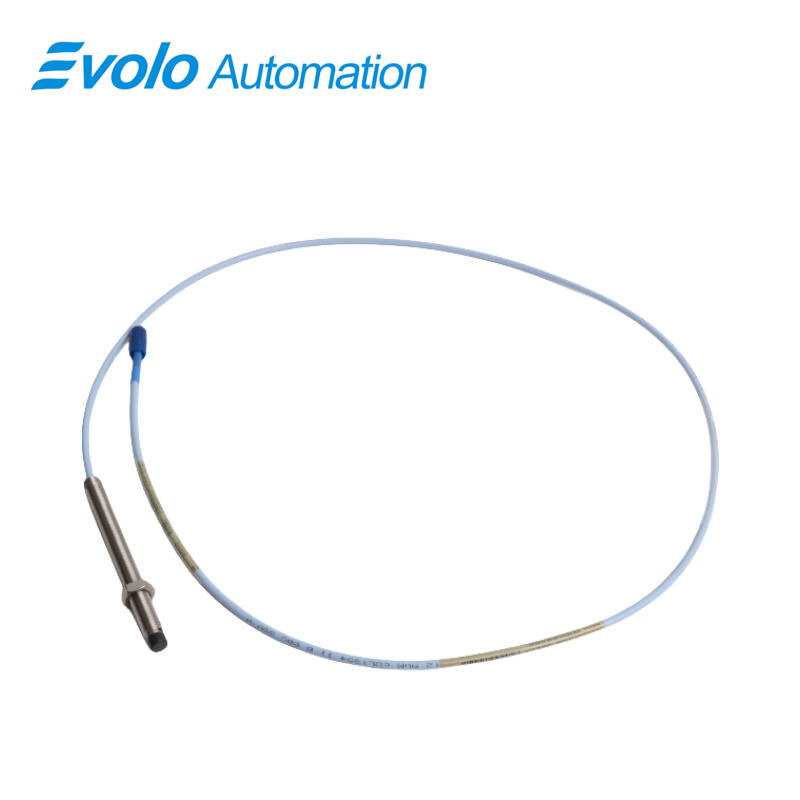

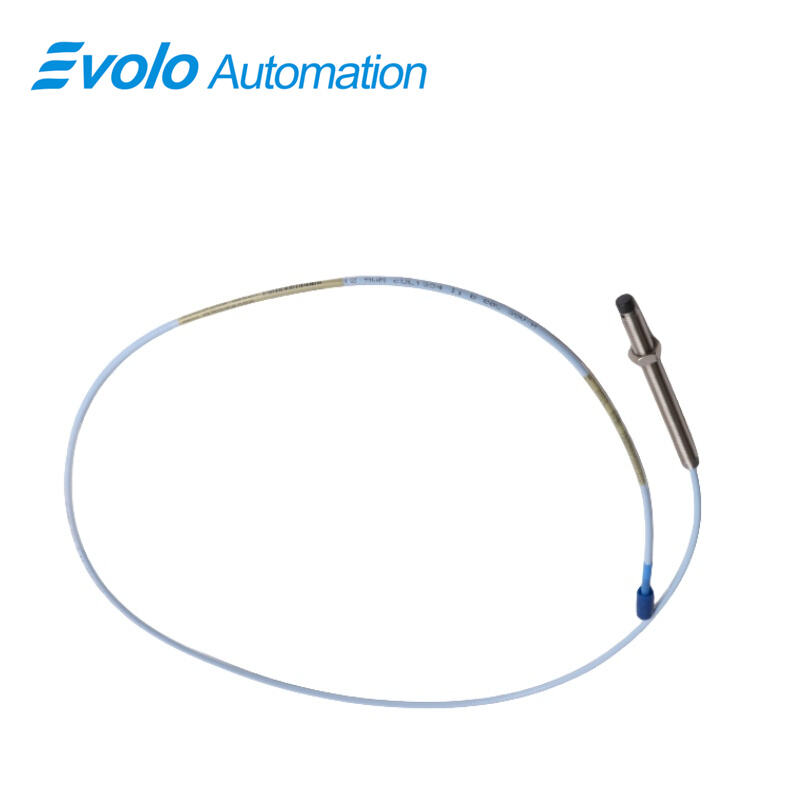

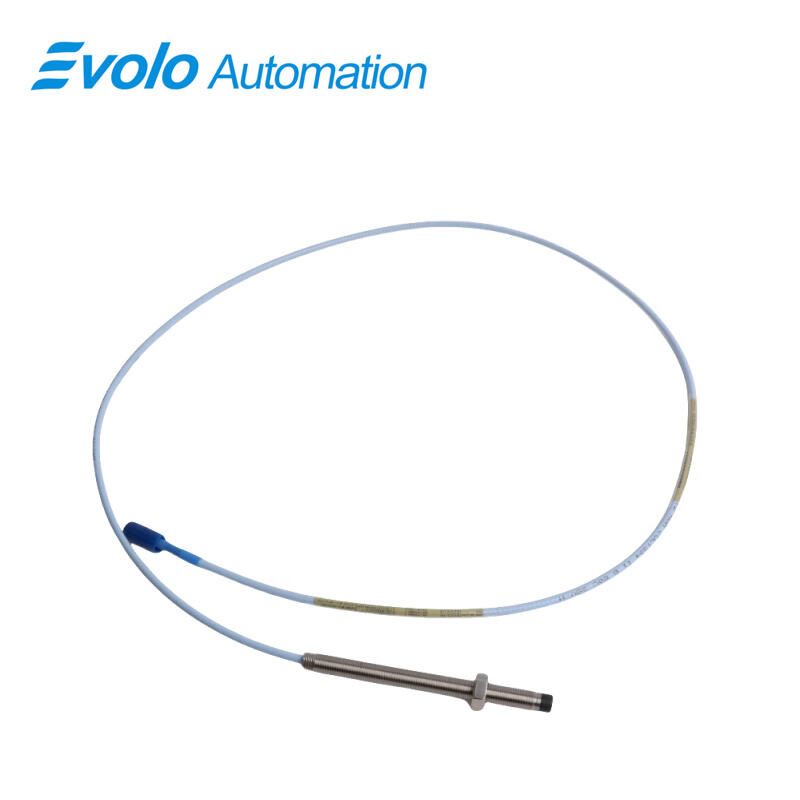

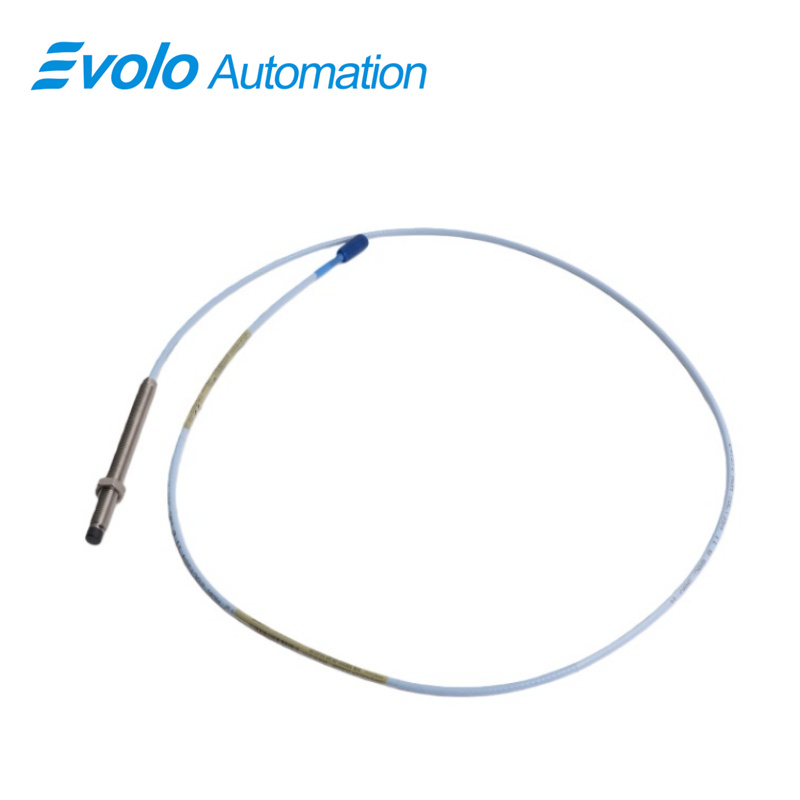

330101-00-43-15-12-05 3300 XL 8 mm Proximity Probe

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	330101-00-43-15-12-05
Minimum Order Quantity:	1
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

The 330101-00-43-15-12-05 3300 XL 8 mm Proximity Probe is a high-precision eddy current transducer optimized for industrial automation, vibration monitoring, and predictive maintenance systems. Designed for both static (position) and dynamic (vibration) measurements, the probe delivers an output voltage directly proportional to the distance between the probe tip and a conductive surface, providing reliable data for automated control systems, fluid-film bearing machinery, and rotating equipment diagnostics.

This 3300 XL 8 mm probe features a 4.3-inch overall case length, a 1.5-meter FluidLoc cable, and a Miniature coaxial ClickLoc connector, ensuring secure, high-integrity connections in automated environments. The 3/8-24 UNF threaded probe case provides up to 0.563-inch thread engagement, while the integrated TipLoc and CableLoc system offers 330 N (75 lbf) pull strength, preventing disconnection under extreme vibration. Operating across a temperature range from -52°C to +177°C (-62°F to +350°F), the probe has 50 Ω output resistance, 69.9 pF/m extension cable capacitance, and less than 2 mV/V supply sensitivity, guaranteeing stable and accurate measurements. Fully compliant with CSA, ATEX, and IECEx certifications and backward compatible with other 3300 series probes and components, the 3300 XL 8 mm probe supports API 670 standards for linear range, mechanical configuration, and temperature stability, providing a reliable solution for automated machinery monitoring.

Applications

Application 1: Vibration Monitoring in High-Speed Turbines

The 3300 XL 8 mm probe measures radial vibration on turbines operating at high RPMs with 2 mm linear range, enabling automated detection of imbalance and early warning for predictive maintenance.

Application 2: Shaft Position Measurement in Pumps

By providing precise axial displacement readings, the probe allows automated systems to control thrust clearance in pumps, reducing wear and extending machine life.

Application 3: Keyphasor Reference for Speed Monitoring

The probe acts as a Keyphasor sensor, supplying accurate rotational phase data for automated control and synchronization, ensuring optimal performance in industrial automation setups.

Application 4: Overspeed Protection Systems

Integrated into overspeed protection schemes, the probe provides real-time rotational speed feedback, triggering automated shutdowns to prevent damage in critical machinery.

Application 5: Automated Predictive Maintenance

Continuous monitoring of vibration and position allows integration with predictive maintenance platforms, minimizing unplanned downtime and supporting intelligent automation strategies.

Specifications

Competitive Advantage

Competitive Advantage 1: Hazardous Environment Certification

With CSA, ATEX, and IECEx approvals, the probe can safely operate in explosive or flammable atmospheres, ensuring reliable automated monitoring in critical environments.

Competitive Advantage 2: FluidLoc Cable Design

The FluidLoc cable prevents oil or liquid ingress, maintaining signal integrity and durability in high-performance automated equipment.

Competitive Advantage 3: Extreme Temperature Tolerance

Operating from -52°C to +177°C (-62°F to +350°F), the probe delivers stable, accurate measurements in harsh industrial conditions without frequent recalibration.

Competitive Advantage 4: Enhanced Mechanical Strength

The TipLoc and CableLoc design provides 330 N pull strength, securing the probe in high-vibration automated machinery.

Competitive Advantage 5: Backward Compatibility and API 670 Compliance

Fully compatible with legacy 3300 series components and compliant with API 670 standards, the probe supports standardized, reliable, and automated condition monitoring across various industrial applications.
