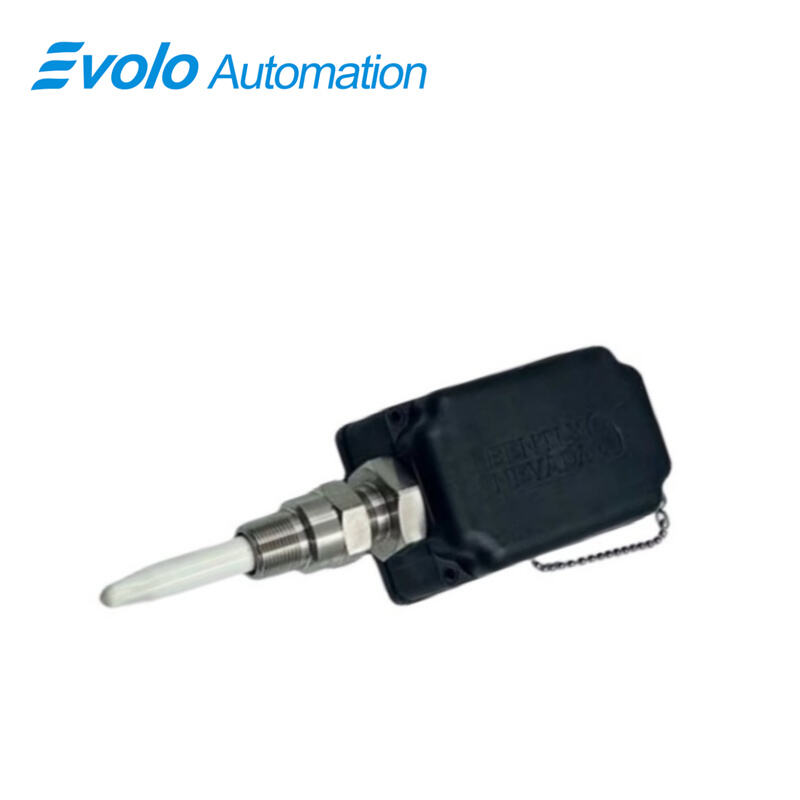

330880-28-20-038-00-02 PROXPAC XL Proximity Transducer

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	330880-28-20-038-00-02
Minimum Order Quantity:	1
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

The PROXPAC XL Proximity Transducer (330880-28-20-038-00-02) is a high-performance, compact proximity measurement device designed for industrial automation and critical rotating machinery monitoring. Featuring a 38 mm probe penetration with a 20 mm standoff adapter, this transducer provides precise shaft vibration and position measurements in constrained or recessed mounting locations. The assembly integrates a 3300 XL 8 mm Proximitor sensor with multiple approvals, enabling stable, accurate output while eliminating the need for separate Proximitor housings or extension cables.

Constructed from Polyphenylene Sulfide (PPS) reinforced with glass and conductive fibers, the PROXPAC XL housing ensures high mechanical strength, chemical resistance, and effective electrostatic charge dissipation. It is rated IP66 and Type 4X, ensuring reliable operation in dusty, wet, or harsh industrial environments.

Electrical specifications include supply sensitivity < 2 mV per volt, output resistance of 50 Ω, and compatibility with 16–24 AWG (0.2–1.5 mm²) field wiring, providing low-noise, high-precision measurements. The transducer supports a linear range of 2 mm (80 mils) with a recommended gap setting of 1.27 mm (50 mils), and accommodates shafts from 50.8 mm (2.0 in) minimum to 76.2 mm (3.0 in) recommended. Operating temperatures range from -52°C to +100°C (-62°F to +212°F), making this device ideal for turbines, motors, pumps, and compressors in automated condition monitoring systems.

Applications

1. Compact Motor Shaft Monitoring
The 20 mm standoff adapter and 38 mm probe penetration allow accurate monitoring of motor shafts in limited-space installations, ensuring early detection of imbalance or misalignment.

2. Turbine Vibration Analysis
Integrated 3300 XL sensor enables continuous, high-resolution vibration measurement on turbine shafts, supporting automated predictive maintenance and reducing downtime.

3. Pump and Compressor Condition Monitoring
Compact housing allows installation in tight pump and compressor assemblies while delivering precise shaft displacement data for performance optimization.

4. Harsh Environment Operations
With IP66 and Type 4X ratings, the PROXPAC XL transducer operates reliably in wet, dusty, or corrosive environments common in chemical plants, power generation, and refineries.

5. Direct System Integration
Self-contained design eliminates extension cables and separate Proximitor housings, enabling straightforward connection to monitoring systems for efficient automation workflows.

Specifications

Competitive Advantage

1. Integrated Sensor Design
The built-in 3300 XL Proximitor sensor removes the need for external housings, reducing potential failure points and installation complexity.

2. Compact and Durable Housing
PPS reinforced with glass and conductive fibers provides chemical resistance, high strength, and effective electrostatic dissipation for reliable long-term operation.

3. High Precision Measurement
Supports a 2 mm linear range and recommended 1.27 mm gap, ensuring accurate detection of shaft vibration and position.

4. Resistant to Severe Conditions
IP66 and Type 4X rating guarantees operation in harsh industrial environments, reducing maintenance and improving equipment longevity.

5. Simplified Installation
The 20 mm standoff adapter and support for 16–24 AWG wiring enable easy installation in automated systems, saving time and reducing labor costs.
