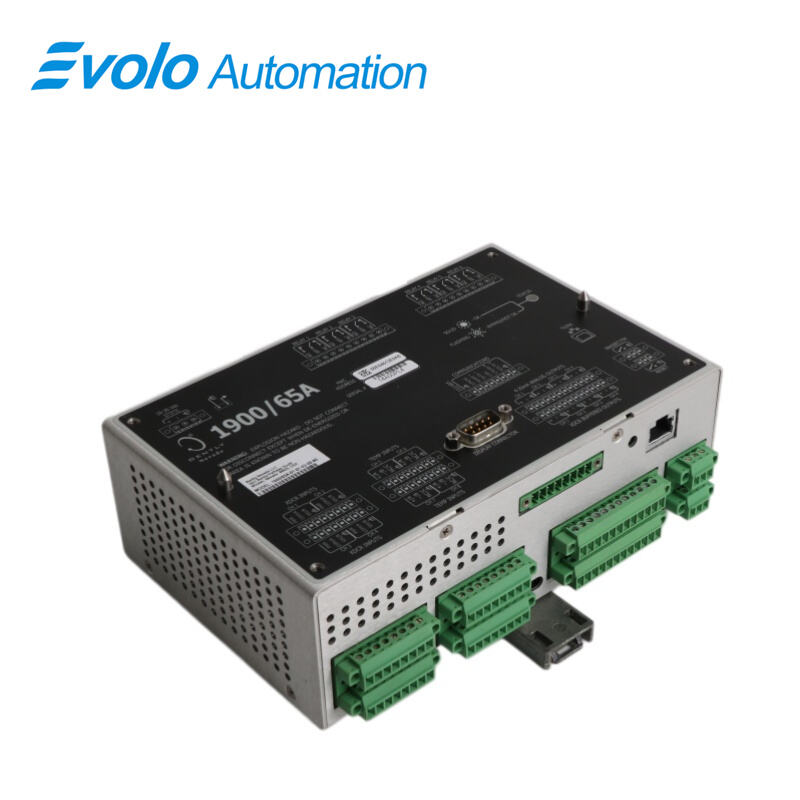

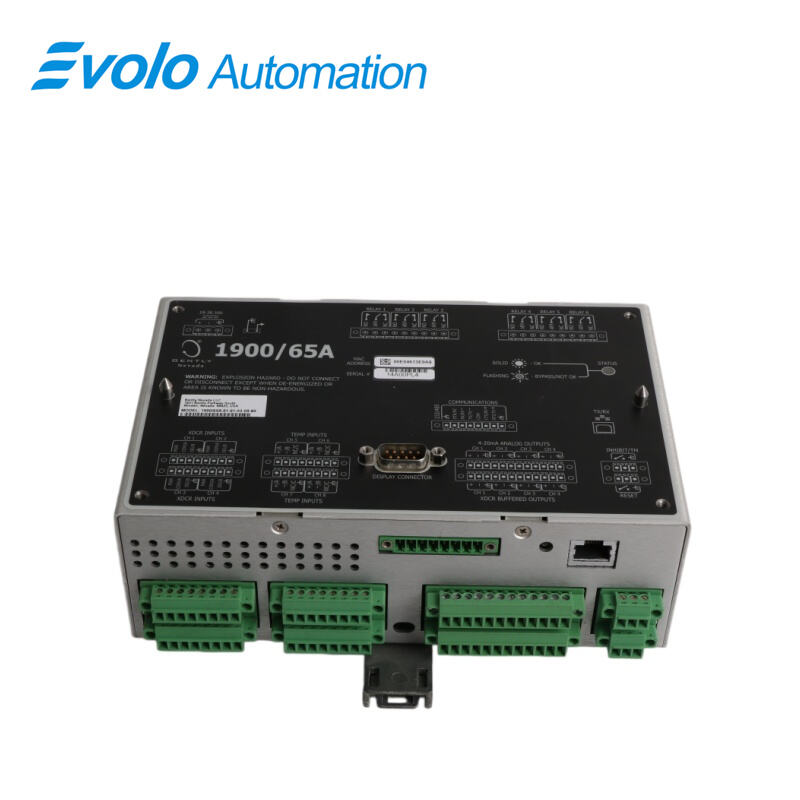

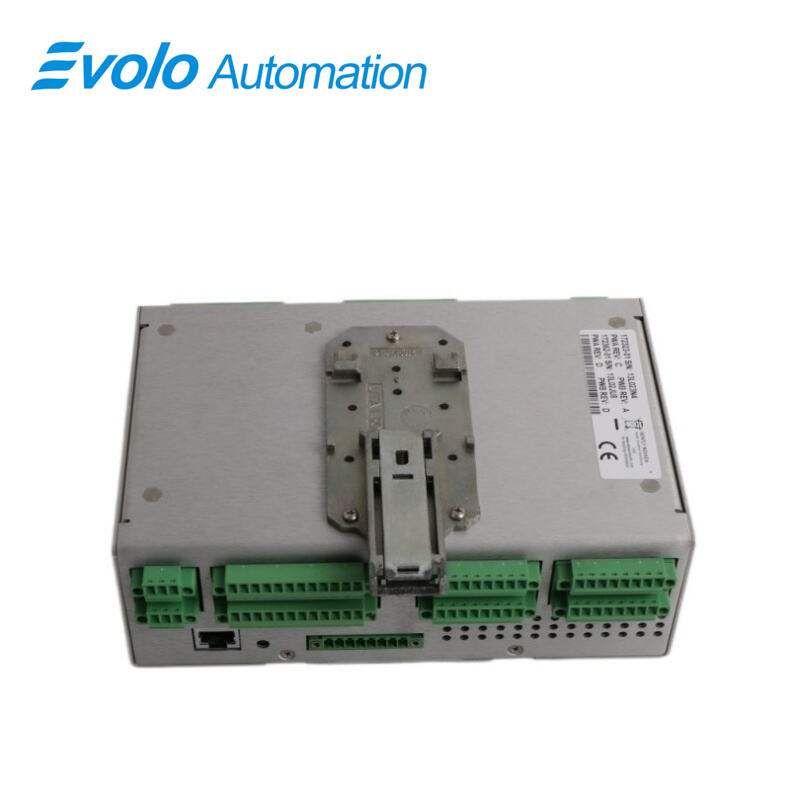

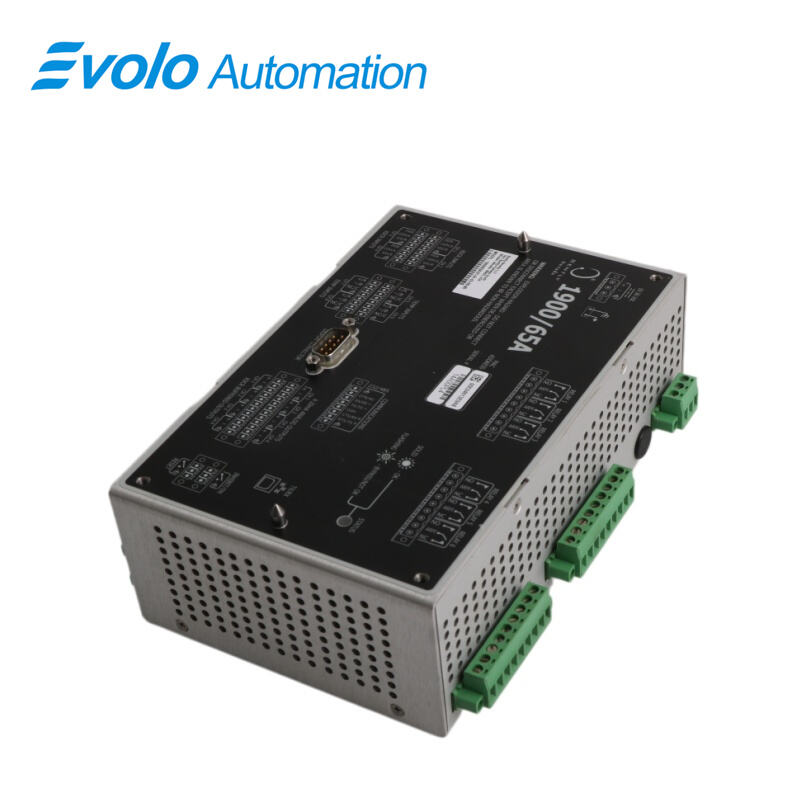

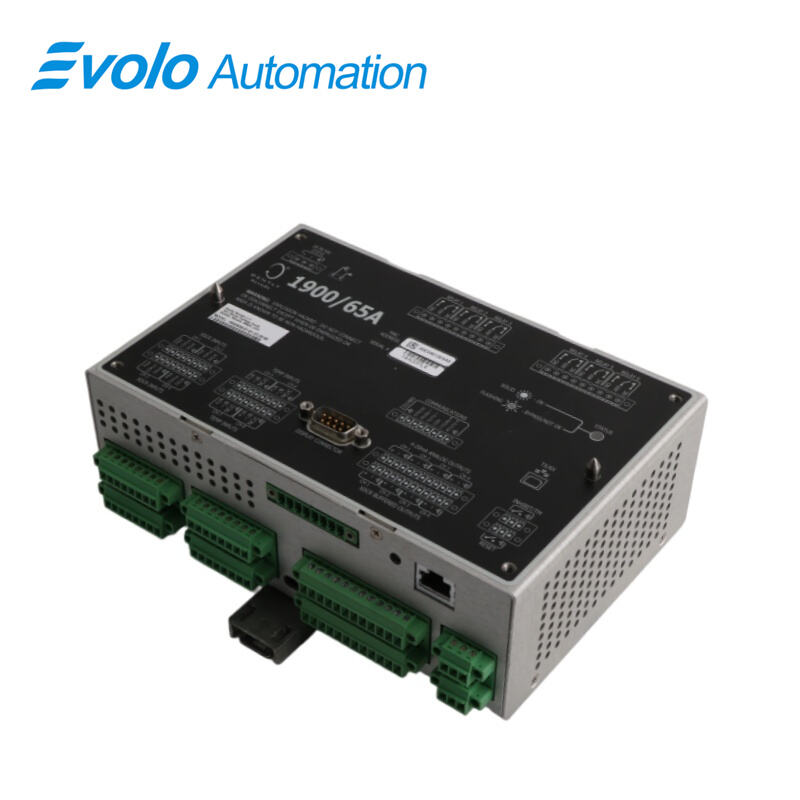

1900/65A 172323-01 1900/65A 167699-02 General Purpose Equipment Monitor
Email: [email protected]
whatsApp: +86-18150117685
- Overview
- Quick Detail
- Description
- Applications
- Specifications
- Competitive Advantage
- Recommended Products
Overview
Place of Origin: |
USA |
Brand Name: |
Bently Nevada |
Model Number: |
1900/65A 172323-01 1900/65A 167699-02 |
Packaging Details: |
Original new Factory Sealed |
Delivery Time: |
5-7 days |
Payment Terms: |
T/T |
Supply Ability: |
In stock |
Quick Detail
|
Transducer Inputs: Channels 1-4 configurable for acceleration, velocity, or displacement transducers |
Transducer Inputs: Channels 1-4 configurable for acceleration, velocity, or displacement transducers |
|
Vibration Variable Filter Range: 0.5 Hz – 25 kHz, 4-pole high-pass, 4-pole low-pass |
Vibration Variable Filter Range: 0.5 Hz – 25 kHz, 4-pole high-pass, 4-pole low-pass |
|
Enveloping High-Pass Filter: 25 Hz – 5 kHz, 4-pole, configurable |
Enveloping High-Pass Filter: 25 Hz – 5 kHz, 4-pole, configurable |
|
Enveloping Low-Pass Filter: 125 Hz – 25 kHz, 2-pole, configurable |
Enveloping Low-Pass Filter: 125 Hz – 25 kHz, 2-pole, configurable |
|
Enveloped Variable High-Pass Filter: 0.1 Hz min, 2-pole, must be greater than Enveloped Variable low-pass |
Enveloped Variable High-Pass Filter: 0.1 Hz min, 2-pole, must be greater than Enveloped Variable low-pass |
|
Enveloped Variable Low-Pass Filter: > Enveloped Variable high-pass and < Enveloping high-pass, 4-pole |
Enveloped Variable Low-Pass Filter: > Enveloped Variable high-pass and < Enveloping high-pass, 4-pole |
|
Bias Filter: 0.01 Hz, 1-pole low-pass |
Bias Filter: 0.01 Hz, 1-pole low-pass |
|
OK Filter: 2.4 kHz, 1-pole low-pass |
OK Filter: 2.4 kHz, 1-pole low-pass |
|
Full Scale Vibration Range: 20 – 500 m/s² (2 – 50 g), peak and RMS |
Full Scale Vibration Range: 20 – 500 m/s² (2 – 50 g), peak and RMS |
|
Full Scale Enveloped Range: 20 – 500 m/s² (2 – 50 g), peak and RMS |
Full Scale Enveloped Range: 20 – 500 m/s² (2 – 50 g), peak and RMS |
|
Full Scale Integrated Range: 10 – 100 mm/s (0.4 – 4 in/s), peak and RMS |
Full Scale Integrated Range: 10 – 100 mm/s (0.4 – 4 in/s), peak and RMS |
|
Bias Voltage: -24 V |
Bias Voltage: -24 V |
|
Vibration Variable Accuracy: ±1% of full scale range |
Vibration Variable Accuracy: ±1% of full scale range |
|
Input Impedance 3-Wire Voltage Mode: 10 kΩ |
Input Impedance 3-Wire Voltage Mode: 10 kΩ |
|
Alarm Status Time Delay Minimum: 0.1 second |
Alarm Status Time Delay Minimum: 0.1 second |
|
Alarm Status Time Delay Maximum: 60 seconds |
Alarm Status Time Delay Maximum: 60 seconds |
|
Alarm Adjustment Resolution: 0.1 second |
Alarm Adjustment Resolution: 0.1 second |
|
Status LED: Indicates when the monitor is functioning properly |
Status LED: Indicates when the monitor is functioning properly |
|
Dimension: |
19.6x16x10.8cm |
|
Weight: |
1.36kg |
Description
The 1900/65A 172323-01 1900/65A 167699-02 General Purpose Equipment Monitor provides continuous monitoring and protection for industrial machinery. It features four configurable transducer inputs for 2- or 3-wire accelerometers, velocity sensors, or proximity sensors, and four temperature inputs supporting Type E, J, K, T thermocouples or RTDs. The 1900/65A 172323-01 1900/65A 167699-02 delivers six relay outputs, four 4–20 mA recorder outputs, and a dedicated buffered output for direct transducer signals. Vibration ranges span 20–500 m/s² peak and RMS, with full integration from 10–100 mm/s and filtering options from 0.5 Hz to 25 kHz. Alarm responses can be configured from 0.1 to 60 seconds. Optional Modbus Gateway allows the 1900/65A 172323-01 1900/65A 167699-02 to provide variables, statuses, and event lists to DCS, SCADA, PLCs, or System 1 software via Ethernet or RS232/485. A display module can be mounted up to 250 ft away for local monitoring and configuration. Compact dimensions and DIN rail, bulkhead, or NEMA 4X/IP66 fiberglass enclosures make the 1900/65A 172323-01 1900/65A 167699-02 suitable for automated monitoring, control, and protection of general-purpose equipment in diverse industrial applications.
Applications
Application: Continuous Vibration Monitoring
The 1900/65A 172323-01 1900/65A 167699-02 continuously measures vibration on rotating machinery using four configurable transducer inputs for 2- or 3-wire accelerometers, velocity sensors, or proximity sensors. Vibration ranges span 20–500 m/s² peak and RMS, with integration from 10–100 mm/s, enabling automated detection of excessive vibration and activation of relay outputs.
Application: Temperature Tracking for Equipment
The 1900/65A 172323-01 1900/65A 167699-02 provides four temperature inputs supporting Type E, J, K, T thermocouples or 2-/3-wire RTDs. The monitor outputs 4–20 mA recorder signals and buffered outputs, allowing automated control or shutdown of machinery when temperature thresholds are exceeded.
Application: Remote and Local Display Control
Optional displays can be mounted up to 250 ft from the 1900/65A 172323-01 1900/65A 167699-02, providing operators with real-time channel data and minor configuration capabilities for local automation monitoring.
Specifications
|
Operating Temperature: -20°C to +70°C (-4°F to +158°F) |
Operating Temperature: -20°C to +70°C (-4°F to +158°F) |
|
Storage Temperature: -30°C to +90°C (-22°F to +194°F) |
Storage Temperature: -30°C to +90°C (-22°F to +194°F) |
|
Operating Humidity: 95% non-condensing, maximum |
Operating Humidity: 95% non-condensing, maximum |
|
Storage Humidity: 95% non-condensing, maximum |
Storage Humidity: 95% non-condensing, maximum |
|
DIN Rail Mounting Option: 35 mm DIN rail |
DIN Rail Mounting Option: 35 mm DIN rail |
|
Bulkhead Mounting Option: Bulkhead mounting plate |
Bulkhead Mounting Option: Bulkhead mounting plate |
|
Weatherproof Enclosure Option: NEMA 4X/IP66 Fiberglass Housing with window, 300.2 mm x 249.4 mm x 209.8 mm (11.82 in x 9.82 in x 8.26 in) |
Weatherproof Enclosure Option: NEMA 4X/IP66 Fiberglass Housing with window, 300.2 mm x 249.4 mm x 209.8 mm (11.82 in x 9.82 in x 8.26 in) |
Competitive Advantage
Competitive Advantage: Flexible Alarm and Output Configuration
The 1900/65A 172323-01 1900/65A 167699-02 includes six relay outputs with voting logic, four 4–20 mA recorder outputs, and a dedicated buffered output. Alarms can be set from 0.1 to 60 seconds, allowing engineers to tailor alerts directly to equipment needs.
Competitive Advantage: Modbus Integration for Automation Systems
With optional Modbus Gateway, the 1900/65A 172323-01 1900/65A 167699-02 communicates variables, statuses, and event logs to DCS, SCADA, PLCs, or System 1 software via Ethernet or RS232/485, supporting automated monitoring and control.
Competitive Advantage: Compact and Durable Mounting
The 1900/65A 172323-01 1900/65A 167699-02 fits DIN rail, bulkhead, or NEMA 4X/IP66 fiberglass enclosures. Its compact size allows installation in tight spaces while protecting the unit in harsh industrial environments.
