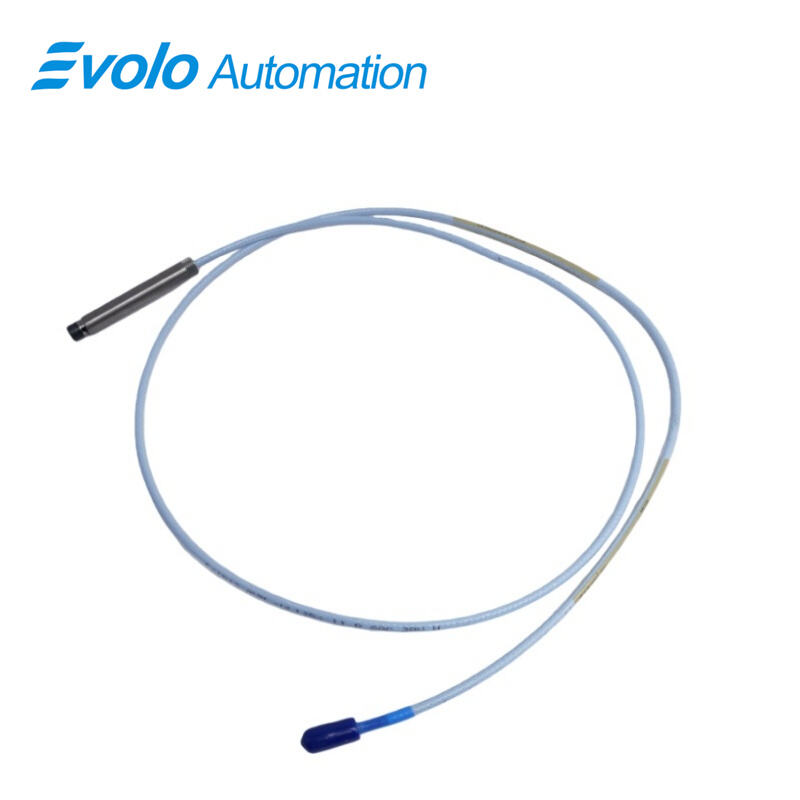

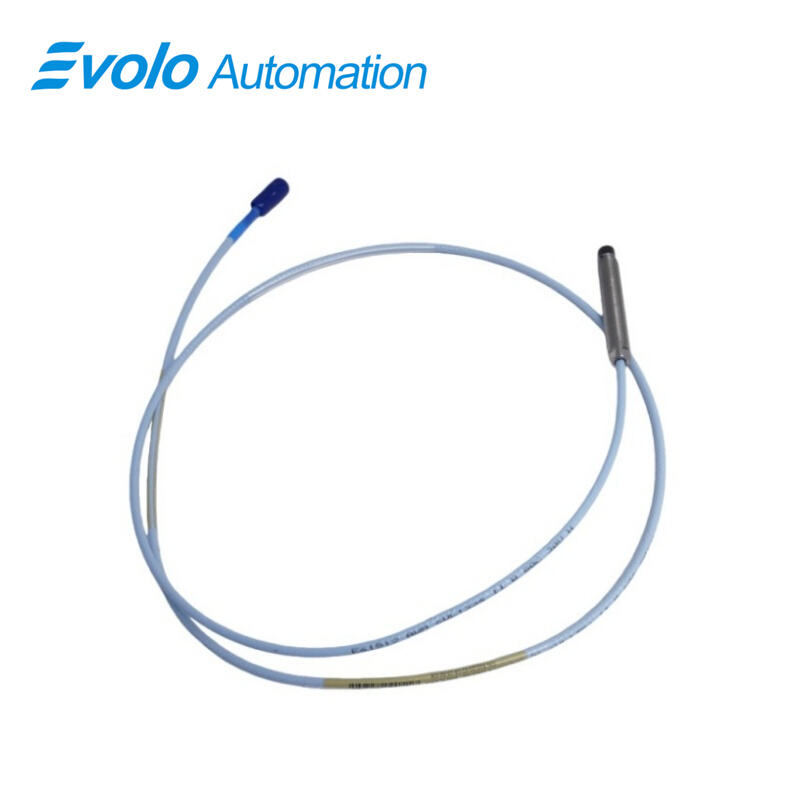

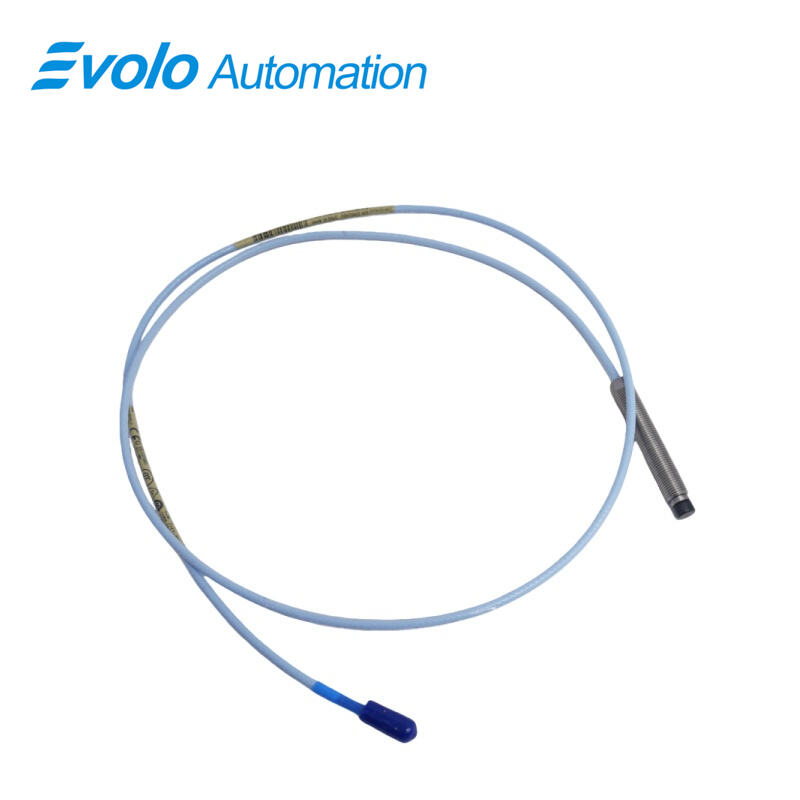

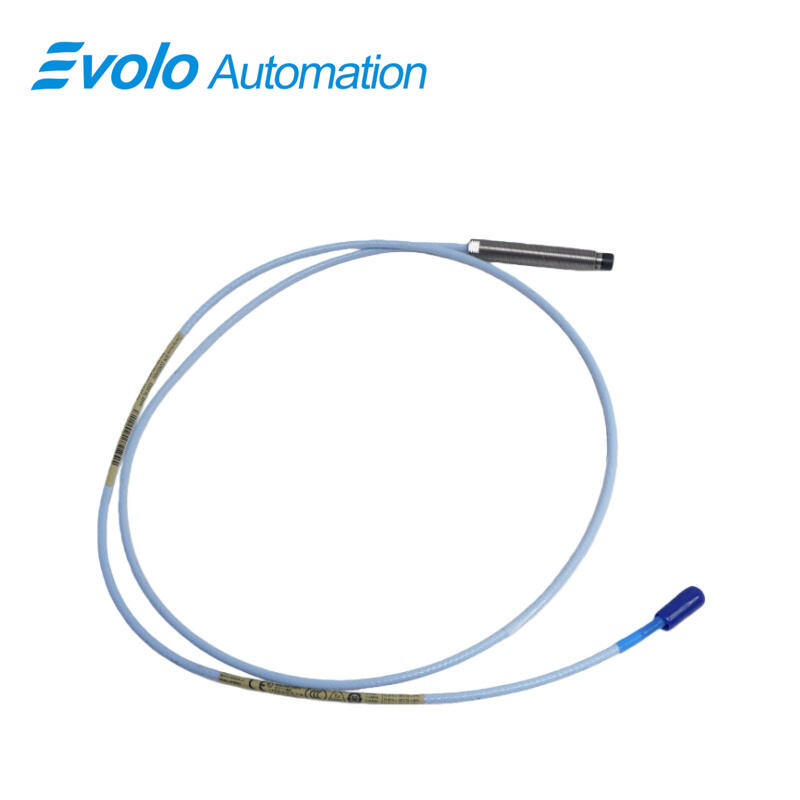

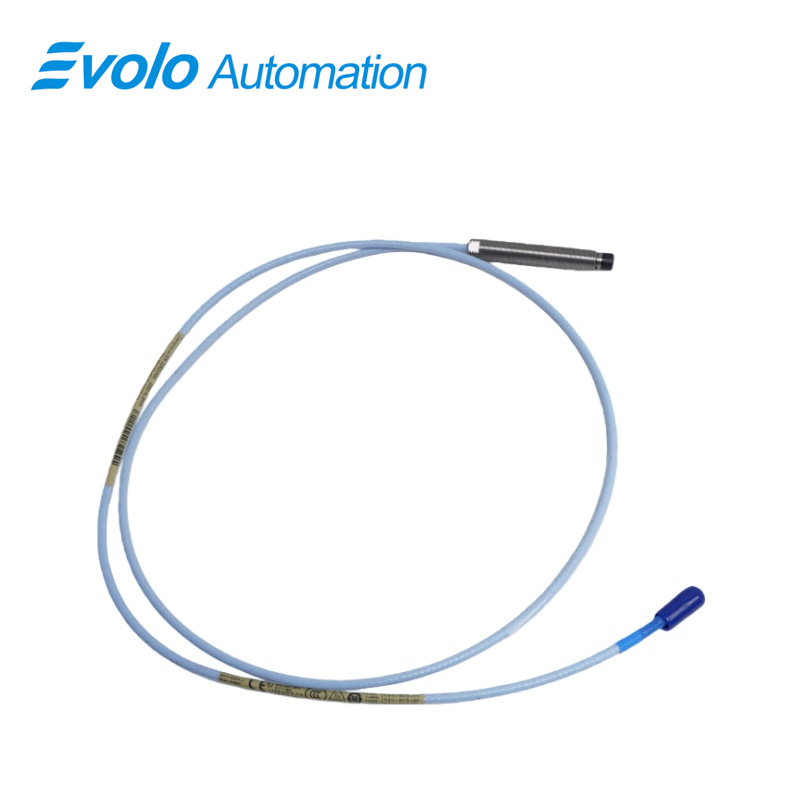

330103-00-06-10-12-05 3300 XL 8 mm Proximity Probe

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	330103-00-06-10-12-05
Minimum Order Quantity:	1
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

The 330103-00-06-10-12-05 3300 XL 8 mm Proximity Probe is a high-precision eddy current transducer engineered for industrial automation applications, providing accurate vibration and position measurements on fluid-film bearing machines. Equipped with a 8 mm probe tip and 2 mm linear range (80 mils), the system outputs a voltage directly proportional to the distance between the probe tip and conductive surfaces. It supports both static (position) and dynamic (vibration) measurements with less than 2 mV change per volt input variation and 50 Ω output resistance, ensuring stable and repeatable signals for PLC, DCS, and SCADA integration. The probe features a patented TipLoc molding method for robust tip bonding and a CableLoc design providing 330 N (75 lbf) pull strength, while the FluidLoc cable option prevents oil or fluid leakage. Fully compliant with API 670 standards and certified for CSA, ATEX, and IECEx hazardous environments, the 3300 XL 8 mm probe is backward compatible with non-XL 3300 series components and interchangeable with extension cables and Proximitor sensors, reducing installation complexity and maintenance costs. Its -52°C to +177°C operating range, high durability, and low-noise signal transmission make it ideal for high-performance industrial automation and condition monitoring systems.

Applications

Vibration Monitoring on Fluid-Film Bearings
The 3300 XL 8 mm probe measures high-speed vibrations in turbines, compressors, and pumps with 2 mm linear range, providing early detection of imbalance, misalignment, or bearing wear to prevent unexpected downtime.

Position Sensing for Rotating Machinery
Accurately monitors shaft or rotor positions in industrial motors and generators. Its stable voltage output and 50 Ω resistance ensure precise static and dynamic measurements for PLC and DCS systems.

Keyphasor Reference and Speed Measurements
Outputs phase-locked Keyphasor signals for speed and phase synchronization, supporting real-time condition monitoring and predictive maintenance in heavy-duty rotating equipment.

Oil-Resistant Applications in Harsh Environments
Optional FluidLoc cables prevent oil or fluid leakage in lubrication-intensive machinery, while CSA/ATEX/IECEx approvals ensure safe operation in hazardous areas like chemical plants and refineries.

Integration in Automation Control Systems
With Miniature coaxial ClickLoc connectors and patented CableLoc design, the probe provides reliable analog signals to DCS, SCADA, or PLCs for continuous monitoring, enabling automated diagnostics and reduced maintenance cycles.

Specifications

Competitive Advantage

Stable, Accurate Signal Output
Maintains less than 2 mV output change per volt input variation, combined with 50 Ω resistance and 69.9 pF/m capacitance, providing highly repeatable and reliable vibration and position data.

Robust Mechanical Construction
Patented TipLoc and CableLoc designs with 330 N pull strength ensure the probe tip and cable remain secure under high vibration and mechanical stress, improving longevity and reducing downtime.

Harsh Environment Capability
CSA, ATEX, and IECEx approvals, combined with FluidLoc cable options, allow operation in explosive, oily, or wet environments, while the -52°C to +177°C range ensures reliability under extreme temperatures.

Backward Compatibility and Interchangeability
Fully compatible with non-XL 3300 series probes, extension cables, and Proximitor sensors, eliminating the need for bench calibration and simplifying upgrades or component replacements.

API 670 Standard Compliance
The probe system complies with API 670 for linear range, accuracy, temperature stability, and mechanical configuration, ensuring industry-standard performance for critical rotating machinery monitoring applications.
