Overview
Place of Origin: |
USA |
Brand Name: |
Bently Nevada |
Model Number: |
330101-00-08-20-02-CN |
Minimum Order Quantity: |
1 |
Packaging Details: |
Original new Factory Sealed |
Delivery Time: |
5-7 days |
Payment Terms: |
T/T |
Supply Ability: |
In stock |
Quick Detail
|
Unthreaded Length Option(Minimum unthreaded length): |
0.0 in |
|
Overall Case Length Option(Minimum case length): |
0.8 in |
|
Total Length Option: |
2.0 meters (6.6 feet) |
|
Connector and Cable-Type Option: |
Miniature coaxial ClickLoc connector, standard cable |
|
Agency Approval Option: |
CSA, ATEX, IECEx Approvals |
|
Probe Case Thread: |
3/8-24 UNF thread |
|
Maximum Length of Thread Engagement: |
0.563 in |
|
Dimension: |
1.8x1.6x123cm |
|
Weight: |
0.06 kg |
Description

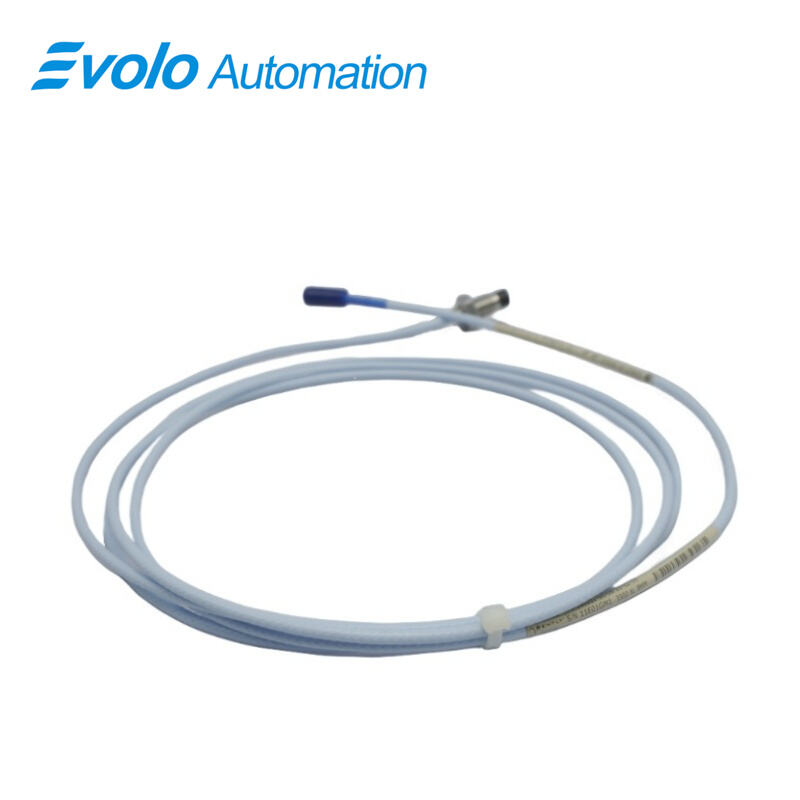

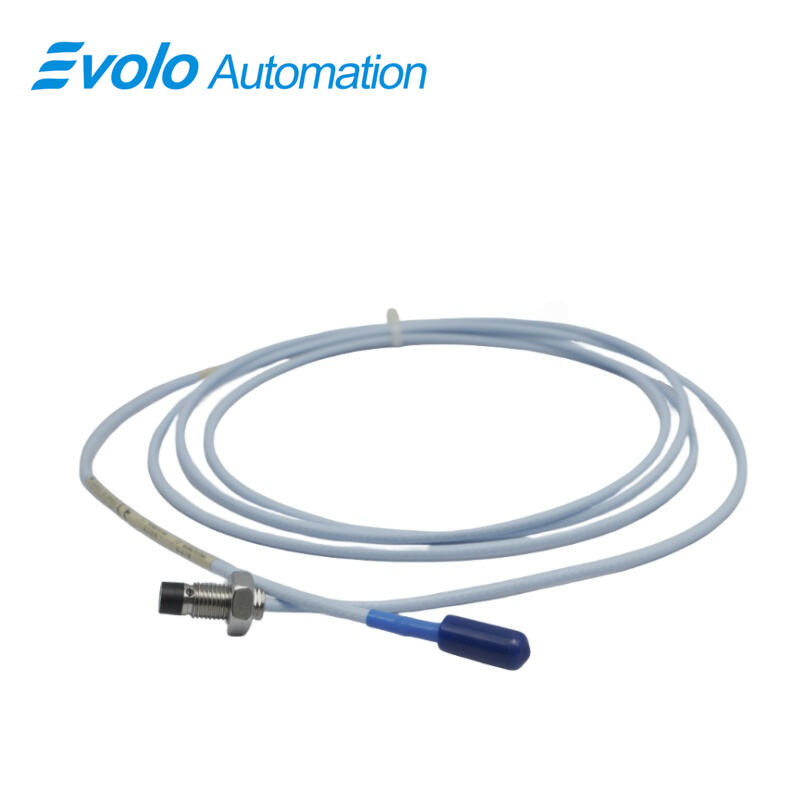

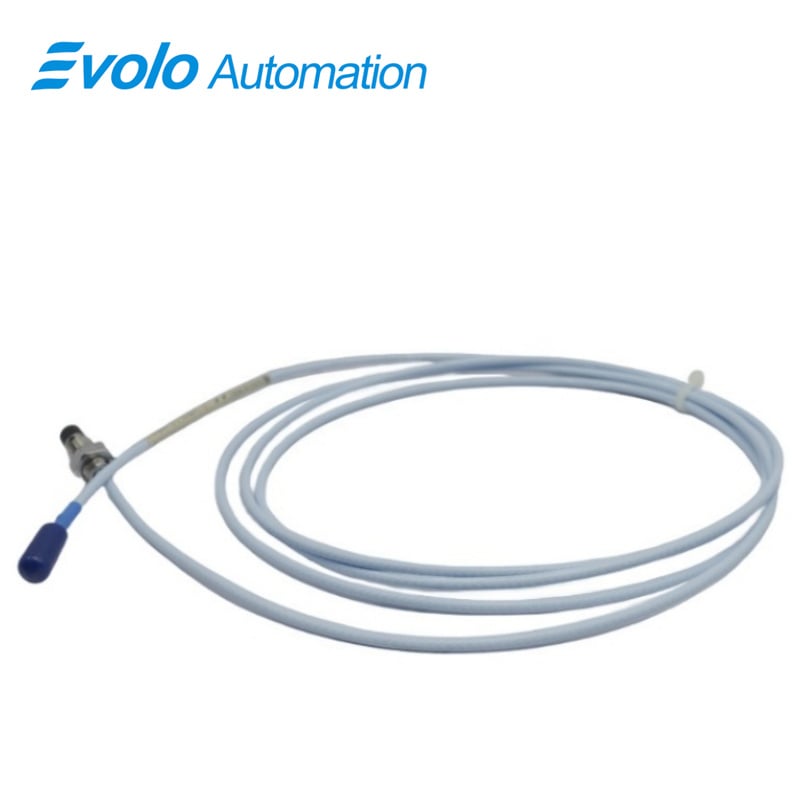

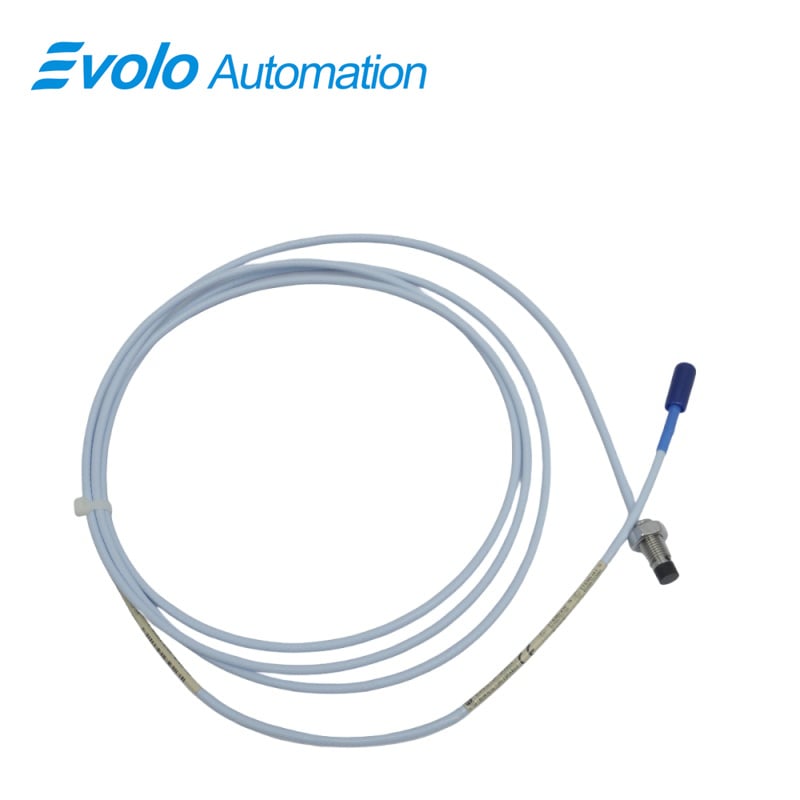

The 330101-00-08-20-02-CN 3300 XL 8 mm Proximity Probe is a precision eddy current transducer specifically engineered for industrial automation and vibration monitoring applications. This 8 mm probe provides an output voltage that is directly proportional to the distance between the probe tip and a conductive surface, enabling high-accuracy measurement of both static (position) and dynamic (vibration) signals. It is ideally suited for fluid-film bearing machinery, automated equipment diagnostics, Keyphasor reference systems, and rotational speed measurement, delivering stable and reliable data to support predictive maintenance, process control, and machinery optimization.
This compact probe features a 0.8-inch case length, a 2.0-meter standard cable with a Miniature coaxial ClickLoc connector, and a 3/8-24 UNF threaded probe case with a 0.563-inch maximum thread engagement. The device operates in extreme temperatures from -52°C to +177°C (-62°F to +350°F) and has 50 Ω output resistance, 69.9 pF/m cable capacitance, and less than 2 mV/V supply sensitivity, ensuring accurate readings under harsh conditions. Weighing only 0.06 kg, with dimensions 1.8 x 1.6 x 123 cm, it supports CSA, ATEX, and IECEx approvals for safe operation in hazardous environments. The patented TipLoc and CableLoc design provides 330 N (75 lbf) pull strength, while optional FluidLoc cabling prevents fluid leakage, enhancing reliability in automated industrial systems. Fully API 670 compliant, it supports interchangeability with 3300 series probes and Proximitor sensors, enabling streamlined integration into existing automation setups.
Applications
Application 1: High-Speed Compressor Vibration Monitoring
The probe measures radial and axial vibration with a 2 mm linear range, providing real-time data for automated control systems to prevent unexpected machine failures.
Application 2: Shaft Position Tracking in Turbomachinery
Accurate displacement monitoring enables automated adjustment of thrust bearings and rotor alignment, improving efficiency and reducing maintenance downtime.
Application 3: Keyphasor Signal Reference
The 3300 XL 8 mm probe delivers phase-synchronized output for automated rotational speed monitoring, aiding in predictive maintenance and machinery diagnostics.
Application 4: Predictive Maintenance Systems
Integration with industrial monitoring platforms allows automated alerts based on vibration and position trends, reducing operational risk and improving equipment lifecycle management.
Application 5: Automated Overspeed and Safety Protection
Provides immediate rotational feedback for automated shutdown systems, ensuring protection of critical machinery in case of overspeed events.
Specifications
|
Operating and Storage Temperature: |
-52°C to +177°C (-62°F to +350°F) |
|
Supply Sensitivity: |
Less than 2 mV change in output voltage per volt change in input voltage |
|
Output Resistance: |
50 Ω |
|
Extension Cable Capacitance: |
69.9 pF/m (21.3 pF/ft) typical |
|
Field Wiring: |
0.2 to 1.5 mm2 (16 to 24 AWG) |
|
Linear Range: |
2 mm (80 mils) |
Competitive Advantage
Competitive Advantage 1: Certified for Hazardous Areas
With CSA, ATEX, and IECEx approvals, the probe is suitable for automated monitoring in explosive atmospheres, ensuring safe operation in petrochemical and energy industries.
Competitive Advantage 2: FluidLoc Cable Reliability
The optional FluidLoc design prevents oil and other liquid ingress, maintaining signal integrity in lubricated or fluid-rich environments.
Competitive Advantage 3: Extreme Temperature Resilience
Operates in -52°C to +177°C, maintaining consistent output accuracy for industrial automation applications under extreme environmental conditions.
Competitive Advantage 4: Mechanical Robustness
Patented TipLoc and CableLoc designs provide 330 N pull strength, securing the probe and cable in high-vibration automated machinery for long-term reliability.
Competitive Advantage 5: API 670 Compliance and Interchangeability
Fully API 670 compliant and backward-compatible with other 3300 series probes and Proximitor sensors, enabling easy integration and standardized automation systems.
