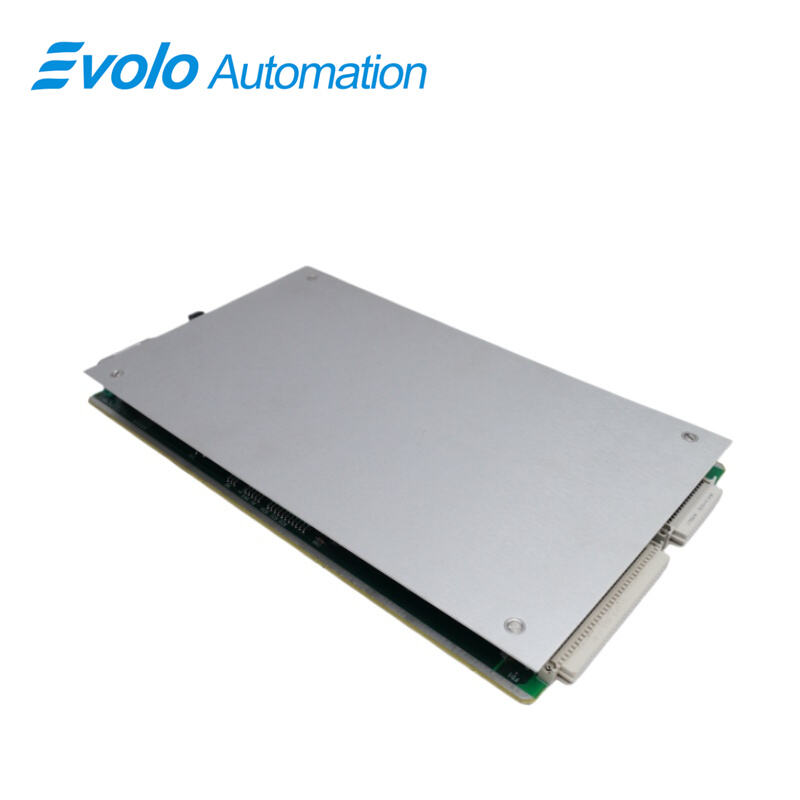

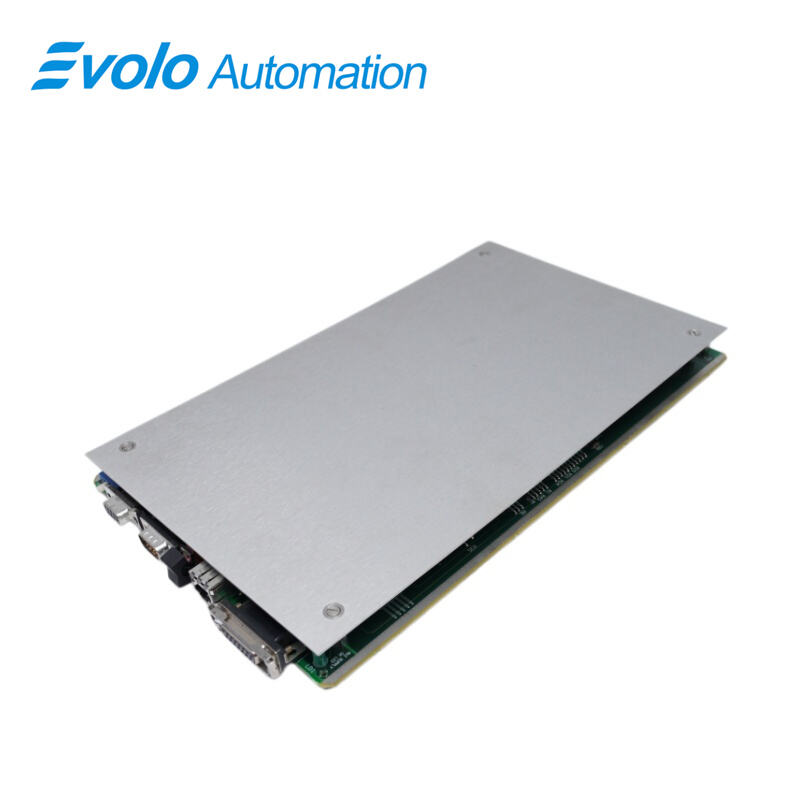

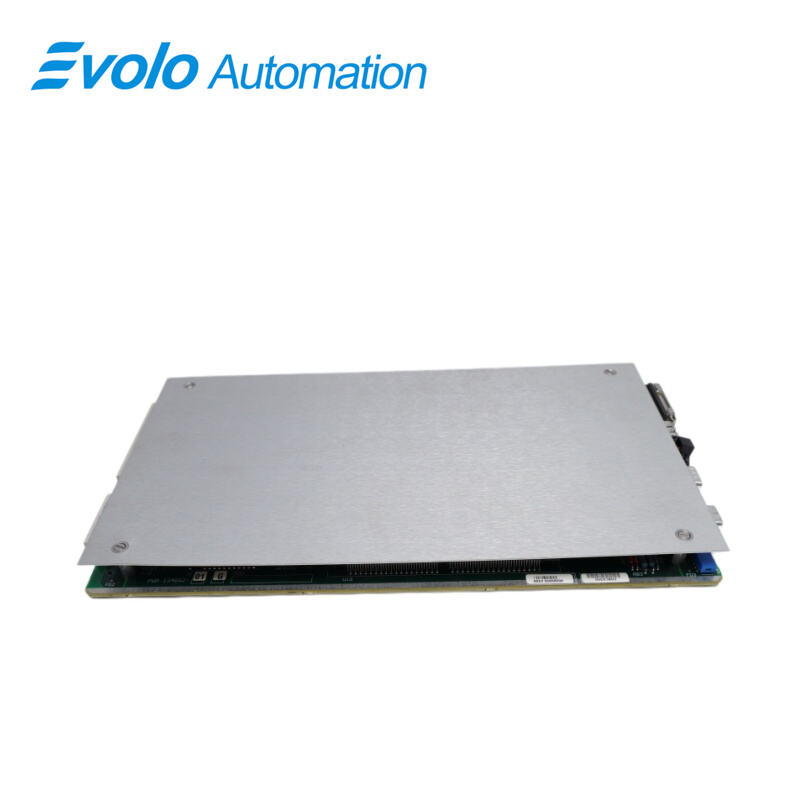

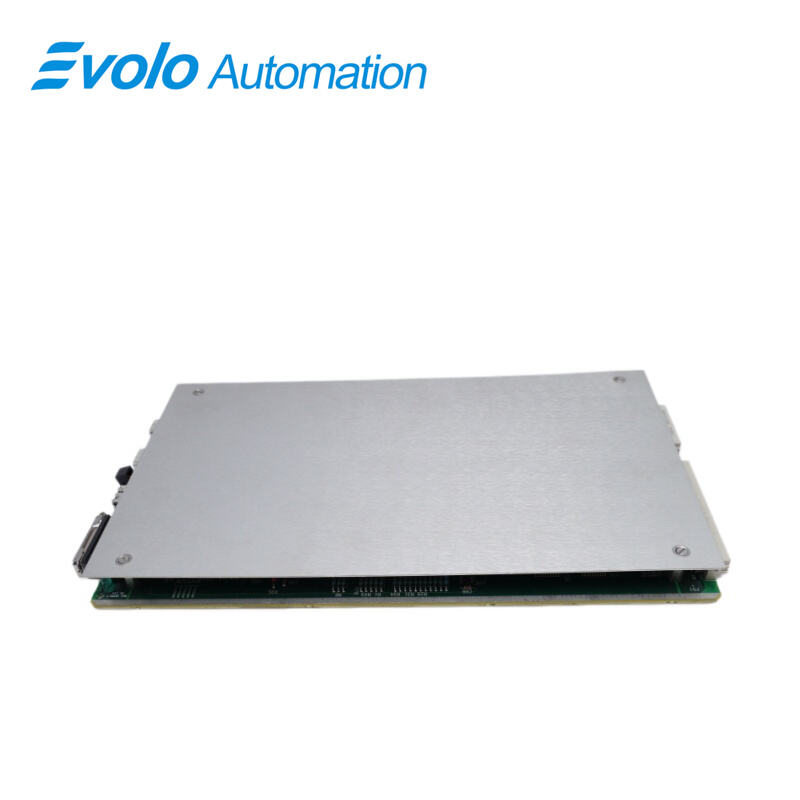

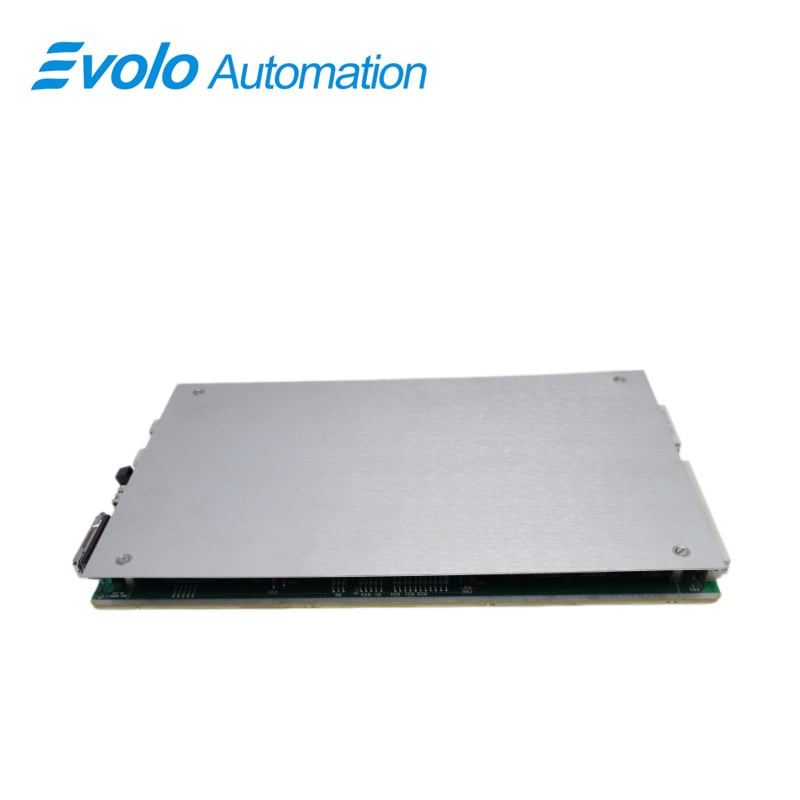

134652-01 TDXnet CPU Processor Board

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	134652-01
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

The Bently-Nevada TDXnet Transient Data Interface connects Bently Nevada M series monitors to on-line machinery management software. The Bently-Nevada 134652-01 TDXnet CPU Processor Board features a MC68EN360CEM25K processor running at 25 MHz with 16 MB memory, supporting RS-232 or Ethernet interfaces. It collects steady-state and startup/shutdown data from all channels in parallel, using time-based, event-based, or manual trigger modes. The Bently-Nevada 134652-01 TDXnet CPU Processor Board outputs high-resolution static, orbit, and spectrum data, provides two independent startup/shutdown buffers, and enables immediate recovery from power loss. Compatible as a plug-in card for the 3500 system, the Bently-Nevada 134652-01 TDXnet CPU Processor Board delivers data in binary, ASCII, or both formats, allowing automated monitoring and real-time process control in industrial systems.

Applications

Real-Time Machinery Data Collection
The Bently-Nevada 134652-01 TDXnet CPU Processor Board continuously collects steady-state data from all connected channels with a 25 MHz MC68EN360CEM25K processor. The 134652-01 TDXnet CPU Processor Board supports up to 16 MB memory, providing automated real-time monitoring for turbines, compressors, and pumps.

Startup and Shutdown Monitoring
The Bently-Nevada 134652-01 TDXnet CPU Processor Board records high-resolution startup and shutdown data in two independent buffers. The 134652-01 TDXnet CPU Processor Board enables time-based, event-based, or manual triggers to capture critical process events for automated analysis.

Data Transmission to Control Systems
The Bently-Nevada 134652-01 TDXnet CPU Processor Board uses RS-232 or Ethernet interfaces to deliver binary or ASCII data. The 134652-01 TDXnet CPU Processor Board integrates with data managers and SCADA systems, allowing industrial automation systems to receive high-resolution orbit and spectrum data.

Specifications

Competitive Advantage

High-Resolution Data Collection
The Bently-Nevada 134652-01 TDXnet CPU Processor Board captures orbit, static, and spectrum data with 0.3662 µA resolution in recorder outputs. The 134652-01 TDXnet CPU Processor Board provides precise measurement for automated vibration and process monitoring.

Flexible Trigger Modes
The Bently-Nevada 134652-01 TDXnet CPU Processor Board supports time-based, event-based, and manual triggers. The 134652-01 TDXnet CPU Processor Board allows operators to automate data collection for specific machine events, improving process control.

Plug-in Rack Integration
The Bently-Nevada 134652-01 TDXnet CPU Processor Board installs as a plug-in card for the 3500 system. The 134652-01 TDXnet CPU Processor Board integrates seamlessly with Bently Nevada M series monitors, reducing installation time and supporting automated industrial monitoring.

Ethernet and Serial Connectivity
The Bently-Nevada 134652-01 TDXnet CPU Processor Board communicates via RS-232 or Ethernet. The 134652-01 TDXnet CPU Processor Board enables automated transmission of machine data to online management software, supporting real-time analytics and control.
