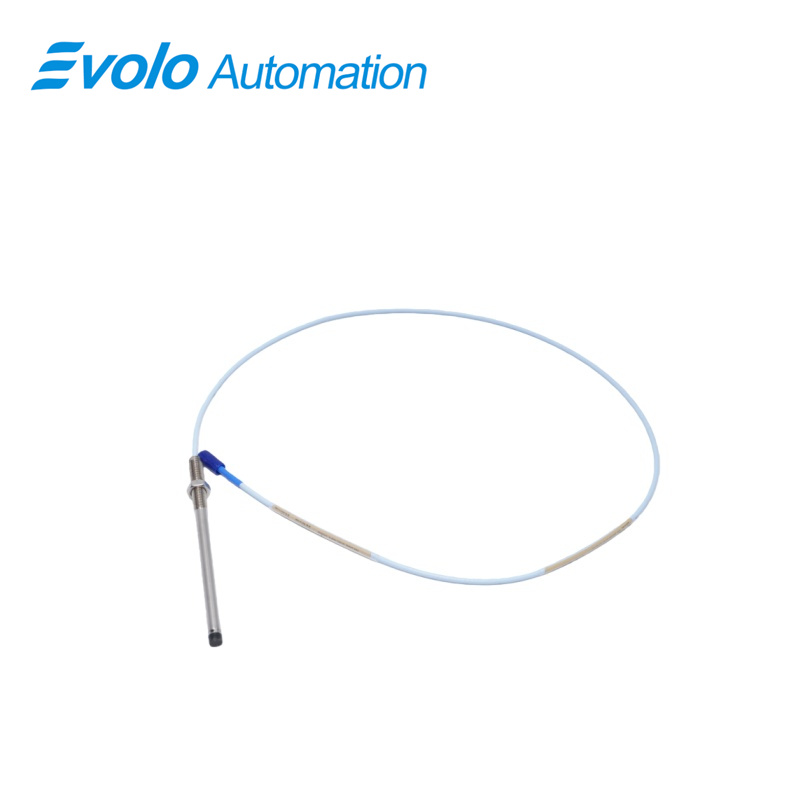

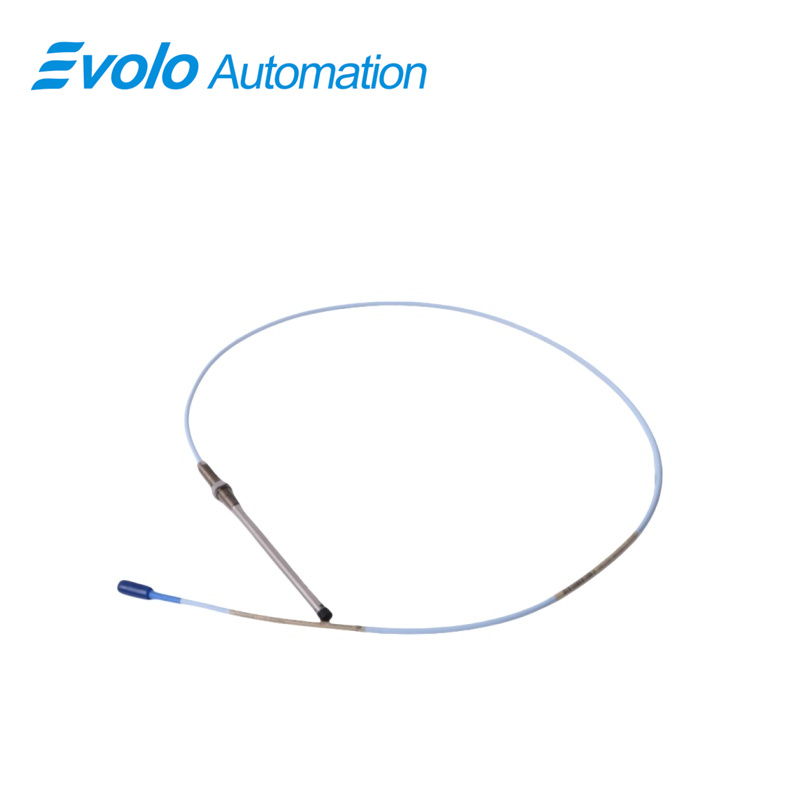

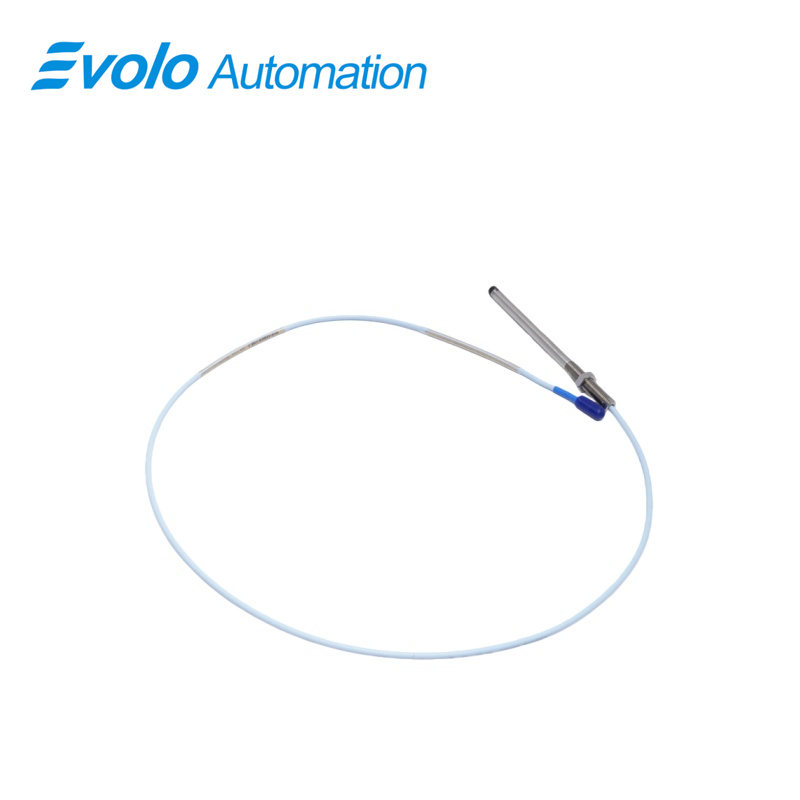

330101-33-66-10-02-05 3300 XL 8 mm Proximity Probes

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	330101-33-66-10-02-05
Minimum Order Quantity:	1
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

The 330101-33-66-10-02-05 3300 XL 8 mm Proximity Probes stand as a flagship eddy current proximity transducer solution, delivering precise measurements by generating an output voltage directly proportional to the gap between its probe tip and the target conductive surface. This advanced functionality enables the 330101-33-66-10-02-05 3300 XL 8 mm Proximity Probes to excel in both static position monitoring and dynamic vibration detection, making it an indispensable tool for industrial condition monitoring. Its primary use cases span vibration and position measurements on fluid-film bearing machinery, alongside Keyphasor reference signal generation and accurate speed quantification—critical capabilities for optimizing equipment performance and preventing unplanned downtime.

As the most advanced offering in the 3300 series eddy current transducer lineup, the 330101-33-66-10-02-05 3300 XL 8 mm Proximity Probes sets a high bar for performance and reliability. The standard configuration, paired with a 5-meter extension cable, fully adheres to the rigorous American Petroleum Institute (API) 670 Standard, meeting strict requirements for mechanical design, linear measurement range, data accuracy, and temperature stability. This compliance ensures the 330101-33-66-10-02-05 3300 XL 8 mm Proximity Probes is qualified for use in critical sectors like oil and gas, power generation, and heavy manufacturing, where adherence to industry standards is non-negotiable. A key advantage of this probe is its complete interchangeability with other 3300 XL series components, including extension cables and Proximitor sensors. This seamless compatibility eliminates the need for time-consuming component matching or bench calibration, streamlining installation, maintenance, and replacement processes for industrial operators.

Applications

The 330101-33-66-10-02-05 3300 XL 8 mm Proximity Probes stand as a high-performance eddy current monitoring solution, engineered to deliver precise static position and dynamic vibration measurements across oil and gas, power generation, heavy machinery, and chemical industries. Certified with CSA, ATEX, and IECEx approvals, this probe ensures safe operation in hazardous, explosive, and corrosive environments, while its ultra-wide operating temperature range of -52°C to +177°C (-62°F to +347°F) guarantees consistent performance from freezing outdoor facilities to high-heat industrial enclosures. Constructed with AISI 303/304 stainless steel housing and a PPS probe tip, it offers exceptional resistance to chemical erosion and mechanical wear, extending service life in harsh working conditions. Featuring a compact 1.3x1.2x115cm dimension, 0.04kg lightweight design, 3.3in unthreaded length, and 6.6in overall case length, it fits seamlessly into narrow equipment gaps, complemented by a 1.0-meter (3.3 feet) standard cable with a miniature coaxial ClickLoc connector for secure, vibration-resistant connections. With a 2 mm (80 mils) linear range, 50 Ω output resistance, and supply sensitivity of less than 2 mV/V, it captures high-precision data with minimal signal interference, maintaining stability even amid voltage fluctuations (-17.5 Vdc to -26 Vdc power requirement). Whether monitoring compressor rotors in oil refineries, turbine shafts in power plants, heavy machinery components in manufacturing facilities, or reaction釜 agitators in chemical plants, this probe delivers reliable, actionable data to drive predictive maintenance strategies, reduce unplanned downtime, and safeguard operational efficiency across diverse industrial landscapes.

Specifications

Competitive Advantage

1. Compact, Lightweight Design for Space-Constrained Installations​

Boasting a slender 1.3x1.2x115cm dimension, 0.04kg ultra-lightweight build, 3.3in unthreaded length, and 6.6in overall case length, the probe fits seamlessly into narrow equipment gaps and compact rotating machinery. Its ergonomic design minimizes installation challenges, while the 1.0-meter (3.3 feet) standard cable offers flexible reach for short-distance monitoring.

​

2. Durable Construction for Harsh Industrial Conditions​

Crafted with AISI 303/304 stainless steel housing and PPS probe tip, the probe exhibits exceptional resistance to corrosion, mechanical wear, and chemical erosion—ideal for oil, gas, and chemical environments. This robust build extends service life and reduces maintenance frequency, lowering total cost of ownership.​

3. High-Precision Signal Stability & Measurement Accuracy​

Featuring a 2 mm (80 mils) linear range, 50 Ω output resistance, and supply sensitivity <2 mV/V, the probe captures precise static position and dynamic vibration data with minimal signal attenuation. It maintains stability amid voltage fluctuations (-17.5 Vdc to -26 Vdc), resisting electromagnetic interference for reliable condition monitoring.
