Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	125800-02
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Power Consumption	3.2 Watts typical
Signal	Input: Up to two transducer signals from proximity probes or magnetic pickups; Input range: +0.8 V to -21.0 V (Non-Isolated I/O modules) or +5 V to -11 V (Isolated I/O modules)
Input Impedance	21.8 kΩ minimum
Buffered Keyphasor Signals	Two buffered Keyphasor outputs at front via coaxial connectors; Two buffered outputs at rear via Euro Style connectors
Output Impedance	504 Ω maximum buffered
Keyphasor Transducer Power Supply	-24 Vdc, 40 mA maximum per channel
Operating Temperature	-30°C to +65°C (-22°F to +150°F) with standard Keyphasor I/O; 0°C to +65°C (32°F to +150°F) with Internal Barrier I/O
Storage Temperature	-40°C to +85°C (-40°F to +185°F)
Humidity	95%, non-condensing
Dimension:	2.5x11.2x24.2cm
Weight:	0.48kg

Description

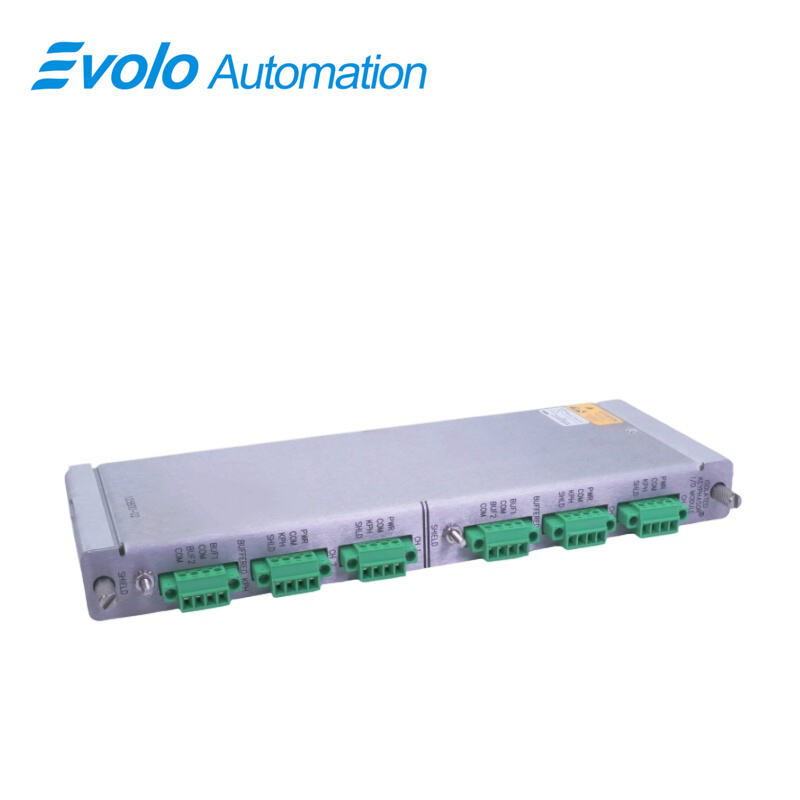

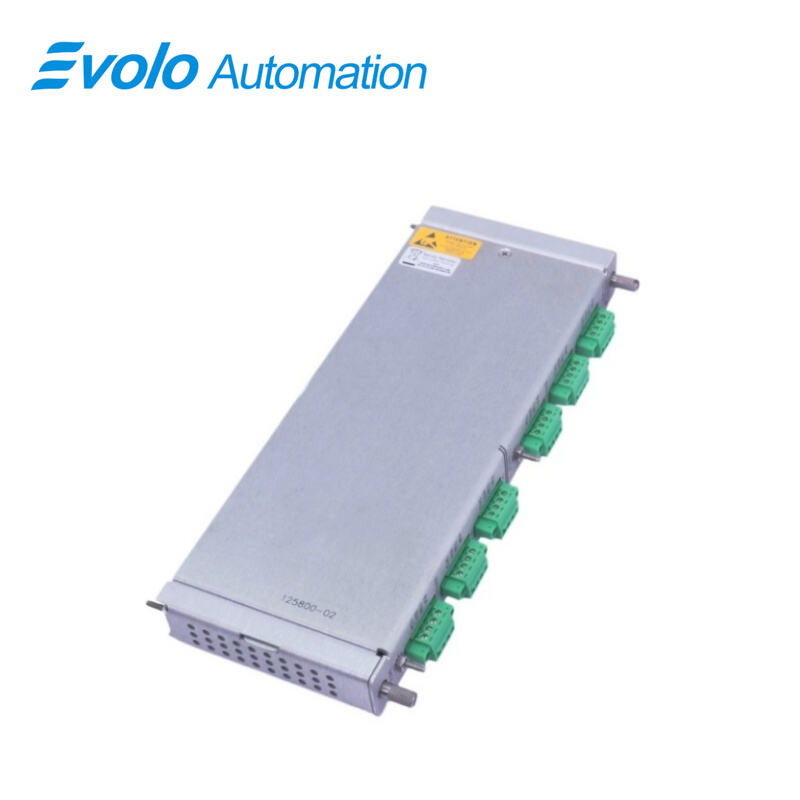

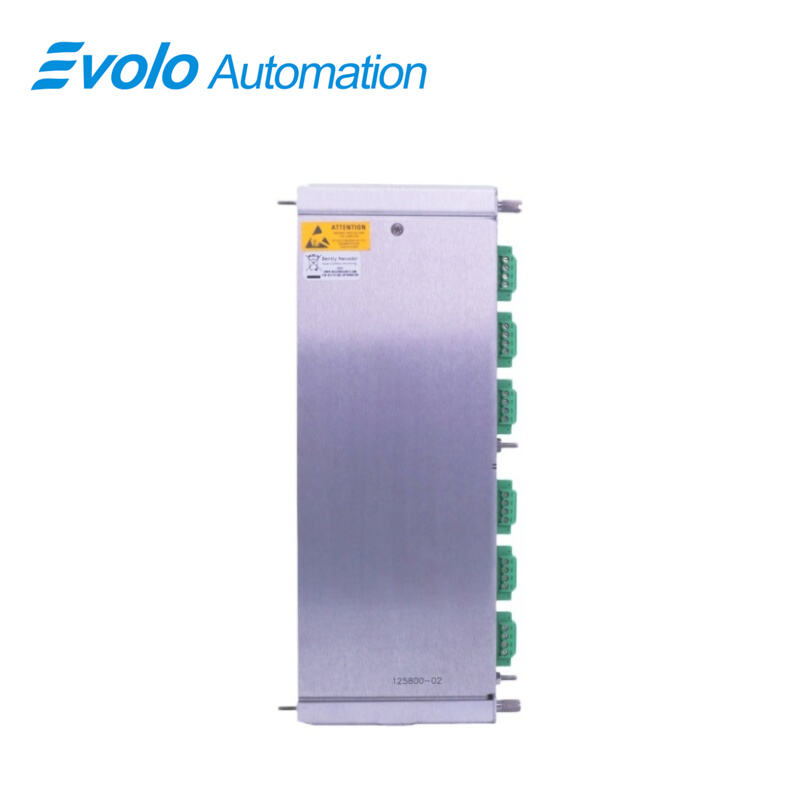

The 125800-02 Isolated Keyphasor I/O Module is a half-height, two-channel module for Bently Nevada 3500 racks, designed to provide isolated Keyphasor signals from proximity probes or magnetic pickups to monitor modules. 125800-02 converts input signals (+5 V to -11 V) into digital Keyphasor outputs, with two buffered outputs at the front via coaxial connectors and two at the rear via Euro Style connectors. Transducer power supply is -24 Vdc at 40 mA per channel, and typical power consumption is 3.2 W. Operating temperature ranges from 0°C to +65°C, storage -40°C to +85°C, with 95% non-condensing humidity. Speed/frequency input ranges from 1 to 1,200,000 cpm, output 1–99,999 cpm, and accuracy up to ±1% of cpm at high frequencies. LEDs indicate OK and TX/RX communication with the RIM. 125800-02 supports half-height front slot installation and full-height rear I/O modules, enabling single, paired, or TMR Keyphasor configurations, providing isolated shaft speed and phase signals to multiple automation devices without cross-system interference.

Applications

Provide Isolated Keyphasor Signals to Multiple Modules

125800-02 sends isolated Keyphasor outputs to multiple monitor modules without cross-system interference, supporting automation monitoring of turbines, compressors, and pumps.

Measure Shaft Speed in High-Speed Machinery

Speed/frequency input range up to 1,200,000 cpm allows 125800-02 to track shaft rotation rates in high-speed turbines and generators.

Support TMR and Paired Configurations

In Triple Modular Redundant setups, 125800-02 works with additional modules to provide primary and secondary Keyphasor signals, flagging any channel deviating beyond a configured percentage.

Generate Event Signals for Automation Systems

125800-02 produces once-per-turn event signals from multievent-per-turn inputs, feeding data to process control or predictive maintenance software.

Specifications

Front Panel LEDs	OK LED indicates fault; TX/RX LED indicates communication with RIM
Rack Space Requirement	Main Module: 1 half-height front slot; I/O Modules: 1 full-height rear slot
Speed/Frequency Signal Range	Input: 1 to 1,200,000 cpm (0.017 to 20 kHz); Output: 1 to 99,999 cpm (0.017 to 1667 Hz)
Speed/Frequency Signal Accuracy	Nonprocessed: 0.017–100 Hz ±1 cpm, 101–500 Hz ±8 cpm, 501–20 kHz ±1% of cpm; Processed: 0.017–60 Hz ±1 cpm, 61–150 Hz ±8 cpm, 151–20 kHz ±1% of cpm

Competitive Advantage

Deliver Isolated Outputs to Multiple Devices

125800-02 buffered outputs allow connection to several monitoring modules, preventing electrical interference and ensuring consistent automation signals.
