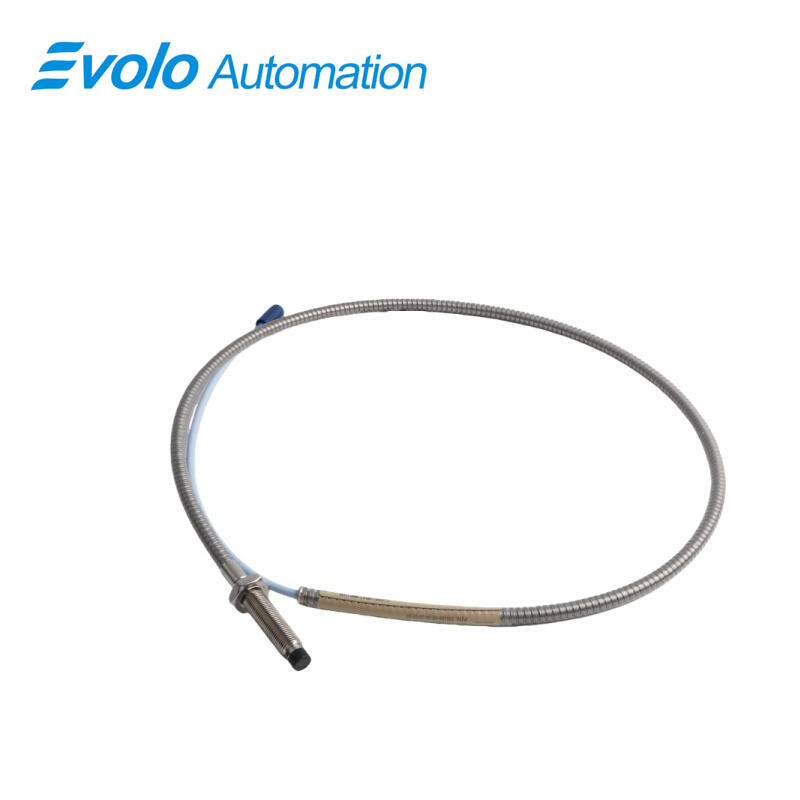

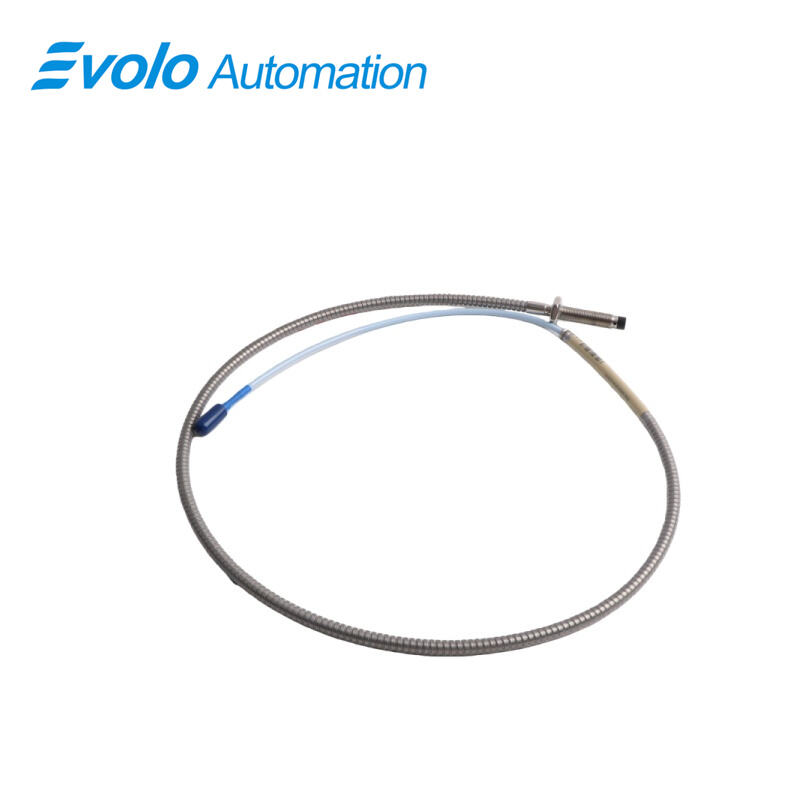

330104-00-04-10-02-00 3300 XL 8 mm Proximity Probes

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	330104-00-04-10-02-00
Minimum Order Quantity:	1
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

The 330104-00-04-10-02-00 3300 XL 8 mm Proximity Probe is a high-performance non-contacting sensor designed for the most rigorous industrial machinery protection requirements. As a fundamental component of the Bently Nevada 3300 XL ecosystem, this 330104-00-04-10-02-00 3300 XL 8 mm Proximity Probe provides precise measurement of the gap between the probe tip and a conductive target, such as a rotating shaft. The 330104-00-04-10-02-00 3300 XL 8 mm Proximity Probe is specifically configured with an M10x1 metric thread, a 40 mm overall case length, and a 0 mm unthreaded length, making it ideal for flush-mount installations or applications requiring full threading into machine housings.

Performance is a hallmark of the 330104-00-04-10-02-00 3300 XL 8 mm Proximity Probe. It delivers an exceptionally stable linear range of 3 mm, allowing it to capture both static position and dynamic vibration data with high fidelity. The 330104-00-04-10-02-00 3300 XL 8 mm Proximity Probe is fully compliant with the American Petroleum Institute (API) 670 standard, ensuring it meets the global benchmarks for accuracy and temperature stability in critical service. One of the most significant advantages of the 330104-00-04-10-02-00 3300 XL 8 mm Proximity Probe is its complete interchangeability; it can be integrated with any 3300 XL extension cable and Proximitor sensor without the need for custom bench calibration.

Applications

The 330104-00-04-10-02-00 3300 XL 8 mm Proximity Probe is extensively applied in the monitoring of fluid-film bearings within large rotating assets such as centrifugal compressors and high-speed turbines. By measuring radial vibration and axial thrust position, the probe enables operators to detect shaft instabilities, bearing wear, and misalignment in real-time. Its 3 mm linear range ensures that even significant shaft movements are captured accurately, providing a critical safety net for power generation and oil and gas facilities.

In extreme thermal environments, this probe serves as a reliable sensing solution for equipment like hot-strip mill motors and high-pressure steam pumps. With an operating limit of +185°C, the 330104-00-04-10-02-00 3300 XL 8 mm Proximity Probe maintains its scale factor and measurement precision where standard sensors might suffer from thermal drift. This resilience allows for consistent machine health monitoring in steel production, foundries, and heavy manufacturing plants without the risk of false alarms caused by heat-induced signal degradation.

The probe is also a vital tool for Keyphasor reference and speed measurements. By detecting a timing notch or keyway on a rotating shaft, the 330104-00-04-10-02-00 3300 XL 8 mm Proximity Probe provides the phase reference signal necessary for advanced vibration diagnostics and balancing. Its metric M10 threading and compact 40 mm body allow it to be easily installed in tight gearbox housings or auxiliary machinery where space is limited but high-fidelity timing data is mandatory for operational efficiency.

Specifications

Competitive Advantage

1. Superior Mechanical and Signal Integrity

The 33010104-00-04-10-02-00 model utilizes the patented ClickLoc connector system, which provides a secure, vibration-resistant connection. The inclusion of a connector protector ensures that the gold-plated contacts remain free from oil and moisture contamination. Combined with a 75Ω triaxial cable, this probe offers industry-leading immunity to electromagnetic interference (EMI), ensuring that the vibration data transmitted to the monitoring system is clean and undistorted.

2. Full API 670 Compliance and Interchangeability

Unlike generic eddy current sensors, the 3300 XL 8 mm Proximity Probe fully meets the rigorous API 670 standards for mechanical configuration and linear accuracy. Its complete interchangeability allows probes, cables, and sensors to be swapped in the field without the time-consuming process of recalibration. This "plug-and-play" capability significantly reduces maintenance labor costs and minimizes machinery downtime during scheduled outages.

3. Extended Temperature Range and Durability

Built to operate in temperatures ranging from -50°C to +185°C, this probe offers a wider environmental envelope than many competing products. The 45 Ω output resistance and low supply sensitivity (less than 2 mV change per volt) ensure that the sensor remains accurate despite power fluctuations or extreme thermal cycles. This robust design makes it the most reliable choice for critical equipment operating in harsh outdoor or high-heat indoor industrial settings.
