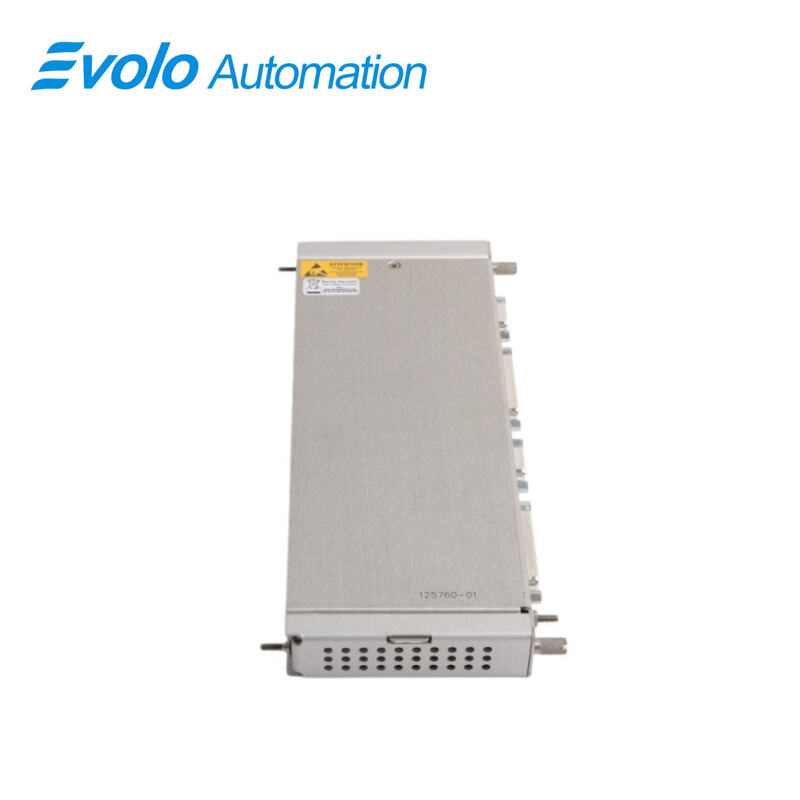

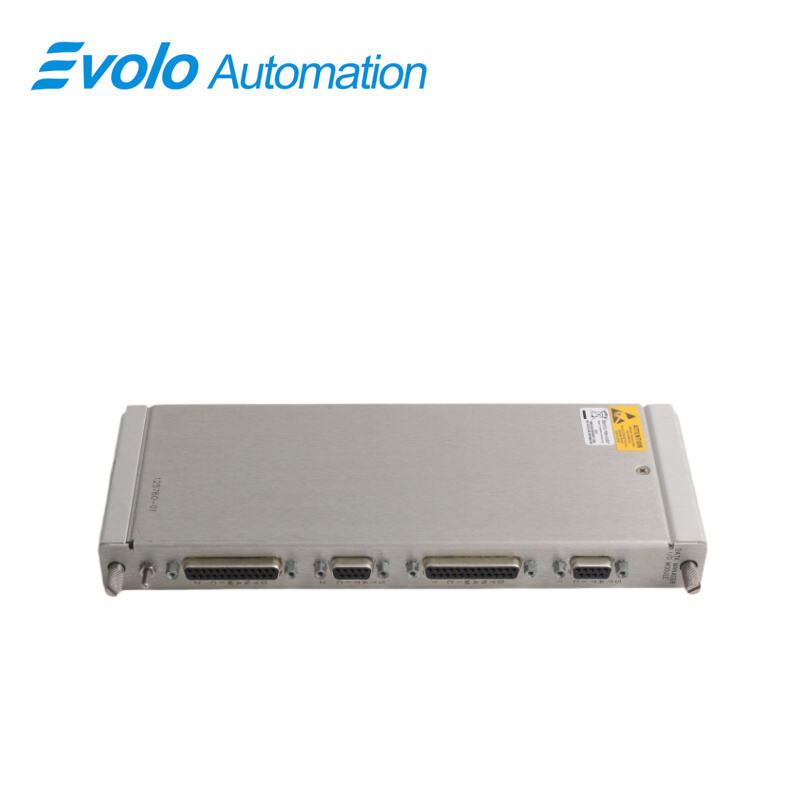

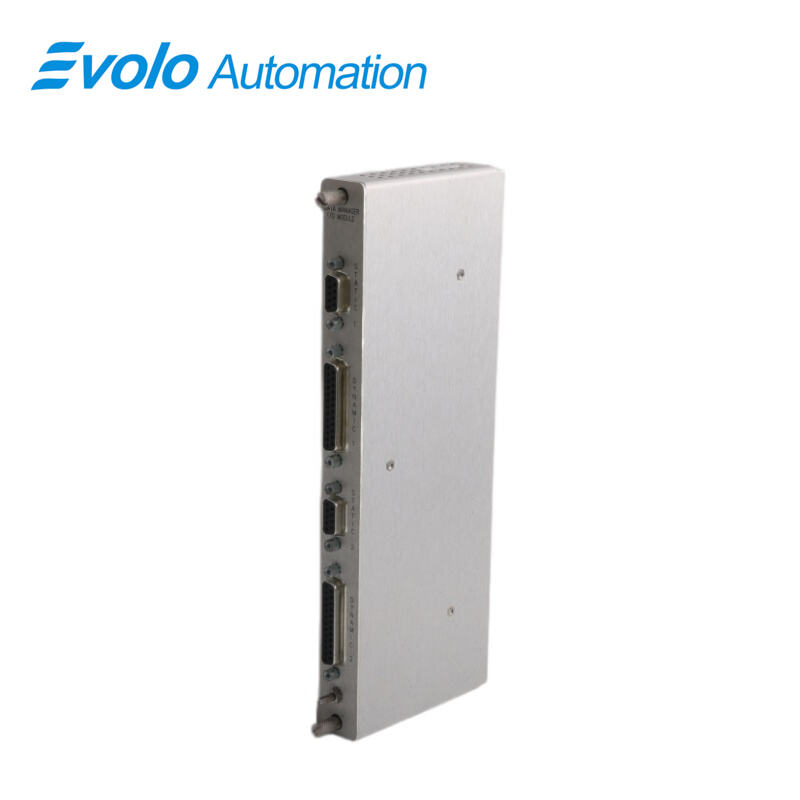

125760-01 Data Manager I/O Module

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	125760-01
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

125760-01 is a Data Manager I/O Module developed by Bently Nevada. It is a part of the Bently Nevada 3500/20 Series Rack Interface Module (RIM). The principal interface to the 3500 rack is the Bently Nevada 3500/20 Series Rack Interface Module (RIM). It offers a proprietary protocol for configuring the rack and retrieving machinery data. The RIM must be placed in rack slot 1.(next to the power supplies)

The RIM is compatible with Bently Nevada external communications processors such as TDXnet, TDIX, and DDIX. While the RIM performs certain activities that are shared by the entire rack, it is not part of the important monitoring channel and has no effect on the overall monitoring system's appropriate, regular performance. One RIM is required per rack. The 3500 System requires a TMR RIM for Triple Modular Redundant (TMR) applications.

The TMR RIM performs "monitor channel comparison" in addition to all of the normal RIM features. Monitor voting is implemented in the 3500 TMR configuration using the settings indicated in the monitor options. The TMR RIM continuously compares the outputs of three redundant monitors using this mechanism. If the TMR RIM determines that the information from one of those monitors is no longer within a predefined percentage of the information from the other two monitors, it will flag the monitor as being in error and record an event in the System Event List.

Applications

The 125760-01 data manager input/output module has the following significant features and advantages:

Flexible input/output interface: capable of receiving and outputting various types of signals.

Powerful data exchange capability: Enables data exchange between the mechanical monitoring system and external equipment.

Easy to expand: Expand the input/output capabilities of the Bently Nevada machine monitoring system.

High reliability: Designed for harsh industrial environments to ensure long-term stable operation.

Easy to integrate: Seamlessly integrates with the Bently Nevada machine monitoring system.

Specifications

Competitive Advantage

The 125760-01 is widely used in various mechanical monitoring scenarios, such as:

Power plants: Used to monitor the vibration and condition of rotating equipment such as steam turbines and generators.

Oil and gas industry: Used to monitor the vibration and condition of rotating equipment such as compressors and pumps.

Chemical industry: Used to monitor the vibration and condition of rotating equipment such as reactors and agitators.

Metallurgical industry: Used to monitor the vibration and condition of rotating equipment such as rolling mills and fans.

In the paper industry: used to monitor the vibration and condition of rotating equipment such as dryers and calenders.
