330880-16-15-020-02-02 PROXPAC XL Proximity Transducer

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	330880-16-15-020-02-02
Minimum Order Quantity:	1
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

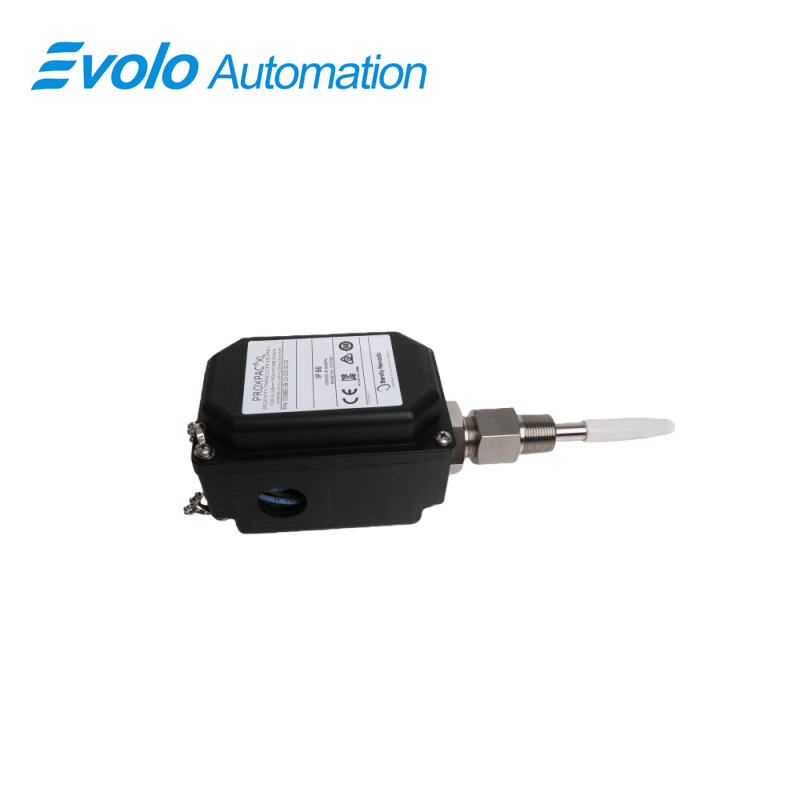

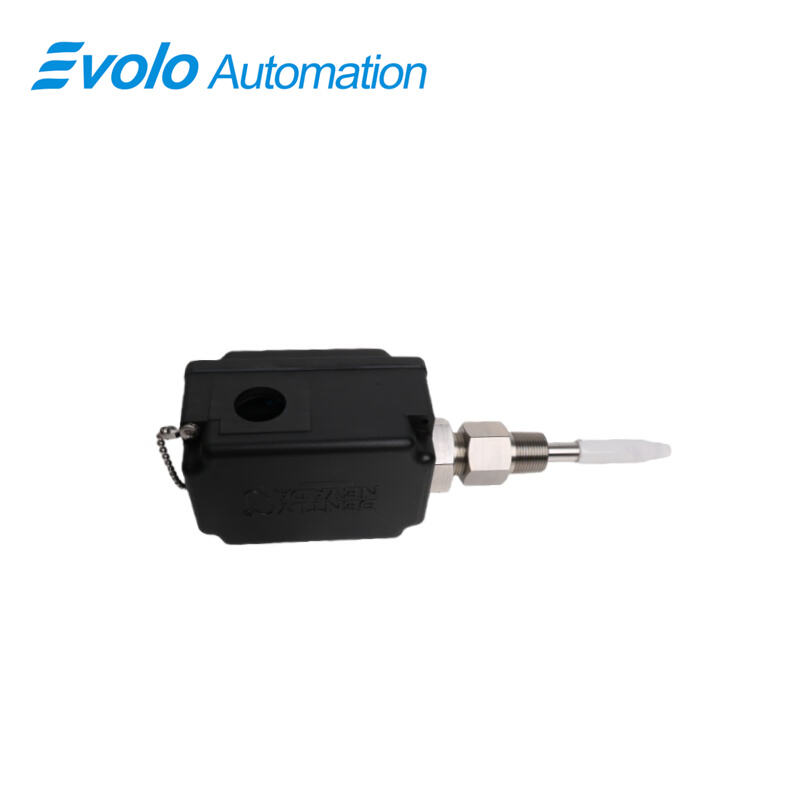

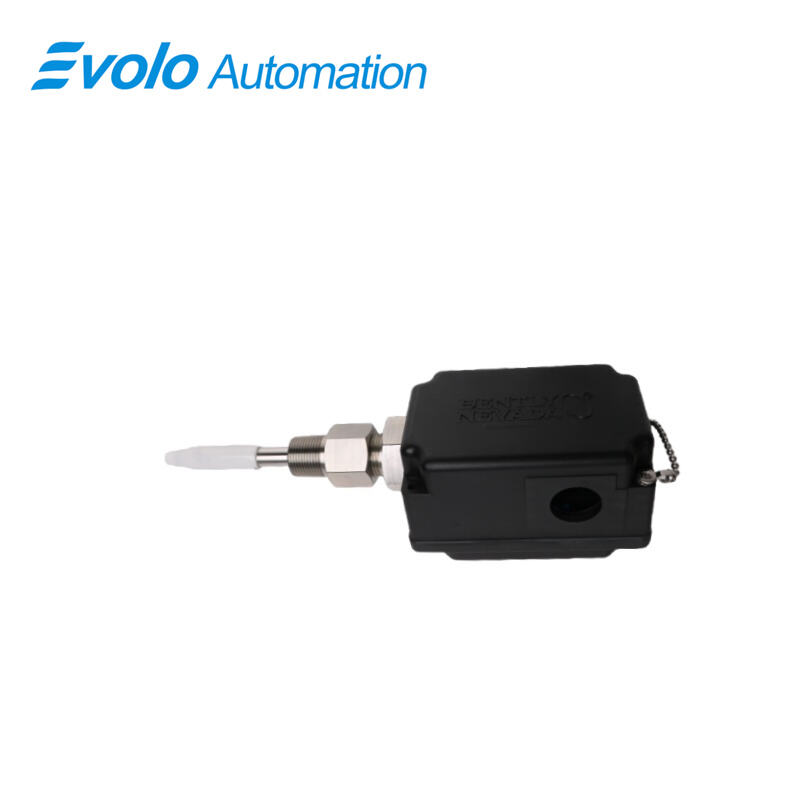

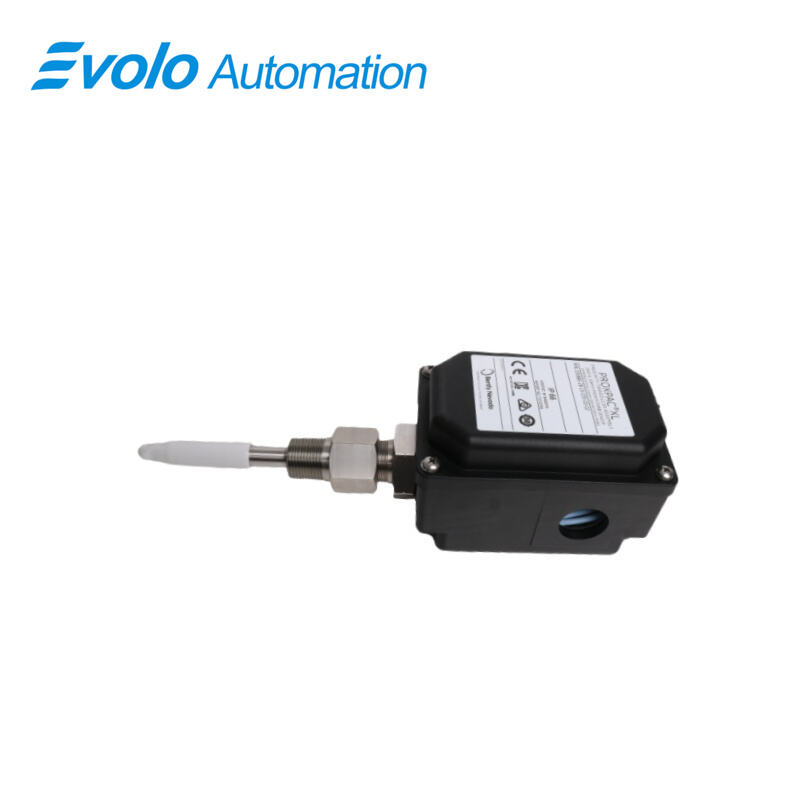

The 330880-16-15-020-02-02 PROXPAC XL Proximity Transducer is a fully integrated proximity measurement system designed for precision industrial automation and machinery monitoring. Unlike conventional transducer assemblies, this self-contained unit combines a 3300 XL 8 mm probe with a built-in Proximitor sensor, eliminating the need for extension cables and separate housings. Engineered for high-performance vibration and position measurement, it offers a linear range of 2 mm (80 mils) and a recommended gap setting of 1.27 mm (50 mils), making it ideal for accurate rotor, shaft, and machinery alignment monitoring. The transducer assembly features a durable Polyphenylene Sulfide (PPS) housing reinforced with glass and conductive fibers, providing enhanced electrostatic discharge protection and mechanical strength. With IP66 and Type 4X ratings, it ensures robust performance in harsh environments, and operating temperatures from –52°C to +100°C (–62°F to +212°F) allow reliability under extreme conditions. The unit accommodates shafts from 50.8 mm to 76.2 mm (2–3 inches) in diameter and supports standard 3/4-14 NPT mounting. Its design enables direct connection to monitoring systems, simplifying installation and reducing field wiring complexity while maintaining high accuracy and API 670 compliance.

Applications

Vibration Monitoring on Rotating Shafts
Accurately measures shaft vibration and displacement in turbines, pumps, and compressors to prevent equipment failure and optimize maintenance schedules.

Self-Contained Proximity Measurement
Eliminates extension cables and separate sensor housings, reducing installation time and complexity in industrial automation environments.

Harsh Environment Operations
IP66 and Type 4X rated PPS housing ensures reliable operation in dusty, wet, or corrosive conditions found in chemical, petrochemical, and power generation plants.

Shaft Alignment and Differential Expansion Measurement
Monitors axial and radial rotor movements to detect misalignment or differential expansion in large rotating machinery.

Direct Monitor Integration
Supports straightforward field wiring to monitoring systems, enabling quick setup for critical asset condition monitoring and predictive maintenance programs.

Specifications

Competitive Advantage

Fully Integrated Sensor System
Combines the probe and Proximitor sensor into a single assembly, improving reliability and reducing installation errors.

Durable PPS Housing
Advanced thermoplastic with glass and conductive fiber reinforcement protects against electrostatic buildup and mechanical stress in industrial environments.

Extreme Temperature Range
Operates from –52°C to +100°C (–62°F to +212°F), suitable for high-temperature machinery and harsh outdoor conditions.

Precision Measurement
Linear range of 2 mm with 1.27 mm recommended gap ensures accurate monitoring of rotor and shaft movement for critical machinery.

Reduced Field Wiring Complexity
Direct connection to monitors eliminates separate Proximitor housings and long extension cables, simplifying system deployment and lowering maintenance costs.
