330104-00-08-10-01-00 3300 XL 8 mm Proximity Probes

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	330104-00-08-10-01-00
Minimum Order Quantity:	1
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

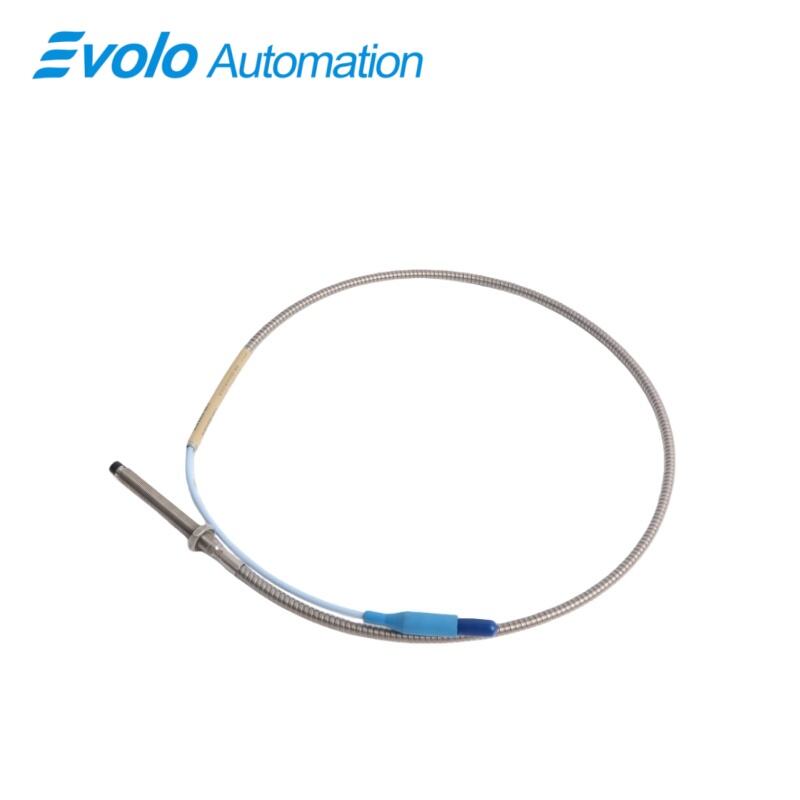

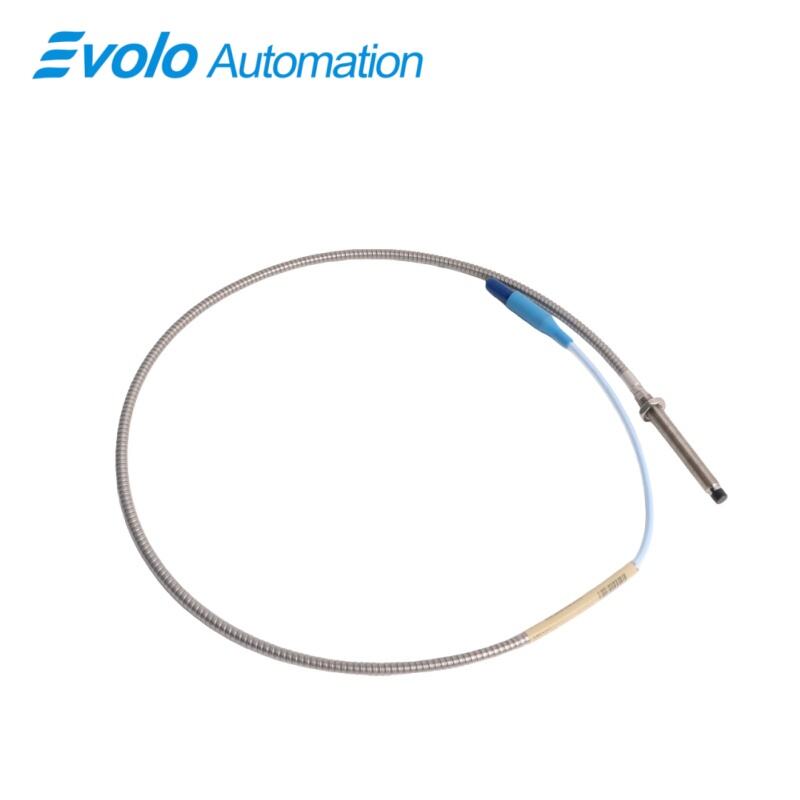

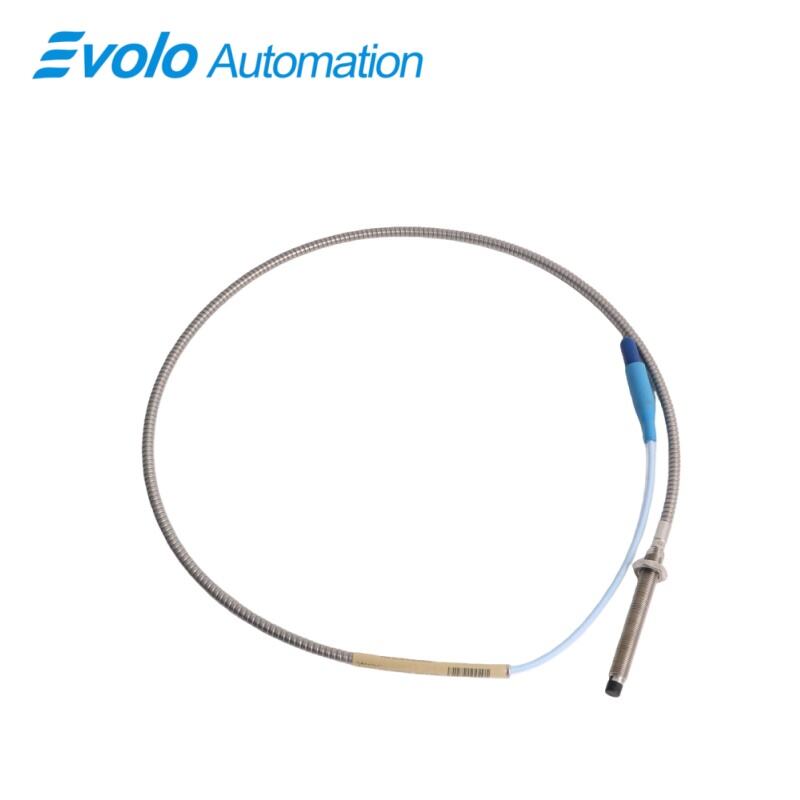

The 330104-00-08-10-01-00 3300 XL 8 mm Proximity Probes are precision-engineered eddy current sensors designed for continuous condition monitoring and protection of critical rotating machinery in industrial environments. As an integral part of proximity transducer systems, the 3300 XL 8 mm Proximity Probes provide accurate, non-contact measurement of shaft vibration, axial displacement, and rotational reference by converting mechanical movement into a stable and linear electrical signal. This makes the probes essential for reliable machinery diagnostics and long-term asset protection.

Built on proven eddy current sensing technology, the 3300 XL 8 mm Proximity Probes deliver high-resolution output within a defined 2 mm (80 mils) linear range. This precision enables early detection of subtle mechanical deviations such as imbalance, shaft eccentricity, misalignment, and bearing wear before they escalate into major failures. The consistent linear response ensures dependable data for vibration analysis, trending, and alarm management within monitoring systems.

The mechanical construction of the 3300 XL 8 mm Proximity Probes emphasizes durability, dimensional stability, and long service life. The probe case is manufactured from corrosion-resistant AISI 303 or 304 stainless steel, providing excellent protection against mechanical stress, oil contamination, moisture, and harsh industrial conditions. The probe tip is made of polyphenylene sulfide (PPS), selected for its superior thermal stability, chemical resistance, and wear performance, ensuring consistent measurement accuracy over extended operating periods.

Applications

The 3300 XL 8 mm Proximity Probes are widely applied for continuous radial vibration monitoring on rotating equipment such as turbines, compressors, pumps, and large motors, providing accurate shaft displacement data that supports early fault detection and predictive maintenance programs.

In axial thrust position monitoring, the 3300 XL 8 mm Proximity Probes measure shaft movement relative to thrust bearings, helping operators prevent excessive axial displacement that could result in mechanical contact, bearing damage, or unplanned shutdowns.

The probes are also used for Keyphasor reference and rotational speed detection by sensing keyways or notches on shafts, enabling precise phase reference signals required for speed monitoring, balance analysis, and transient event diagnostics in high-speed machinery.

Specifications

Competitive Advantage

1. High Measurement Accuracy and Signal Stability

The 3300 XL 8 mm Proximity Probes provide a defined 2 mm linear range, low supply sensitivity, and stable output resistance, ensuring consistent, high-quality signals suitable for precise vibration analysis and long-term condition monitoring.

2. Robust Materials for Harsh Industrial Environments

With a PPS probe tip and stainless steel probe case, the 3300 XL 8 mm Proximity Probes offer excellent resistance to heat, corrosion, oil, and chemical exposure, resulting in extended service life and reduced maintenance frequency.

3. Compact Design with Easy System Integration

The 80 mm case length, zero unthreaded section, and miniature coaxial ClickLoc connector allow flexible installation in confined spaces while ensuring seamless integration into existing proximity transducer and monitoring systems.
