Overview
Place of Origin: |
USA |
Brand Name: |
HONEYWELL |
Model Number: |
10313/1/1 |
Packaging Details: |
Original new Factory Sealed |
Delivery Time: |
5-7 days |
Payment Terms: |
T/T |
Supply Ability: |
In stock |
Specifications
|
Description |
Specification |
|
Model |
10313/1/1 |
|
Part name |
Watchdog Distribution Module |
|
Dimensions |
24.5x8.7x6.8cm |
|
Weight |
0.34 kg |
|
Approvals |
CE, TÜV; UL approval pending |
|
Power consumption |
None (included in I/O module data sheets) |
|
Max current on faston pin |
4 A |
|
Max current on I/O connector pin |
2 A |
|
DIN rail type |
TS32 / TS35 x 7.5 |
|
Used rail length |
241 mm (9.49 in) |
Description

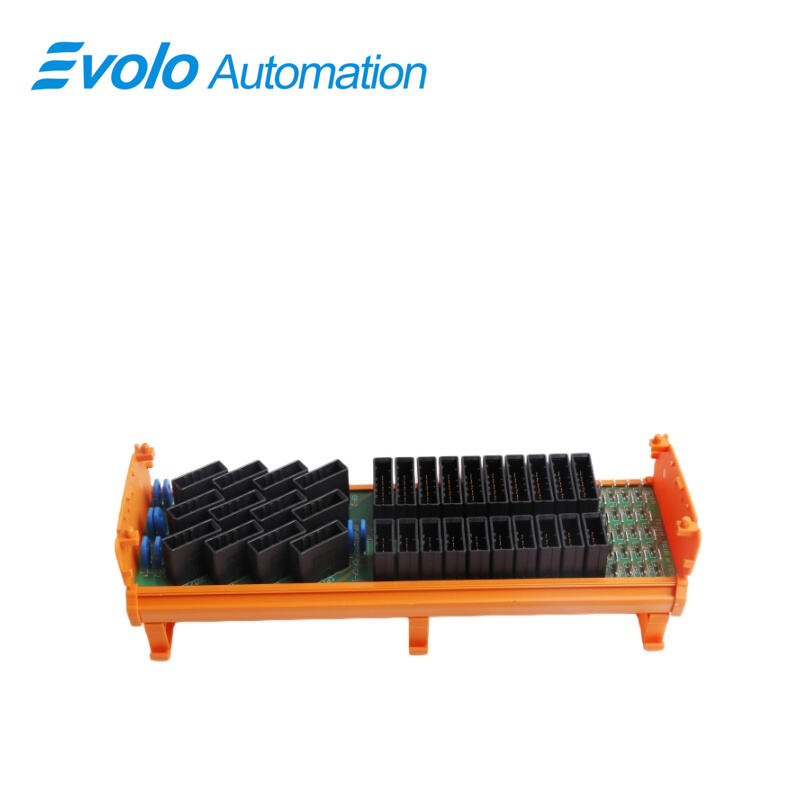

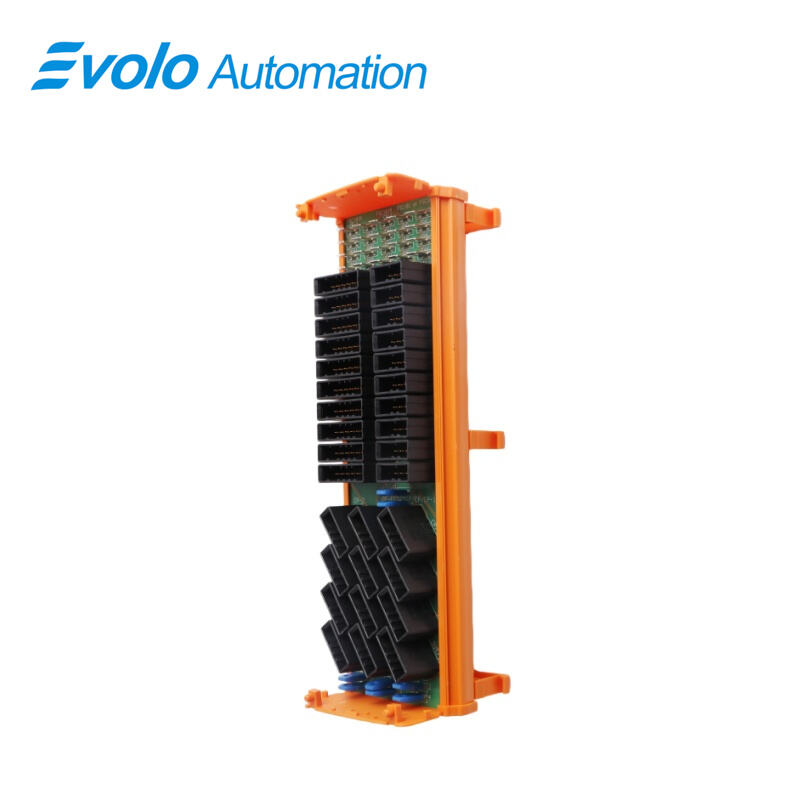

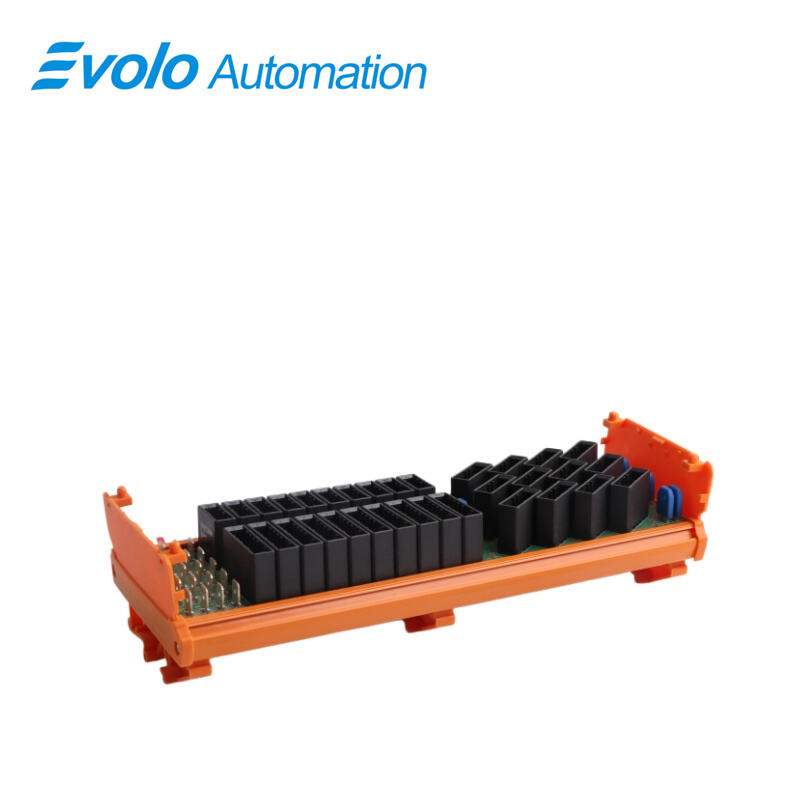

10313/1/1 is a watchdog distribution module in an industrial safety control system. This module can efficiently and securely distribute watchdog monitoring signals to various I/O modules and establish a real-time safety monitoring network covering the entire system.
Applications
subsystems.
Refinery: Split watchdog status pulses to multiple independent output subsystems in cracking units.
Power plant: Route watchdog signals to turbine and boiler emergency trip units.
Steel plant: Broadcast explosion-proof watchdog signals to blast furnace and converter safety cabinets.
Connections

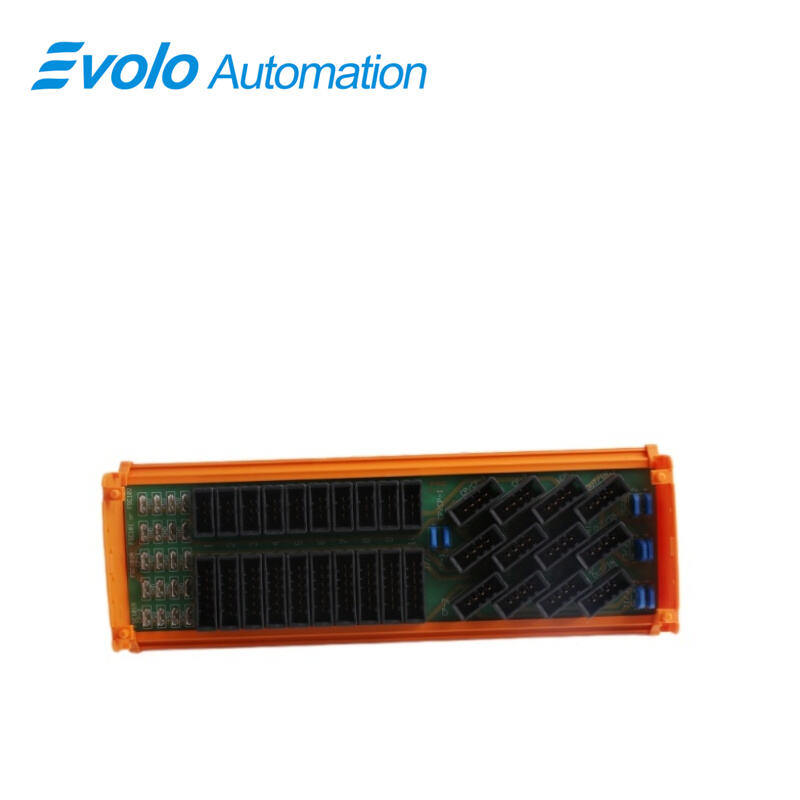

The 10313/1/1 module has the following connection facilities
ten connectors (RCN-1 to RCN-10) for connecting redundant I/O backplanes (10315/1/1)
ten connectors (SCN-1 to SCN-10) for connecting non-redundant I/O backplanes (10314/1/1)
'FSC101 or FSC102' fastons for the incoming 5 Vdc power (for non-redundant I/O backplanes)
'FSC101R CP-1' and 'FSC101R CP-2' fastons for the incoming 5 Vdc power (for redundant I/O backplanes),
connectors for directly connecting the watchdog repeaters (WDRs), and connectors for directly connecting the 10005/O/1 modules.
connectors for linking an additional 10313/1/1 module in a separate cabinet.
FAQ
Q: For module 10313/1/1, what is its power consumption?
A: No standalone power consumption (included in I/O module data).
Q: What is the maximum current allowed through the Faston pins of module 10313/1/1?
A: Maximum current is 4 A.
Q: What is the maximum current allowed through the I/O connector pins of module 10313/1/1?
A: Maximum current is 2 A.
Q: What type of industrial DIN rail is compatible with module 10313/1/1?
A: Supports TS32 or TS35 x 7.5 rail types.
Q: What is the required rail length for installing module 10313/1/1?
A: 241 mm (9.49 inches).
