330901-02-24-10-01-00 3300 NSv Proximity Probes

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	330901-02-24-10-01-00
Minimum Order Quantity:	1
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

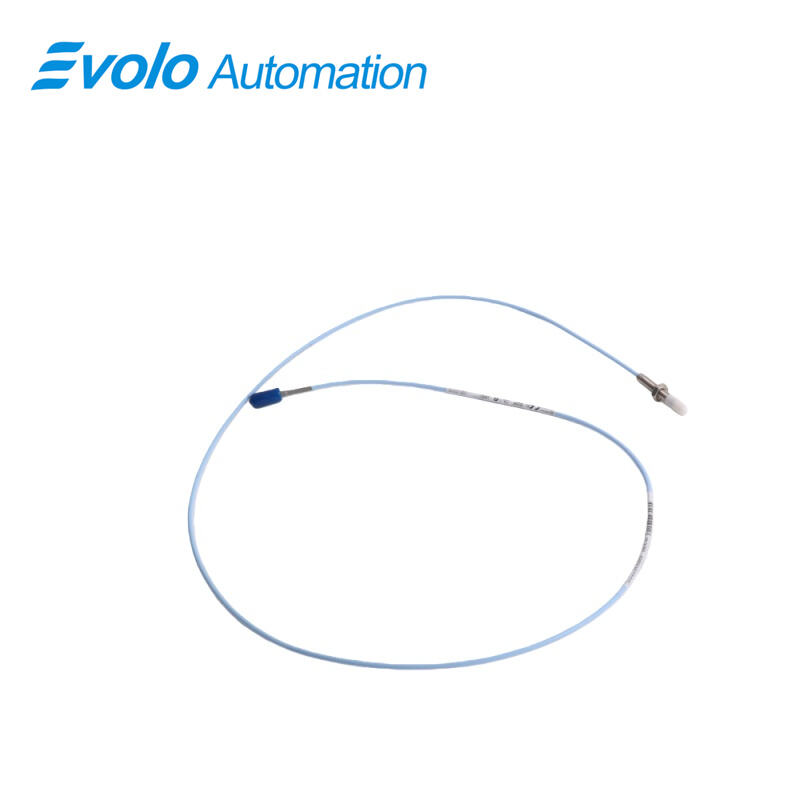

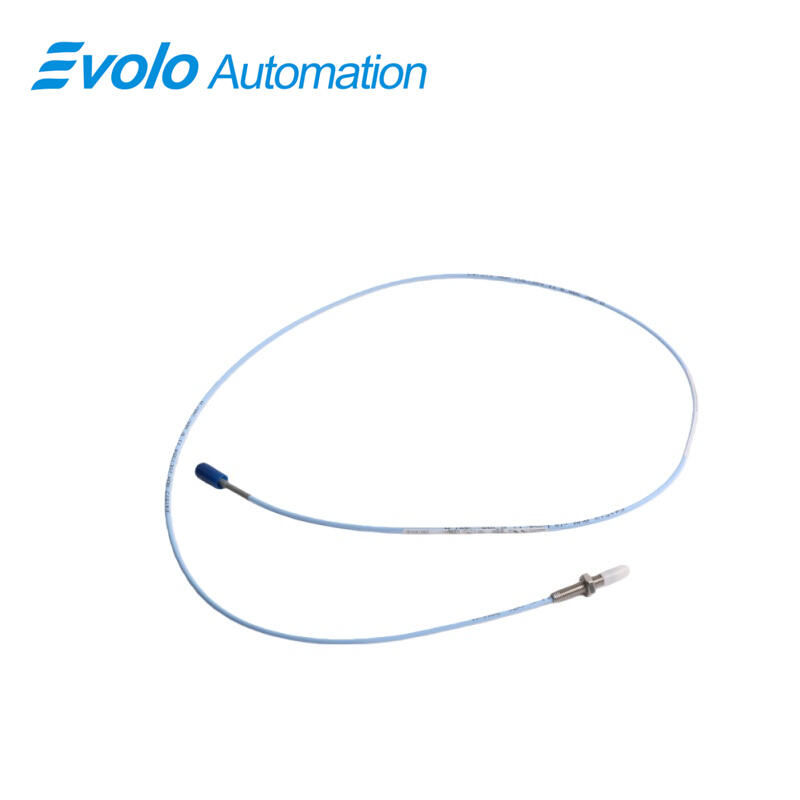

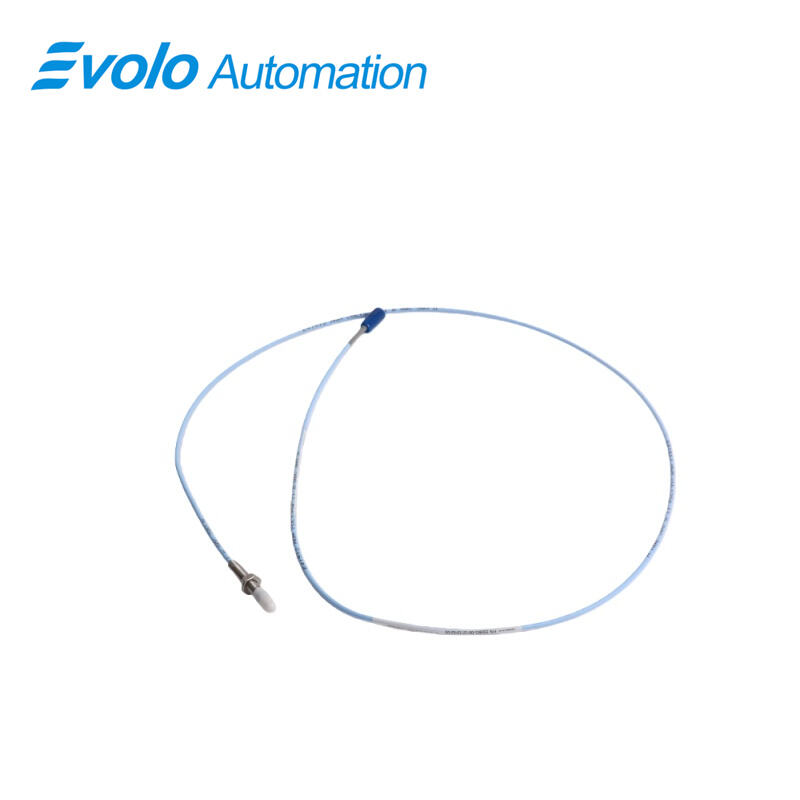

The 330901-02-24-10-01-00 3300 NSv Proximity Probes is a high-precision eddy current proximity sensor designed for accurate non-contact measurement of shaft displacement, vibration, and position in compact and space-restricted industrial machinery. As part of the 3300 NSv Proximity Probes series, this model is specifically optimized for applications where standard-sized probes cannot be installed due to narrow clearances or small target surfaces, while still maintaining stable and repeatable measurement performance.

Engineered with advanced eddy current sensing technology, the 330901-02-24-10-01-00 3300 NSv Proximity Probes delivers a linear output signal proportional to the distance between the probe tip and conductive targets. Its Narrow Surface (NSv) design allows reliable operation on small-diameter shafts and limited surface areas, making it particularly suitable for compact rotating equipment and high-speed machinery. With a linear range of 1.8 mm and a recommended gap setting of 1.0 mm (40 mils), this probe ensures high-resolution displacement and vibration monitoring even under demanding operating conditions.

The mechanical configuration of the 330901-02-24-10-01-00 3300 NSv Proximity Probes supports flexible installation in confined spaces. It features an unthreaded length of 0.2 in, an overall case length of 2.4 in, and a total cable length of 1.0 meter (39 in). The probe is equipped with a Miniature coaxial ClickLoc connector with connector protector and standard cable, ensuring secure electrical connections, resistance to vibration-induced loosening, and simplified field installation.

Applications

The 330901-02-24-10-01-00 3300 NSv Proximity Probes is widely used in compact rotating machinery such as small compressors, pumps, and auxiliary turbines, where limited installation space and small shaft diameters require a narrow-surface sensing solution while maintaining accurate vibration and displacement measurement.

In industrial systems operating under extreme temperature conditions, the 330901-02-24-10-01-00 3300 NSv Proximity Probes provides stable and repeatable performance for shaft position and displacement monitoring, making it suitable for power generation equipment, petrochemical processing units, and high-temperature enclosures.

The probe is also ideal for machinery protection and predictive maintenance systems, where its 1.8 mm linear range, 45 Ω output resistance, and low supply sensitivity enable reliable long-term monitoring of rotor movement, early fault detection, and reduction of unplanned downtime in critical assets.

Specifications

Competitive Advantage

1. Ultra-Compact NSv Design for Tight Installation Spaces

The 330901-02-24-10-01-00 3300 NSv Proximity Probes features a Narrow Surface probe tip, short unthreaded length, and compact housing, allowing accurate measurement in applications where standard probes cannot be installed due to limited side-view clearance or small target surfaces.

2. Stable Performance Across Wide Temperature Range

With an operating temperature range of -50°C to +175°C, the 330901-02-24-10-01-00 3300 NSv Proximity Probes maintains signal stability and measurement accuracy in both high-temperature and low-temperature industrial environments, reducing performance degradation and maintenance frequency.

3. Reliable Electrical Characteristics for Long-Term Monitoring

The probe’s low output resistance, controlled supply sensitivity, and secure Miniature coaxial ClickLoc connector ensure consistent signal transmission, resistance to electrical noise, and dependable long-term operation in continuous machinery condition monitoring systems.
