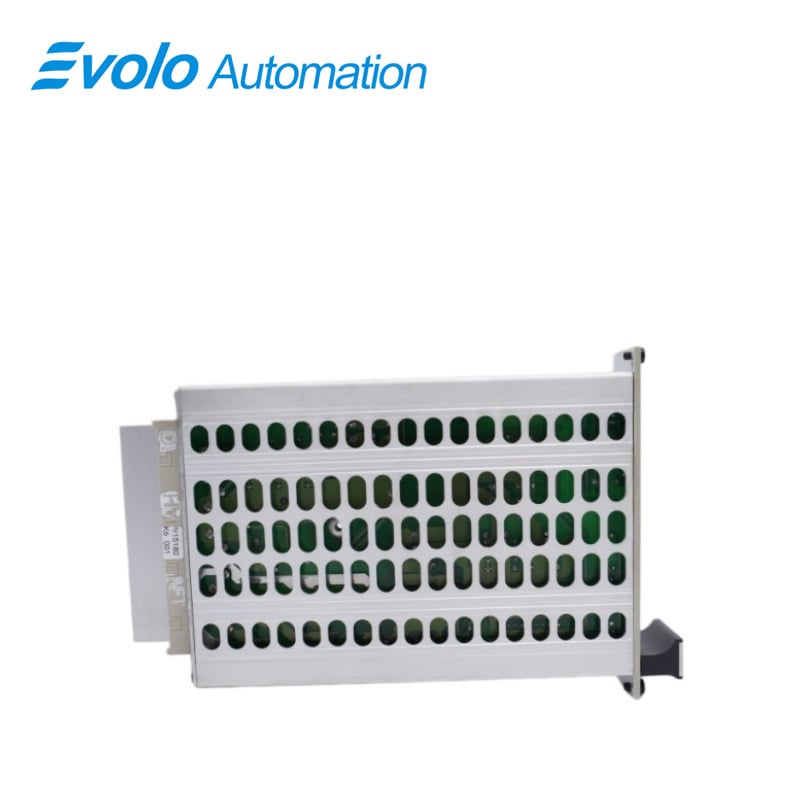

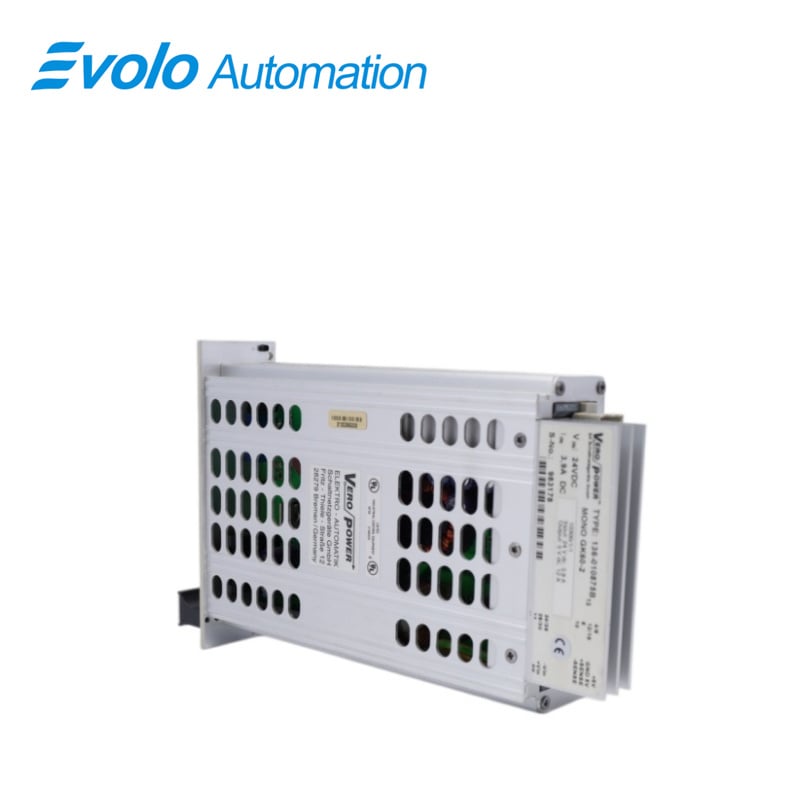

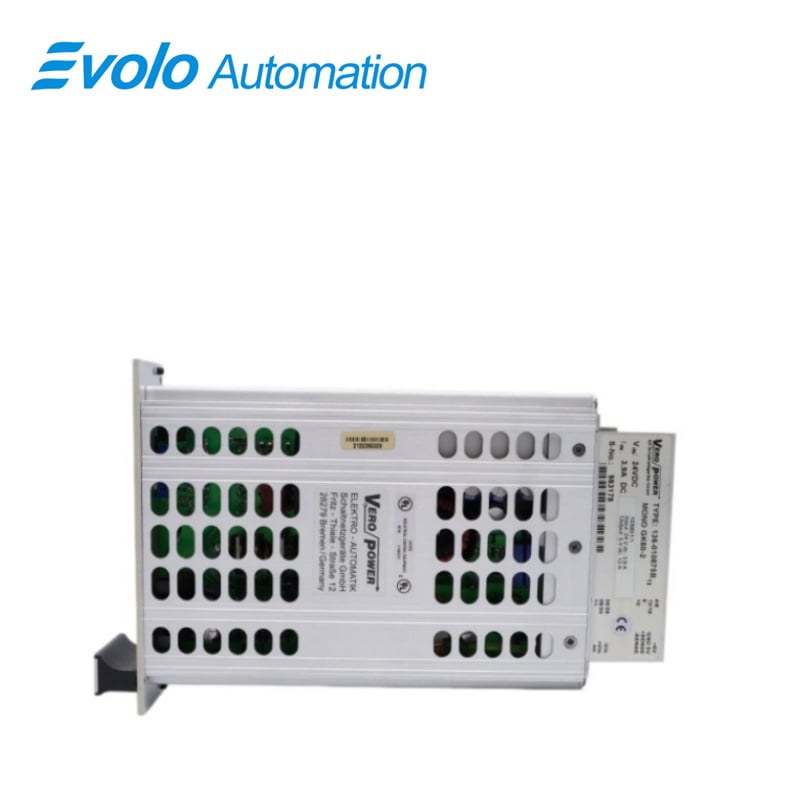

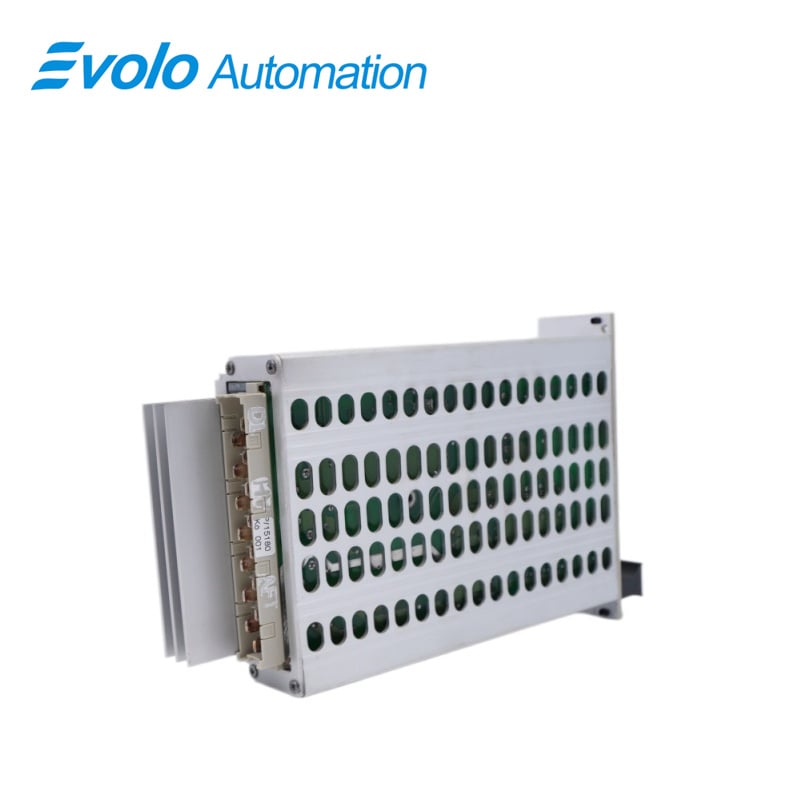

Overview
Place of Origin: |
USA |
Brand Name: |
HONEYWELL |
Model Number: |
10300/1/1 136-010875B |
Packaging Details: |
Original new Factory Sealed |
Delivery Time: |
5-7 days |
Payment Terms: |
T/T |
Supply Ability: |
In stock |
Specifications
|
Description |
Specification |
|
Model |
10300/1/1 136-010875B |
|
Part name |
Converter Module |
|
Dimensions |
4x20.8x12.8cm |
|
Weight |
0.68 kg |
|
Input voltage |
24 V DC (-15% to +30%) |
|
Input current |
<3.9 A at 24 V DC |
|
Output voltage |
5 V DC (with overvoltage protection) |
|
Output current |
12 A |
|
Output current derating |
12 A (0°C–45°C); 8 A (0°C–60°C) |
|
Inrush current |
<18 A |
|
Ripple content |
<40 mV p-p (at full load) |
|
Hold-up time |
≥0 ms |
|
Efficiency |
≥70% |
|
Overvoltage protection (OVP) |
5.75 V DC |
|
Voltage adjustment (V adj) |
5.00 V DC (measured across system bus) |
|
Approvals |
CE, TÜV, UL |
|
Software versions |
All |
|
Space requirements |
8 TE, 3 HE (8 HP, 3U) |
|
Operating temperature |
0°C to 60°C (32°F to 140°F) |
Description
The 10300/1/1 136-010875B is a high-performance conversion module widely used in industrial automation control systems. This module not only performs voltage conversion but also ensures stable operation of the entire system bus and precision logic cards. Even in complex electromagnetic interference and power fluctuation environments, it can accurately convert raw power into clean, continuous logic power.
Applications
Chemical plant: Convert field transmitter signals, matching signal levels between instruments and control systems.
Refinery: Convert thermocouple signals from process units, sending temperature data to control system cabinets.
Power plant: Convert turbine speed sensor signals, feeding them to unit speed control systems.
Steel plant: Convert blast furnace infrared temperature signals, transmitting current to central analog input cards.
Troubleshooting and Maintenance Recommendations
Troubleshooting: If the output voltage is abnormal, check if the Vadj adjustment potentiometer is at the standard 5.0 Vdc position. If the module restarts frequently, check if the 24V input power supply exceeds the fluctuation range of -15% to +30%, or if there is an overload exceeding 12A at the output.
Maintenance Recommendations: It is recommended to clean the module heatsink annually to ensure it can maintain an 8A output capability in high-temperature environments (>45°C). Use a multimeter to measure the voltage at the system bus connection to ensure it remains at 5.0 Vdc.
FAQ
Q: For module 10300/1/1, what is the input voltage and maximum input current?
A: Input 24 V DC (-15% to +30%), current < 3.9 A.
Q: What is the output voltage and maximum output current of module 10300/1/1?
A: Output 5 V DC, maximum output current 12 A.
Q: How does the output current of module 10300/1/1 derate under different operating temperatures?
A: 0°C–45°C: 12 A; 0°C–60°C: derated to 8 A.
Q: What are the full-load ripple and overvoltage protection threshold of module 10300/1/1?
A: Full-load ripple < 40 mV p-p, OVP threshold 5.75 V DC.
Q: What is the rack space requirement of module 10300/1/1?
A: Occupies 8 TE width and 3 HE height (8 HP, 3U).
