330101-00-11-20-02-00 3300 XL 8 mm Proximity Probe

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	330101-00-11-20-02-00
Minimum Order Quantity:	1
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

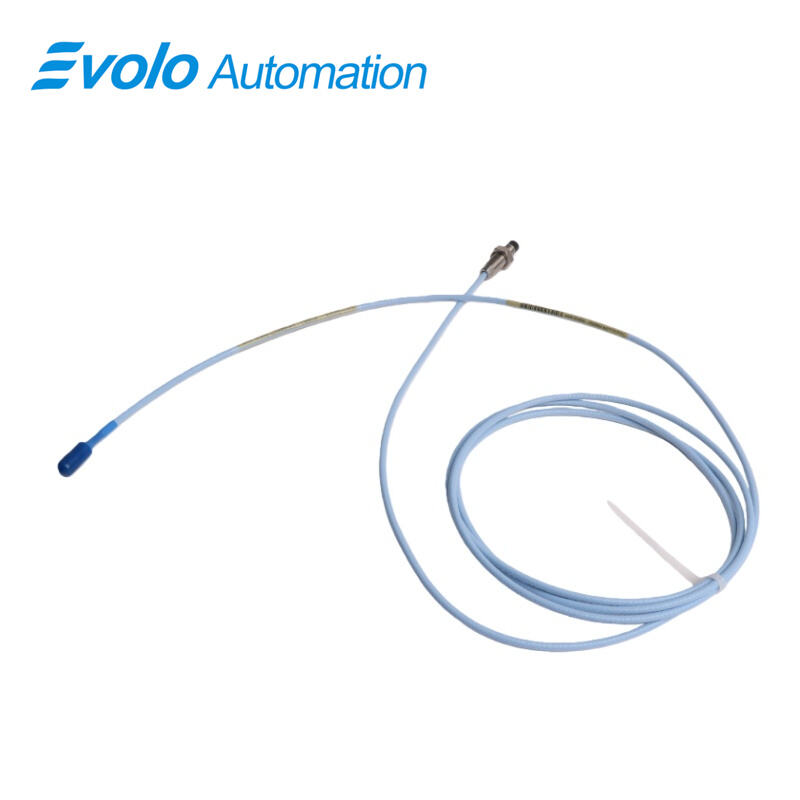

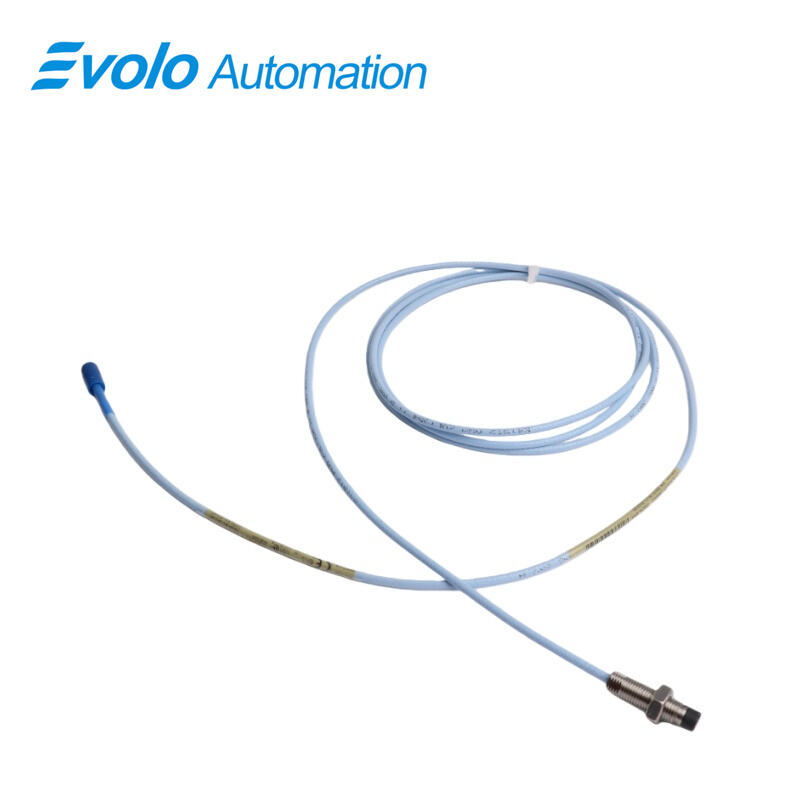

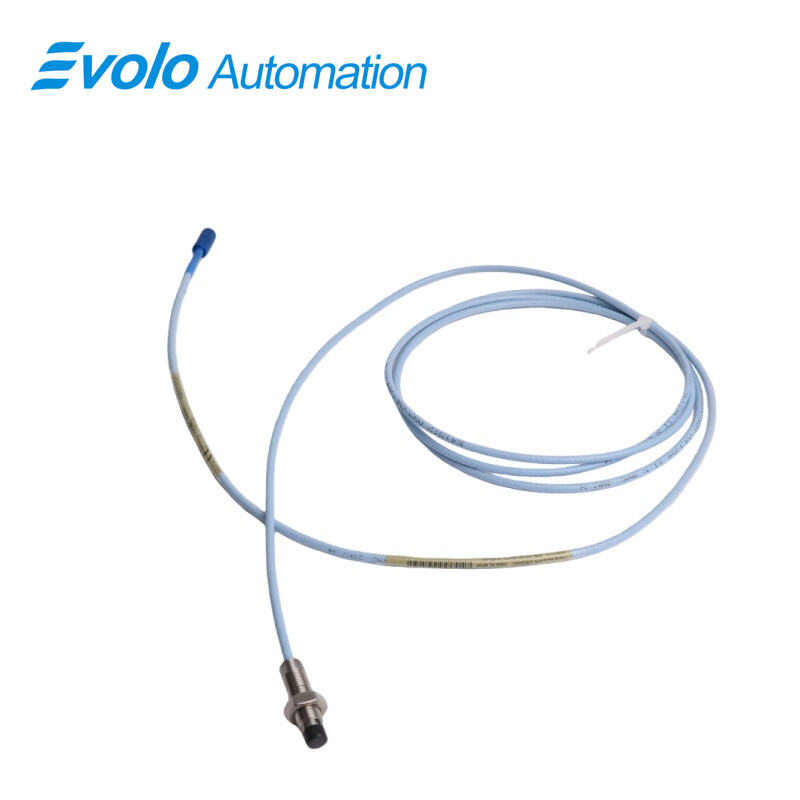

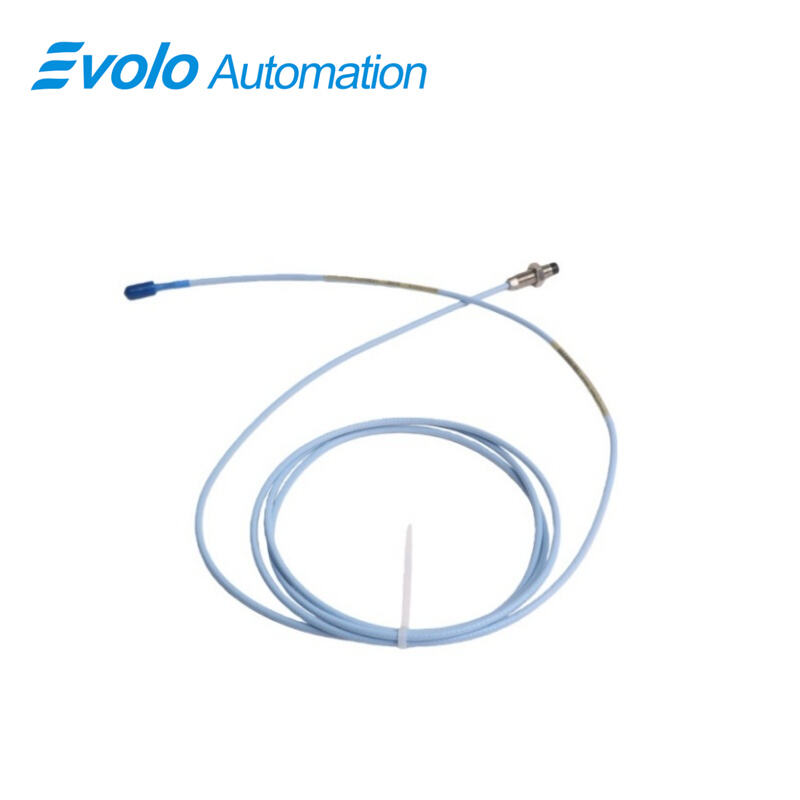

The 330101-00-11-20-02-00 3300 XL 8 mm Proximity Probe is a high-performance eddy-current transducer designed for precise vibration and position monitoring in automated industrial systems. With a 2 mm linear range and 3/8-24 UNF probe thread, this probe delivers accurate static and dynamic measurements on fluid-film bearing machines, turbines, and compressors. Its 1.1-inch overall case length and 2.0-meter (6.6 ft) miniature coaxial ClickLoc cable provide reliable connectivity while minimizing signal loss in automated processes.

The probe is engineered with TipLoc molding for a secure bond between the probe tip and body, and CableLoc technology that offers 330 N (75 lbf) pull strength to maintain stable attachment under high-vibration conditions. Optional FluidLoc cable protection prevents oil or other liquids from entering the machine through the cable, making it suitable for harsh industrial environments. Fully compatible with all 3300 XL probes, extension cables, and Proximitor sensors, the system allows interchangeable components without recalibration, ensuring uptime and operational efficiency in automated monitoring systems. The 3300 XL 8 mm probe system complies with API 670 standards, guaranteeing linearity, temperature stability, and mechanical reliability for critical automation applications.

Applications

1. Rotating Machinery Vibration Monitoring
Provides high-resolution vibration measurements for fluid-film bearing machines and turbines, supporting predictive maintenance strategies in automated plants.

2. Shaft Position Measurement
Accurately monitors shaft displacement in compressors and pumps, enabling automated alignment verification and reducing mechanical wear.

3. Keyphasor Reference Signal Generation
Delivers reliable phase signals for Keyphasor systems, critical for speed synchronization and automated control loops in industrial systems.

4. Extreme Temperature Operations
Operates in temperatures ranging from -52°C to +177°C, suitable for harsh chemical, petrochemical, and power generation environments.

5. Maintenance and Retrofit Optimization
Supports probe replacement and gap adjustment without disassembling machinery, enhancing operational uptime and efficiency in automated systems.

Specifications

Competitive Advantage

1. High-Accuracy Measurements
Maintains linearity over 2 mm range with supply sensitivity below 2 mV per volt, providing precise vibration and position readings.

2. Robust Mechanical Design
TipLoc and CableLoc technologies ensure secure mounting, with 330 N pull strength, for reliable performance in high-vibration applications.

3. Fluid Containment Capability
Optional FluidLoc cable system prevents leakage of oil or other liquids, safeguarding probe and machine integrity in automated environments.

4. Interchangeable Components
Compatible with all 3300 XL probes, cables, and Proximitor sensors, simplifying integration and maintenance without bench calibration.

5. Industry Compliance
Meets API 670 standards for mechanical configuration, linear range, and temperature stability, ensuring dependable operation in critical automation systems.
