Overview

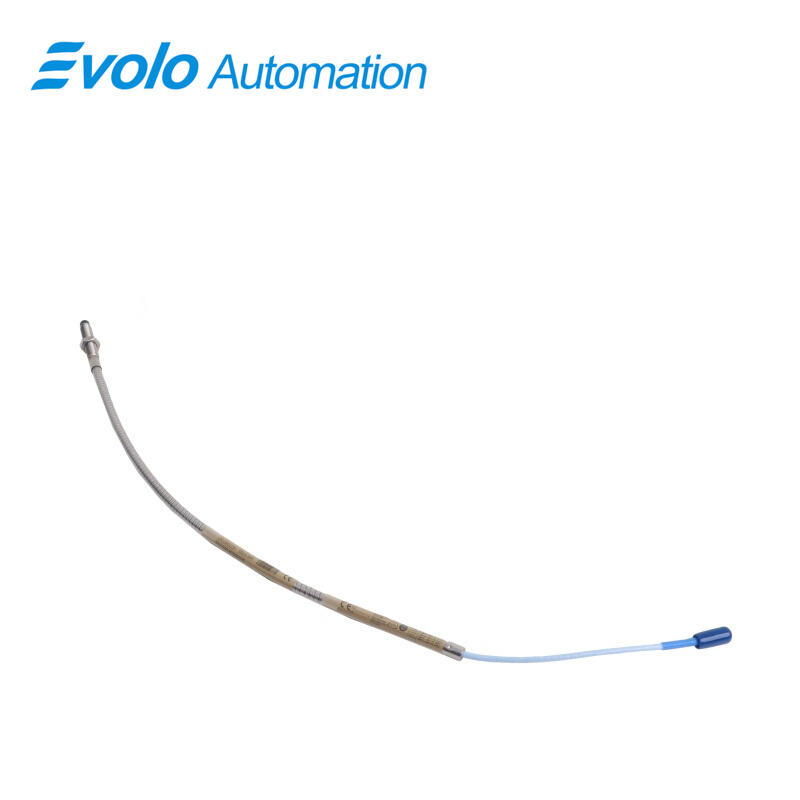

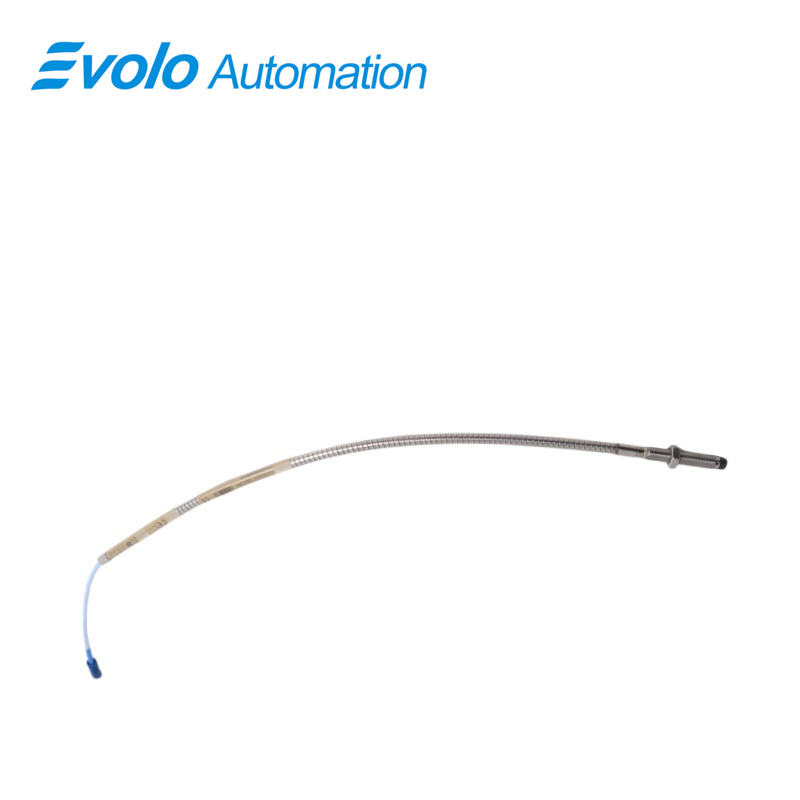

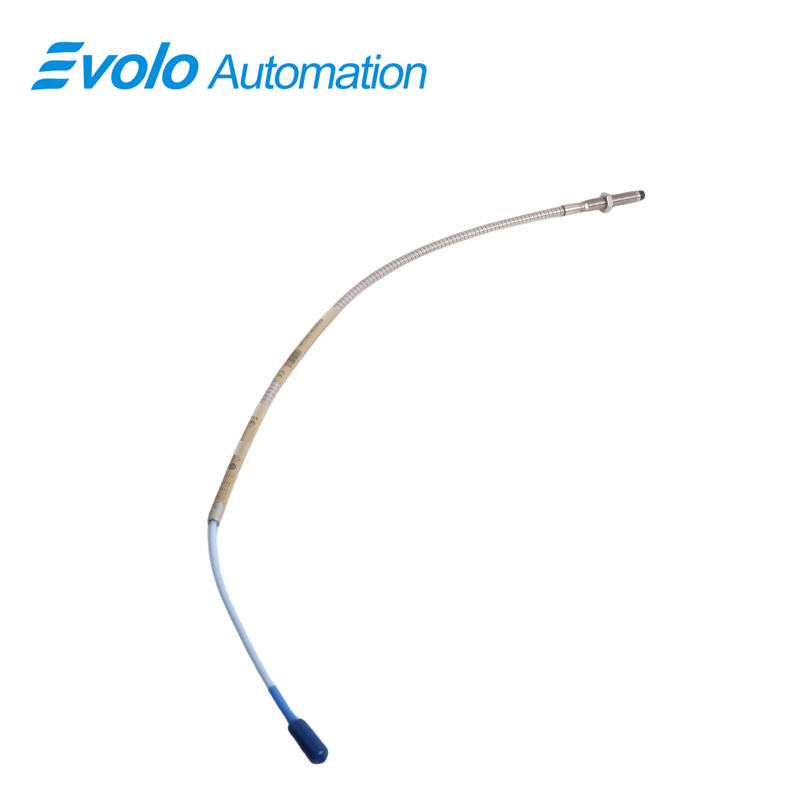

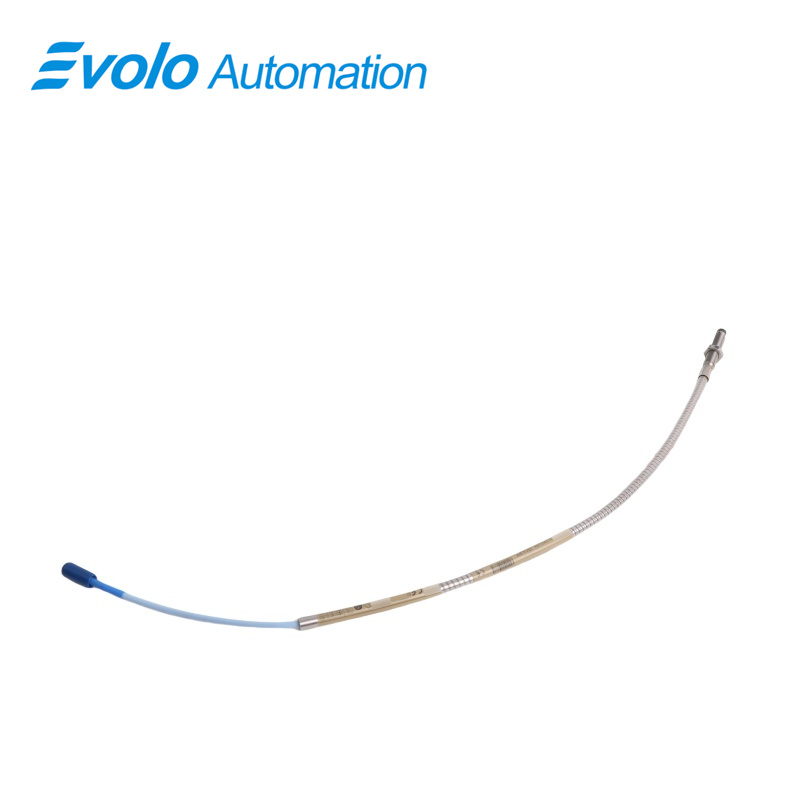

330101-00-20-05-02-00 3300 XL 8 mm Proximity Probe
At a Glance
Place of Origin: |
USA |
Brand Name: |
Bently Nevada |
Model Number: |
330101-00-20-05-02-00 |
Minimum Order Quantity: |
1 |
Packaging Details: |
Original new Factory Sealed |
Delivery Time: |
5-7 days |
Payment Terms: |
T/T |
Supply Ability: |
In stock |
Product Overview
Description
The 330102-00-12-05-02-05 3300 XL 8 mm Proximity Probe is a high-precision eddy current transducer system designed for advanced industrial automation applications. This 8 mm probe produces an output voltage directly proportional to the distance between its tip and the monitored conductive surface, accurately capturing both static positions and dynamic vibration signals. Engineered for fluid-film bearing machines, the 3300 XL 8 mm system excels in applications such as shaft vibration monitoring, Keyphasor phase reference generation, and rotational speed measurement. Fully compliant with API 670 standards, the 5-meter 3300 XL 8 mm system ensures superior linearity, accuracy, and temperature stability. The system supports complete interchangeability of probes, extension cables, and Proximitor sensors, eliminating the need for bench calibration and enabling backward compatibility with other 3300 series 5 mm and 8 mm components. Advanced design features include patented TipLoc molding for enhanced probe tip bonding and CableLoc cable retention providing 330 N pull strength, ensuring robust mechanical integrity. Optional FluidLoc cabling prevents oil or fluid leakage, further enhancing reliability in industrial automation environments. The 3300 XL 8 mm Proximity Probe combines precision, durability, and automation-ready performance, making it ideal for vibration and position monitoring in critical rotating machinery.
Key Functions
Applications
The 3300 XL 8 mm Proximity Probe (model 330102-00-12-05-02-05) is designed for precise measurement of position and vibration in industrial automation environments. Its high sensitivity and linear output voltage make it ideal for monitoring fluid-film bearing machines, providing accurate static position and dynamic vibration measurements. The probe is also used as a Keyphasor reference for rotor speed and phase detection, supporting condition monitoring and predictive maintenance programs in turbines, compressors, pumps, and generators. With its miniature coaxial ClickLoc connector and compact dimensions, this probe is suitable for installations with limited space while maintaining compliance with API 670 standards for mechanical configuration, linear range, and temperature stability.
Official Specifications
Quick Detail
|
Unthreaded Length Option(Minimum unthreaded length): |
0.0 in |
|
Overall Case Length Option(Minimum case length): |
2.0 in |
|
Total Length Option: |
0.5 meter (1.6 feet) |
|
Connector and Cable-Type Option: |
Miniature coaxial ClickLoc connector, standard cable |
|
Agency Approval Option: |
Not required |
|
Probe Case Thread: |
3/8-24 UNF thread |
|
Maximum Length of Thread Engagement: |
0.563 in |
|
Dimension: |
1.5x1.3x65.5cm |
|
Weight: |
0.05kg |
Specifications
|
Operating and Storage Temperature: |
-52°C to +177°C (-62°F to +350°F) |
|
Supply Sensitivity: |
Less than 2 mV change in output voltage per volt change in input voltage |
|
Output Resistance: |
50 Ω |
|
Extension Cable Capacitance: |
69.9 pF/m (21.3 pF/ft) typical |
|
Field Wiring: |
0.2 to 1.5 mm2 (16 to 24 AWG) |
|
Linear Range: |
2 mm (80 mils) |
Frequently Asked Questions
What is the model number?
The listed model number is 330101-00-20-05-02-00.
What is the brand name?
The listed brand name is Bently Nevada.
What is the place of origin?
The listed place of origin is USA.
What are the packaging details?
The listed packaging details are Original new Factory Sealed.
What is the delivery time?
The listed delivery time is 5-7 days.
Is this model available?
The listed supply status is In stock.
What are the payment terms?
The listed payment terms are T/T.
Compatibility & Ordering Notes
Competitive Advantage
The 3300 XL 8 mm Proximity Probe offers exceptional reliability and interchangeability across 3300 series systems. Its patented TipLoc and CableLoc designs enhance mechanical robustness, ensuring secure probe-to-cable connections with a pull strength of 330 N (75 lbf), and improved resistance to oil ingress through the optional FluidLoc cable. The probe supports backward compatibility with previous 3300 5 mm and 8 mm system components, eliminating the need for individual component calibration and simplifying system maintenance. Additionally, the system demonstrates minimal supply sensitivity (less than 2 mV per volt), low output resistance (50 Ω), and extended operating temperature range (-52°C to +177°C), enabling consistent and reliable performance in harsh industrial conditions. This combination of advanced design, precision, and durability makes the 3300 XL 8 mm probe a leading solution for automated condition monitoring and vibration analysis.
