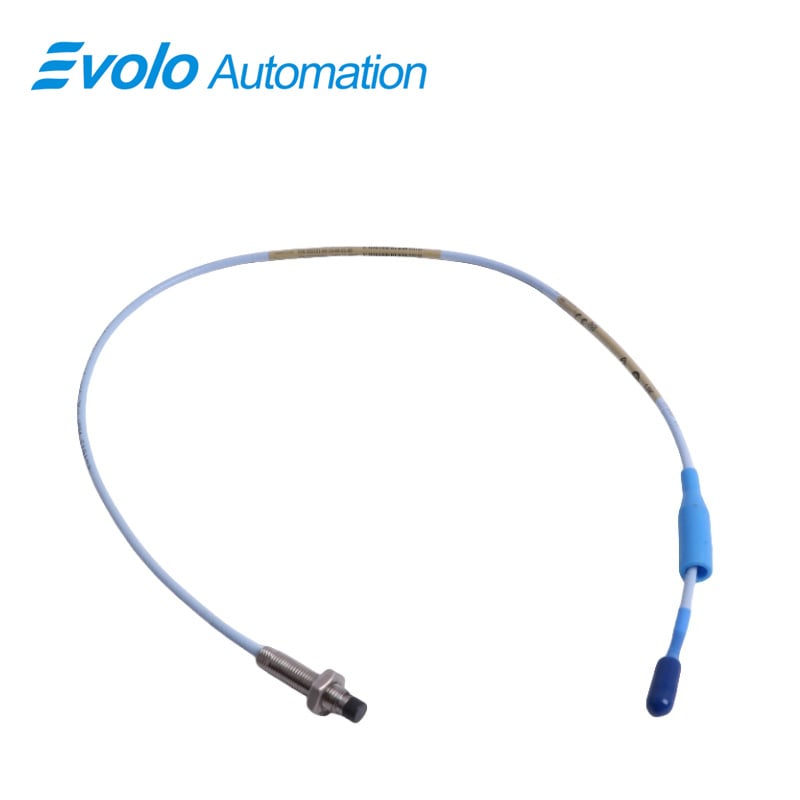

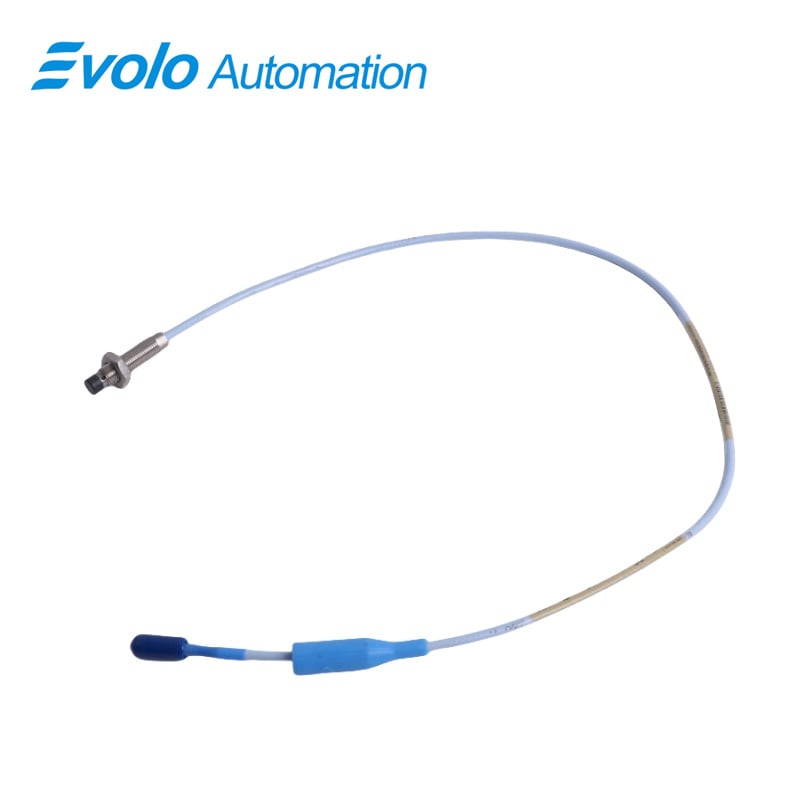

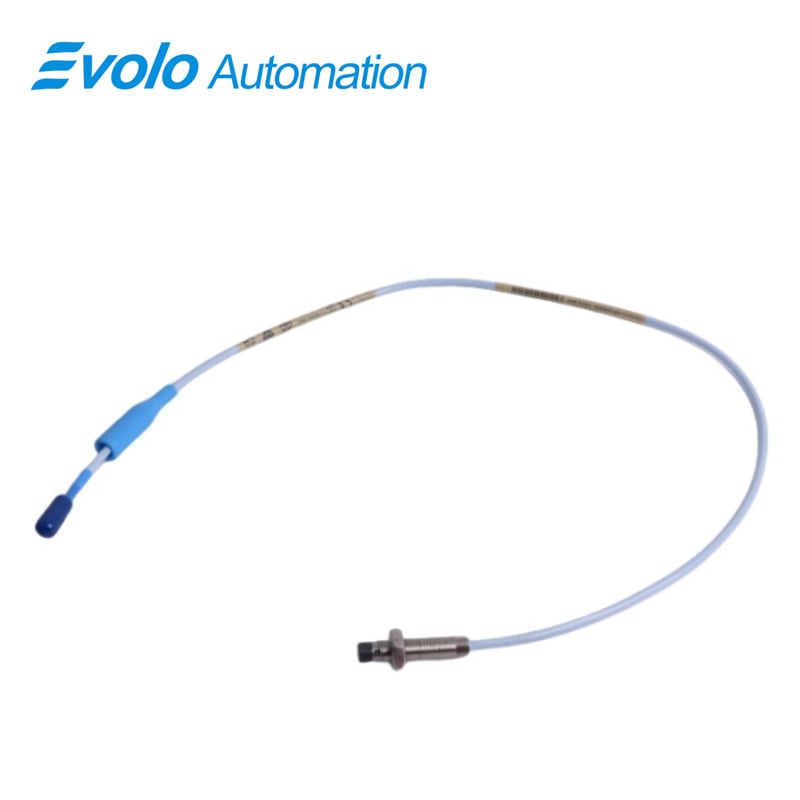

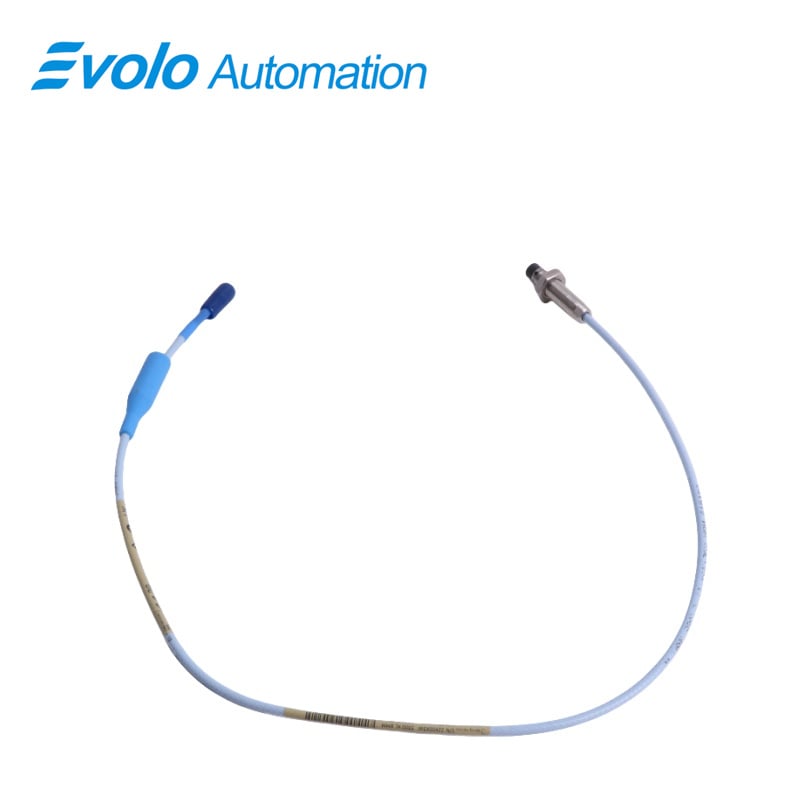

330101-00-15-20-02-05 3300 XL 8 mm Proximity Probe

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	330101-00-15-20-02-05
Minimum Order Quantity:	1
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

The 330101-00-15-20-02-05 3300 XL 8 mm Proximity Probe is a precision eddy current transducer designed for advanced industrial automation and condition monitoring applications. Delivering an output voltage proportional to the distance between the probe tip and conductive surfaces, this probe accurately measures both static positions and dynamic vibrations. Featuring a 3/8-24 UNF probe case thread with 0.563 in maximum thread engagement and a robust 1.5 in overall case length, it ensures secure mounting even in confined or high-vibration environments. The 2.0-meter (6.6 ft) total cable length allows flexible installation across machinery. With miniature coaxial ClickLoc connectors, patented TipLoc probe molding, and CableLoc cable attachment providing 330 N (75 lbf) pull strength, this probe guarantees reliable long-term operation. Operating in extreme conditions from -52°C to +177°C (-62°F to +350°F) and approved by CSA, ATEX, and IECEx, it supports fluid-film bearing vibration monitoring, Keyphasor reference signals, and rotational speed measurements. Optional FluidLoc cables prevent oil or liquid leakage, ensuring operational safety and compliance with API 670 standards for linearity, accuracy, and interchangeability with other 3300 XL series components.

Applications

Vibration Monitoring on Fluid-Film Bearings
Measures dynamic vibration in pumps, compressors, and turbines with 50 Ω output resistance, detecting imbalance and wear early to reduce maintenance downtime.

Static Position Measurement
Provides high-resolution displacement readings for shaft alignment and precise component positioning in automated machinery, ensuring stable operation.

Keyphasor Reference Signal Generation
Delivers consistent phase reference signals for rotor speed synchronization and predictive maintenance in generators and high-speed motors.

Rotational Speed and Zero-Speed Detection
Supports industrial tachometer applications, maintaining output variation under 2 mV per volt of supply fluctuation even in extreme temperature conditions.

Extended Cable Installation
The 2.0-meter (6.6 ft) cable length allows flexible placement in large or complex machinery layouts without compromising signal integrity or linearity.

Specifications

Competitive Advantage

Compact, High-Precision Design
The 8 mm probe tip fits in limited space while maintaining a 2 mm linear range, ideal for tight automation environments without sacrificing accuracy.

Robust Mechanical Reliability
TipLoc and CableLoc designs secure the probe tip and cable with 330 N (75 lbf) pull strength, preventing disconnections under vibration or mechanical stress.

Extreme Temperature Performance
Operates reliably from -52°C to +177°C, enabling deployment in both high-heat turbines and sub-zero industrial environments.

Interchangeable and Backward Compatible
Fully compatible with 3300 series 5 mm and 8 mm probes, extension cables, and Proximitor sensors, eliminating the need for component-specific calibration.

Fluid Containment Option
Optional FluidLoc cable design prevents oil or liquid migration through the probe, maintaining system cleanliness, safety, and operational reliability over time.
