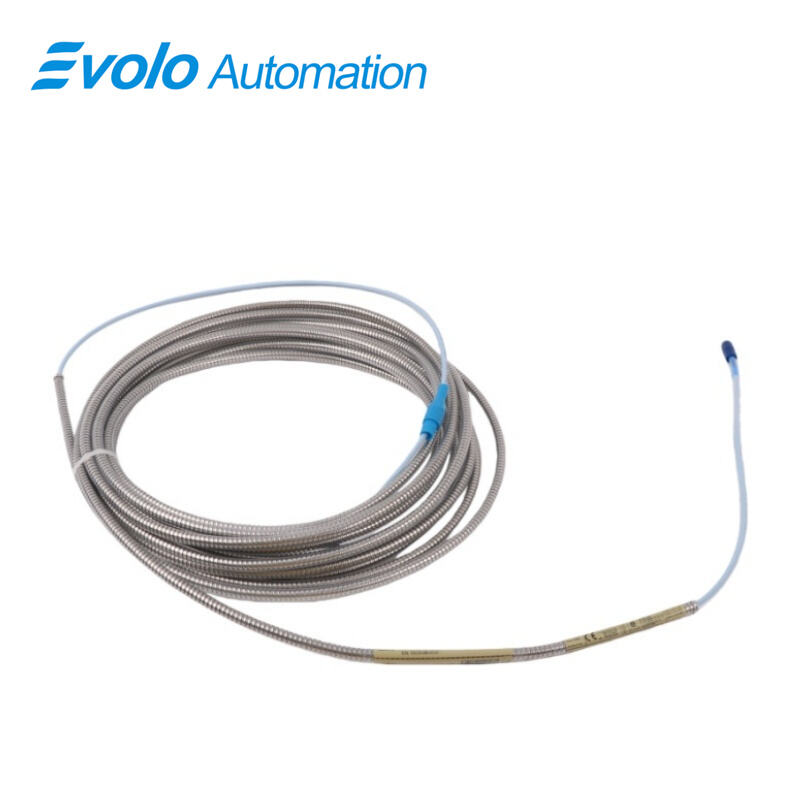

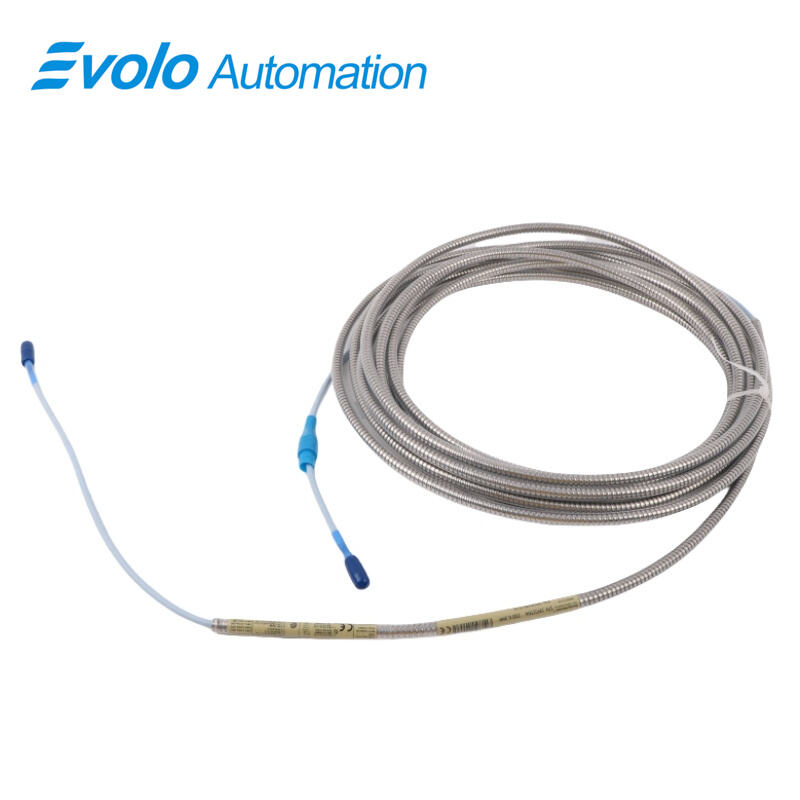

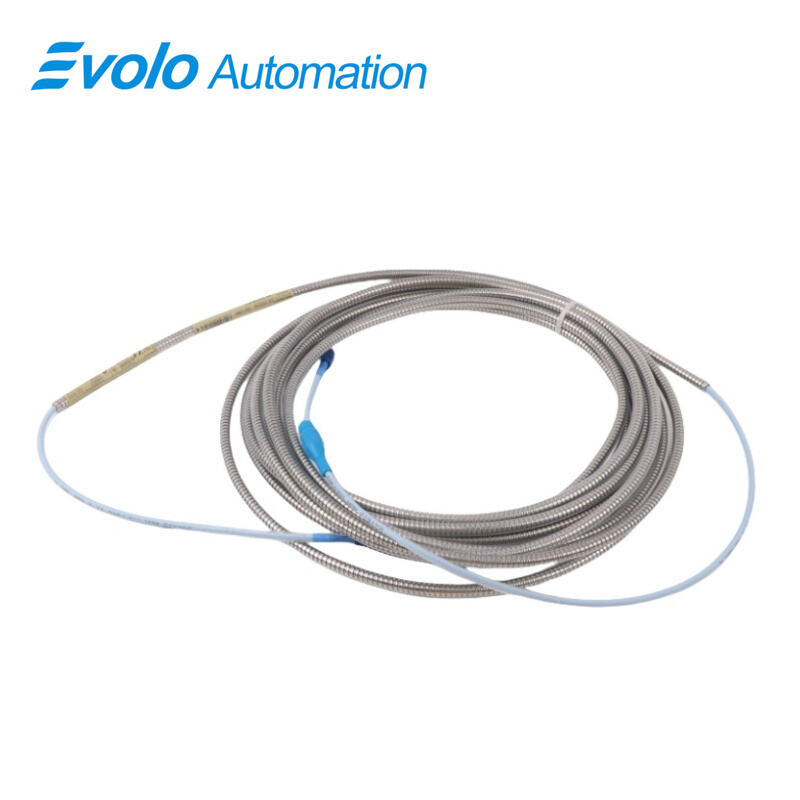

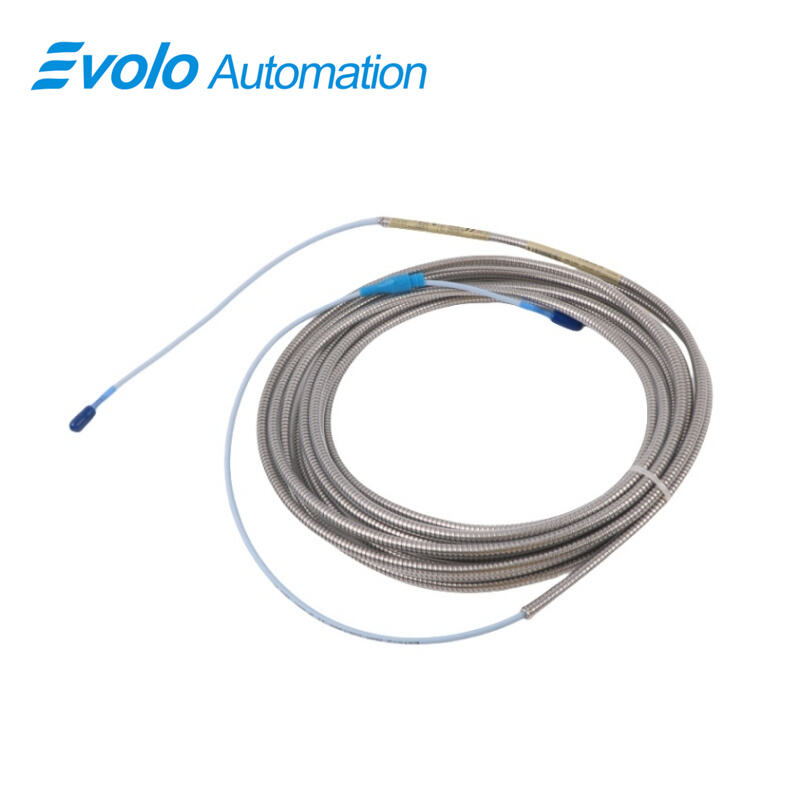

330130-080-03-05 3300 XL Standard Extension Cable

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	330130-080-03-05 0.82 kg
Minimum Order Quantity:	1
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

The 330130-080-03-05 3300 XL Standard Extension Cable is an integral component of the 3300 XL proximity transducer system, designed specifically for high-performance automation and industrial monitoring applications. When paired with 3300 XL 8 mm probes, this extension cable ensures seamless signal transmission between the probe and Proximitor sensor, maintaining the system’s exceptional accuracy for both position and vibration measurements.

Engineered for fluid-film bearing machinery and rotating equipment, the 3300 XL Standard Extension Cable supports both static displacement (position) and dynamic vibration monitoring. It allows users to obtain reliable Keyphasor signals for speed and phase reference measurements, which are critical in advanced industrial automation and predictive maintenance programs. The cable’s robust construction ensures stable operation across extreme temperature ranges and harsh industrial environments, meeting the stringent requirements of API 670 standards for linearity, thermal stability, and mechanical durability.

The 330130-080-03-05 cable also emphasizes ease of integration and system flexibility. Designed to be fully compatible with all 3300 XL system components, including older non-XL 3300 series 5 mm and 8 mm probes, it eliminates the need for component-specific bench calibration or complex matching procedures. Its standard 8-meter length provides ample reach for a wide range of installation layouts, supporting modular automation setups without compromising signal integrity.

Advanced design features enhance both performance and reliability. The cable incorporates a secure connector protector and armored jacket to withstand mechanical stress, while the optional FluidLoc sealing technology prevents oil, coolant, and other liquids from entering the probe or sensor interface, ensuring consistent operation in industrial environments. The cable’s design also maintains backward compatibility with previous 3300 XL systems, allowing for straightforward upgrades and expansions of existing monitoring installations.

In automated machinery monitoring systems, the 330130-080-03-05 3300 XL Standard Extension Cable is a critical component that guarantees precise signal transmission, durability, and flexibility. By integrating this extension cable into the 3300 XL proximity transducer system, industrial operators can achieve more reliable vibration analysis, position tracking, and predictive maintenance, enhancing equipment uptime, operational efficiency, and overall automation performance.

Applications

The 3300 XL Standard Extension Cable (8.0 meters / 26.2 feet) is specifically engineered for use with the 3300 XL Proximity Transducer System, enabling precise and reliable signal transmission between probes and Proximitor sensors in demanding industrial environments. Its applications primarily focus on machinery monitoring and condition-based maintenance.

Vibration and Position Measurement

This extension cable supports the 3300 XL 8 mm Proximity Transducer System in measuring both static position and dynamic vibration of critical components. It is ideal for fluid-film bearing machines where accurate monitoring of shaft displacement and vibration patterns is crucial to ensure operational reliability and reduce unplanned downtime.

Speed and Keyphasor Reference

By maintaining high signal integrity, the 3300 XL extension cable allows the Proximitor sensor to deliver precise Keyphasor reference signals and speed measurements for rotating machinery. This is essential for applications in turbines, compressors, and pumps where timing and rotational speed data are critical for control systems and diagnostic analysis.

Harsh Environment Compatibility

Designed with armored construction and connector protection, the extension cable is suitable for harsh industrial conditions, including extreme temperatures ranging from -52°C to +177°C (-62°F to +350°F). It meets international standards such as CSA, ATEX, and IECEx, making it applicable in hazardous or high-risk environments.

Interchangeable and Flexible System Design

The 3300 XL extension cable is fully interchangeable with other 3300 series system components, allowing flexible system design and easy replacement without the need for bench calibration. The cable’s triaxial FEP insulation ensures minimal capacitance (69.9 pF/m), low output resistance (50 Ω), and stable signal performance even with variations in supply voltage, ensuring accurate measurements over long cable runs.

Leak Prevention and Robustness

Optional FluidLoc cable configurations prevent leakage of oil or other fluids from machinery, while the patented CableLoc design provides up to 330 N pull strength to secure connections. These features make the cable especially suitable for rotating equipment in oil, gas, petrochemical, and power generation industries.

Specifications

Competitive Advantage

High Signal Integrity and Accuracy

The 3300 XL Standard Extension Cable ensures exceptional signal transmission between the probe and Proximitor sensor. With a triaxial FEP-insulated design and low output resistance (50 Ω), the cable maintains high measurement accuracy for both static position and dynamic vibration. Its supply sensitivity of less than 2 mV per volt change guarantees stable readings even under fluctuating power conditions.

Robust Construction for Harsh Environments

Featuring an armored cable with connector protector, this extension cable is engineered for demanding industrial settings. It operates reliably across a wide temperature range from -52°C to +177°C (-62°F to +350°F), providing durability in extreme heat, cold, and high-vibration environments. The optional FluidLoc cable further prevents oil or fluid leakage, enhancing safety and equipment integrity.

Full System Compatibility and Interchangeability

The 3300 XL extension cable is fully compatible with other 3300 series components, including 5 mm and 8 mm probes, enabling flexible system design and easy replacements. This interchangeability eliminates the need for bench calibration of individual components, saving both installation time and maintenance costs.

Enhanced Mechanical Reliability

Improvements such as the patented TipLoc molding and CableLoc design provide superior mechanical strength, offering 330 N (75 lbf) pull resistance to secure the probe cable. These features ensure long-term reliability even in high-stress applications such as turbines, compressors, and pumps.

Global Compliance and Safety Certifications

With approvals including CSA, ATEX, and IECEx, the 3300 XL extension cable meets international standards for use in hazardous and industrial environments, ensuring safe operation in oil, gas, petrochemical, and power generation facilities.
