Overview
Place of Origin: |
USA |
Brand Name: |
HONEYWELL |
Model Number: |
10006/2/1 |
Packaging Details: |
Original new Factory Sealed |
Delivery Time: |
5-7 days |
Payment Terms: |
T/T |
Supply Ability: |
In stock |
Specifications
|
Description |
Specification |
|
Model |
10006/2/1 |
|
Dimensions |
4x18.6x12.8cm |
|
Part name |
Diagnostic and battery module |
|
Weight |
0.25 kg |
|
Approvals |
CE, TÜV, UL |
|
Software versions |
≥ 2.90 |
|
Space requirements |
8 TE, 3 HE (8 HP, 3U) |
|
Time drift |
< 1 sec/day |
|
Power requirements |
5 V DC, 300 mA |
|
Ripple content |
< 50 mV p-p |
|
Back-up capacity |
0.5 Ah |
Description

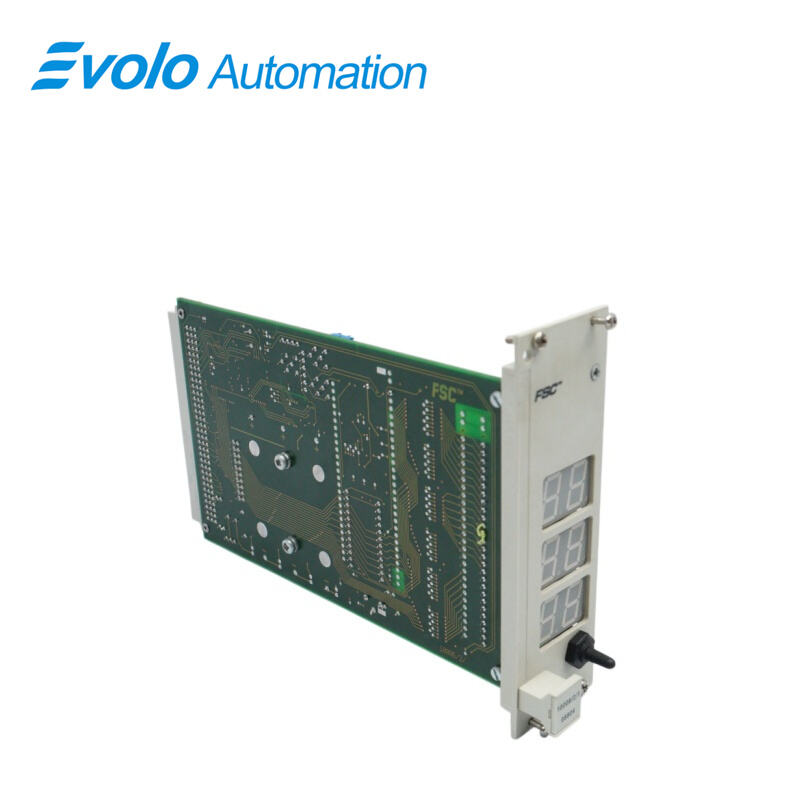

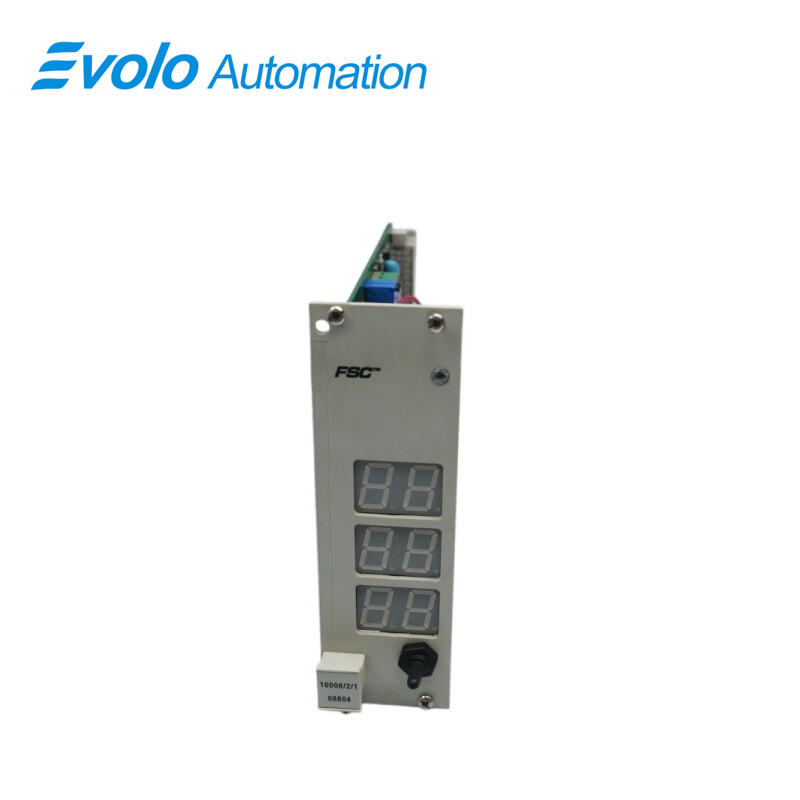

10006/2/1 is a unit in the Honeywell FSC Safety Instrumented System. As a highly integrated Diagnostic and Battery Module (DBM), it plays a dual role in system-level monitoring and critical data protection within the central processing architecture. This module provides maintenance personnel with intuitive hardware health feedback by monitoring the real-time operating status of the FSC system's internal buses.
Applications
Oil Refinery: Deployed in a central control cabinet, it ensures high availability of Emergency Shutdown (ESD) logic in harsh refining environments through precise diagnostic feedback.
Large Fertilizer Plant: Monitors the safety interlock status of ammonia synthesis units, utilizing its battery backup function to prevent data loss due to power grid fluctuations during shutdowns.
Fine Chemical Plant: In batch reactor control systems, its SOE logging function helps process engineers accurately analyze the triggering sequence of chemical reactions.
Batteries

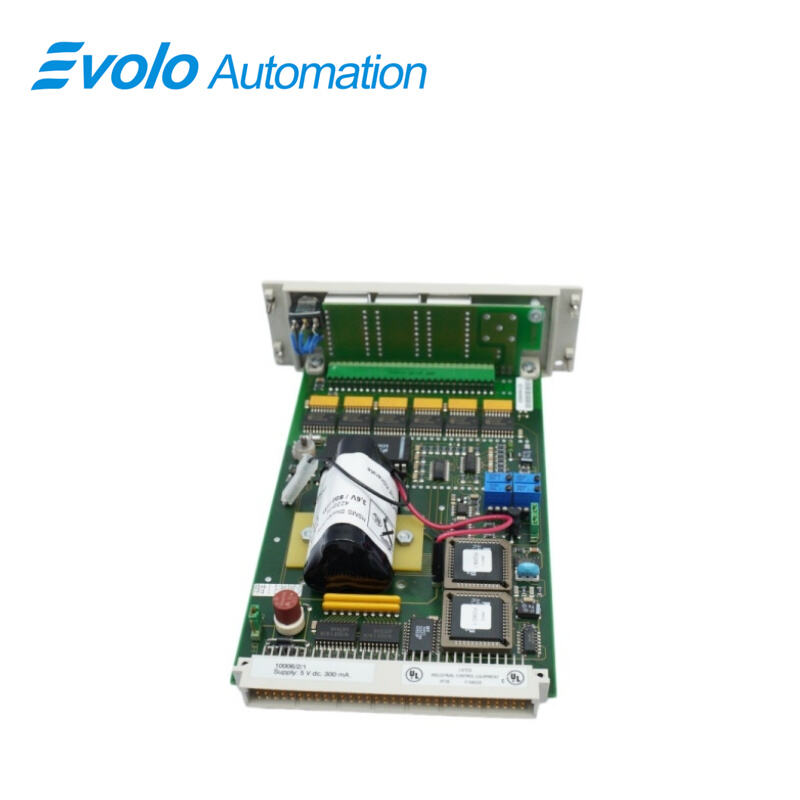

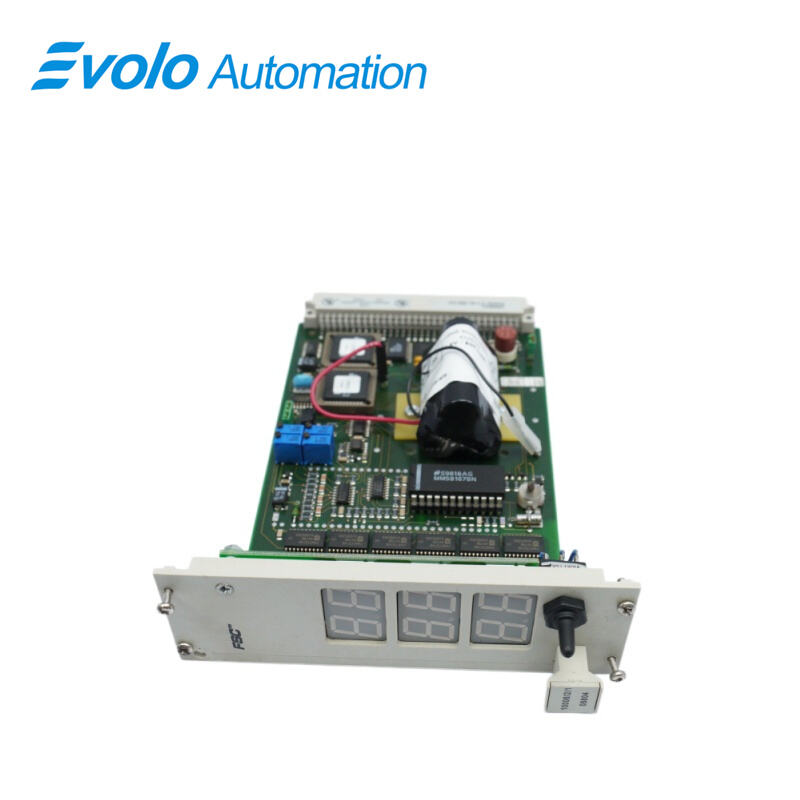

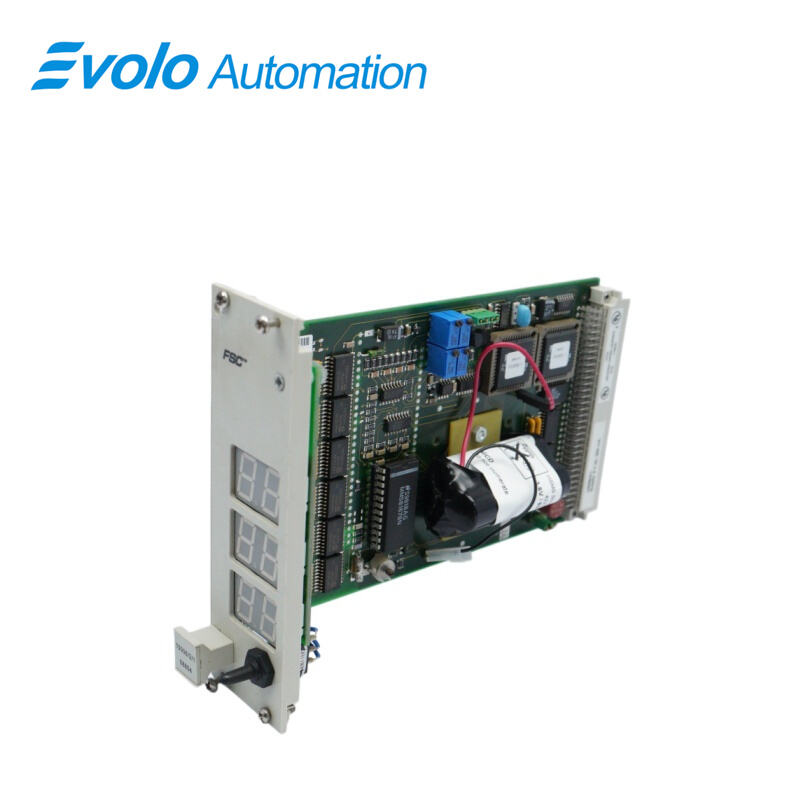

The DBM module holds the rechargeable batteries that supply the back-up power for the RAM memory on the CPU (10002/1/1 or 10002/1/2), COM modules (10004/./.) and MEM modules (10003/1/1).
It is recommended that the batteries are replaced every four years.
FAQ
Q: What problem does the 10006/2/1 module primarily solve in an FSC system?
A: It prevents data loss during power outages and provides a unified diagnostic window with a high-precision system clock.
Q: Does the 10006/2/1 module have a backup battery capacity?
A: Yes, it has a 0.5 Ah battery to maintain system memory after power loss.
Q: Can the 10006/2/1 be installed in any FSC system version?
A: It requires software version ≥ 2.90 for full hardware and protocol compatibility.
Q: Are there strict power quality requirements for the 10006/2/1?
A: Yes, it operates on 5 VDC with ripple below 50 mV p-p for clock stability.
Q: How much rack space does the 10006/2/1 require?
A: It occupies 8 TE width and 3 U height as a central system module.
