Overview

Place of Origin:	Sweden
Brand Name:	ABB
Model Number:	TU811V1 3BSE013231R1
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Specifications

Parameter	Value
Type	Compact
Connection	Terminal block
Channels	8
Voltage	250 V
Mounting	Both directions
Mounting detail	Horizontal 55 ºC (131 ºF), Vertical 40 ºC (104 ºF)
Use with I/O	DI820, DI821, DO820, DO821
Single/redundant I/O	Single
Width	64 mm (2.52 in.) including connector, 58.5 mm (2.3 in.) edge to edge installed
Depth	64 mm (2.52 in.) including terminals
Height	170 mm (6.7 in.) including latch
Weight	0.17 kg (0.37 lbs)
Maximum current per I/O channel	3 A
Acceptable wire sizes	Solid: 0.2 - 4 mm², Stranded: 0.2 - 2.5 mm², 24 - 12 AWG
Recommended torque	0.5 - 0.6 Nm
Stripping length	7 mm
Dielectric test voltage	2000 V a.c.

Description

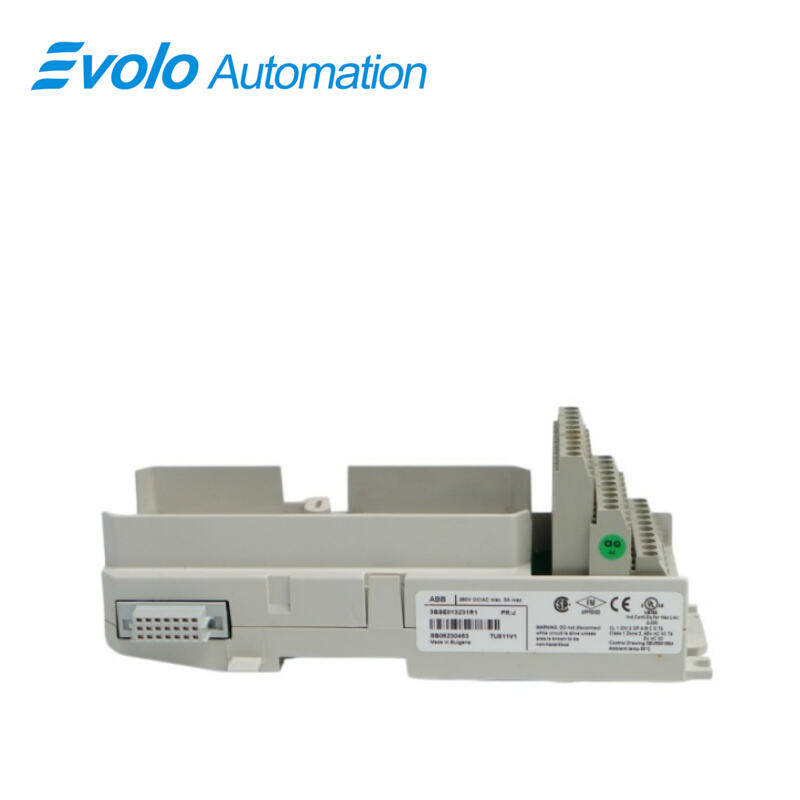

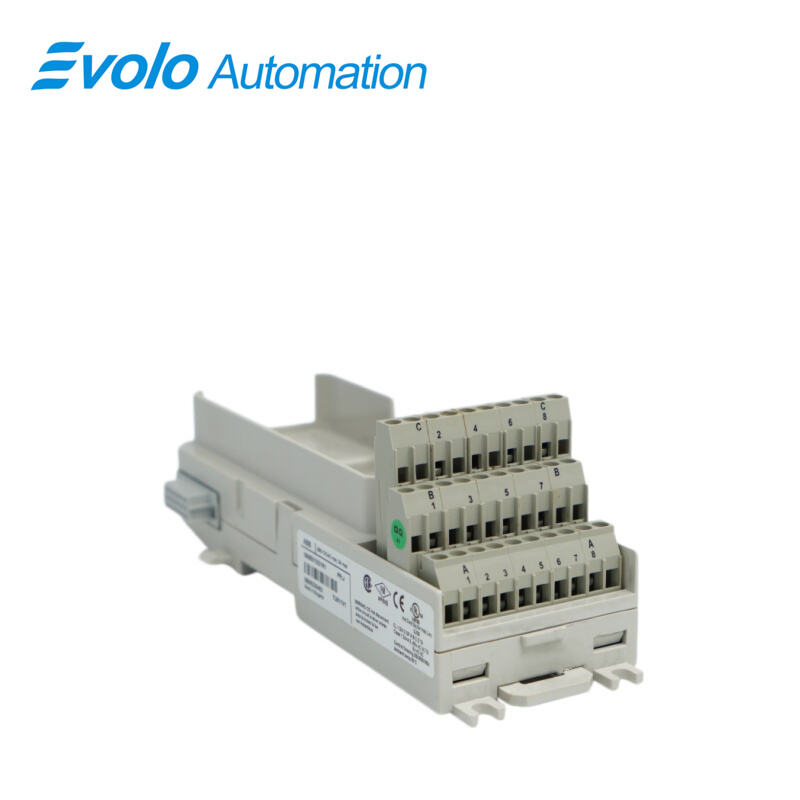

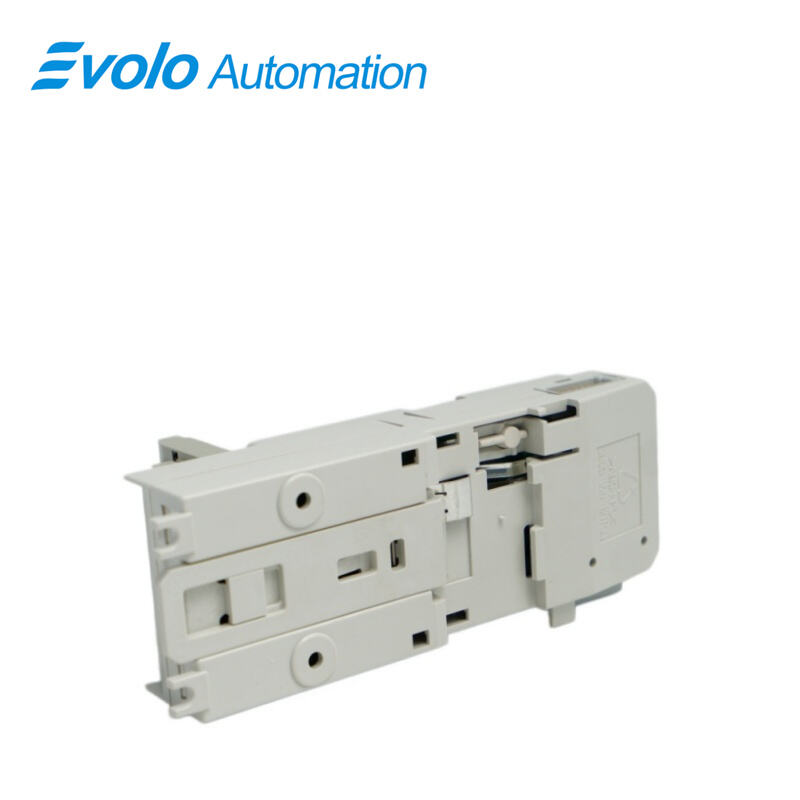

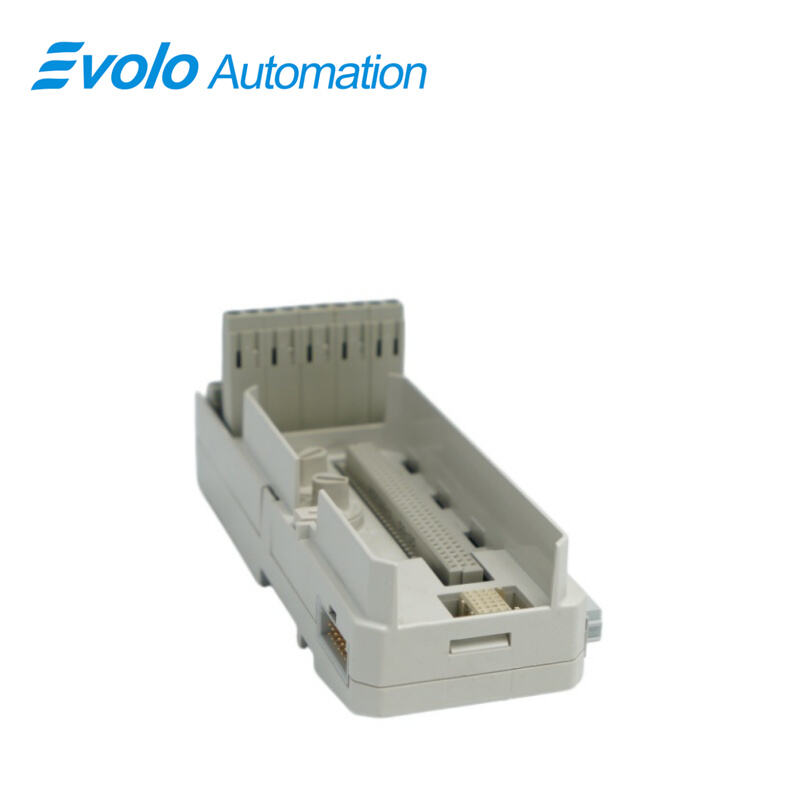

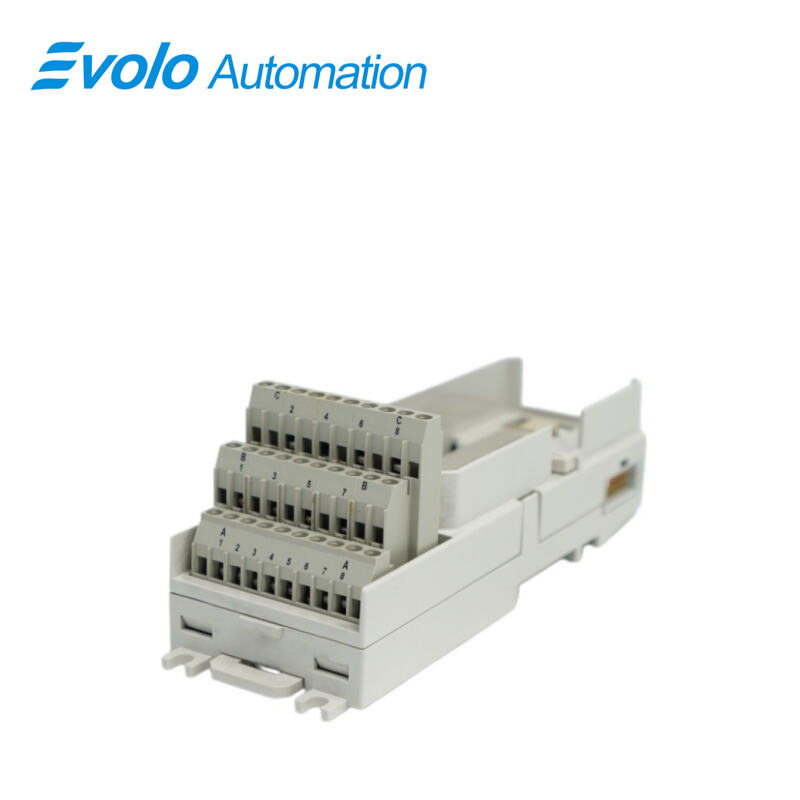

The TU811V1 3BSE013231R1 is a 8 channel 250 V compact module termination unit (MTU) for the S800 I/O. The MTU is a passive unit used for connection of the field wiring to the I/O modules. It also contains a part of the ModuleBus.

The MTU distributes the ModuleBus to the I/O module and to the next MTU. It also generates the correct address to the I/O module by shifting the outgoing position signals to the next MTU.

Two mechanical keys are used to configure the MTU for different types of I/O modules. This is only a mechanical configuration and it does not affect the functionality of the MTU or the I/O module. Each key has six positions, which gives a total number of 36 different configurations.

Environment and certification

Parameter	Value
CE Mark	Yes
Electrical Safety	EN 61010-1, UL 61010-1, EN 61010-2-201, UL 61010-2-201
Marine Certification	ABS, BV, DNV-GL, LR
Operating Temperature	0 to +55 °C (+32 to +131 °F), approvals issued for +5 to +55 °C
Storage Temperature	-40 to +70 °C (-40 to +158 °F)
Pollution Degree	Degree 2, IEC 60664-1
Corrosion Protection	ISA-S71.04: G3
Relative Humidity	5 to 95 %, non-condensing
Max Ambient Temperature	55 °C (131 °F), vertical mounting 40 °C (104 °F)
Protection Class	IP20 according to IEC 60529
Mechanical Operating Conditions	IEC/EN 61131-2
EMC	EN 61000-6-4, EN 61000-6-2
Overvoltage Categories	IEC/EN 60664-1, EN 50178
Equipment Class	Class I (earth protected) according to IEC 61140
RoHS Compliance	EN 50581:2012
WEEE Compliance	DIRECTIVE/2012/19/EU

Applications

Thermal power plants: Used for digital signal acquisition in 220V AC high-voltage control circuits.

Steel and metallurgical plants: Carry high-voltage relay modules within complex power distribution control cabinets.

Waste incineration plants: I/O interfaces connecting on-site high-voltage switchgear to the DCS system.

Petrochemical plants: Wiring for 110V/220V control signals for long-distance transmission.

Water pump plants: Managing start/stop feedback signals for high-power water pump control cabinets.

Features and benefits

Compact installation of I/O modules.

Up to 8 isolated channels of field signals.

Connections to ModuleBus and I/O modules.

Mechanical keying prevents insertion of the wrong I/O module.

Latching device to DIN rail for grounding.

DIN rail mounting.

FAQ

Q: What are the main differences between TU811V1 3BSE013231R1 and TU810V1 3BSE013230R1?
A: Voltage rating is the main difference: TU811V1 supports up to 250V, while TU810V1 is typically used only for low-voltage signals below 50V.

Q: Does TU811V1 3BSE013231R1 require a separate power supply?
A: The base itself is passive, but it requires a process voltage (e.g., 220V AC) to power the module via terminals.

Q: Can different module models be mixed in TU811V1 3BSE013231R1?
A: No. The mechanical key physically locks the base, allowing only specific types of modules to be inserted.

Q: Will a faulty TU811V1 3BSE013231R1 cause a bus failure?
A: Yes. Since the bus signals pass through the base, a failure may cause all downstream modules to lose connection.

Q: How many wire types of wiring are supported by TU811V1 3BSE013231R1?
A: It primarily supports single-wire wiring. For multi-wire wiring or common terminal distribution, additional power distribution terminal blocks are usually required.
