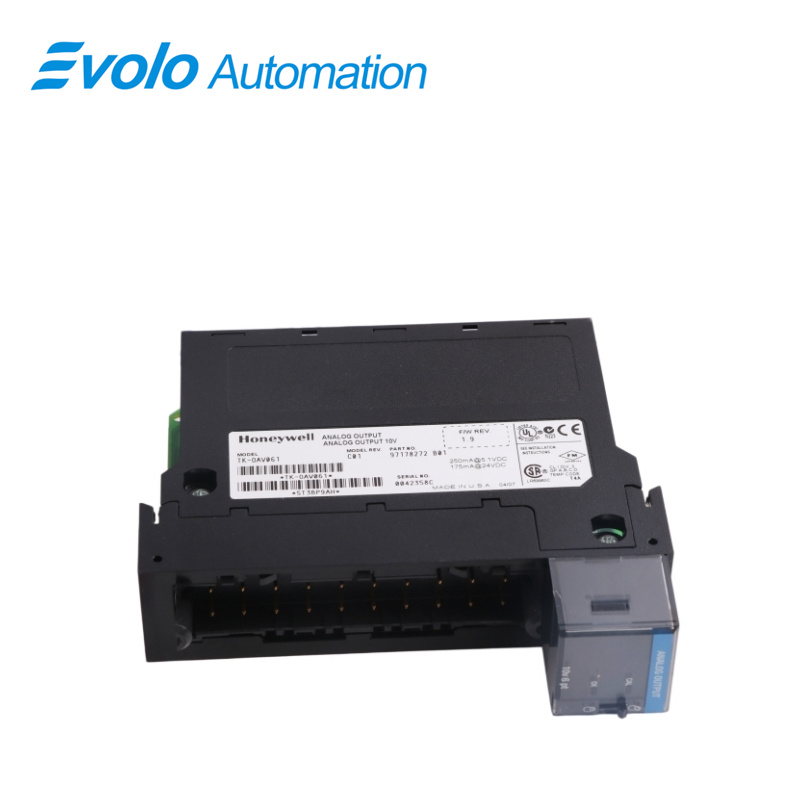

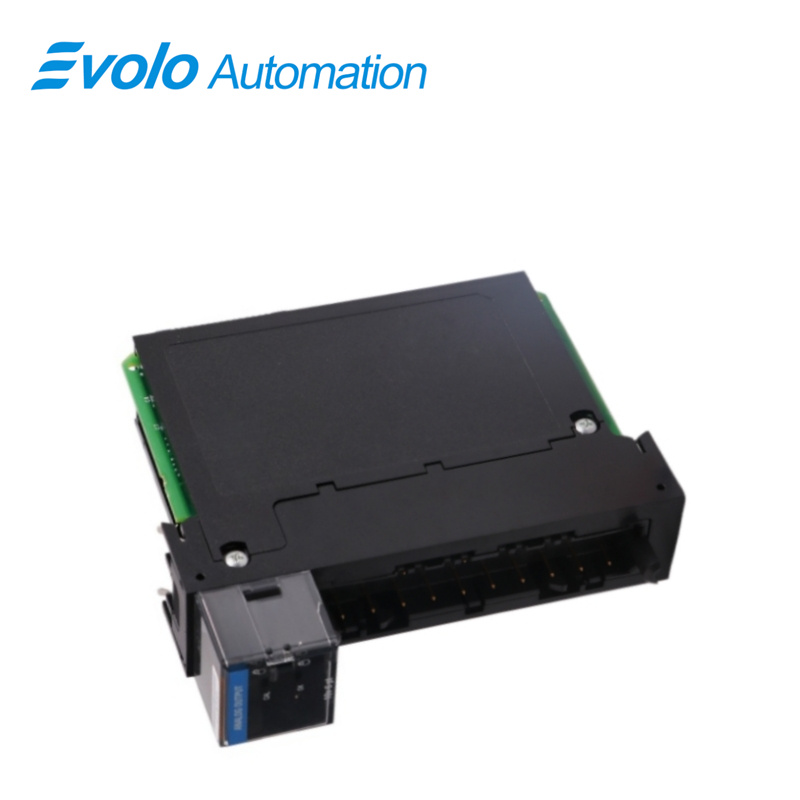

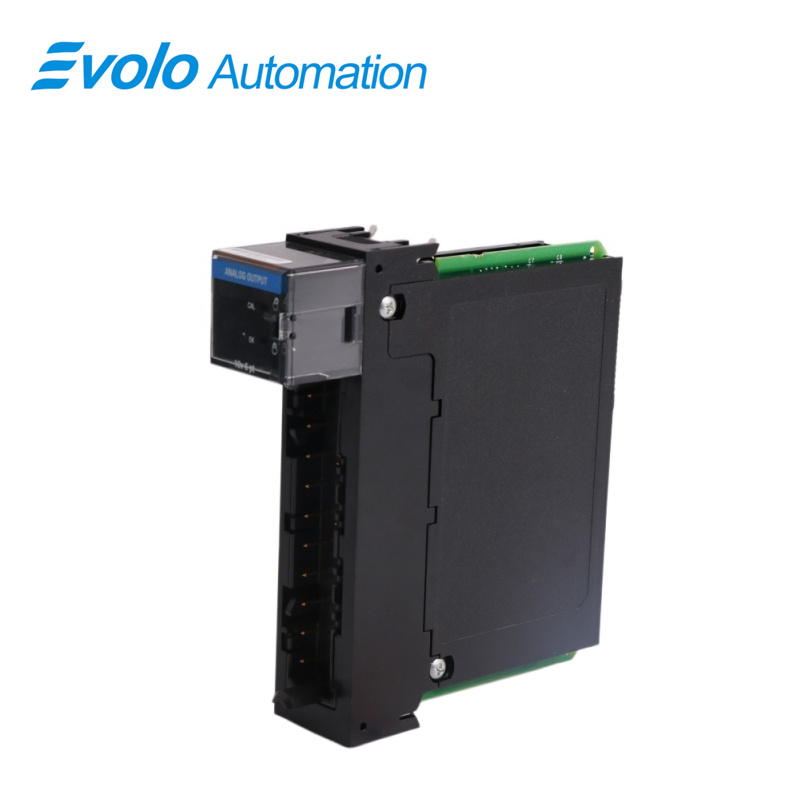

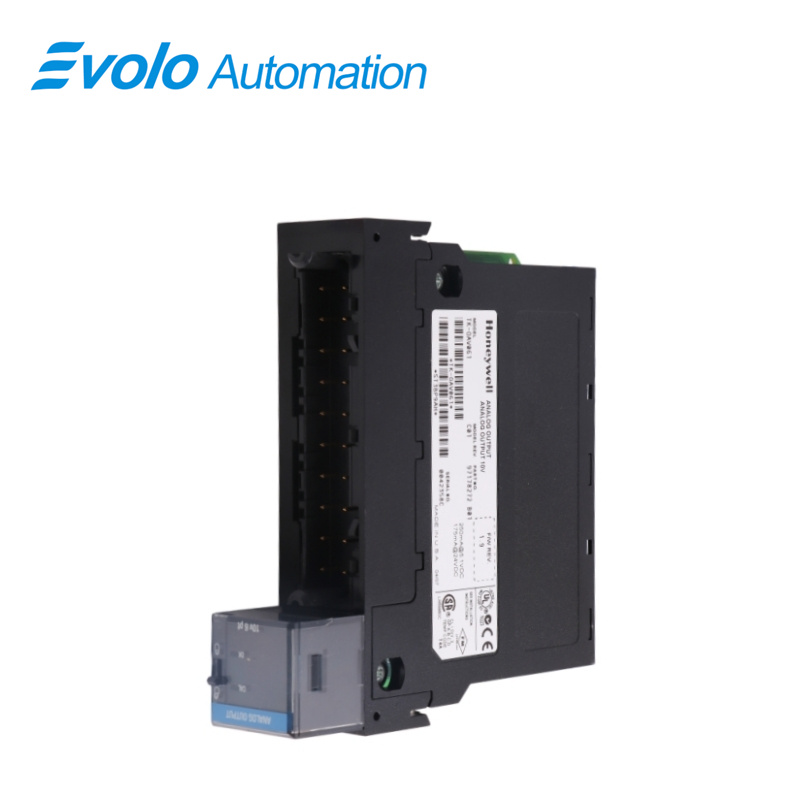

Overview
Place of Origin: |
USA |
Brand Name: |
HONEYWELL |
Model Number: |
TK-OAV061 |
Packaging Details: |
Original new Factory Sealed |
Delivery Time: |
5-7 days |
Payment Terms: |
T/T |
Supply Ability: |
In stock |
Specifications
|
Parameter |
Value |
|
Model |
TK-OAV061 |
|
Product Type |
Analog Output Module |
|
Dimensions |
3.5 × 14 × 14.5 cm |
|
Weight |
0.28 kg |
|
Number of Points |
6 galvanically isolated channels |
|
Output Current Range |
0–21.0 mA |
|
Current Resolution |
13 bits across 21 mA (2.7 µA) |
|
Open Circuit Detection |
None |
|
Overvoltage Protection |
24 VAC/VDC continuous at room temperature |
|
Short Circuit Protection |
Electronically current limited to ≤21 mA |
|
Drive Capability |
20 mA max into loads ≤500 Ω (up to 1000 Ω with alternate termination) |
|
Accuracy @ 25°C |
±0.1% of range (4–21 mA) |
|
RFI Immunity |
Error <2.0% of range at 10 V/m (27–1000 MHz) |
|
Module Update Rate |
25 ms (all channels) |
|
Output Settling Time |
<2 ms to 95% (resistive loads) |
|
Temperature Drift (Offset) |
1 µA/°C typical |
|
Temperature Drift (Gain) |
60 ppm/°C typical |
|
Power Dissipation |
6.7 W max |
|
Isolation Voltage (Channel to Channel) |
2546 VDC for 1 second |
|
Isolation Voltage (User to System) |
2546 VDC for 1 second |
|
Terminal Block |
TC-TBNH, 20-position |
Description
Honeywell's TK-OAV061 is an analog output module. It has several independent output channels used to convert digital control signals from the control box into continuously varying currents. By changing the magnitude of the output current, it can directly control the switching angle or operating speed of these mechanical devices.
Applications
Chemical Plants: Control valve position and level regulation.
Refineries: Stabilize pressure and temperature systems.
Power Plants: Regulate steam flow and turbine output.
Paper Mills: Control pulp mix and drying temperature.
Steel Mills: Manage furnace heating and cooling flow.
Features
Isolated Outputs: Ensure electrical safety and prevent interference between channels.
Wide Output Range: Accommodates diverse measurement and control requirements.
High Accuracy and Resolution: Deliver precise analog signals for reliable performance.
Fast Update Time: Enables rapid response to process changes.
Low Power Consumption: Reduces energy costs and extends battery life in portable applications.
Easy Installation and Maintenance: Simplifies integration and long-term operation.
FAQ
Q: How many isolated channels does TK-OAV061 have?
A: It has 6 electrically isolated channels.
Q: What is the current resolution of TK-OAV061 within the 21 mA range?
A: The current resolution is 13 bits (2.7 µA).
Q: What is the output accuracy of TK-OAV061 at 25°C?
A: The output accuracy is ±0.1% of range (4–21 mA).
Q: What is the current limit under short circuit condition for TK-OAV061?
A: The current is electronically limited to ≤21 mA.
Q: What is the channel-to-channel isolation voltage of TK-OAV061?
A: The channel-to-channel isolation voltage is 2546 VDC.
