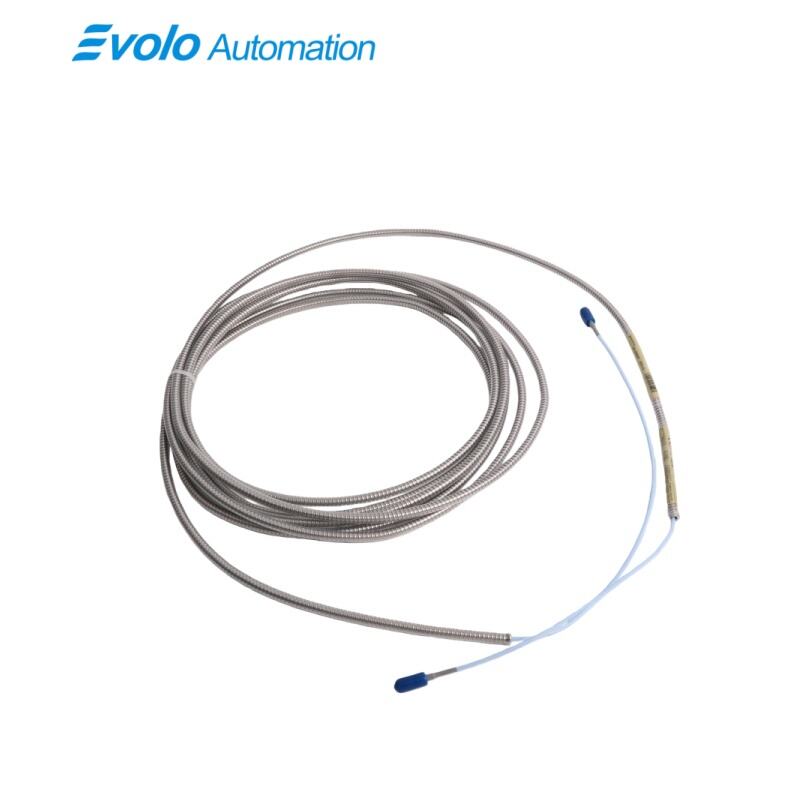

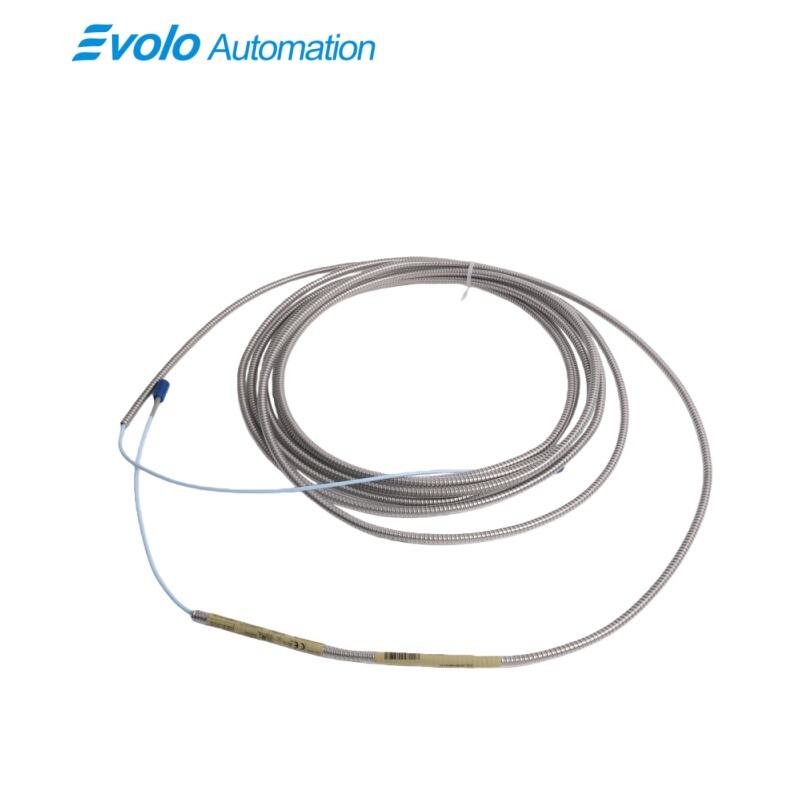

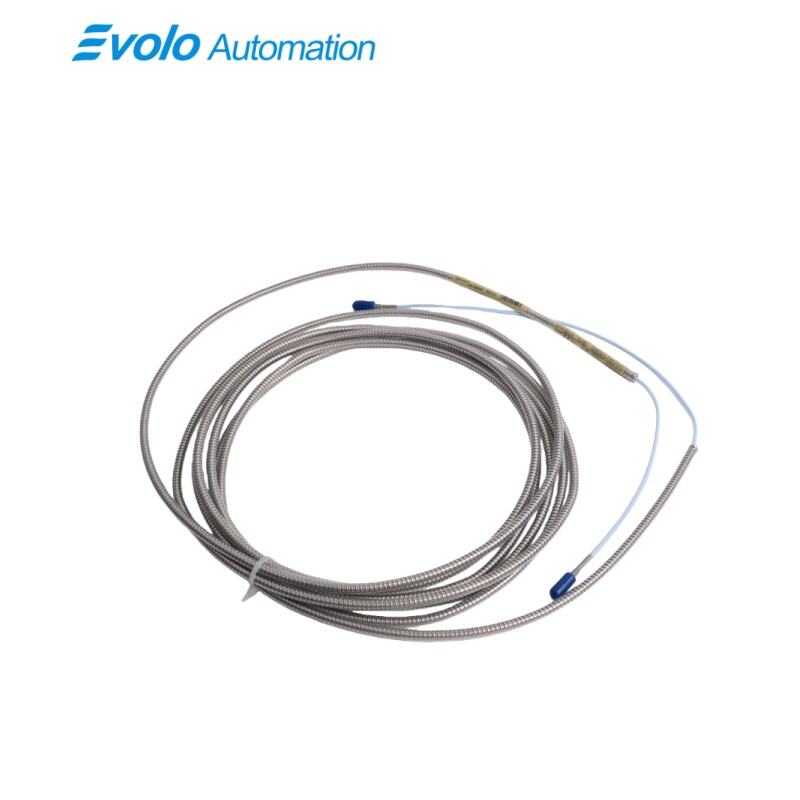

330930-060-01-05 3300 NSv Extension Cable

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	330930-060-01-05
Minimum Order Quantity:	1
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

The 330930-060-01-05 3300 NSv Extension Cable is a precision-designed signal transmission component developed specifically for use within 3300 NSv proximity transducer systems. This 3300 NSv Extension Cable is engineered to extend the electrical connection between NSv proximity probes and signal conditioning or monitoring electronics while maintaining accurate, stable, and noise-resistant signal performance in demanding industrial environments.

Within NSv proximity systems, accurate signal transmission is critical due to the narrow surface measurement principle and reduced target size typical of NSv applications. The 3300 NSv Extension Cable is designed with tightly controlled electrical characteristics, including stable capacitance and low DC resistance, ensuring that displacement and vibration signals remain directly proportional to the probe-to-target gap. This allows the monitoring system to preserve measurement linearity and accuracy over extended cable lengths without signal distortion.

The 330930-060-01-05 3300 NSv Extension Cable provides a 6.0 meter cable length, enabling flexible installation layouts where probes are mounted deep within machine housings and monitoring electronics must be positioned remotely for safety, accessibility, or thermal protection. The extended reach supports routing through turbine casings, bearing housings, and compact equipment structures commonly found in high-speed compressors, small pumps, and other tightly packaged rotating machinery.

Applications

The 330930-060-01-05 3300 NSv Extension Cable is applied to extend signal transmission between NSv proximity probes and monitoring electronics in compact rotating machinery, ensuring accurate vibration and displacement measurement when probes are installed in confined spaces.

In high-speed compressors, small turbines, and pumps with limited installation clearance, the 3300 NSv Extension Cable enables flexible routing through bearing housings and machine structures while preserving stable, low-noise signal transmission.

The 3300 NSv Extension Cable is used in industrial environments where monitoring equipment must be located away from high-temperature or high-vibration zones, allowing reliable signal transmission over extended distances without compromising measurement accuracy.

Specifications

Competitive Advantage

1. Optimized Signal Integrity for NSv Systems

The 3300 NSv Extension Cable is electrically matched to NSv proximity probes, maintaining controlled capacitance and low resistance to preserve signal linearity and measurement accuracy without recalibration.

2. Rugged Armored Construction with Environmental Protection

With stainless steel armor and an FEP jacket, the 3300 NSv Extension Cable provides strong resistance to mechanical damage, oil, moisture, and temperature extremes, ensuring long-term reliability in harsh industrial conditions.

3. Flexible Installation with Secure Connectivity

The 6.0 meter cable length and miniature coaxial ClickLoc connector with protector allow the 3300 NSv Extension Cable to support flexible routing and secure connections in compact machinery layouts, reducing installation constraints and maintenance effort.
