Overview
Place of Origin: |
USA |
Brand Name: |
GE |
Model Number: |
TGT-AI0V-8-0-BC |
Packaging Details: |
Original new Factory Sealed |
Delivery Time: |
5-7 days |
Payment Terms: |
T/T |
Supply Ability: |
In stock |
Specifications
|
Description |
Specification |
|
Model |
TGT-AI0V-8-0-BC |
|
Part name |
Analog Module |
|
Inputs |
4 |
|
Outputs |
4 |
|
Operating temperature |
-40°C to +85°C (-40°F to 185°F) |
|
Power consumption |
Max 500 mA @ 24 VDC |
|
Communication protocol |
Modbus RTU |
|
Relay output rating |
2 A @ 250 VAC / 1 A @ 250 VDC |
|
Accuracy |
±0.2% FS ±2 LSBs |
Description

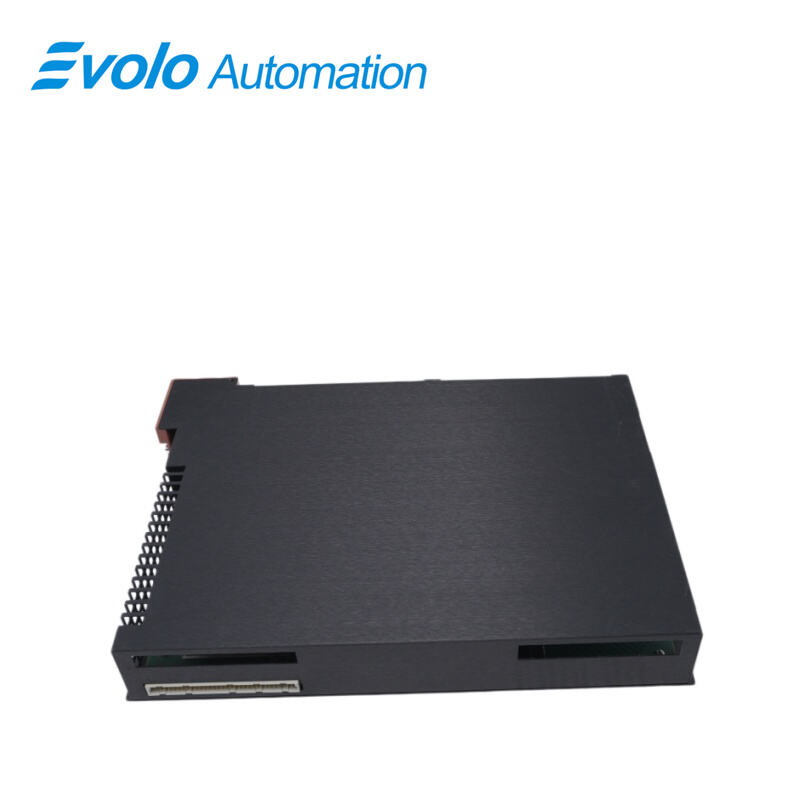

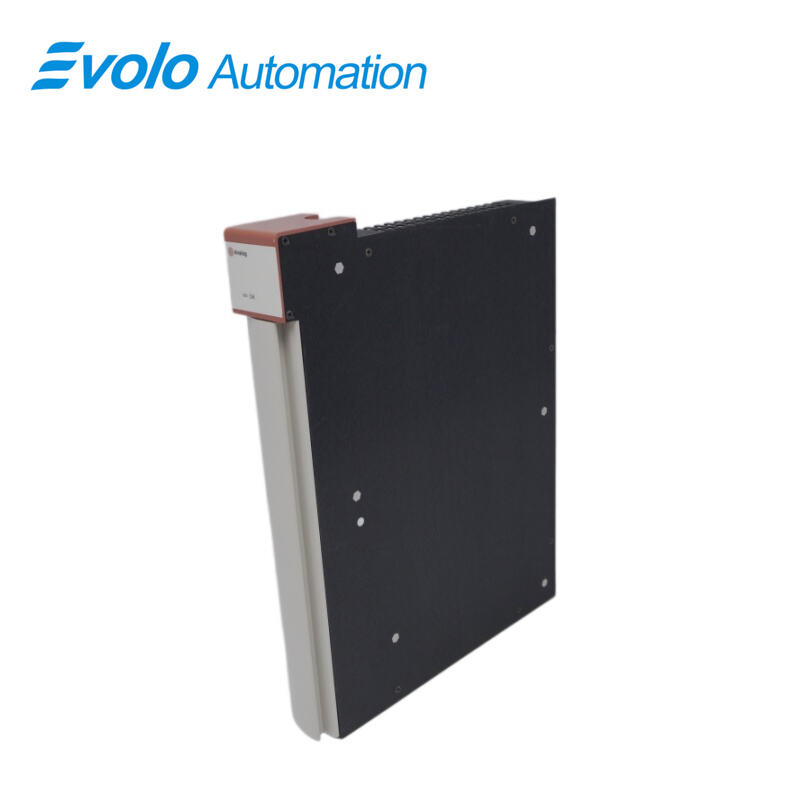

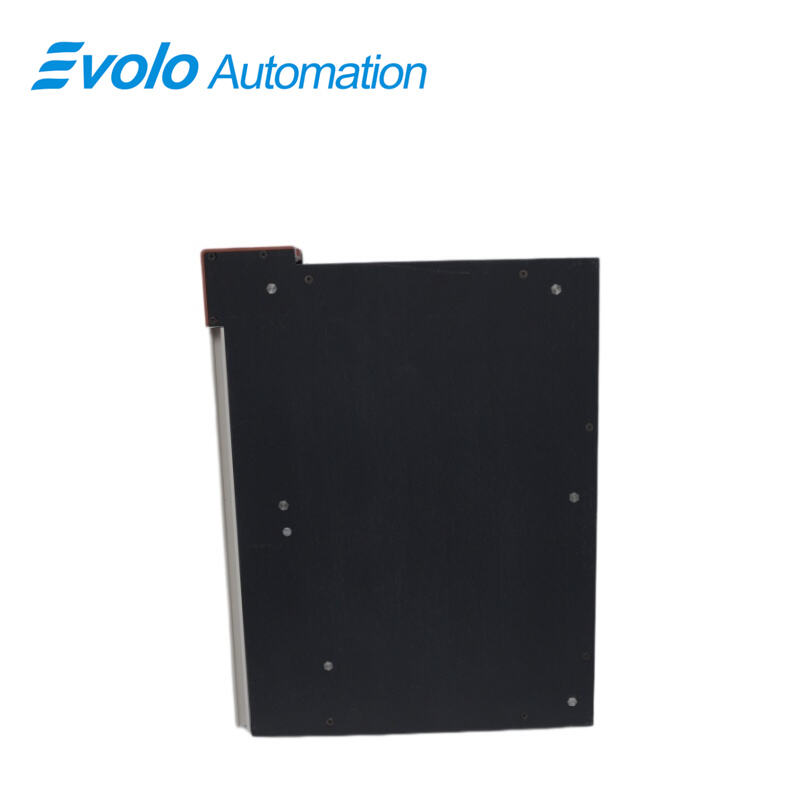

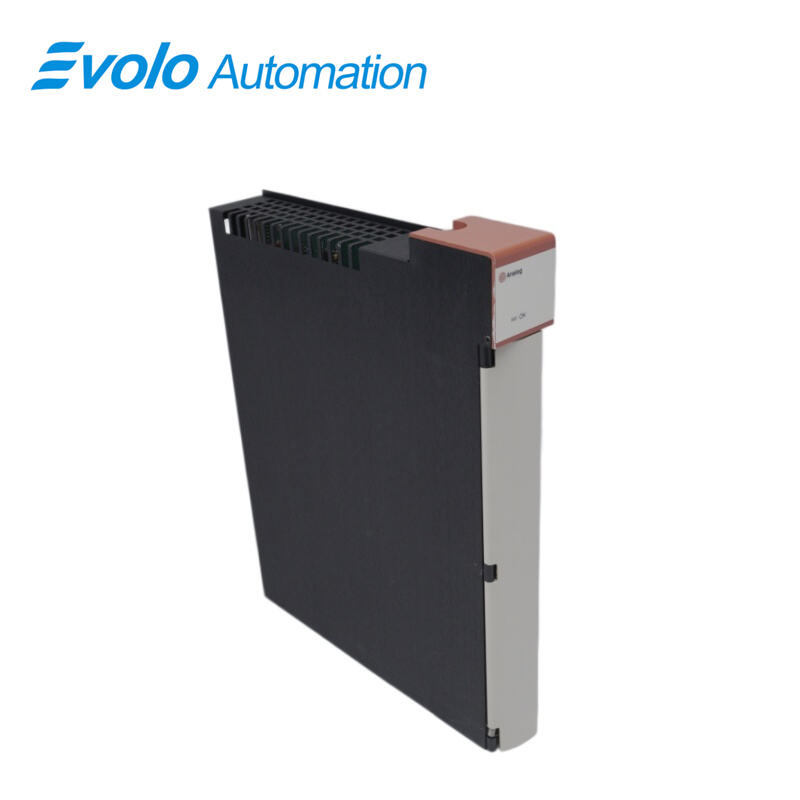

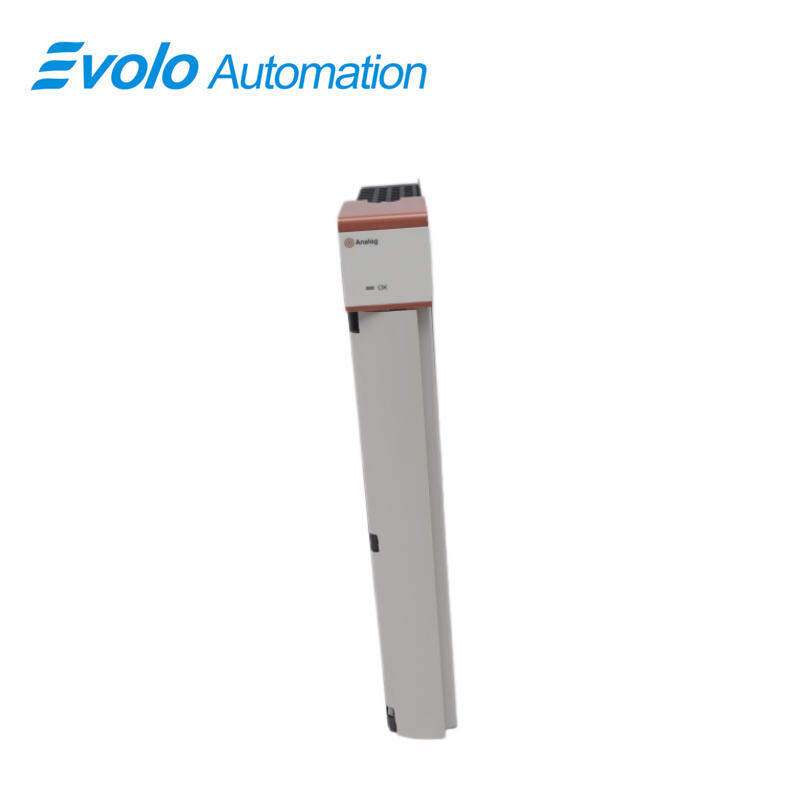

The TGT-AI0V-8-0-BC is a high-performance industrial-grade 8-channel analog module designed for high-precision signal acquisition and interference-resistant monitoring in process control systems. This module employs a modular structure and advanced electrical isolation technology to ensure stable signal linear conversion and data transmission even in complex electromagnetic environments.
Applications
HVAC Plants: Controls inverters and dampers while monitoring pipeline temperature.
Wastewater Plants: Collects sensor signals and adjusts dosing pump flow automatically.
Smart Warehouses: Monitors rack load pressure and controls alarms or safety barriers.
Precision Casting Plants: Acquires furnace temperature data for stable heat-treatment control.
Electronics Plants: Monitors cleanroom differential pressure with high-precision sampling.
Troubleshooting and Maintenance Recommendations
Shielding Check: Use shielded twisted-pair cables and ensure proper grounding to reduce interference.
Power Monitoring: Check DC power ripple if data acquisition becomes unstable.
Contact Inspection: Regularly inspect relay outputs to prevent sticking or carbonization.
Protocol Alignment: Verify station number, baud rate, and parity settings during commissioning.
FAQ
Q: How many input and output signals does the TGT-AI0V-8-0-BC module support?
A: It provides 4 analog input channels and 4 analog output channels for signal processing.
Q: How does the TGT-AI0V-8-0-BC perform in extreme temperature environments?
A: It operates reliably from -40°C to 85°C, suitable for harsh industrial conditions.
Q: What is the signal conversion accuracy of the TGT-AI0V-8-0-BC?
A: It achieves ±0.2% FS ±2 LSBs, ensuring accurate data acquisition and control reliability.
Q: How does the TGT-AI0V-8-0-BC connect to factory automation networks?
A: It supports Modbus RTU for easy integration via standard serial communication.
Q: Can the relay output of the TGT-AI0V-8-0-BC drive AC loads directly?
A: Yes. It supports 2A at 250VAC or 1A at 250VDC for compatible load control.
