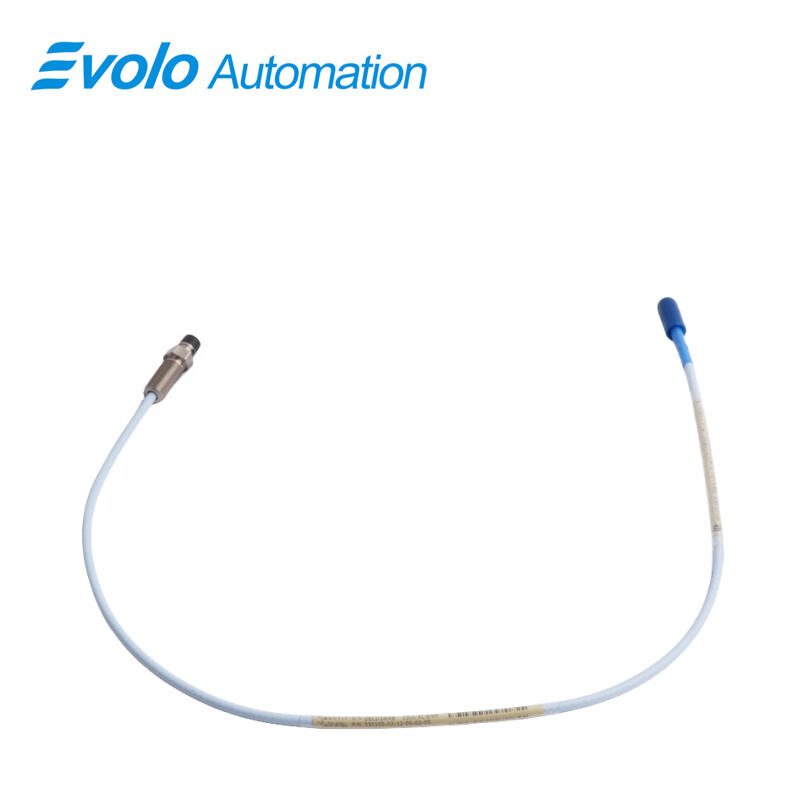

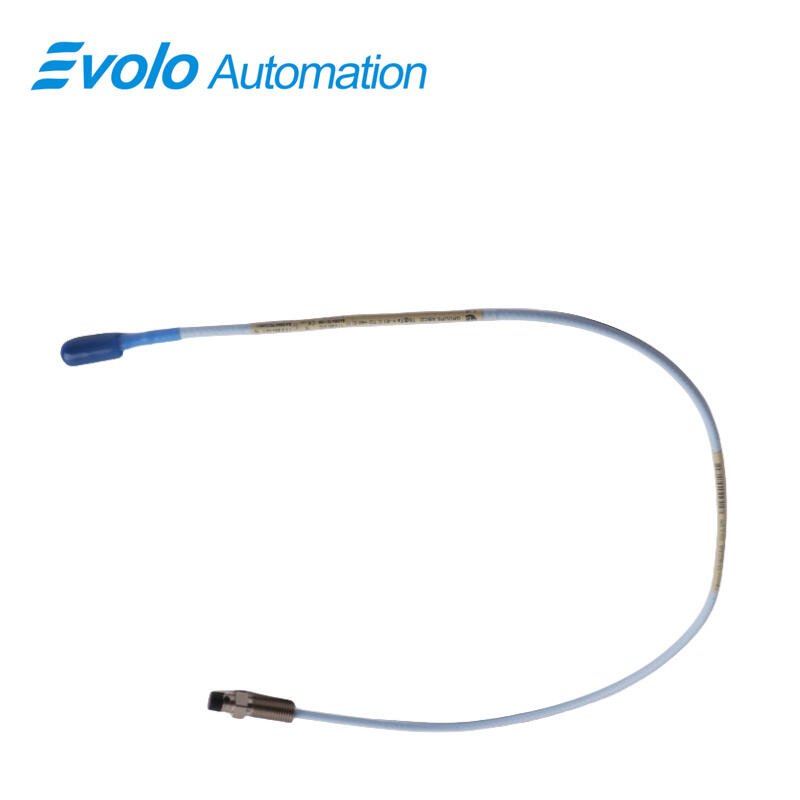

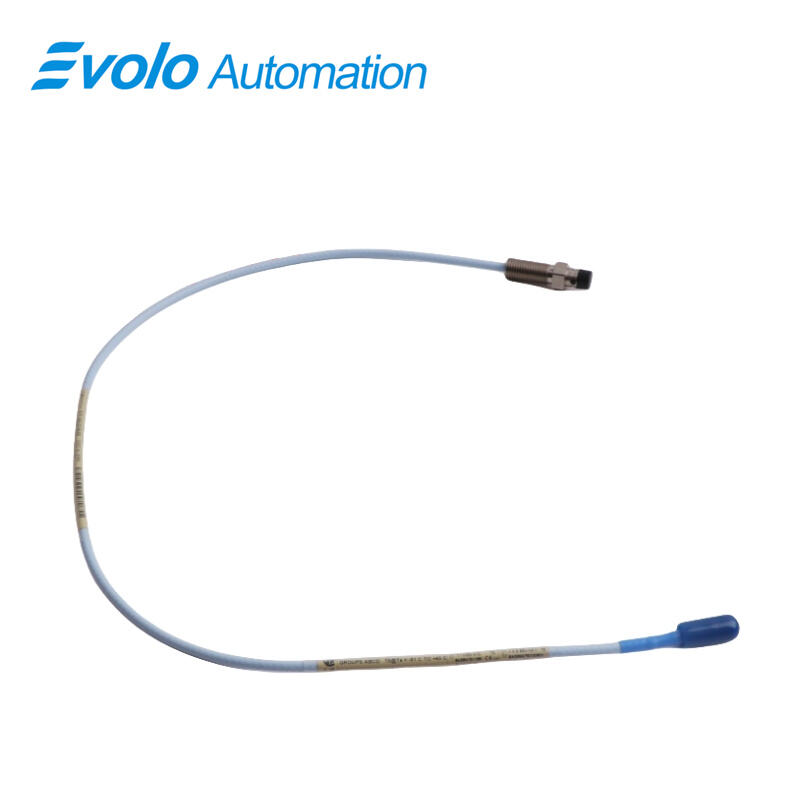

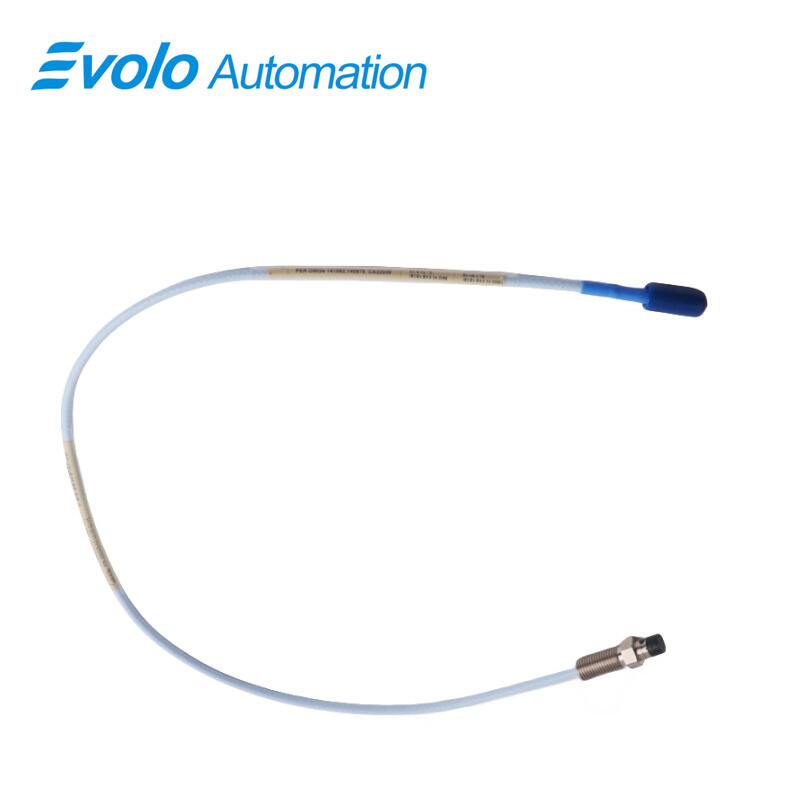

330105-02-12-05-02-05 3300 XL 8 mm Reverse Mount Probes

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	330105-02-12-05-02-05
Minimum Order Quantity:	1
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

The 330105-02-12-05-02-05 3300 XL 8 mm Reverse Mount Probe is a high-performance eddy current proximity transducer designed for precision monitoring in automated industrial systems. Specifically engineered for reverse mounting applications, this probe delivers accurate output voltage directly proportional to the distance between the probe tip and the target conductive surface. It enables both static position measurements and dynamic vibration monitoring, making it ideal for automation applications involving fluid-film bearing machines, rotating equipment, and high-speed machinery.

In automation systems, precise measurement of shaft displacement, vibration amplitude, and rotational speed is critical for predictive maintenance and operational efficiency. The 3300 XL 8 mm Reverse Mount Probe integrates seamlessly with Keyphasor® reference systems, providing reliable speed signals and phase data for advanced control systems. Its 5-meter standard system fully meets API 670 standards for mechanical configuration, linearity, accuracy, and thermal stability, ensuring consistent performance even in demanding industrial environments.

The 330105-02-12-05-02-05 probe maintains full interchangeability with other 3300 XL system components, including Proximitor sensors and extension cables. This backward compatibility extends to earlier 5 mm and 8 mm 3300 series probes, simplifying inventory management and reducing the need for individual bench calibration. The probe’s robust design incorporates a patented TipLoc molding technique that strengthens the bond between the probe tip and body, and a CableLoc system providing 330 N (75 lbf) pull strength to secure the cable connection.

For environments where fluid leakage is a concern, the 3300 XL Reverse Mount Probe supports the optional FluidLoc cable system, preventing oil or other liquids from escaping through the probe cable. These features make the 330105-02-12-05-02-05 probe particularly suitable for automated monitoring systems in petrochemical plants, power generation facilities, and heavy industrial machinery, where reliability and precision are essential.

Overall, the 3300 XL 8 mm Reverse Mount Probe represents an advanced solution for automation engineers seeking accurate, reliable, and maintenance-friendly displacement and vibration sensing. Its combination of API compliance, mechanical robustness, backward compatibility, and fluid-tight design ensures long-term operational efficiency in automated industrial environments.

Applications

The 330105-02-12-05-02-05 3300 XL 8 mm Reverse Mount Probe is specifically engineered for precision position and vibration measurements in modern automated industrial systems. Its design allows reverse mounting in confined spaces, making it ideal for applications where standard probe orientation is not feasible. The probe’s output voltage is directly proportional to the distance between its tip and the monitored conductive surface, enabling accurate detection of shaft displacement, radial vibration, and rotational speed.

Rotating Machinery and Fluid-Film Bearings

These probes are widely applied in fluid-film bearing machines and other rotating machinery where continuous monitoring of shaft position and vibration is critical. By providing real-time measurements, the 3300 XL 8 mm Reverse Mount Probe supports predictive maintenance strategies, helping automation engineers detect misalignment, imbalance, or early-stage bearing wear before they lead to costly downtime.

Keyphasor® Reference and Speed Measurement

In automated systems, accurate speed and phase reference signals are essential for control and synchronization. The 3300 XL 8 mm probe integrates with Keyphasor® systems to provide consistent speed and phase feedback, making it suitable for high-speed rotating equipment and critical industrial processes.

Harsh Environment and Safety-Critical Applications

With CSA, ATEX, and IECEx approvals, the 3300 XL 8 mm Reverse Mount Probe can operate safely in hazardous and explosive environments such as petrochemical, oil & gas, and power generation facilities. Its robust stainless steel case, high-temperature tolerance (-52°C to +177°C / -62°F to +350°F), and FluidLoc cable option ensure reliable performance even under extreme conditions, including exposure to oil, chemicals, or high vibration levels.

Automation System Integration

The probe’s interchangeability with other 3300 XL and standard 3300 series components simplifies system upgrades and replacements in automated monitoring setups. The TipLoc and CableLoc designs enhance mechanical durability and cable retention, minimizing maintenance requirements and ensuring stable signal output for continuous process control.

Compact and Precise Sensing

With a linear range of 2 mm and a recommended radial vibration gap of approximately 1.27 mm (50 mils), the 3300 XL 8 mm Reverse Mount Probe provides precise, high-resolution measurements even in tight mounting areas. Its miniature ClickLoc coaxial connector supports straightforward field wiring, making installation and integration into automated systems efficient and reliable.

Overall, the 330105-02-12-05-02-05 3300 XL 8 mm Reverse Mount Probe is ideal for critical automation applications requiring accurate displacement, vibration, and speed measurements under harsh industrial conditions. Its advanced design ensures long-term reliability, safety compliance, and seamless integration into modern automated monitoring systems.

Specifications

Competitive Advantage

Superior Measurement Accuracy and Stability

The 3300 XL 8 mm Reverse Mount Probe delivers precise output voltage directly proportional to the distance between the probe tip and the conductive surface. It accurately captures both static position and dynamic vibration values, meeting the stringent demands of fluid-film bearing machinery and Keyphasor reference measurements. Its compliance with API 670 standards ensures reliable linearity, accuracy, and temperature stability under extreme operating conditions from -52°C to +177°C (-62°F to +350°F).

Robust and Durable Design

Constructed with AISI 303 or 304 stainless steel (SST) probe cases and a Polyphenylene sulfide (PPS) probe tip, the 3300 XL 8 mm probe withstands harsh industrial environments. The patented TipLoc molding method enhances the mechanical bond between the probe tip and body, while the CableLoc design secures the cable with 330 N (75 lbf) pull strength, minimizing the risk of disconnection or damage during operation.

Flexibility and Interchangeability

The system supports full interchangeability of probes, extension cables, and Proximitor sensors, eliminating the need for individual component calibration. Backward compatibility with other non-XL 3300 series components, including 5 mm probes, allows easy upgrades and replacements even in space-constrained installations.

Enhanced Field Reliability

Optional FluidLoc cable configuration prevents oil or liquid leakage through the cable interior, increasing reliability in fluid-rich environments. The probe supports field wiring from 16 to 24 AWG and maintains consistent output with less than 2 mV change per volt of input variation, ensuring dependable performance in varied industrial setups.

Certified for Global Safety Standards

The 3300 XL 8 mm probe holds CSA, ATEX, and IECEx approvals, guaranteeing safe operation in hazardous areas worldwide. Its thread design (3/8-24 UNF) and robust mechanical engagement ensure secure mounting in challenging conditions.
