Overview
Place of Origin: |
USA |
Brand Name: |
ICS TRIPLEX |
Model Number: |
TC-305-01 |
Packaging Details: |
Original new Factory Sealed |
Delivery Time: |
5-7 days |
Payment Terms: |
T/T |
Supply Ability: |
In stock |
Specifications
|
Parameter |
Value |
|
Part Number |
TC-305-01 |
|
Part Name |
Communications Cable |
|
Connection Start Point |
Communication Interface (T8151) |
|
Connection End Point |
Flying leads (user-defined termination) |
|
Interface End (SKT1) |
78+2-way Type M connector |
|
Connector Housing |
Single-width hood |
|
Shielding |
Earth braid included |
|
Cable Type |
Cat 5 screened PVC sheath |
|
Ethernet Usage |
E1 or E3 only (not simultaneous) |
|
Ethernet Coax |
50 Ω coaxial cables (E1 & E3) |
|
Flying Leads |
8 free ends (user-defined connectors) |
|
Flying Lead Protection |
Heatshrink + heat-treated anti-fray |
Description

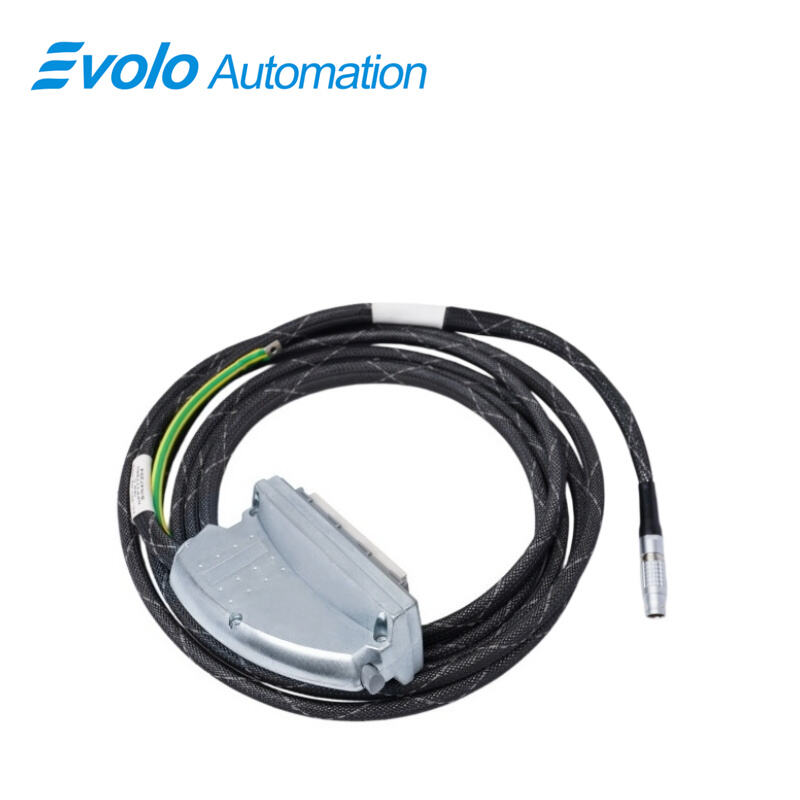

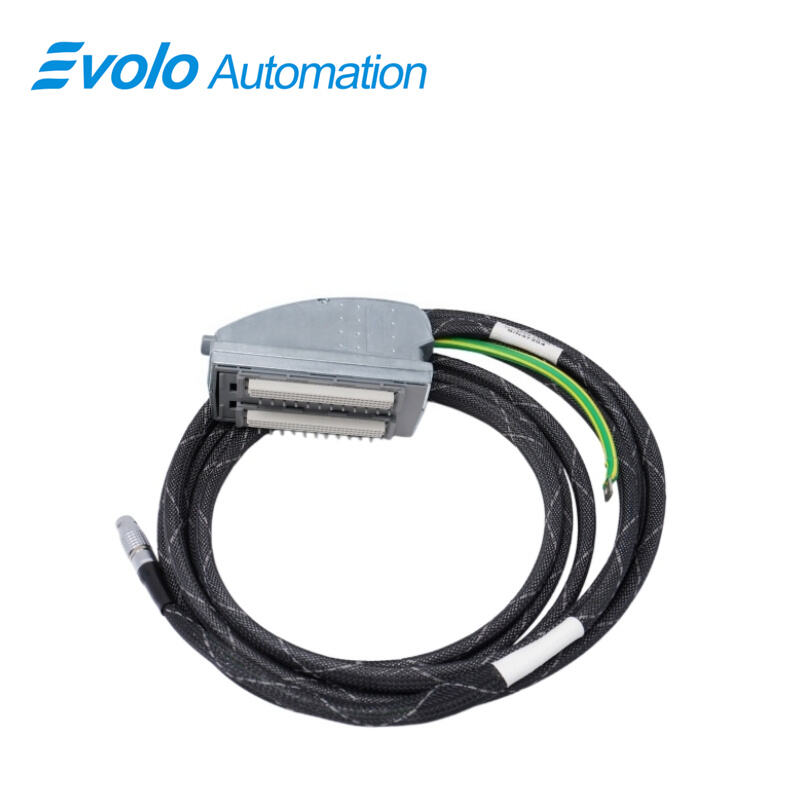

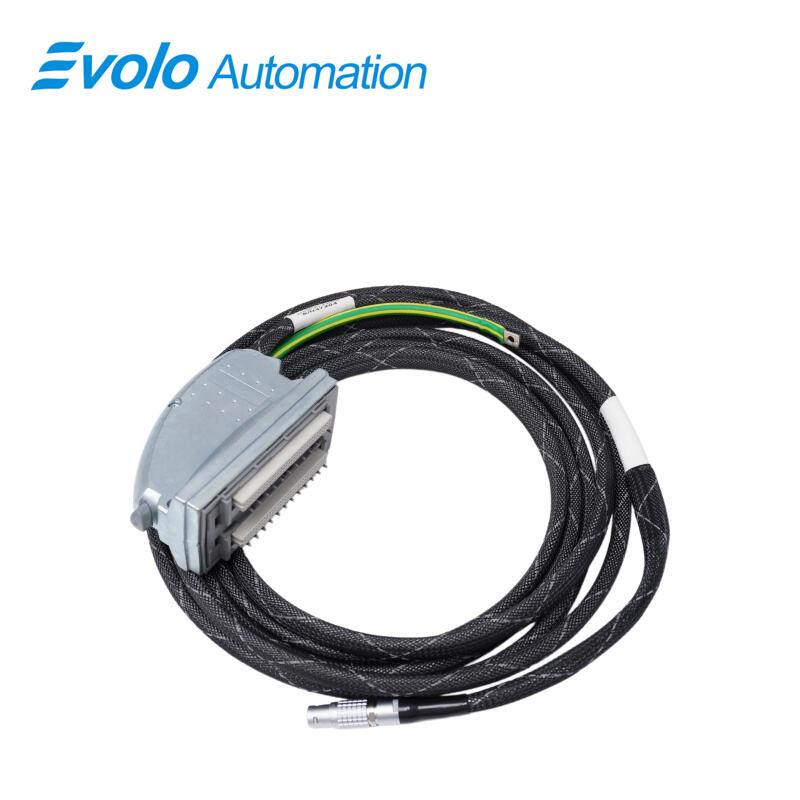

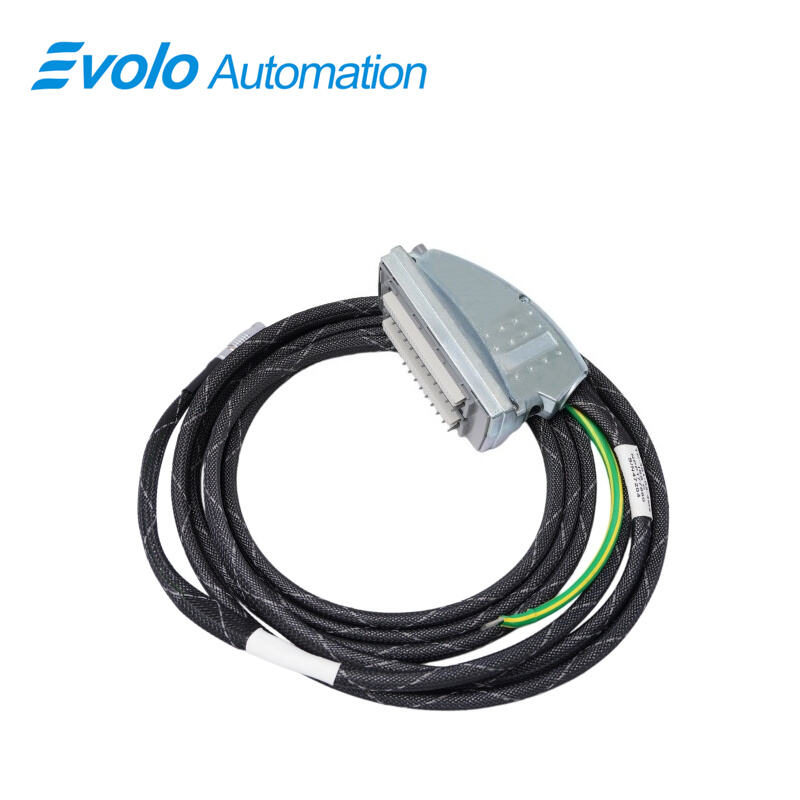

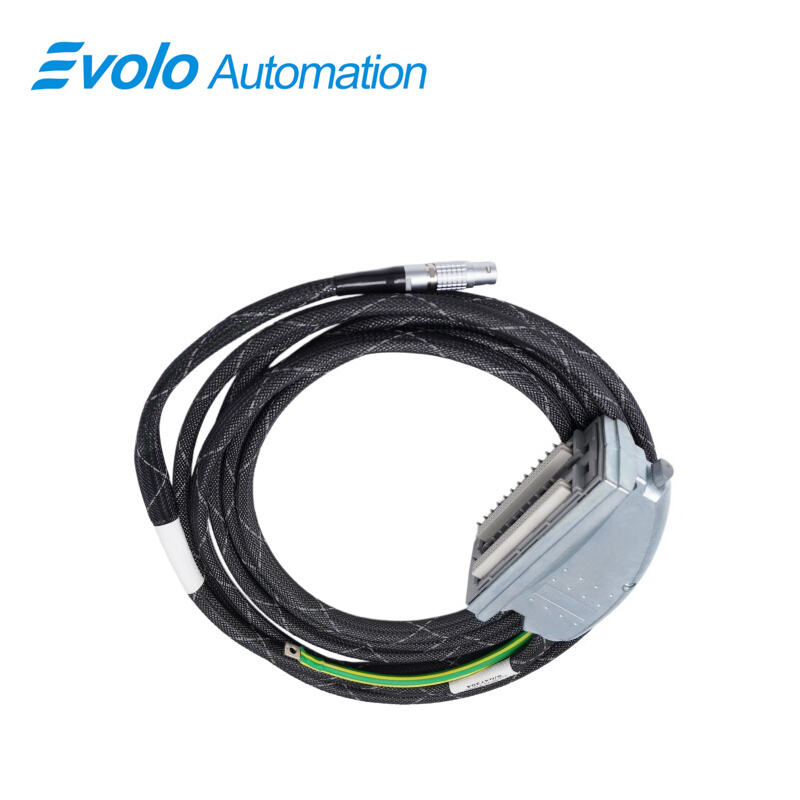

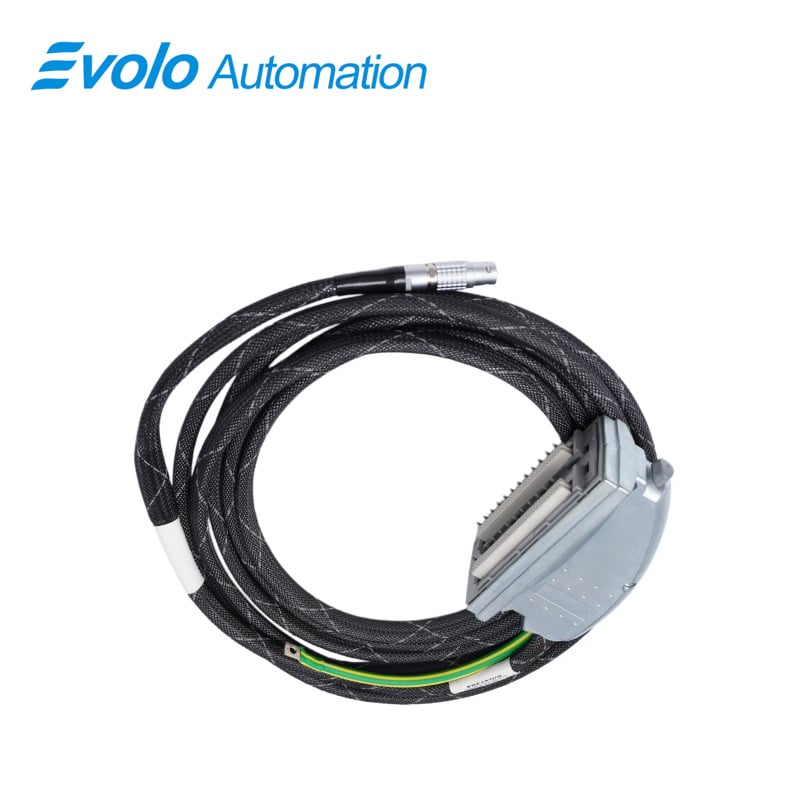

TC-305-01 Communications Cable is a Trusted industrial interface cable designed for connecting the Trusted Communications Interface T8151 through flying lead configurations. It provides reliable signal access from the system communications port to external control or diagnostic equipment in safety-critical industrial environments.
Applications
Rail Transit Control Plants: Shielded cable and flying leads ensure stable network connection in vibration environments.
Smart Grid Substations: Earth braid maintains Ethernet stability under EMI.
Oil & Gas Sites: Rugged design supports reliable control panel connections.
Metallurgical Plants: Heat-resistant jacket enables field wiring in harsh conditions.
Marine Shipyards: Coaxial lines provide isolated onboard communication.
Maintenance Recommendations
Explosion-proof Safety: Flying lead requires correct strip length to prevent exposed copper short circuits. In chemical ESD systems, installation must follow Pollution Degree 2 and explosion-proof electrical standards.
Signal Alignment: When using TC-305-01 with DCS or Modbus gateways, ensure correct alignment of + / − / GND. Reversal will break serial communication and trigger T8151 fault alarms.
FAQ
Q: Why can’t TC-305-01 run E1 and E3 at the same time?
A: 50 Ω coax uses exclusive routing; only E1 or E3 can operate.
Q: SKT1 housing of TC-305-01, does it take extra rack space?
A: 78+2 Type M single-width hood; compact, no extra slot usage.
Q: Flying lead protection in TC-305-01?
A: 8 leads with heatshrink + anti-fray protection for durability.
Q: How does TC-305-01 earth braid reduce EMI?
A: Ground braid connected to system earth suppresses EMI noise.
Q: Can TC-305-01 connect to Ethernet switches?
A: Yes, after proper RJ45-style termination of flying leads.
