T9901 Replacement fuse

Overview

Place of Origin:	USA
Brand Name:	ICS TRIPLEX
Model Number:	T9901
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Specifications

Description

The T9901 is a replacement fuse for protecting control system channels. This fuse is placed in the fuse slots of field wiring bases, analog input terminal assembly boards, and digital input terminal assembly boards to prevent external electrical faults from spreading to the internal circuit boards of the main control chassis, protecting control components from high current burnout.

Applications

Petrochemical Refineries: SIS cabinets protect T9851/2 output channels for emergency shutoff valves in hazardous zones.

LNG Plants: Terminal boards in turbine and compressor systems provide fast protection for long-distance actuator circuits.

Large Chemical Plants: Isolate overcurrent in relay and valve loops to prevent damage to core control modules.

Thermal Power Plants: DCS and turbine trip systems ensure stable protection under electrical noise and load fluctuations.

Offshore Platforms: Control cabinets resist salt, humidity, and wiring faults using fast-acting fuse protection.

Key Characteristics

Optimized Time-Delay Logic: Slow-blow design withstands brief inrush currents without nuisance tripping.

Precise Current Regulation: 50 mA rating enables sensitive low-power channel protection and fault isolation.

High Environmental Standards: Lead-free construction meets environmental standards and maintains stable resistance across wide temperatures.

Certified Reliability: Complies with UL 248-14, ensuring reliable supplemental overcurrent protection in critical control systems.

Troubleshooting and Maintenance Tips

Open loop alarm—if AI/DI channel shows “Open Loop” and red LED flashes, after excluding field transmitter faults, T9901 fuse is likely blown (~90%).

Replacement precautions—fuse can be replaced live with care using insulated tweezers; if it blows again, check field circuit for 24V surge or cable/ground short.

FAQ

Q: What are the rated current and fusing characteristics of the T9901 replacement fuse?
A: 50 mA rated current with time-lag (slow-blow) characteristic.

Q: What voltage standard does the T9901 comply with?
A: 125 V rated voltage, compliant with UL 248-14.

Q: What is the system operating voltage for the T9901?
A: 24 V DC normal operating voltage.

Q: What operating temperature range does the T9901 support?
A: -25 °C to +70 °C.

Q: Which systems and terminal boards are compatible with the T9901?

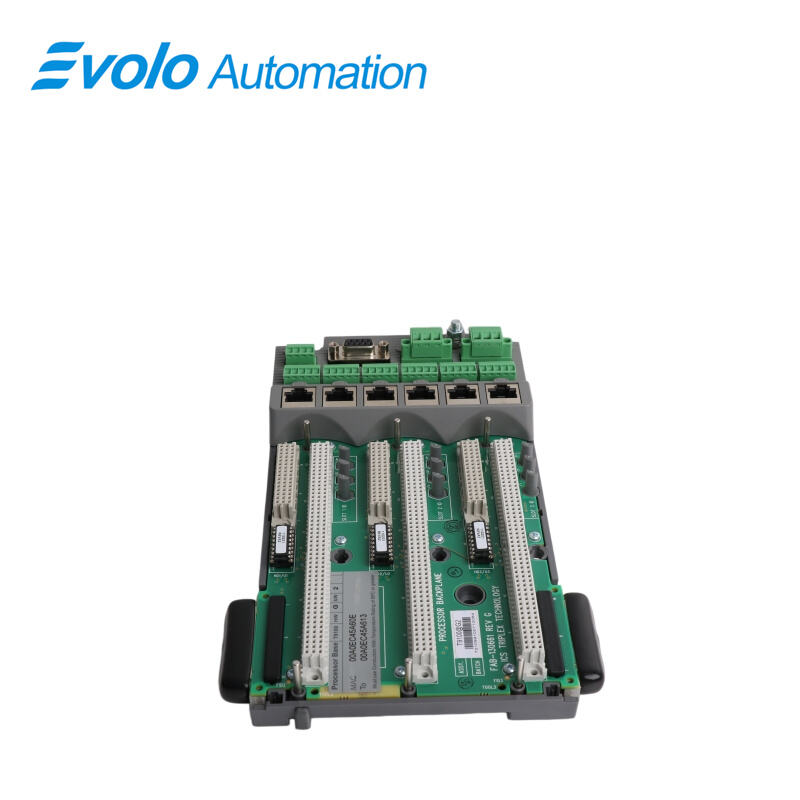

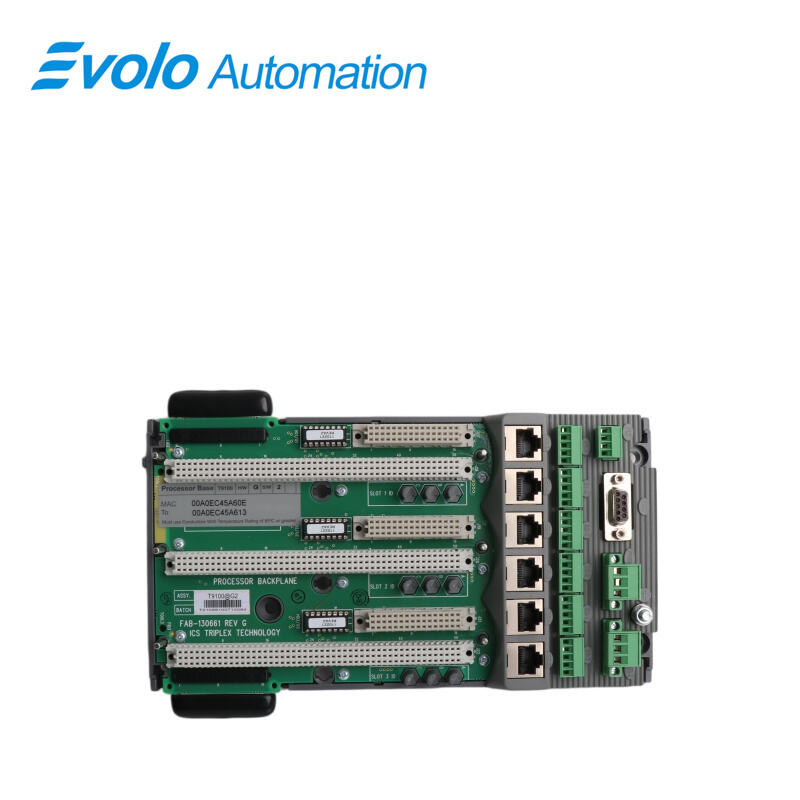

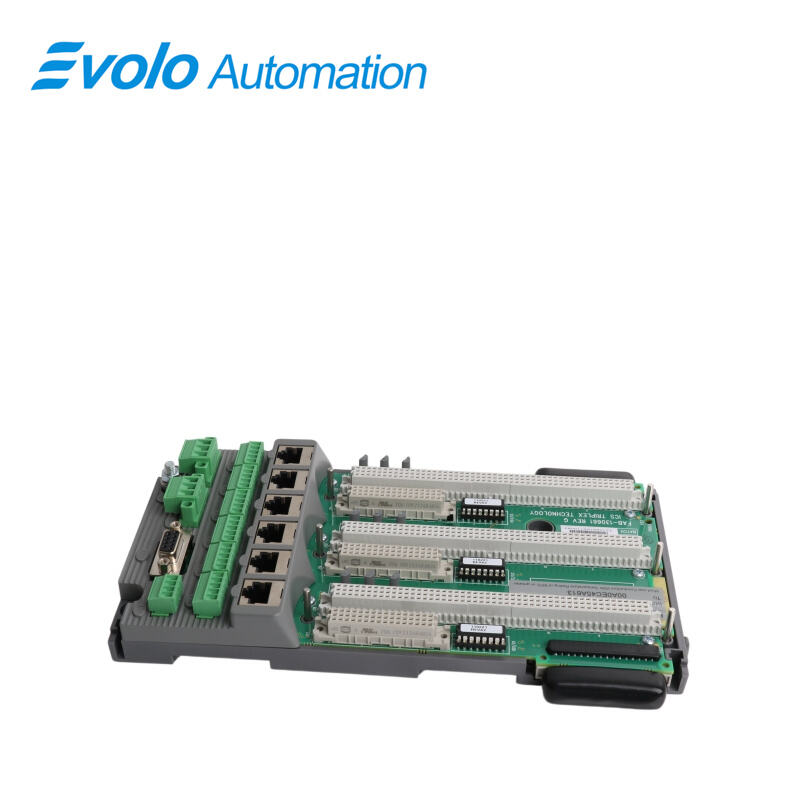

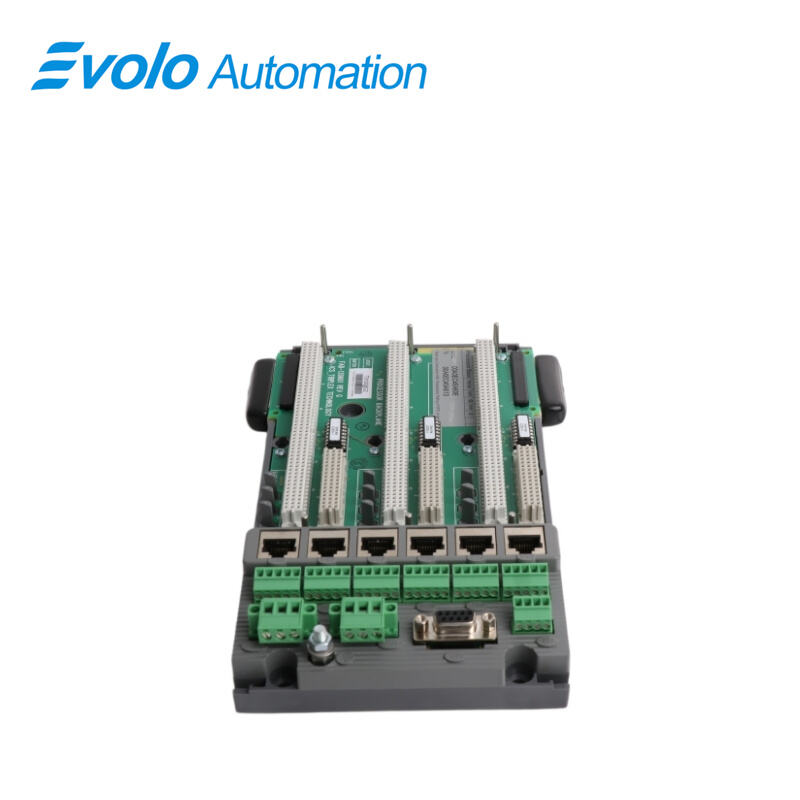

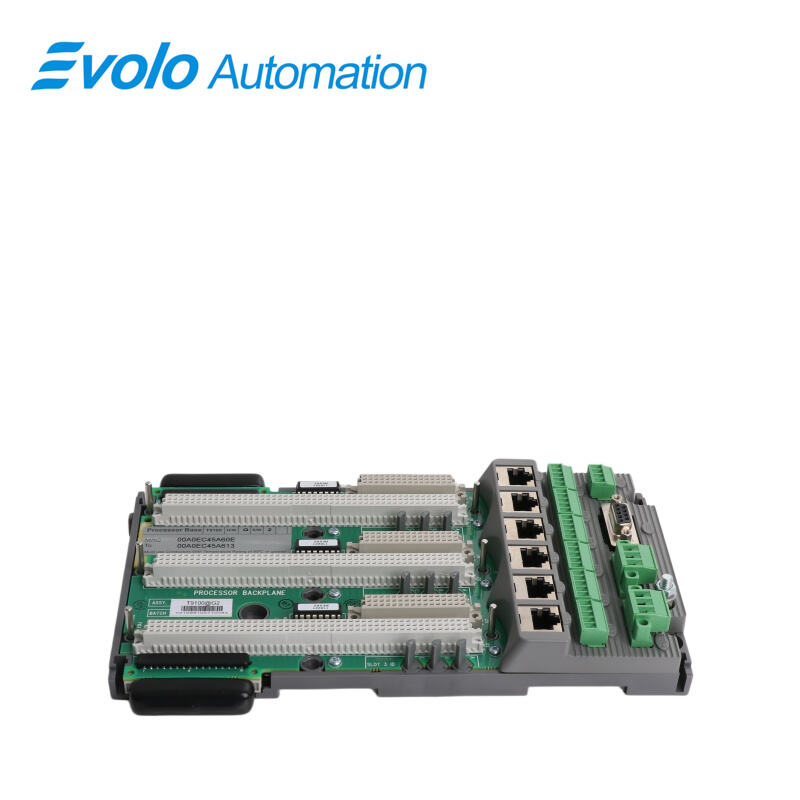

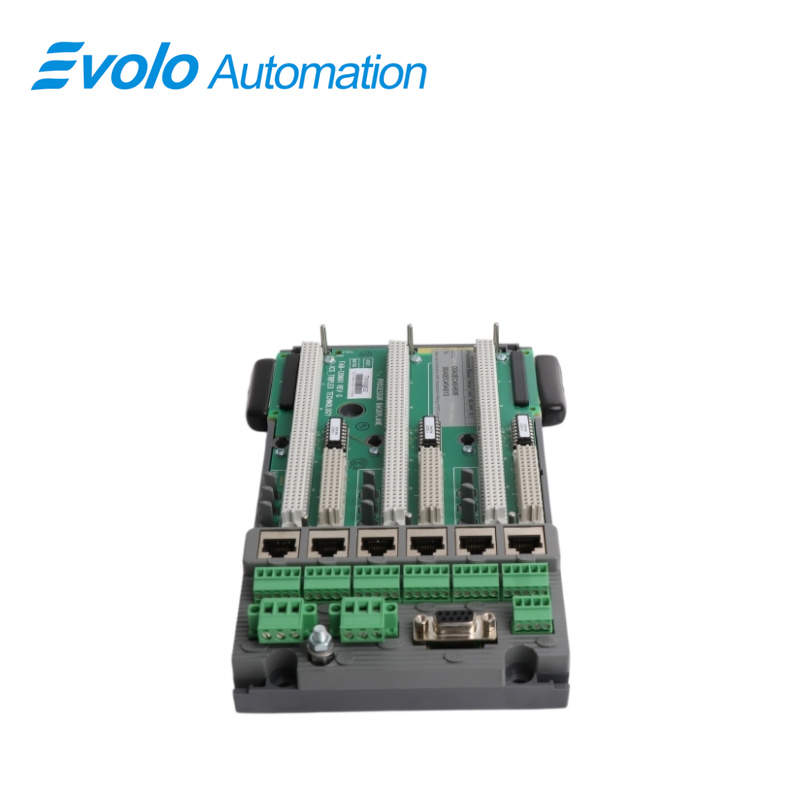

A: AADvance T9100/T9300/T9400 processor bases, 1715 redundant I/O, and AADvance input terminal assemblies.
