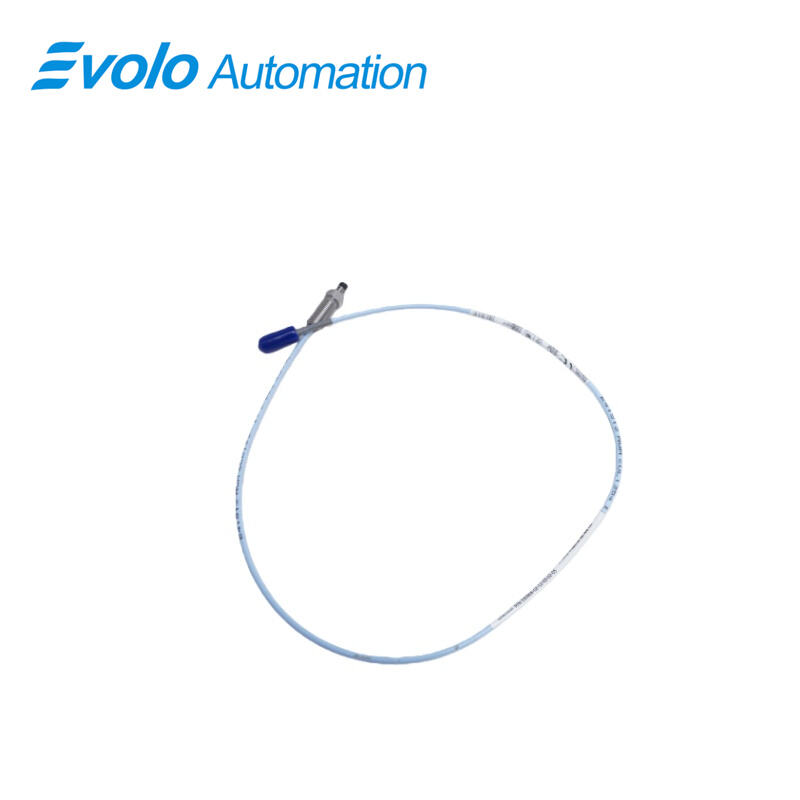

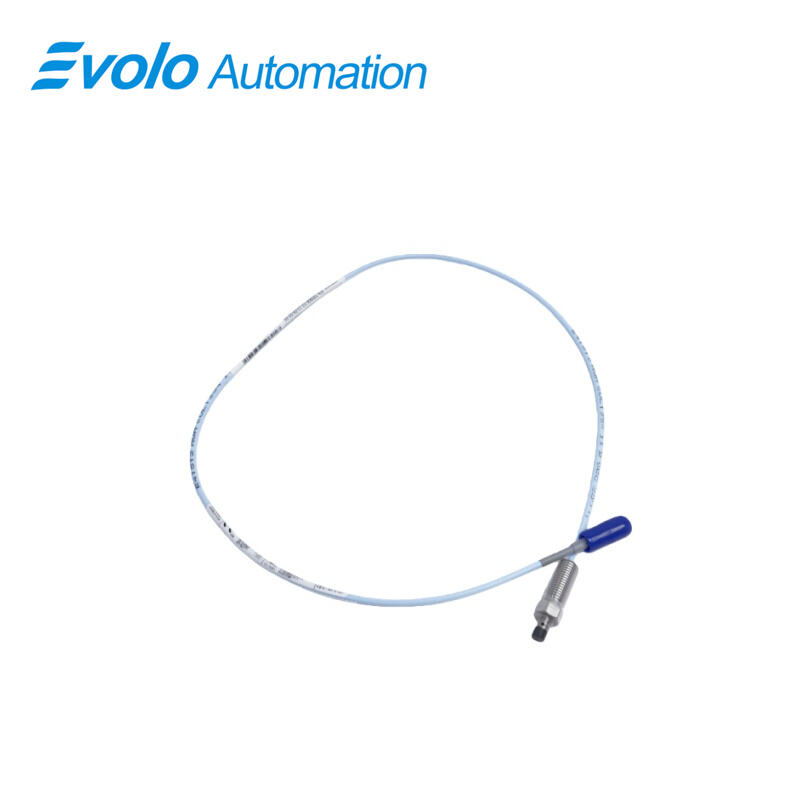

330906-02-12-05-02-05 NSv Reverse Mount Probe

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	330906-02-12-05-02-05
Minimum Order Quantity:	1
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

The 330906-02-12-05-02-05 NSv Reverse Mount Probe is a compact, high-precision non-contact displacement sensor specifically designed for reverse mounting installations in space-restricted rotating machinery applications. As a specialized member of the NSv probe family, the NSv Reverse Mount Probe provides reliable measurement of shaft vibration, relative displacement, and axial position while maintaining full electrical compatibility with standard NSv proximity sensing systems. Manufactured in the USA, the 330906-02-12-05-02-05 NSv Reverse Mount Probe is engineered for long-term stability in demanding industrial environments.

The defining feature of the 330906-02-12-05-02-05 NSv Reverse Mount Probe is its reverse mount configuration, which allows installation from the rear side of the mounting surface. This design is particularly valuable in machinery where front-access mounting is impractical due to limited clearance or complex mechanical structures. With a minimum unthreaded length of 0 mm, the NSv Reverse Mount Probe enables precise positioning even in extremely confined housings, ensuring accurate target alignment without compromising mechanical integrity.

From an electrical standpoint, the 330906-02-12-05-02-05 NSv Reverse Mount Probe operates on proven eddy current sensing principles, converting changes in distance between the probe tip and a conductive target into a stable, linear output signal. With a recommended gap setting of 1.0 mm and a linear range from approximately 0.25 mm to 1.75 mm, the NSv Reverse Mount Probe delivers dependable measurement resolution for both dynamic vibration analysis and static position monitoring. The controlled output resistance of approximately 4.0 Ω ensures consistent signal performance when used with compatible signal conditioning equipment.

Applications

1.Reverse Mount Installations in Confined Machinery

The 330906-02-12-05-02-05 NSv Reverse Mount Probe is ideal for reverse mounting configurations where front-access probe installation is not feasible. Its zero unthreaded length and compact dimensions support accurate installation in tight bearing housings and sealed machinery enclosures.

2.Rotating Machinery Vibration and Position Monitoring

The NSv Reverse Mount Probe is widely used for monitoring shaft vibration, radial displacement, and axial position in turbines, compressors, motors, and pumps. Its defined linear range enables early detection of imbalance, misalignment, and mechanical wear.

3.Harsh Industrial Operating Environments

With stainless steel construction, PPS probe tip material, and a wide temperature tolerance, the 330906-02-12-05-02-05 NSv Reverse Mount Probe performs reliably in environments exposed to lubricating oils, process fluids, and continuous thermal cycling.

Specifications

Competitive Advantage

1.Optimized Reverse Mount Design

The reverse mounting structure of the 330906-02-12-05-02-05 NSv Reverse Mount Probe allows flexible installation in restricted spaces, solving alignment and clearance challenges commonly encountered in complex machinery layouts.

2.High Mechanical and Environmental Durability

AISI 304 stainless steel housing and PPS probe tip provide strong resistance to corrosion, vibration, and temperature extremes, ensuring stable long-term operation of the NSv Reverse Mount Probe.

3.Stable Signal Output and Secure Connectivity

With controlled output resistance, a defined linear measurement range, and a miniature ClickLoc connector, the 330906-02-12-05-02-05 NSv Reverse Mount Probe delivers reliable electrical performance and secure signal transmission in high-vibration applications.
