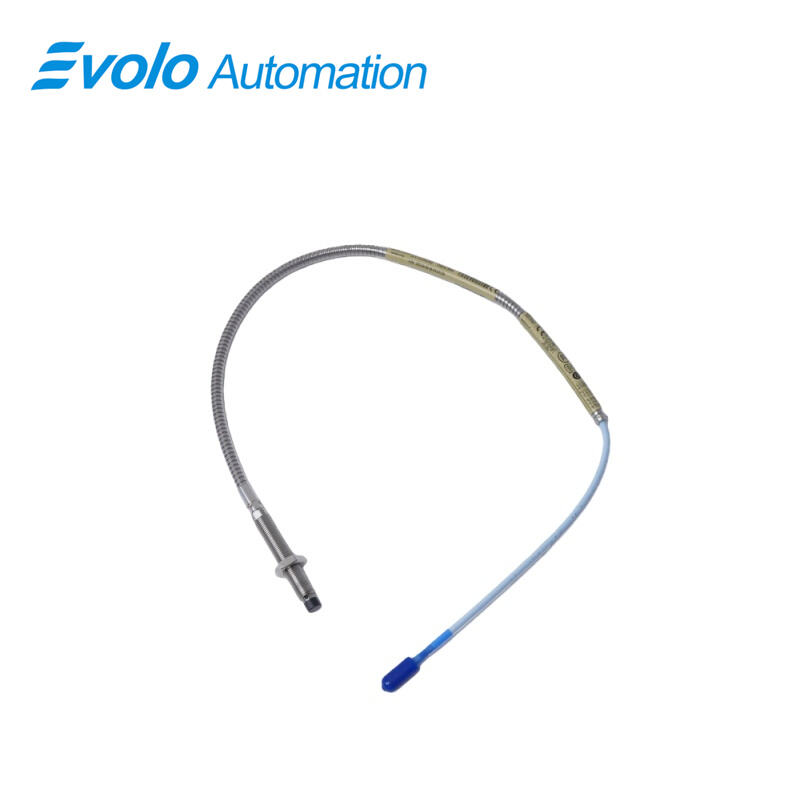

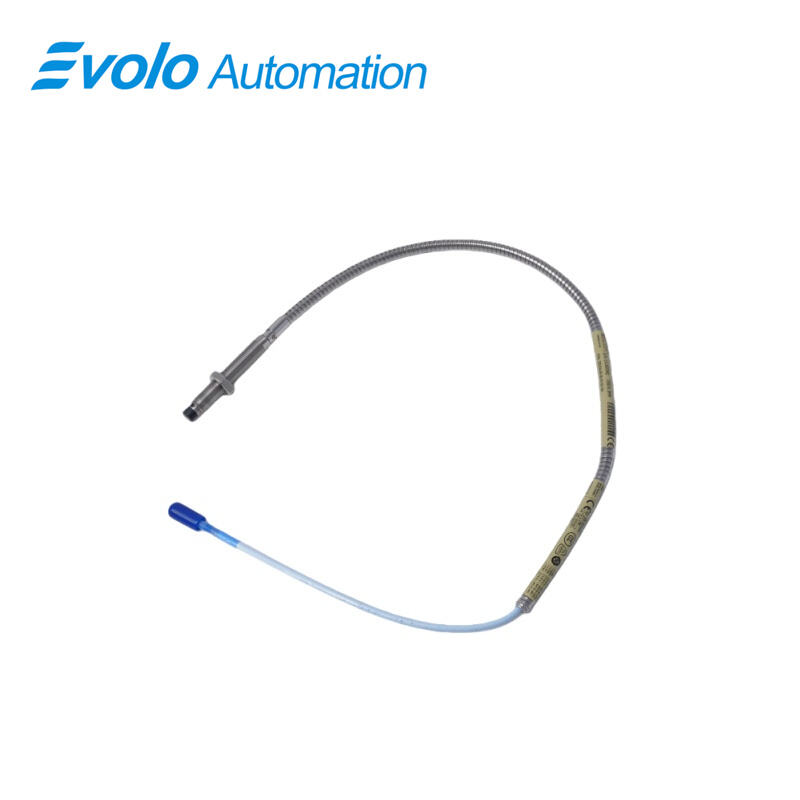

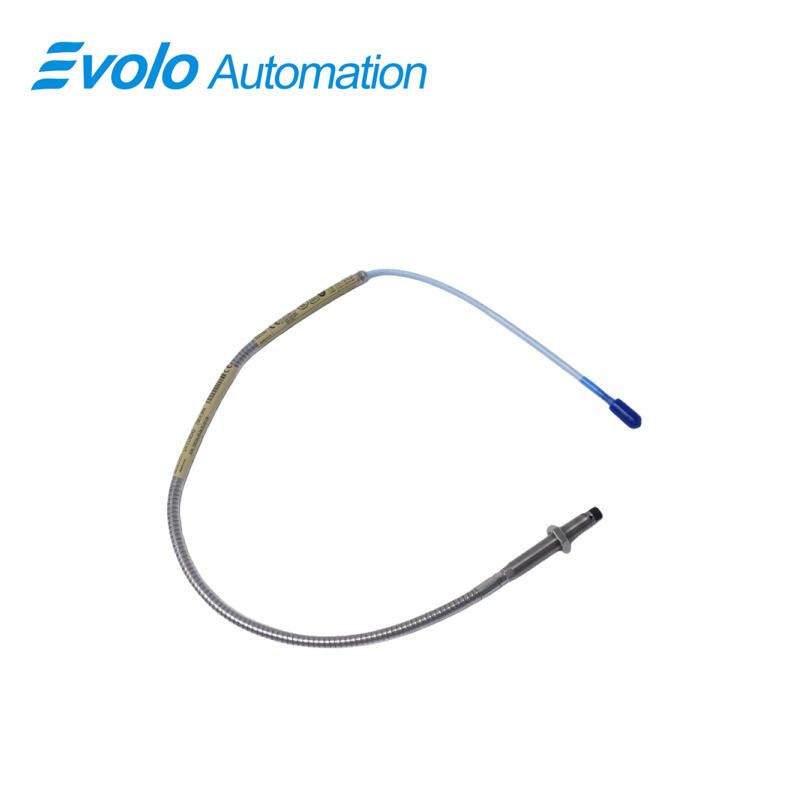

330104-00-06-05-01-05 3300 XL 8 mm Proximity Probes

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	330104-00-06-05-01-05
Minimum Order Quantity:	1
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

The 330104-00-06-05-01-05 3300 XL 8 mm Proximity Probe is a high-performance eddy current proximity transducer designed to measure both static (position) and dynamic (vibration) values in a wide range of industrial applications. This advanced system provides an output voltage directly proportional to the distance between the probe tip and the observed conductive surface, enabling accurate monitoring of machinery movement and health. Its primary applications include vibration and position measurements in critical machinery such as turbines, compressors, pumps, and fluid-film bearing systems. Additionally, it is well-suited for Keyphasor reference and speed measurements, crucial for precise alignment and speed control in rotating equipment.

The 3300 XL 8 mm Proximity Probe is built to provide industry-leading performance, meeting the highest standards for mechanical configuration, linear range, and temperature stability. The 5-meter standard system of the 3300 XL 8 mm fully complies with the American Petroleum Institute (API) 670 Standard, ensuring that it delivers consistent, reliable results even in demanding conditions. Whether used in high-precision monitoring or high-vibration environments, this system ensures minimal signal distortion and maximum performance over time.

One of the key benefits of the 3300 XL 8 mm Proximity Probe is its modular design, which allows complete interchangeability of probes, extension cables, and Proximitor sensors. This eliminates the need for matching or bench calibrating individual components, simplifying maintenance and system upgrades. The 3300 XL 8 mm system also offers backward compatibility with non-XL 3300 series probes, including both 5 mm and 8 mm versions, making it adaptable to a wide range of application needs. For applications where space is limited, the 5 mm probe can be used in place of the 8 mm probe without sacrificing performance.

Applications

1. Monitoring Vibration and Position

The 3300 XL 8 mm Proximity Probe excels in monitoring vibration and position in vital rotating machinery, including turbines, compressors, and pumps. With its 2 mm linear range, it accurately detects even the smallest displacements, which helps identify misalignments, imbalances, and wear at an early stage. This capability is critical in preventing unexpected breakdowns, reducing repair costs, and minimizing downtime.

2. High-Temperature and Extreme Conditions

Built to endure harsh environments, the 3300 XL 8 mm Proximity Probe operates efficiently in a wide temperature range from -52°C to +100°C (-62°F to +212°F). This makes it ideal for use in industries like steel production and power generation, where equipment is subjected to intense heat. The stainless steel casing and Polyphenylene sulfide (PPS) probe tip provide excellent durability, ensuring the probe remains reliable even in extreme conditions.

3. Certified for Hazardous Locations

With CSA, ATEX, and IECEx certifications, the 3300 XL 8 mm Proximity Probe is fully compliant for use in hazardous environments, such as those found in the oil and gas industry. Its rugged design, combined with a stainless steel housing, guarantees safe operation in explosive or corrosive settings. The probe’s resistance to electromagnetic interference further ensures stable, accurate measurements in challenging environments.

4. Versatile Speed and Keyphasor Measurements

Beyond vibration and position sensing, the probe is also capable of providing speed and Keyphasor reference measurements. With its 50 Ω output resistance and low voltage sensitivity, the 3300 XL 8 mm Proximity Probe delivers precise and stable readings, even in high-electromagnetic interference environments. This versatility makes it a valuable tool for a range of applications that require speed measurement or phase reference data.​

Specifications

Competitive Advantage

1. High Precision for Critical Monitoring

The 3300 XL 8 mm Proximity Probe offers exceptional precision with a linear range of 2 mm (80 mils), making it ideal for accurate vibration and position measurements. Whether used in turbines, compressors, or other critical machinery, this high precision ensures early detection of misalignments, imbalance, and wear. By monitoring these factors, it helps prevent costly failures and unscheduled downtime, which is essential for maintaining operational efficiency in industries such as power generation, aerospace, and oil & gas.

2. Built to Withstand Extreme Conditions

This probe is designed to operate in harsh environments, with an impressive temperature range from -52°C to +100°C (-62°F to +212°F). Whether exposed to freezing temperatures or intense heat, the 3300 XL 8 mm Proximity Probe continues to deliver accurate performance. Its robust construction, featuring AISI 303 or 304 stainless steel for the probe case and Polyphenylene sulfide (PPS) for the probe tip, ensures durability and reliability in demanding conditions. This makes it particularly suitable for industries like steel manufacturing, power plants, and other extreme industrial environments.

3. Certified for Hazardous Locations

The 3300 XL 8 mm Proximity Probe is certified with CSA, ATEX, and IECEx approvals, making it fully compliant for use in hazardous environments, including explosive atmospheres found in the oil and gas industry. These certifications ensure the probe meets the highest safety standards, providing reliable performance even in dangerous conditions. This capability is crucial for applications where equipment failure could pose significant safety risks, offering peace of mind and reducing the likelihood of catastrophic incidents.
