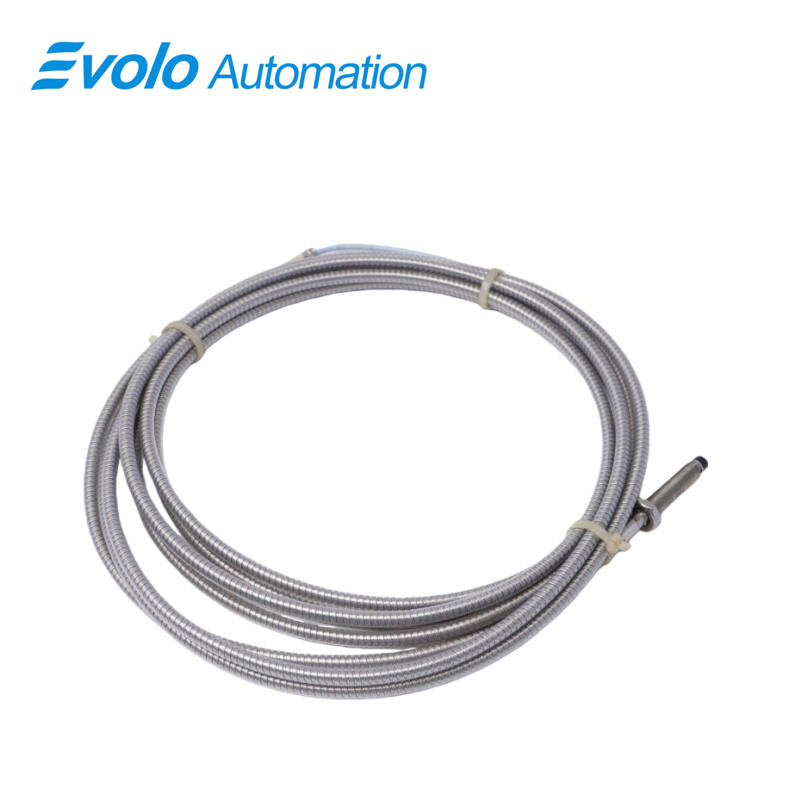

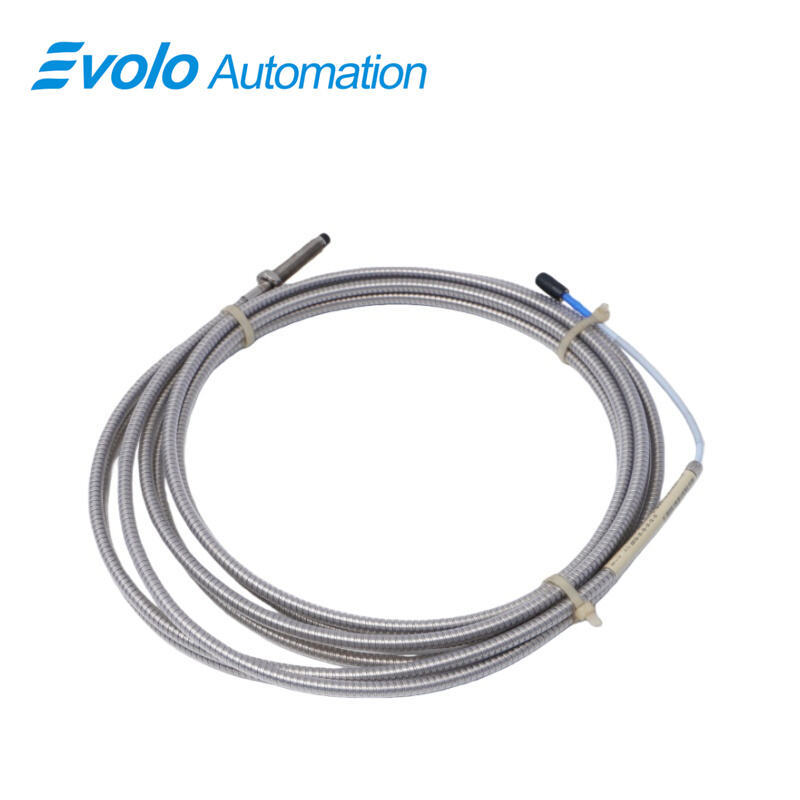

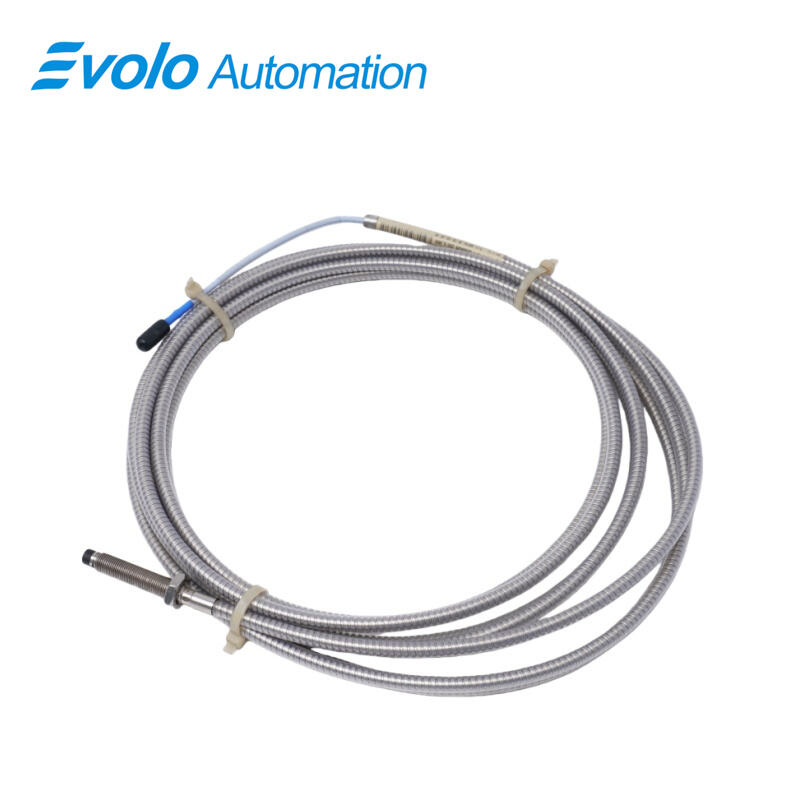

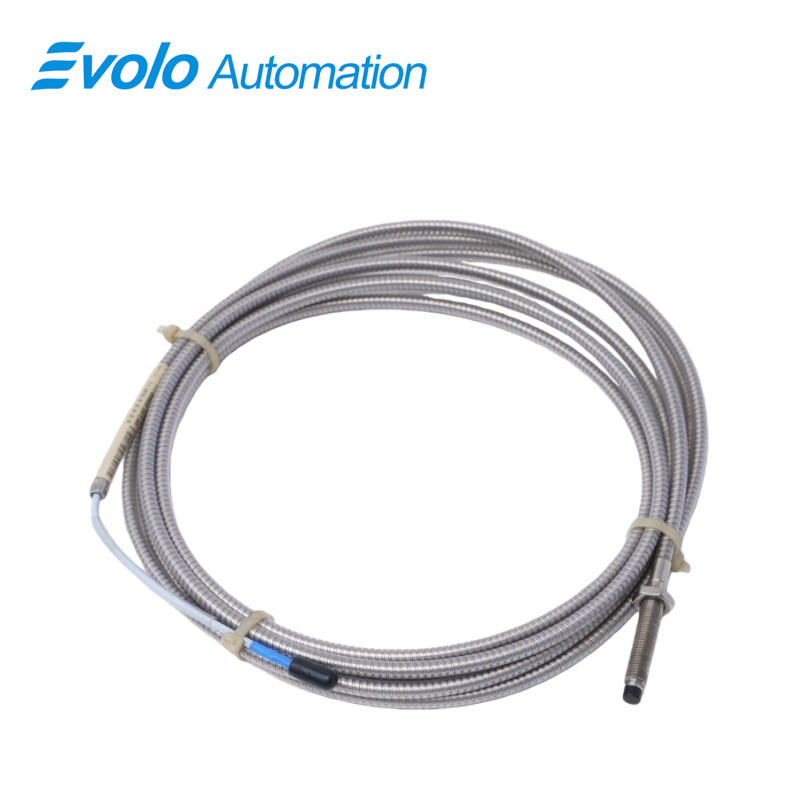

330104-00-05-50-02-CN 3300 XL 8 mm Proximity Probe

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	330104-00-05-50-02-CN
Minimum Order Quantity:	1
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

The 330104-00-05-50-02-CN 3300 XL 8 mm Proximity Probe is a high-precision industrial automation sensor designed for advanced vibration and position monitoring in rotating machinery. Engineered to provide an output voltage directly proportional to the distance between the probe tip and a conductive target, this probe accurately measures both static (position) and dynamic (vibration) signals. With a total system length of 5.0 meters (16.4 feet) and a miniature coaxial ClickLoc connector, the 3300 XL 8 mm probe ensures reliable connection and signal integrity in demanding industrial environments.

Constructed with a durable M10x1 threaded stainless-steel case and a minimum case length of 50 mm, the probe is rated for extreme temperatures ranging from −52°C to +177°C (−62°F to +350°F), making it suitable for applications in high-heat processes. The probe’s output resistance of 50 Ω, linear range of 2 mm, and field wiring capability of 0.2–1.5 mm² (16–24 AWG) support precise data acquisition. Patented TipLoc and CableLoc designs enhance mechanical robustness, providing 330 N (75 lbf) pull strength to prevent cable disengagement. Optional FluidLoc cable protection further ensures operational safety by preventing oil or fluid leakage through the probe cable. The 3300 XL 8 mm probe is fully compatible with standard 3300 XL extension cables and Proximitor sensors, supporting interchangeable system components without recalibration and meeting API 670 standards for vibration monitoring systems.

Applications

Application 1: Fluid-Film Bearing Vibration Monitoring
The 3300 XL 8 mm probe captures precise shaft vibration in turbines and centrifugal pumps, enabling predictive maintenance and reducing unexpected bearing failures by up to 30%.

Application 2: Keyphasor Reference in Rotating Equipment
Used to detect rotor angular position and speed, the probe provides accurate Keyphasor signals for high-speed compressors, improving speed measurement accuracy to ±0.5%.

Application 3: High-Temperature Industrial Processes
With an operating range up to +177°C, the probe is ideal for monitoring machinery in chemical reactors, ovens, and furnaces, ensuring consistent displacement measurement under extreme heat.

Application 4: Aerospace and Power Generation Machinery
The probe measures axial and radial shaft movements in turbines and generators, supporting vibration trend analysis and enabling condition-based maintenance programs.

Application 5: Compact Mounting Spaces
Designed with a 50 mm case and M10x1 threading, the probe fits into restricted spaces without compromising signal quality, making it suitable for retrofitting existing automation systems.

Specifications

Competitive Advantage

Advantage 1: Extreme Temperature Resilience
Operating from −52°C to +177°C, the probe withstands harsh industrial and high-heat environments without degradation in measurement accuracy.

Advantage 2: High Signal Precision
Output resistance of 50 Ω and supply sensitivity of <2 mV/V ensures minimal voltage fluctuation, maintaining measurement stability for critical vibration and position monitoring.

Advantage 3: Robust Mechanical Design
Patented TipLoc and CableLoc technologies provide 330 N pull strength, preventing probe and cable separation under vibration or mechanical stress.

Advantage 4: Interchangeable System Compatibility
Fully compatible with 3300 XL extension cables and Proximitor sensors, allowing flexible system configurations and reducing recalibration efforts, saving up to 25% in maintenance time.

Advantage 5: Compliance with Global Standards
CSA, ATEX, and IECEx approvals make the probe suitable for hazardous environments worldwide, ensuring regulatory compliance while minimizing installation costs.
