Overview
Place of Origin: |
USA |
Brand Name: |
ICS TRIPLEX |
Model Number: |
T9832 |
Packaging Details: |
Original new Factory Sealed |
Delivery Time: |
5-7 days |
Payment Terms: |
T/T |
Supply Ability: |
In stock |
Specifications
|
Model |
T9832 |
|
Product Type |
Analog Input Termination Assembly |
|
Dimensions |
13 x 8.2 x 3 cm |
|
Weight |
0.15 kg |
|
Channels |
16 Channel Dual |
|
Type |
Isolated (Dual) |
|
Input Voltage Range |
18–32 VDC |
|
Input Current Range |
0–24 mA |
|
Per Channel Protection |
50 mA, 125 V slow-blow fuse (Type T); additional 5 mA sensor input fuse protection |
|
Channel Isolation |
±1.5 kVDC withstand for 1 minute |
|
Loop Load Resistance |
135 Ω ±0.2 Ω |
|
Supported Input Modules |
Dual T9431 / T9432 Analog Input Modules |
|
Operating Temperature Range |
-30 °C to +100 °C |
|
Installation Type |
Analog Input Termination Assembly (FTA) |
Description

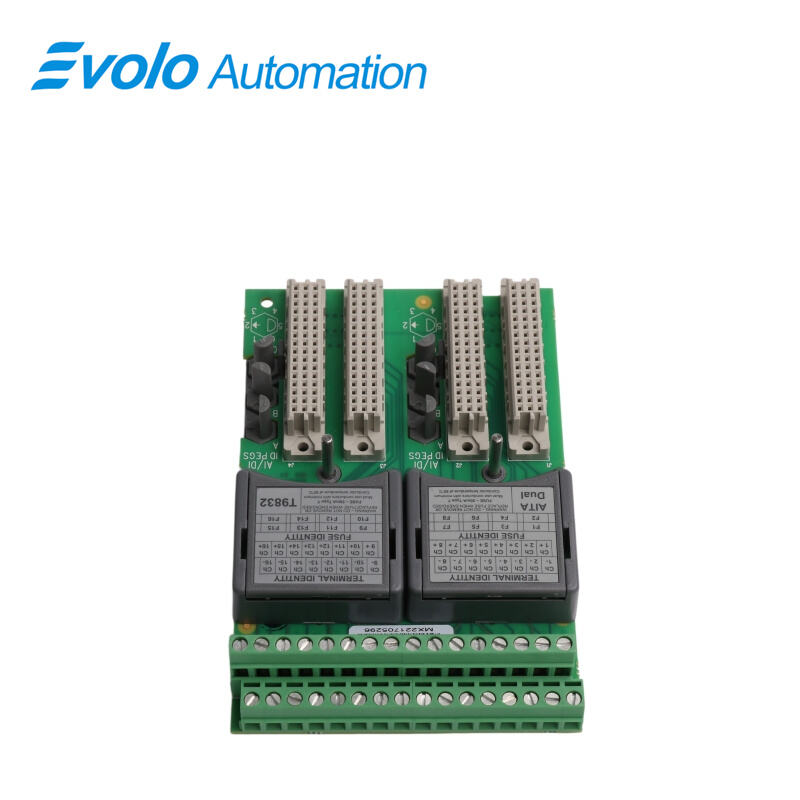

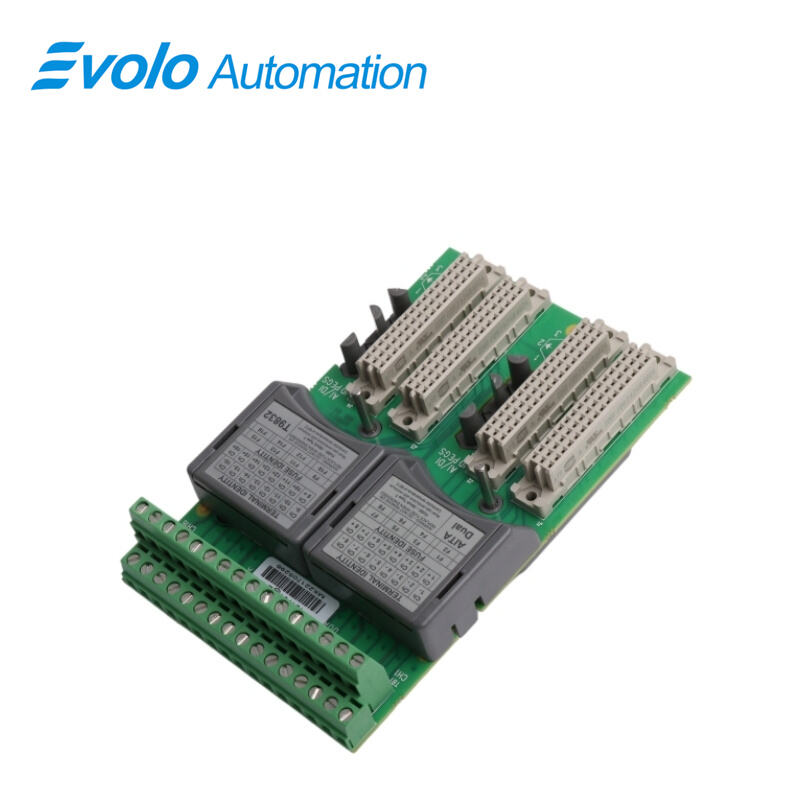

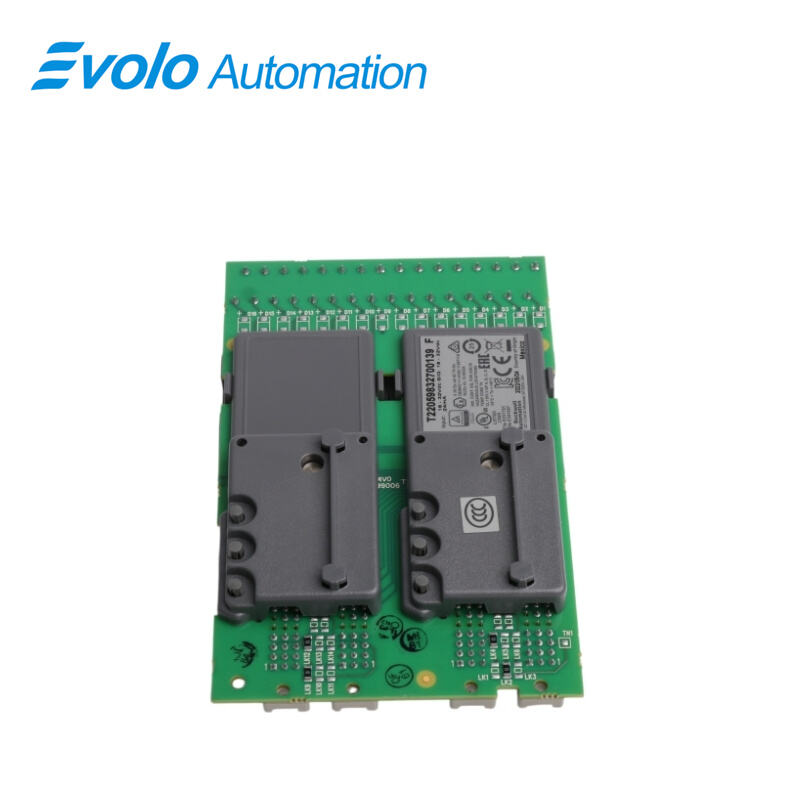

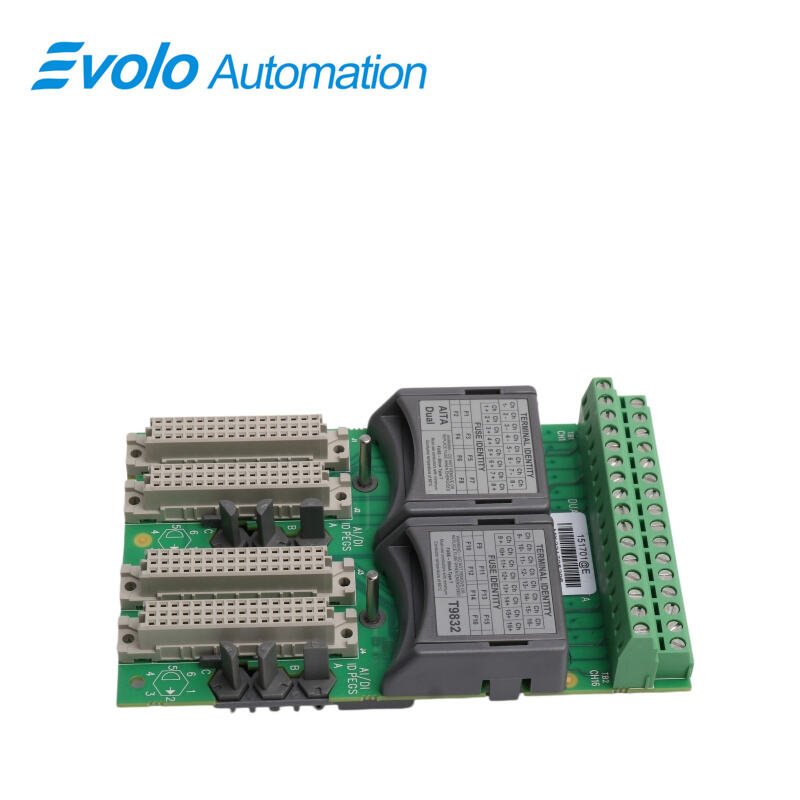

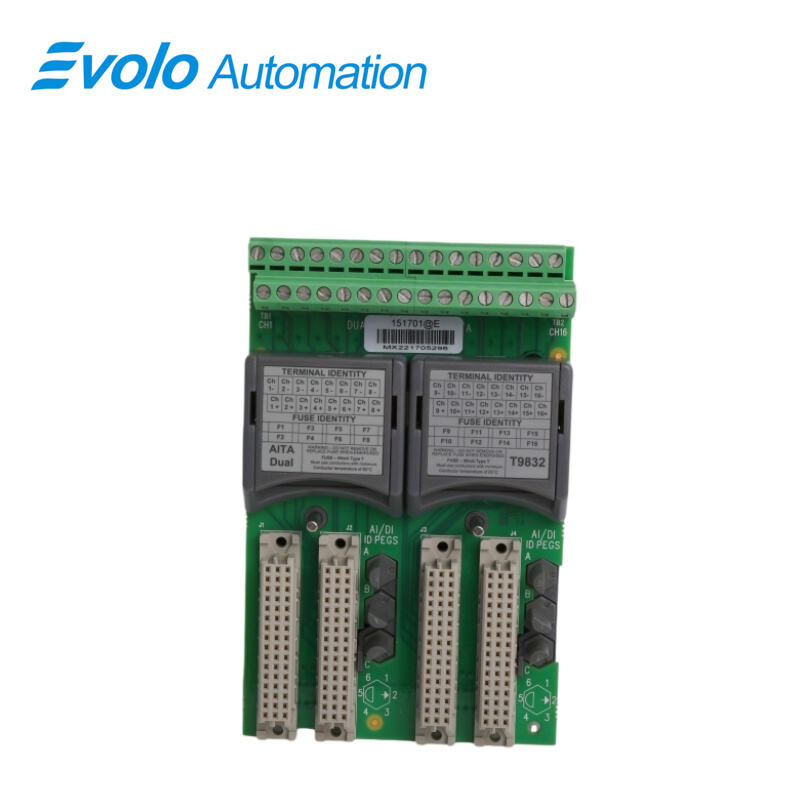

The ICS TRIPLEX T9832 is a dual analog input terminal assembly (Dual) for the AADvance controller system. This assembly serves as a relay physical connection platform between field instrument cables and system input cards.
Applications
Petroleum Refineries: Connects furnace temperature, reactor pressure, and tank level signals.
LNG Plants: Connects desulfurization pressure, cryogenic temperature, and flow signals.
Chemical Plants: Collects reactor thermocouple, weighing, and pump pressure signals.
Thermal Power Plants: Transmits steam pressure, feedwater flow, and turbine vibration data.
Troubleshooting
Specific channel analog signal completely lost or displays "open circuit fault": Check if external wiring fault or surge caused 50mA, 125V Type T fuse to blow; then measure 135-ohm load resistor for damage.
Dual redundancy module indicates a data deviation in one channel: Verify T9832 dual baseboard module connection; check 18–32Vdc supply stability and ±1.5kVdc channel crosstalk events in diagnostics log.
FAQ
Q: How many dual-isolated input channels does the T9832 have?
A: It has 16 dual-isolated channels.
Q: What is the input current range supported by the T9832?
A: 0 to 24 mA.
Q: What fuse specification is used per channel in the T9832 for protection?
A: 50 mA, 125 V slow-blow fuse (T type).
Q: What isolation voltage can the T9832 channels withstand for 1 minute?
A: ±1.5 kVDC.
Q: What operating temperature range is supported by the T9832?
A: -30 °C to +100 °C.
