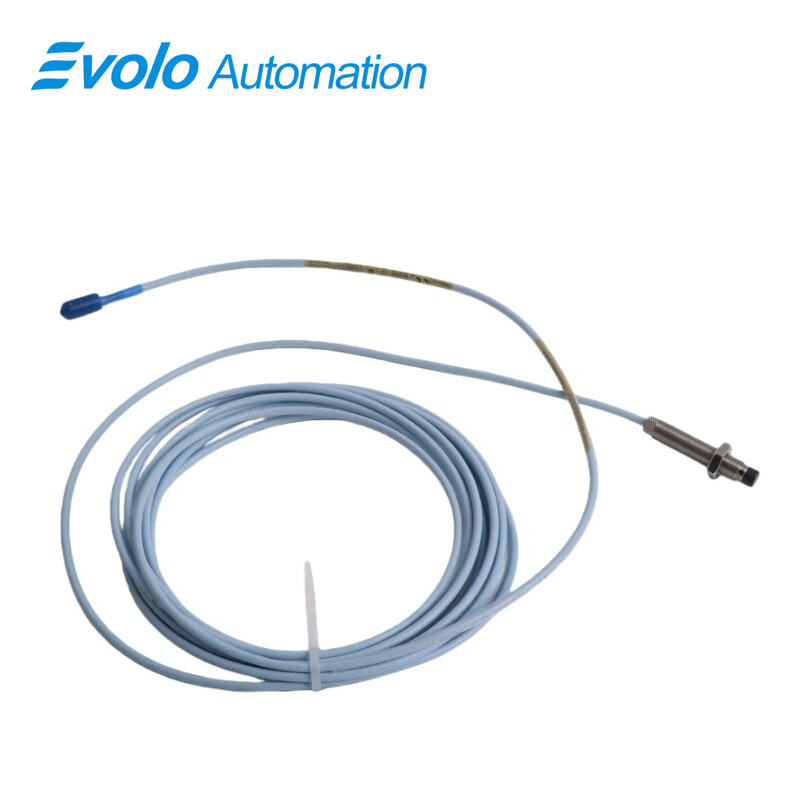

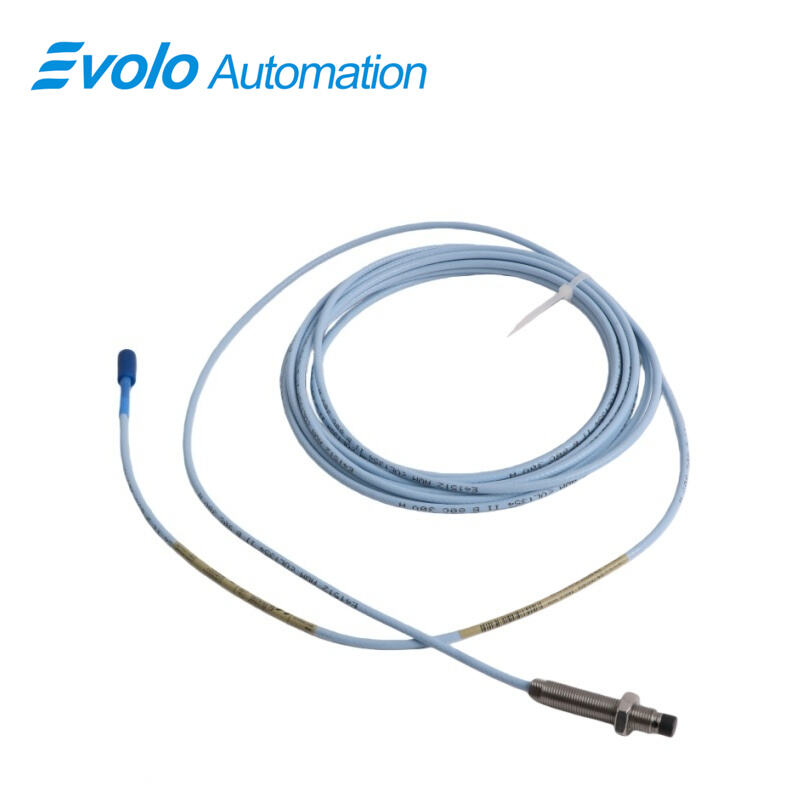

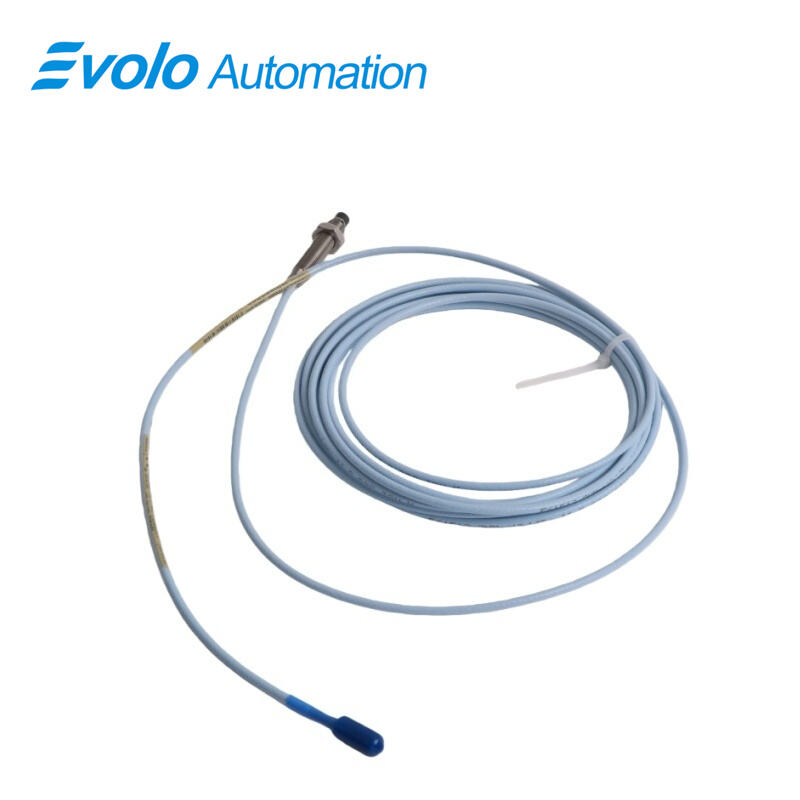

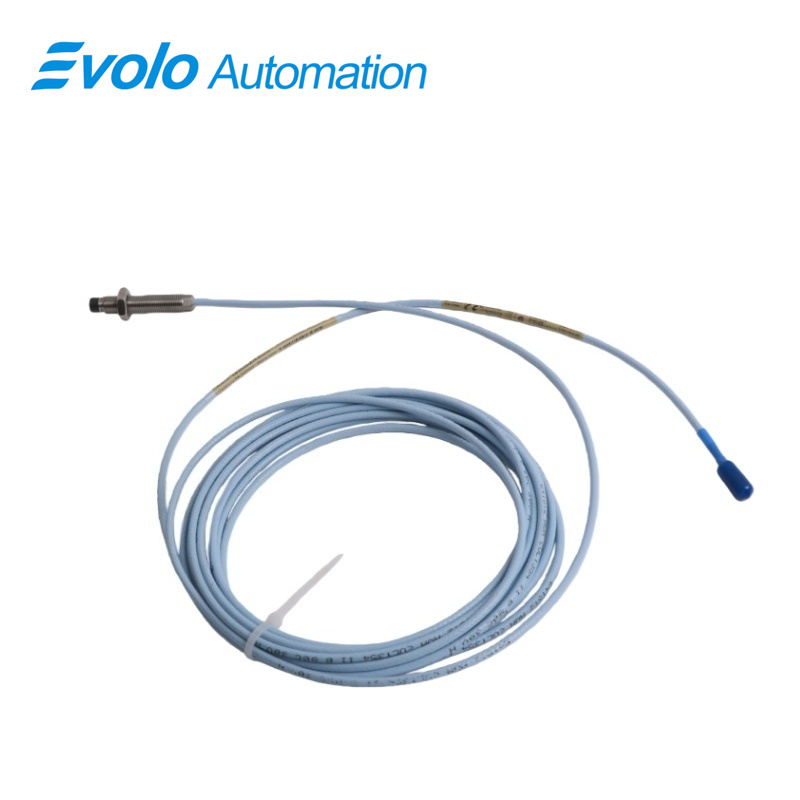

330103-00-05-50-02-CN 3300 XL 8 mm Proximity Probe

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	330103-00-05-50-02-CN
Minimum Order Quantity:	1
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

The 3300 XL 8 mm 330103-00-05-50-02-CN Proximity Probe is a high-precision industrial automation sensor designed for dynamic and static measurements on fluid-film bearing machines. With a linear range of 2 mm (80 mils) and an unthreaded length of 0 mm, this probe provides highly accurate readings of both vibration and positional displacement, making it ideal for Keyphasor reference, speed detection, and predictive maintenance applications. The probe features a 5-meter standard cable with a miniature coaxial ClickLoc connector, ensuring secure and reliable connections, and is compatible with CSA, ATEX, and IECEx agency approvals.

Engineered for robust industrial performance, the 3300 XL 8 mm probe operates across temperatures from -52°C to +177°C (-62°F to +350°F) and supports field wiring of 0.2 to 1.5 mm² (16–24 AWG). The system maintains exceptional signal integrity with less than 2 mV change in output per volt change in input and a 50 Ω output resistance. Extension cables have a typical capacitance of 69.9 pF/m (21.3 pF/ft), supporting precise signal transmission even in long cable runs.

The probe’s TipLoc molding and CableLoc cable attachment provide 330 N (75 lbf) pull strength, enhancing mechanical reliability. Optional FluidLoc cables prevent fluid ingress, ensuring safe operation in lubricated or high-humidity environments. Fully backward compatible with existing 3300 series 5 mm and 8 mm transducer systems, this probe allows seamless upgrades without the need for bench calibration, supporting automation systems where consistent, high-resolution proximity measurements are critical.

Applications

1. Vibration Monitoring on Fluid-Film Bearings
Measures radial and axial vibrations to prevent machinery failure, ensuring continuous operation of turbines and compressors.

2. Axial and Radial Position Measurement
Provides precise positional feedback on shafts and rotors, supporting control loops and automated monitoring.

3. Keyphasor and Phase Reference Signal Generation
Delivers accurate signals for advanced condition monitoring systems, enabling predictive maintenance and performance optimization.

4. Rotational Speed Measurement
Monitors rotational speed for machinery protection and automation, supporting API 670-compliant systems.

5. Harsh Environment Measurement
Operates in extreme temperatures (-52°C to +177°C) and high-humidity environments with optional FluidLoc protection, ideal for chemical, oil, and gas applications.

Specifications

Competitive Advantage

1. High Accuracy and Linear Response
2 mm linear range ensures precise proximity measurement for both static and dynamic applications.

2. Robust Mechanical and Electrical Design
TipLoc and CableLoc designs provide 330 N pull strength, preventing cable detachment under vibration.

3. Wide Temperature Tolerance
Operates reliably in temperatures from -52°C to +177°C, supporting extreme industrial conditions.

4. Compatibility and Interchangeability
Backward compatible with 3300 5 mm and 8 mm probes, allowing seamless upgrades and reducing maintenance complexity.

5. Enhanced Fluid Protection
Optional FluidLoc cables prevent leaks, ensuring safe operation in oil-lubricated machinery and high-humidity environments.
