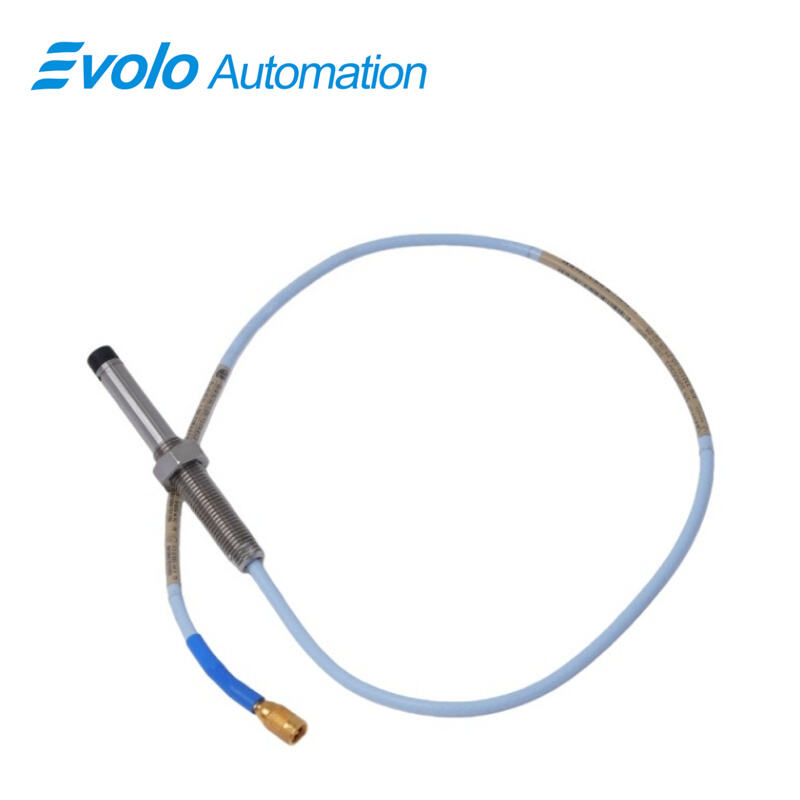

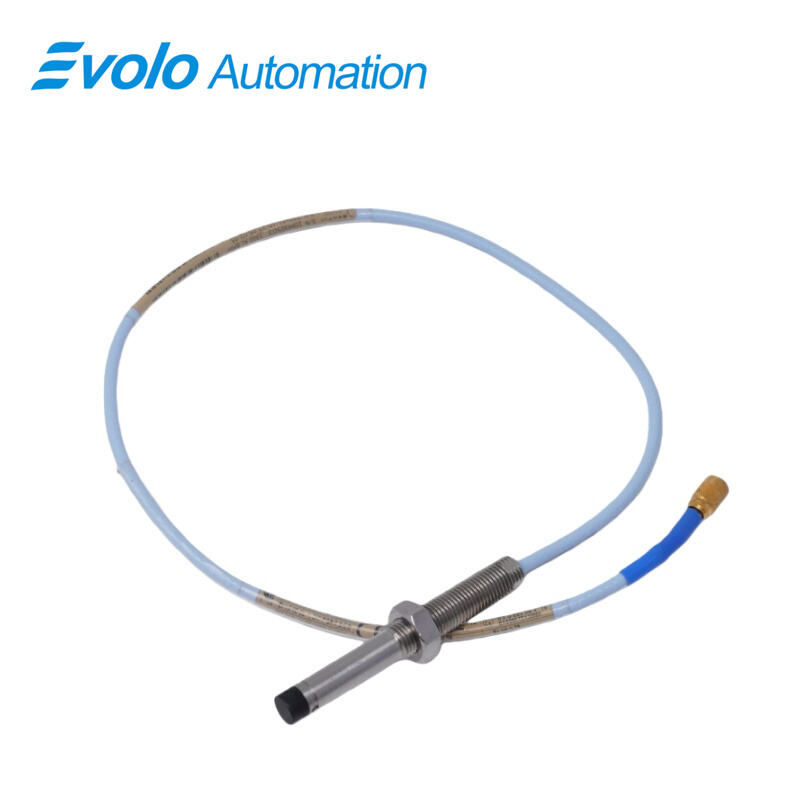

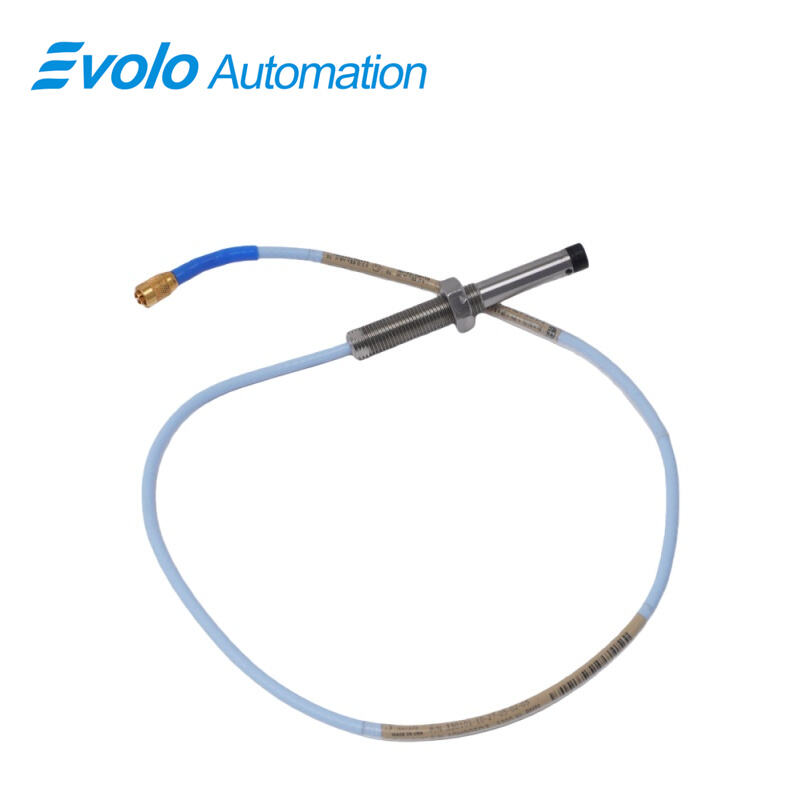

330101-10-43-10-02-05 3300 XL 8 mm Proximity Probes

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	330101-10-43-10-02-05
Minimum Order Quantity:	1
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

The 330101-10-43-10-02-05 3300 XL 8 mm Proximity Probe is a high-precision eddy current sensor designed for industrial automation and machinery monitoring systems. Engineered for both static and dynamic measurements, it provides an output voltage directly proportional to the distance between the probe tip and the observed conductive surface. With a linear range of 2 mm (80 mils) and exceptional supply sensitivity of less than 2 mV per volt, this probe delivers highly accurate vibration and position measurements for fluid-film bearing machines. The probe supports CSA, ATEX, and IECEx approvals for hazardous area applications and is compatible with the 3300 XL and legacy 3300 series 5 mm and 8 mm systems, offering seamless interchangeability with Proximitor sensors and extension cables. Its patented TipLoc molding ensures a robust bond between the probe tip and body, while the CableLoc design secures the cable with 330 N (75 lbf) pull strength. Optional FluidLoc cabling further prevents oil and liquid ingress, enabling reliable performance in extreme conditions from -52°C to +177°C (-62°F to +350°F).

Applications

Vibration Monitoring on Rotating Machinery
Accurately measures radial and axial vibration on pumps, compressors, and turbines, supporting predictive maintenance to reduce unplanned downtime.

Position Tracking of Shafts
Monitors static and dynamic shaft position with high resolution, ensuring precise alignment and operation within automated control systems.

Keyphasor Reference and Speed Measurement
Generates phase reference signals for Keyphasor systems, enabling SCADA integration and accurate rotational speed detection.

Hazardous Area Operations
CSA, ATEX, and IECEx approvals allow safe deployment in explosive environments, maintaining system integrity and regulatory compliance.

Flexible Integration with Automation Systems
Interchangeable with 3300 and 3300 XL system components, supporting retrofits or upgrades without requiring calibration or additional modifications.

Specifications

Competitive Advantage

High Accuracy and Linear Range
Provides 2 mm (80 mils) linear range with minimal voltage drift, delivering precise position and vibration data for automated monitoring.

Extreme Temperature Operation
Operates reliably from -52°C to +177°C, maintaining measurement stability under extreme industrial environments.

Robust Mechanical Design
Patented TipLoc molding and CableLoc design ensures 330 N (75 lbf) pull strength, preventing probe or cable detachment during harsh operation.

Optional FluidLoc Cable Protection
Prevents oil and other liquid ingress, enhancing longevity and reliability in machinery with high lubrication or fluid exposure.

Backward Compatibility
Fully compatible with legacy 3300 series 5 mm and 8 mm probes and Proximitor sensors, enabling cost-effective upgrades and seamless integration with existing monitoring systems.
