Overview
Place of Origin: |
USA |
Brand Name: |
Bently Nevada |
Model Number: |
330103-00-09-10-02-CN |
Minimum Order Quantity: |
1 |
Packaging Details: |
Original new Factory Sealed |
Delivery Time: |
5-7 days |
Payment Terms: |
T/T |
Supply Ability: |
In stock |
Quick Detail
|
Agency Approval Option: |
CSA, ATEX, IECEx Approvals |
|
Unthreaded Length Option : |
0 mm |
|
Overall Case Length Option : |
90 mm |
|
Total Length Option: |
1.0 meter (3.3 feet) |
|
Connector and Cable-Type Option: |
Miniature coaxial ClickLoc connector, standard cable |
|
Dimension: |
55.4x1.3x1.2cm |
|
Weight: |
0.04kg |
Description

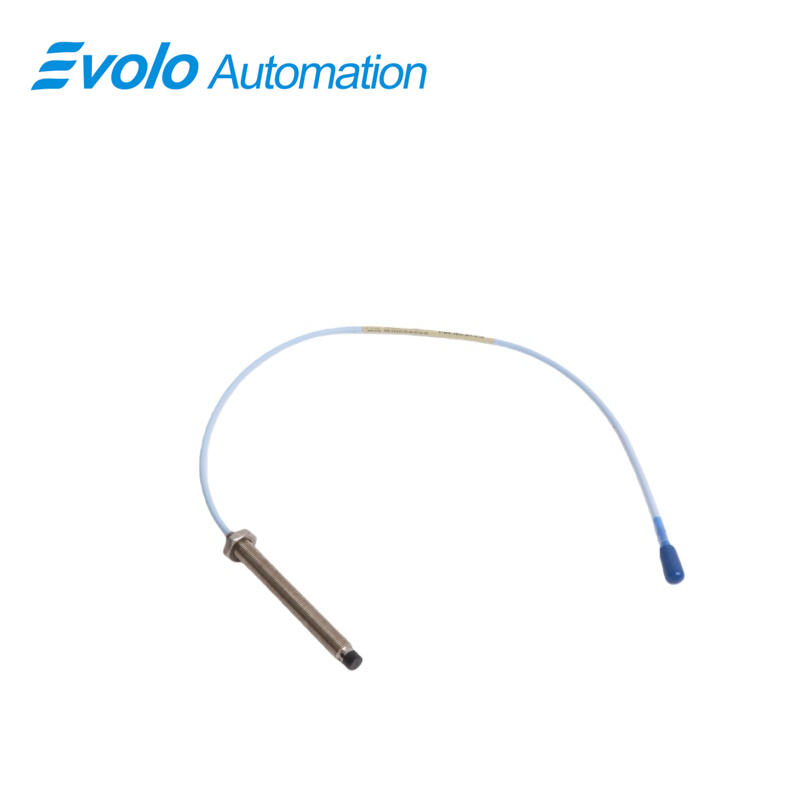

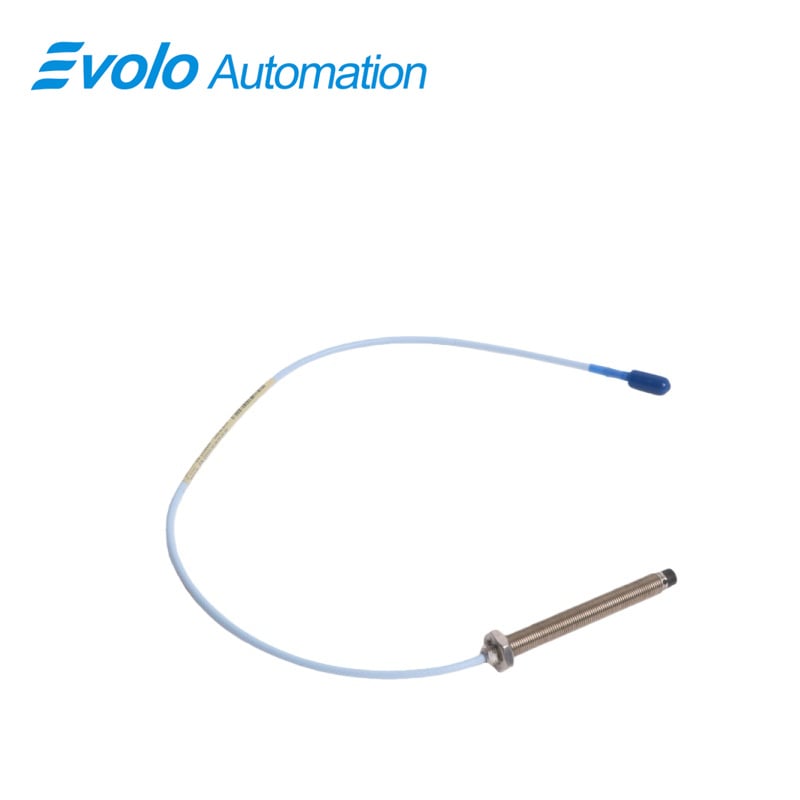

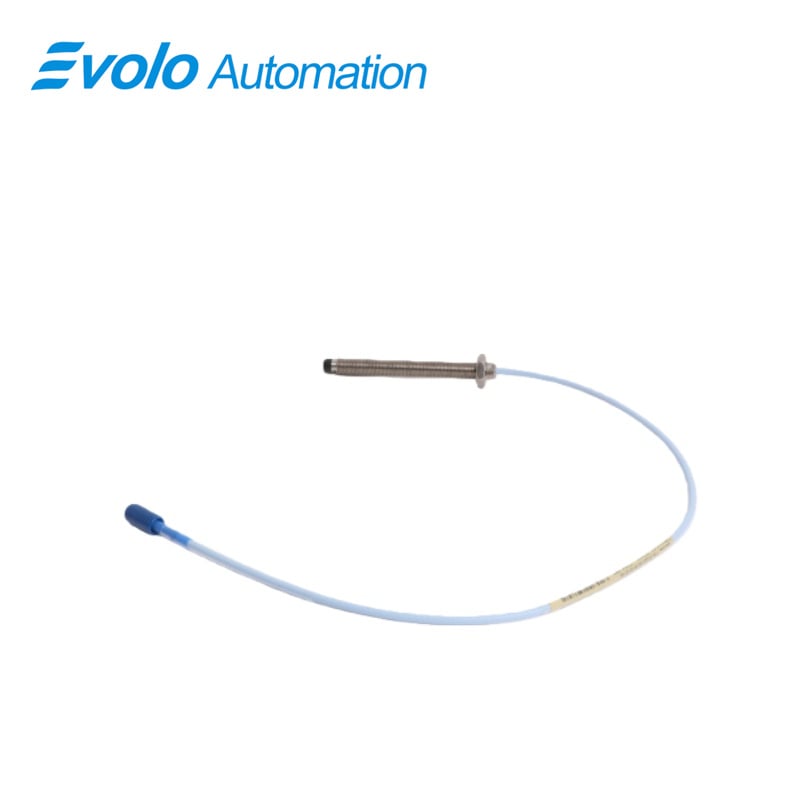

The 330103-00-09-10-02-CN 3300 XL 8 mm Proximity Probes is a high-performance eddy current displacement sensor developed for precise non-contact measurement of shaft vibration, axial position, and static displacement in critical rotating machinery. As a key member of the 3300 XL 8 mm Proximity Probes family, the 330103-00-09-10-02-CN 3300 XL 8 mm Proximity Probes is engineered to deliver stable, repeatable, and highly accurate output signals under continuous industrial operation, even in harsh and demanding environments.
Utilizing advanced eddy current sensing technology, the 330103-00-09-10-02-CN 3300 XL 8 mm Proximity Probes produces a voltage output directly proportional to the distance between the probe tip and conductive target surfaces. With a defined linear measurement range of 2 mm (80 mils) and excellent supply sensitivity control, this probe ensures reliable vibration and position monitoring essential for machinery protection and condition-based maintenance strategies. Its output resistance of 43 Ω further enhances signal integrity by reducing susceptibility to electrical noise and interference in complex industrial installations.
From a mechanical standpoint, the 330103-00-09-10-02-CN 3300 XL 8 mm Proximity Probes is designed for efficient installation in space-constrained equipment. It features a 0 mm unthreaded length, 90 mm overall case length, and a 1.0 meter (3.3 feet) standard cable, allowing precise probe positioning within bearing housings and machinery frames. The integrated Miniature coaxial ClickLoc connector provides a secure, vibration-resistant connection while simplifying installation and maintenance procedures
Applications
Specifications
|
Operating Temperature Range: |
-65°C to +175°C (-62°F to+341°F) |
|
Linear Range: |
2 mm (80 mils) |
|
Output Resistance: |
43 Ω |
|
Supply Sensitivity: |
Less than 2 mV change in output voltage per volt change in input voltage. |
|
Power: |
Requires -16.5 Vdc to -25 Vdc |
|
Probe Tip Material: |
Polyphenylene sulfide (PPS) |
|
Probe Case Material: |
AISI 301 or 304 stainless steel(SST) |
Competitive Advantage
1. High-Precision Measurement with Proven 8 mm Technology
The 330103-00-09-10-02-CN 3300 XL 8 mm Proximity Probes delivers a 2 mm linear range, low supply sensitivity, and stable output resistance, ensuring accurate vibration and displacement monitoring for critical rotating machinery.
2. Robust Construction for Harsh Industrial Environments
Featuring a PPS probe tip, stainless steel case, and wide operating temperature range from -65°C to +175°C, the 330103-00-09-10-02-CN 3300 XL 8 mm Proximity Probes offers excellent resistance to corrosion, contamination, and thermal stress.
3. Certified Safety and Installation Flexibility
With CSA, ATEX, and IECEx approvals, along with a compact mechanical design and ClickLoc connector, the 330103-00-09-10-02-CN 3300 XL 8 mm Proximity Probes simplifies deployment in hazardous areas while reducing installation time and long-term maintenance costs.
