Siemens SIMATIC S5 6ES5947-3UA22 CPU 947 F
Manufacturer: Siemens
Condition: Brand New
Lead Time: In Stock
Origin: Germany
Warranty: 12 Months
Email: [email protected]
whatsApp: +86-18150117685
- Overview
- Hot Selling Models
- Recommended Products
Overview
- Verify that the required module is CPU 947 F rather than another CPU 947 revision.
- Record the companion CPU, rack position and installed 355 memory hardware before removal.
- Back up the STEP 5 program and document programmer, operator-panel or SINEC connections.
- Isolate power before removing or inserting the module in the central-controller housing.
SIMATIC S5 • CPU 947 F

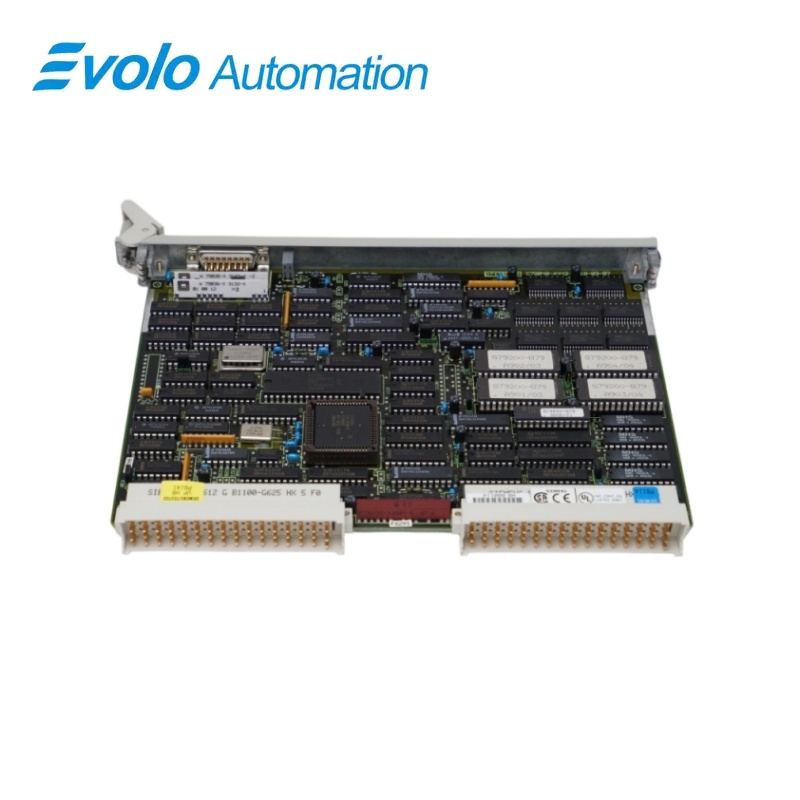

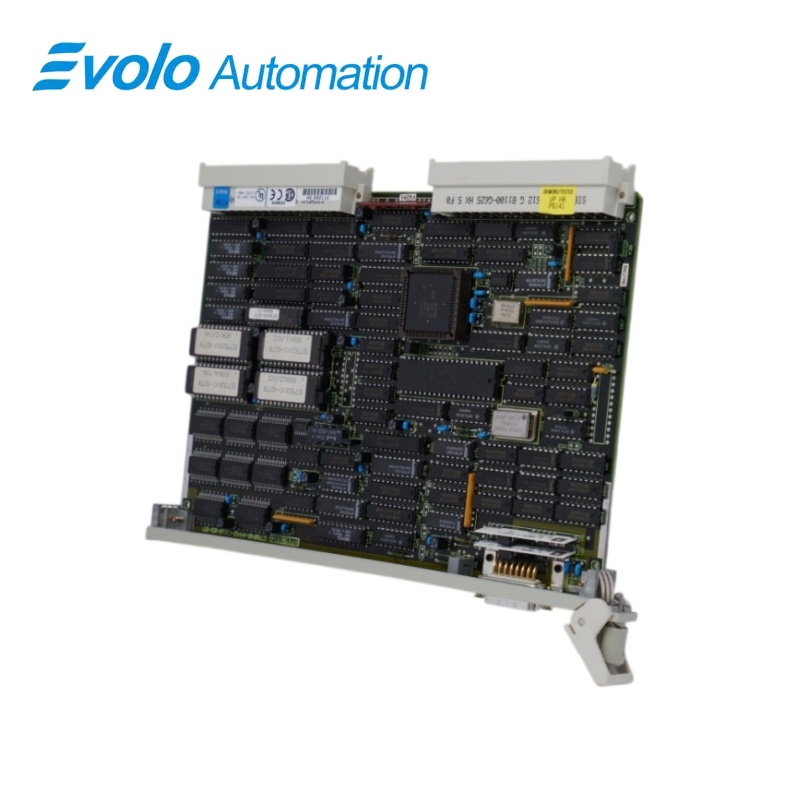

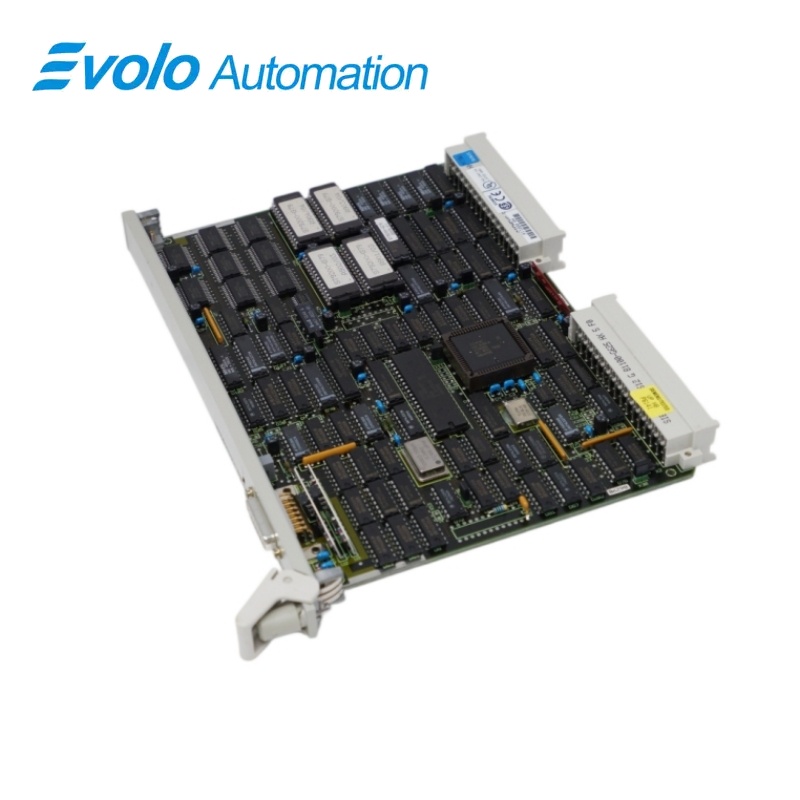

Siemens 6ES5947-3UA22 SIMATIC S5 CPU 947 F
CPU 947 F memory, interface and communication module for the SIMATIC S5-155U CPU 946/947 central processing unit.
Exact Identification
Match article number 6ES5947-3UA22 and the CPU 947 F designation before replacement.
Memory Configuration
Integrated 64 Kword user RAM with optional expansion through the 355 memory module.
Installation Interface
A 15-pin front connector supports a programmer, operator panel or SINEC interface module.
At a Glance
| Brand | Siemens |
|---|---|
| Model | 6ES5947-3UA22 |
| Product Type | SIMATIC S5 CPU 947 F module |
| Core Function | Memory, system interface and communications for the CPU 946/947 assembly |
| Compatible Series | SIMATIC S5-155U |
Product Overview
Siemens 6ES5947-3UA22 is the CPU 947 F module used as the memory and interface section of the SIMATIC S5-155U CPU 946/947 central processing unit. Its memory unit contains the integrated user RAM and system memories, while its communication unit provides the programmer connection and access to the CPU memory.
The documented CPU architecture supports STEP 5 program execution, floating-point arithmetic, cyclic, time-driven and interrupt-driven processing, communication with communications processors and multiprocessing configurations. The optional 355 memory module expands the available user memory for larger applications.
Key Functions
User and System Memory
The module contains 64 Kwords of integrated user RAM for code and data, together with operating-system EPROM and system-data RAM.
STEP 5 Processing Resources
The CPU 946/947 architecture processes STEP 5 operations and provides floating-point arithmetic, selectable interrupt priorities and cyclic, time-driven and interrupt-driven execution levels.
Programming and Operator Connection
The 15-pin front connector links the CPU to a programmer, operator panel or SINEC interface module through the documented serial interface.
Expandable Program Capacity
A 355 memory module with approved submodules can extend user memory by up to 384 Kwords, producing a maximum configuration of 448 Kwords.
Official Specifications
| Degree of Protection | IP00 |
|---|---|
| Supply Voltage | 5 V DC, ±5% |
| Current Consumption | Approximately 2 A |
| Operating Temperature | 0 °C to +55 °C |
| Storage and Transport Temperature | -40 °C to +70 °C |
| Relative Humidity | Maximum 95% at 25 °C, non-condensing |
| Operating Altitude | Up to 3500 m above sea level |
| Integrated User RAM | 64 Kwords, 16 bits wide, with parity monitoring |
| Optional Memory Expansion | Maximum 384 Kwords through the 6ES5 355-3UA.. memory module and submodules |
| Maximum Memory Configuration | 448 Kwords, 16 bits wide |
| System Page Memory | 32 Kword operating-system EPROM and 31.5 Kword system-data RAM |
| Program Resource Blocks | 256 PB, 256 SB, 256 FB and 256 FX |
| Data Block Resources | 256 DB with 254 available to user programs; 256 DX with 255 available to user programs |
| Front Connector | 15-pin connector for a programmer, operator panel or SINEC interface module |
| Programmer Interface Speed | 9600 bit/s |
| S5 Local Bus Width | 20-bit address bus and 16-bit data bus |
| Scan Monitoring Time | Software-settable; 200 ms default |
| Acknowledge Monitoring Time | 150 µs |
| Net Weight | 0.615 kg |
Frequently Asked Questions
What must I pair with 6ES5947-3UA22 in an S5-155U CPU configuration?
The module forms the CPU 947 section of the two-module CPU 946/947 central processing assembly, so the documented paired arrangement must be maintained.
Can I connect a programmer or operator panel directly to 6ES5947-3UA22?
The 15-pin front connector supports connection to a programmer, operator panel or SINEC interface module.
How much user memory is built into 6ES5947-3UA22?
The memory unit contains 64 Kwords of integrated user RAM for code and data with parity monitoring.
Can I expand the program memory used with 6ES5947-3UA22?
An optional 355 memory module can add up to 384 Kwords for a maximum memory configuration of 448 Kwords.
Which supply conditions should I verify for 6ES5947-3UA22?
Provide 5 V DC within ±5%, with approximately 2 A current consumption for the module.
What ambient limits apply when installing 6ES5947-3UA22?
Operate the module from 0 °C to +55 °C and keep storage or transport conditions within -40 °C to +70 °C.
Which programming environment is used with 6ES5947-3UA22?
The CPU architecture uses the STEP 5 programming language and MC5 machine code.
