Siemens SIMATIC HMI 6AV3688-3ED13-0AX0 PP17-II Push Button Panel
Manufacturer: Siemens
Condition: Brand New
Lead Time: In Stock
Origin: Germany
Warranty: 12 Months
Email: [email protected]
whatsApp: +86-18150117685
- Overview
- Product Overview
- Key Functions
- Official Specifications
- Frequently Asked Questions
- Compatibility & Ordering Notes
- Hot Selling Models
- Recommended Products
Overview
6AV3688-3ED13-0AX0 PP17-II
Official Siemens identification and equipment-manual data for the PP17-II Push Button Panel.
At a Glance
| Article Number | 6AV3688-3ED13-0AX0 |
|---|---|
| Manufacturer | Siemens |
| Product Family | SIMATIC HMI Push Button Panels |
| Product Type | PP17-II |
| Operator Keys | 32 short-stroke keys |
Exact Identification
Match the complete Siemens article number and PP17-II designation.
I/O Check
Verify the 16 digital inputs and 16 digital outputs.
Bus Configuration
Confirm the MPI or PROFIBUS DP connection and PLC configuration.
Product Overview

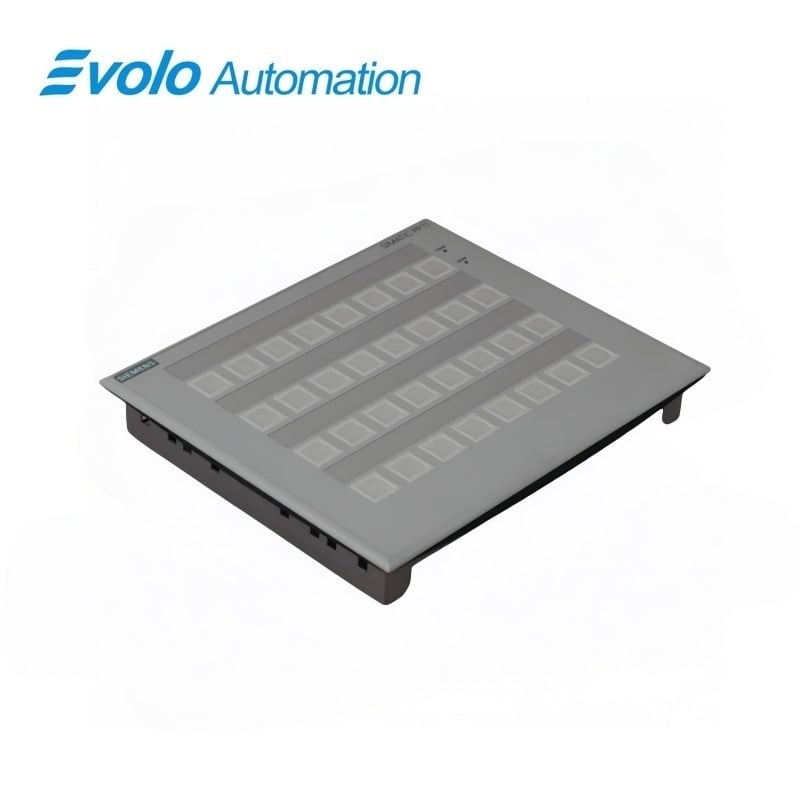

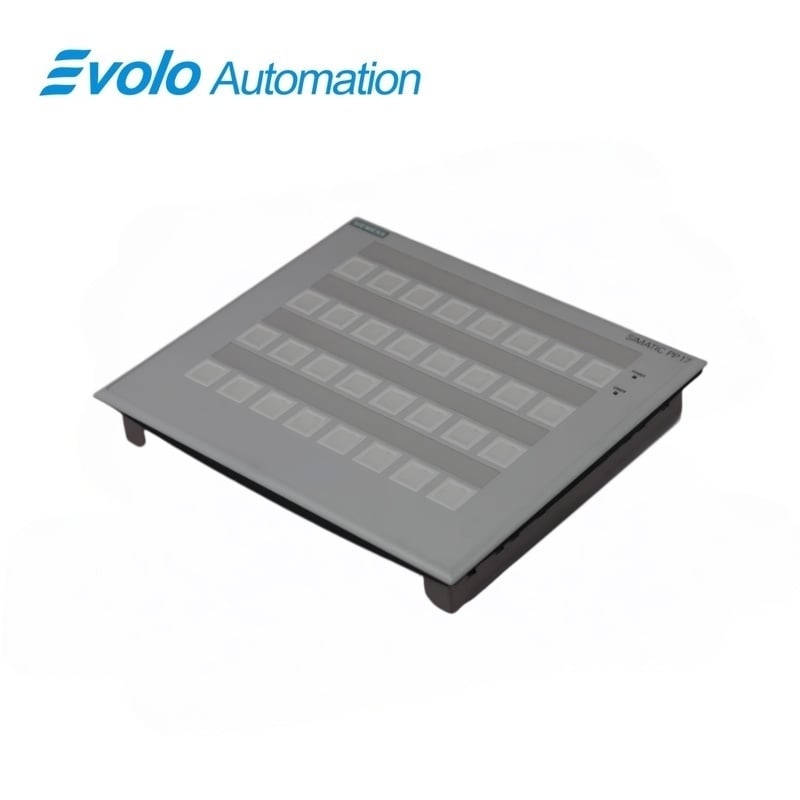

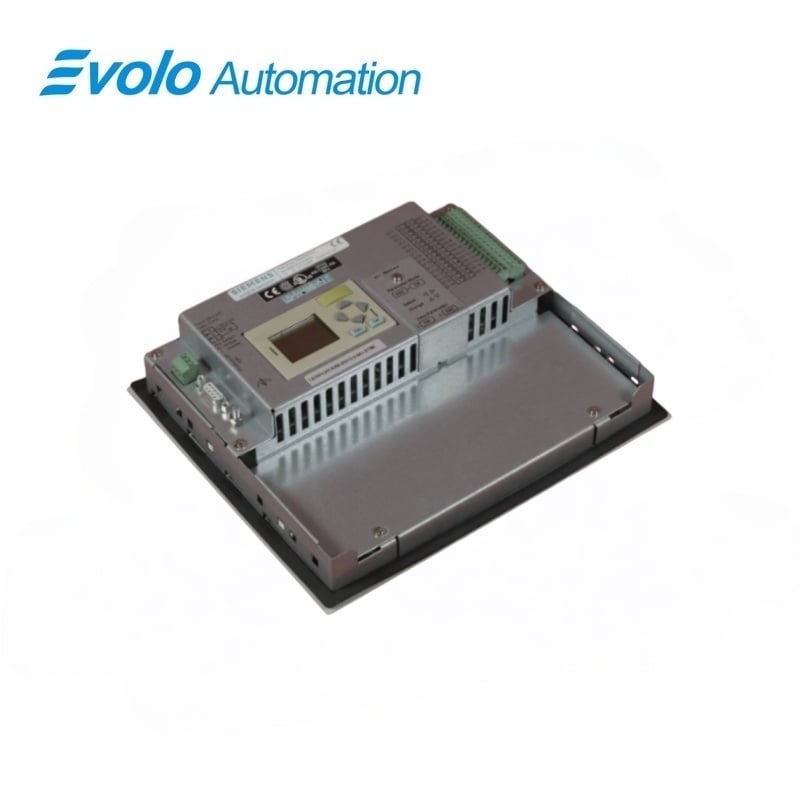

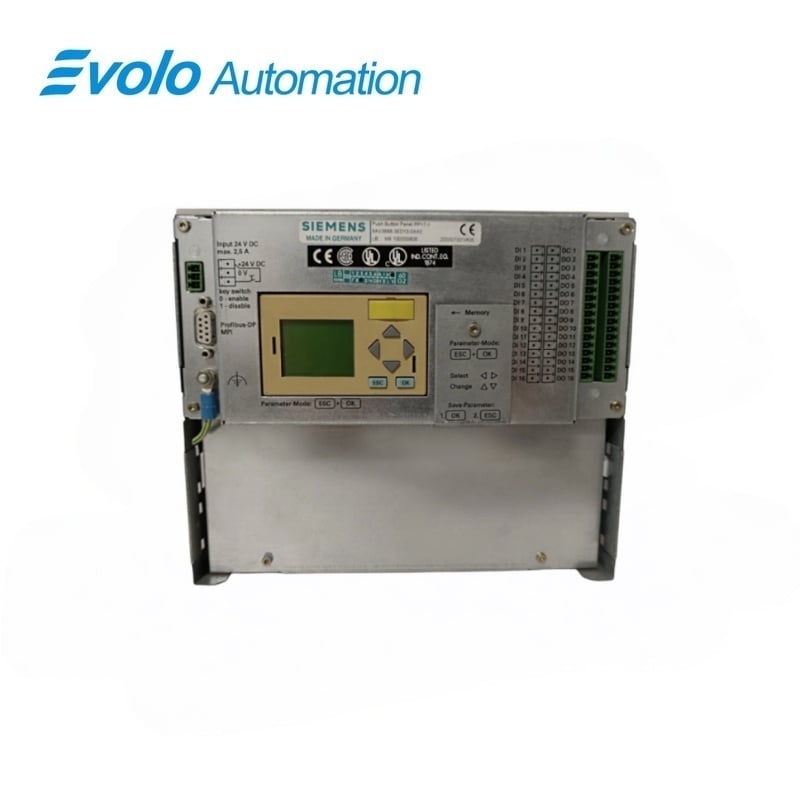

Siemens identifies 6AV3688-3ED13-0AX0 as the SIMATIC HMI Push Button Panel PP17-II.
The official equipment manual lists 32 short-stroke keys with surface illumination, 16 digital inputs and 16 digital outputs.
PLC connection is provided through MPI or PROFIBUS DP, with a maximum data rate of 12 MBaud for the PP17 panel family.
Key Functions
Operator Keys
32 short-stroke keys with surface illumination.
Digital I/O
16 digital inputs and 16 digital outputs are listed in the official equipment manual.
PLC Communication
MPI or PROFIBUS DP connection for SIMATIC systems.
Industrial Installation
24 V DC supply with IP65 front protection and IP20 rear protection.
Official Specifications
| Manufacturer | Siemens |
|---|---|
| Product Family | SIMATIC HMI Push Button Panels |
| Product Type | PP17-II |
| Article Number | 6AV3688-3ED13-0AX0 |
| Short-Stroke Keys | 32 |
| Digital Inputs | 16 |
| Digital Outputs | 16 |
| PLC Connection | MPI or PROFIBUS DP |
| Maximum Data Rate | 12 MBaud |
| Rated Supply Voltage | 24 V DC |
| Permissible Voltage Range | 18 to 30 V DC |
| Front Protection | IP65 |
| Rear Protection | IP20 |
| Operating Temperature | 0 to 55 °C |
| Storage / Transport Temperature | -20 to 70 °C |
Official source: Siemens Industry Mall product data for 6AV3688-3ED13-0AX0. Commercial stock, warranty and shipping statements are seller terms.
Frequently Asked Questions
What is Siemens 6AV3688-3ED13-0AX0?
It is the Siemens SIMATIC HMI Push Button Panel PP17-II.
How many operator keys are provided?
The official Siemens equipment manual lists 32 short-stroke keys with surface illumination.
How many digital I/O channels are listed?
Siemens specifies 16 digital inputs and 16 digital outputs.
Which PLC interfaces are supported?
The official manual lists MPI or PROFIBUS DP for PLC connection.
What maximum data rate is specified?
The Siemens manual lists a maximum data rate of 12 MBaud for the PP17 panel family.
What supply voltage is required?
The rated supply is 24 V DC with a permissible range of 18 to 30 V DC.
What should be checked before replacement?
Verify the complete article number, 32-key layout, digital I/O wiring, bus configuration, panel cutout and 24 V DC supply.
Compatibility & Ordering Notes
Compatibility Checklist for 6AV3688-3ED13-0AX0
Match the complete 6AV3688-3ED13-0AX0 article number.
Confirm the PP17-II 32-key layout.
Verify all 16 digital inputs and 16 digital outputs.
Document MPI or PROFIBUS DP settings and I/O wiring before replacement.
