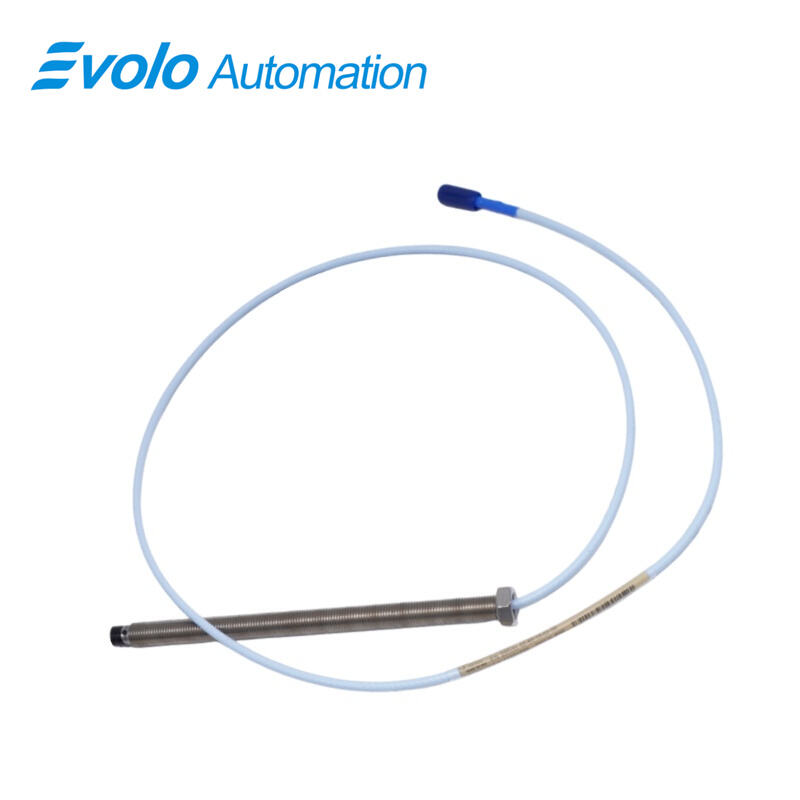

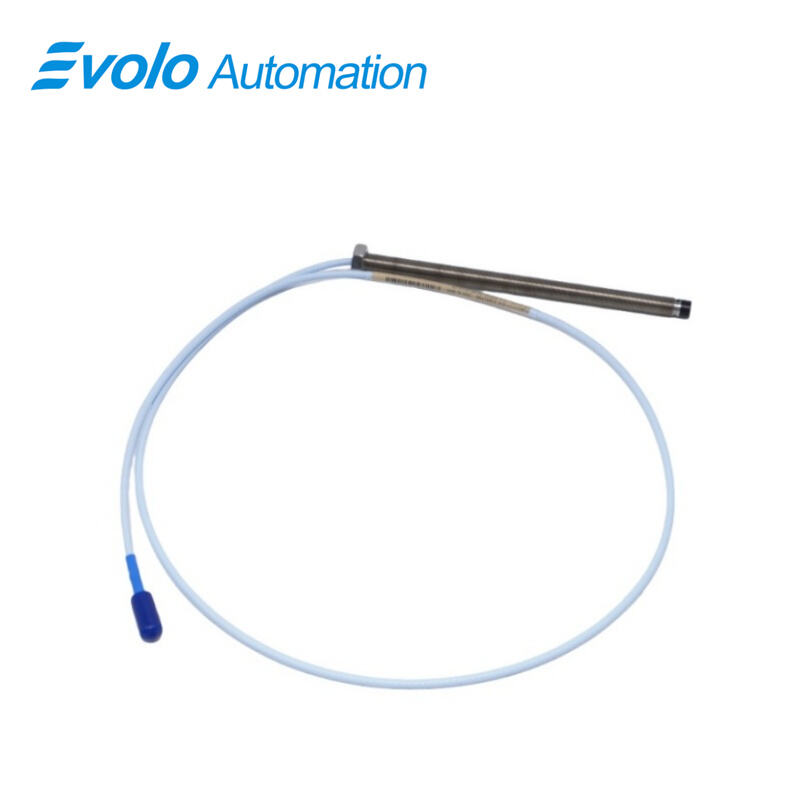

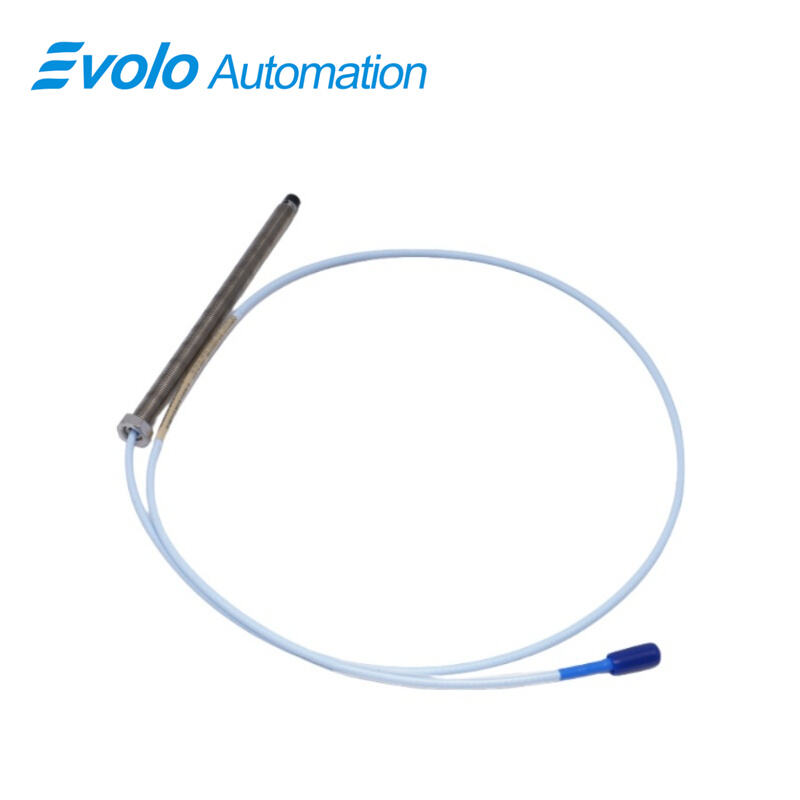

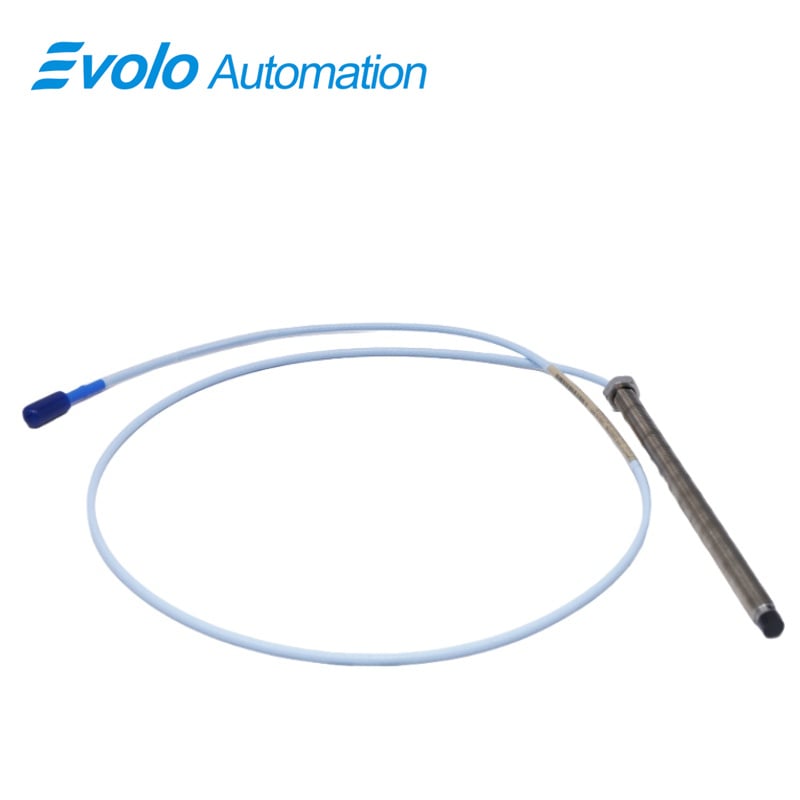

330101-00-61-15-02-00 3300 XL 8 mm Proximity Probe

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	330101-00-61-15-02-00
Minimum Order Quantity:	1
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

The 330101-00-61-15-02-00 3300 XL 8 mm Proximity Probe is a precision-engineered eddy-current proximity transducer designed for advanced automation and industrial monitoring. It delivers an output voltage directly proportional to the distance between the probe tip and a conductive surface, enabling high-accuracy static position and dynamic vibration measurements. With a 6.1-inch overall case length and 1.5-meter (4.9 ft) ClickLoc miniature coaxial cable, the probe ensures robust connectivity and reliable performance in automated machinery systems.

Engineered for harsh industrial environments, this probe operates from -52°C to +177°C (-62°F to +350°F), with supply sensitivity of less than 2 mV per volt and an output resistance of 50 Ω, ensuring stable readings under variable power conditions. The TipLoc molding technology strengthens the bond between probe tip and body, while the CableLoc design provides 330 N (75 lbf) pull strength, securing the cable even under high-vibration conditions. Optional FluidLoc cable protection prevents oil or other liquids from leaking into the machinery, maintaining process safety. Fully compliant with API 670 standards, the 3300 XL probe is interchangeable with other 5 mm and 8 mm 3300 series components, simplifying maintenance and minimizing downtime in automated industrial applications.

Applications

1. High-Speed Turbine Monitoring
Measures vibrations and shaft displacement in turbines to support automated predictive maintenance and avoid unplanned downtime.

2. Compressor Shaft Alignment Verification
Provides precise shaft displacement readings in compressors, ensuring alignment and efficiency in automated operations.

3. Keyphasor Reference Signal Generation
Delivers accurate phase reference signals for speed and position measurement, crucial for automated control and diagnostic systems.

4. Extreme Temperature Process Monitoring
Performs reliably under -52°C to +177°C, suitable for automation in chemical processing and power generation industries.

5. Automated Gap Adjustment and Maintenance
Allows probe replacement or adjustment without machine disassembly, improving workflow efficiency in automated maintenance systems.

Specifications

Competitive Advantage

1. Exceptional Measurement Accuracy
Maintains linearity over 2 mm range and minimal supply sensitivity (<2 mV/V), ensuring precise automated monitoring of dynamic and static values.

2. Enhanced Mechanical Durability
TipLoc and CableLoc designs provide superior mechanical strength, resisting cable and tip detachment in high-vibration industrial environments.

3. Fluid Containment for Safety
Optional FluidLoc system prevents oil or other fluids from leaking through the cable, protecting machinery and automation systems from contamination.

4. Interchangeability Across Systems
Compatible with all 3300 XL probes, extension cables, and Proximitor sensors, simplifying automated maintenance and reducing calibration requirements.

5. API 670 Compliant
Ensures the probe meets stringent industrial standards for linearity, accuracy, and mechanical integrity, critical for automation in high-reliability industrial processes.
