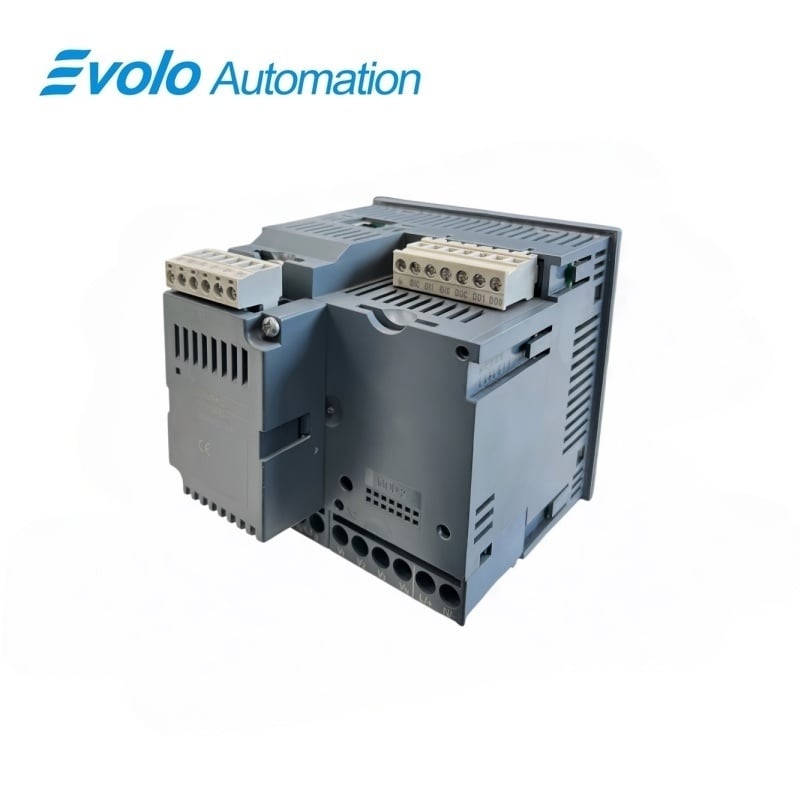

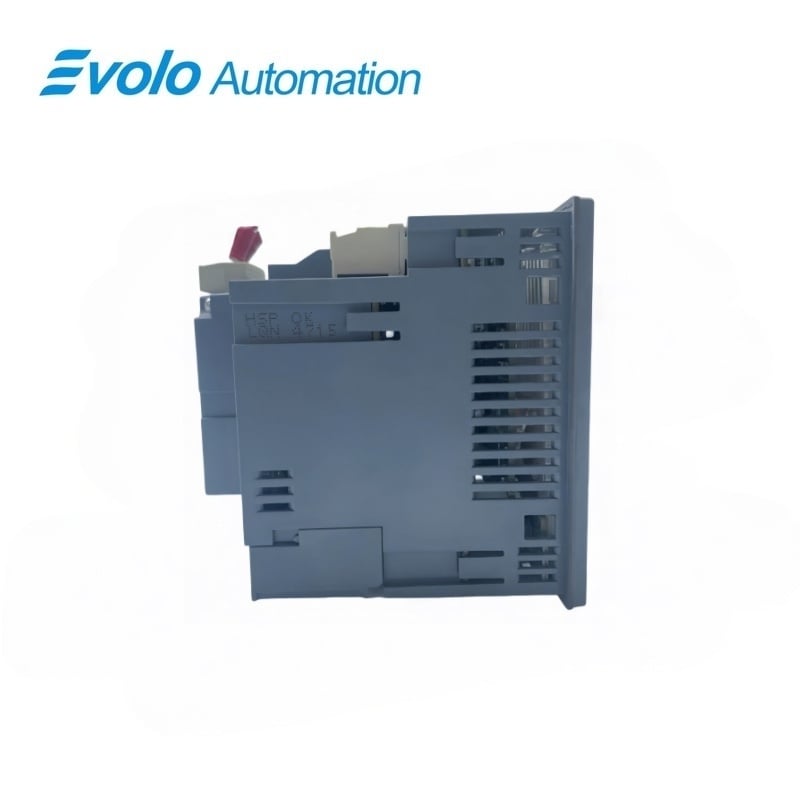

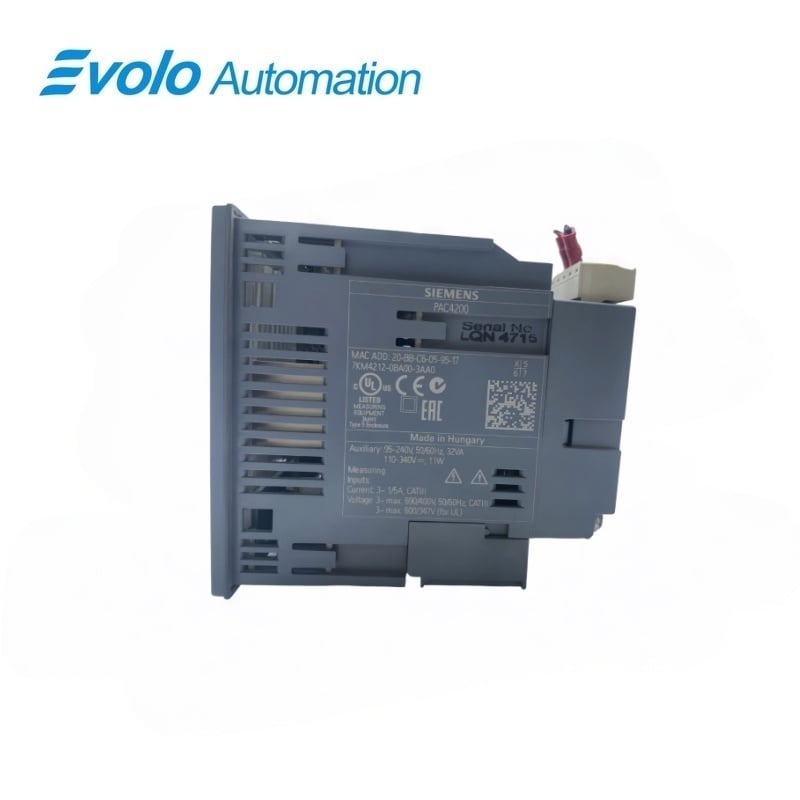

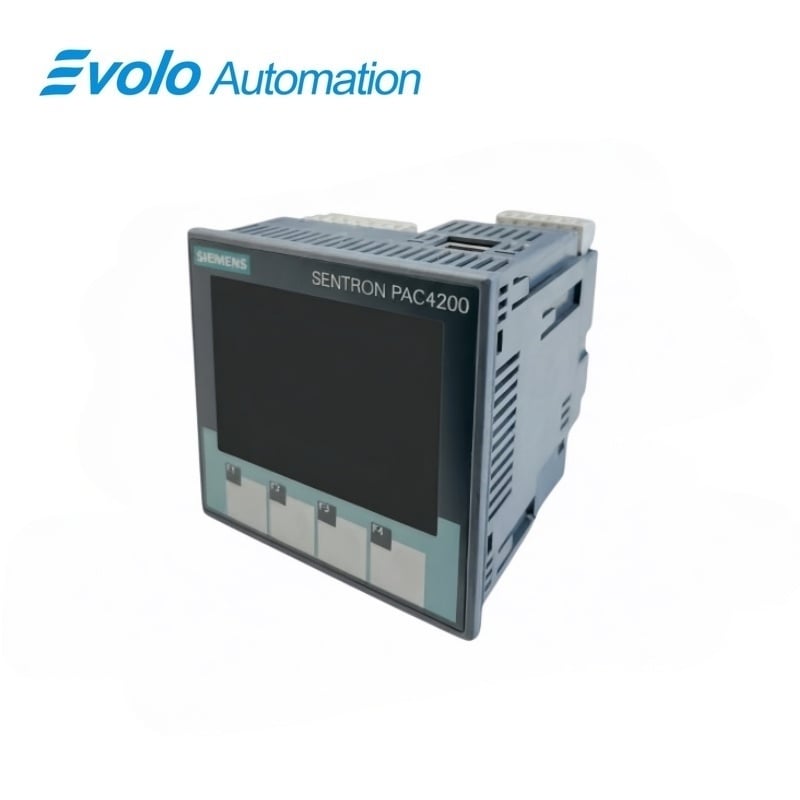

Siemens SENTRON 7KM4212-0BA00-3AA0 PAC4200 Power Monitoring Device
Manufacturer: Siemens
Condition: Brand New
Lead Time: In Stock
Origin: Germany
Warranty: 12 Months
Email: [email protected]
whatsApp: +86-18150117685
- Overview
- Product Overview
- Key Functions
- Official Specifications
- Frequently Asked Questions
- Compatibility & Ordering Notes
- Hot Selling Models
- Recommended Products
Overview
7KM4212-0BA00-3AA0 PAC4200
Official Siemens identification and specifications for 7KM4212-0BA00-3AA0, prepared for accurate replacement matching and quotation.
At a Glance
| Article Number | 7KM4212-0BA00-3AA0 |
|---|---|
| Manufacturer | Siemens |
| Platform | SENTRON 7KM PAC |
| Product Type | PAC4200 Power Monitoring Device |
| Rated Voltage | 690 V L-L / 400 V L-N |
| Rated Current Input | 5 A |
| Communication | Modbus TCP |
| Country of Origin | Germany |
Exact Identification
Match the complete Siemens article number 7KM4212-0BA00-3AA0.
Power Quality Measurement
Three-phase monitoring of electrical quantities, energy and harmonics.
Compatibility Check
Verify current-transformer ratio, voltage system, supply, wiring, Ethernet settings and communication options.
Product Overview
7KM4212-0BA00-3AA0 is officially identified by Siemens as the SENTRON PAC4200 power monitoring device.
It measures three-phase voltage and current, power, energy, power factor, THD and harmonics from the 2nd through 64th order, with an integrated 10/100 Mbit/s Modbus TCP interface.
Key Functions
Electrical Measurement
Measures voltage, current, active/reactive/apparent power, frequency and power factor.
Energy and Harmonic Analysis
Records energy values, THD and harmonics up to the 64th order.
Ethernet Communication
Integrated Fast Ethernet interface supports Modbus TCP.
Official Specifications
| Manufacturer | Siemens |
|---|---|
| Series | SENTRON 7KM PAC |
| Article Number | 7KM4212-0BA00-3AA0 |
| Product Type | PAC4200 Power Monitoring Device |
| Product Designation | SENTRON PAC4200 |
| System | 3-phase, 45 to 65 Hz |
| Rated Voltage | 690 V L-L / 400 V L-N |
| Rated Current Input | 5 A |
| Energy Accuracy | Class 0.2 / Class 0.2S as specified |
| Harmonics | 2nd to 64th, plus THD |
| Ethernet | 1 x RJ45, 10/100 Mbit/s |
| Protocol | Modbus TCP |
| Digital Inputs | 2 |
| Digital Outputs | 2 |
| Supply | 95 to 240 V AC or 110 to 340 V DC |
| Front Protection | IP65 |
| Dimensions | 96 x 96 x 82 mm |
| Net Weight | 0.543 kg |
| Country of Origin | Germany |
Frequently Asked Questions
What is 7KM4212-0BA00-3AA0?
It is the Siemens SENTRON PAC4200 power monitoring device.
Which system voltages are specified?
Siemens specifies up to 690 V line-to-line and 400 V line-to-neutral.
Which current input is used?
The unit is specified for a 5 A current input.
Which communication protocol is integrated?
Modbus TCP is available through the integrated Ethernet interface.
Which harmonics are measured?
The PAC4200 measures harmonics from the 2nd through the 64th order and THD.
Which supply range is required?
Siemens specifies 95 to 240 V AC or 110 to 340 V DC.
What should be checked before replacement?
Verify the full article number, voltage system, CT ratio, supply, Ethernet settings, option modules and wiring.
Compatibility & Ordering Notes
Compatibility Checklist for 7KM4212-0BA00-3AA0
- Match the complete article number 7KM4212-0BA00-3AA0.
- Record the voltage-system and current-transformer configuration.
- Back up Ethernet, Modbus and alarm settings.
- Verify auxiliary supply, measurement wiring and installed option modules.
