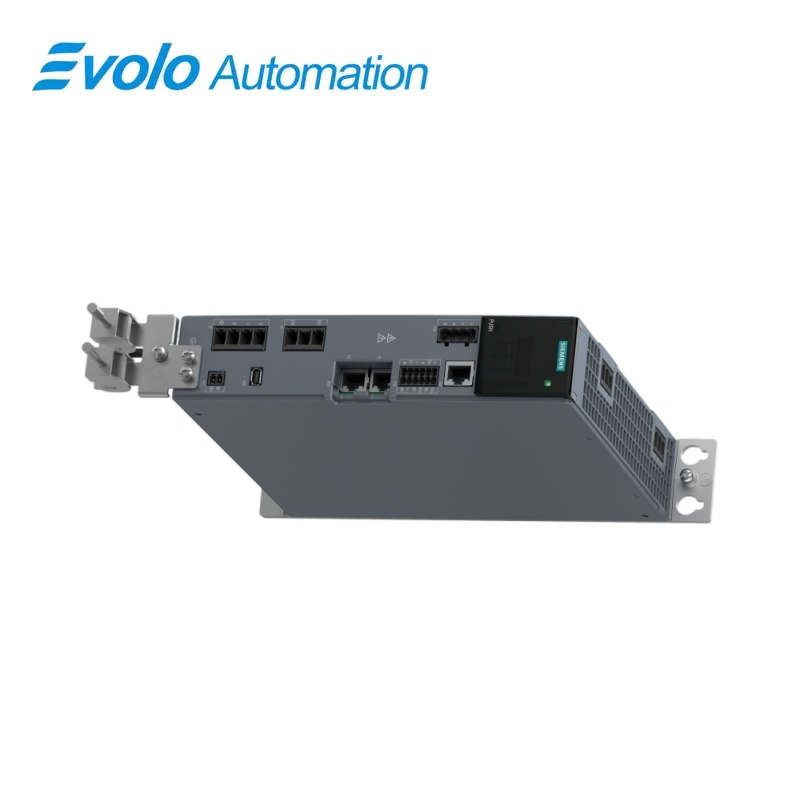

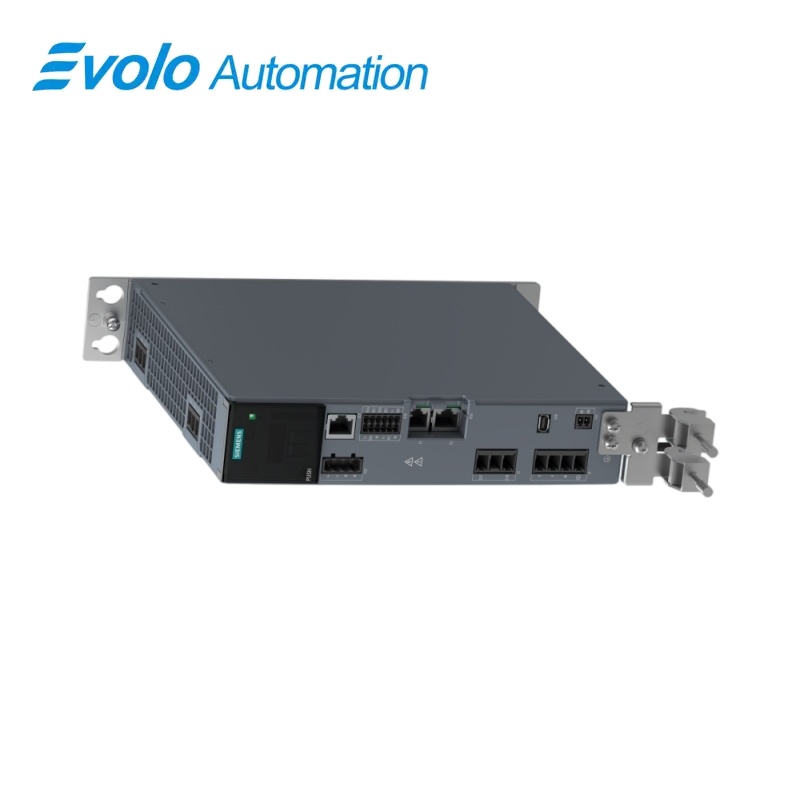

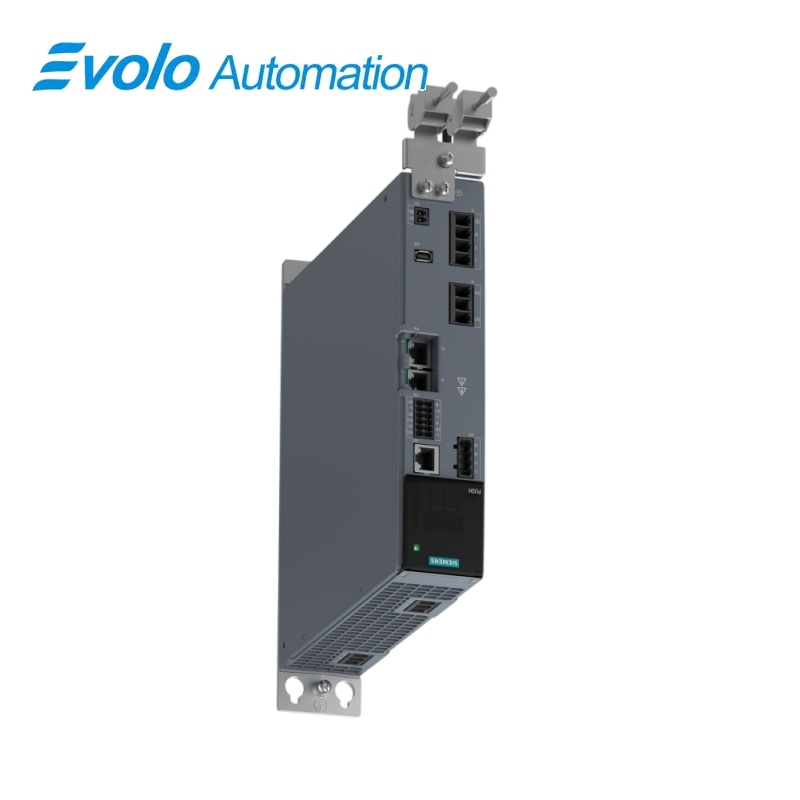

Siemens SINAMICS S210 0.75 kW Servo Drive 6SL3210-5HE10-8UF0
Manufacturer: Siemens
Condition: Brand New
Lead Time: In Stock
Origin: Germany
Warranty: 12 Months
Email: [email protected]
whatsApp: +86-18150117685
- Overview
- Product Overview
- Key Functions
- Official Specifications
- Frequently Asked Questions
- Compatibility & Ordering Notes
- Hot Selling Models
- Recommended Products
Overview
Siemens • SINAMICS S210
6SL3210-5HE10-8UF0 SINAMICS S210 0.75 kW Servo Drive
The Siemens SINAMICS S210 servo drive converts a 200 to 480 V three-phase supply into a controlled three-phase motor output for high-dynamic single-axis motion applications.
At a Glance
| Brand | Siemens |
|---|---|
| Model | 6SL3210-5HE10-8UF0 |
| Product Type | Single-axis servo drive converter |
| Core Function | Controls a servo motor from a three-phase industrial supply |
| Application or Compatible Series | High-dynamic motion axes engineered with the SINAMICS S210 drive system |
Exact Identification
Match 6SL3210-5HE10-8UF0 character by character and confirm the complete SINAMICS S210 0.75 kW Servo Drive designation.
Interface Arrangement
Confirm the installed supply, ports, field connections and required accessories before wiring the replacement.
Configuration Check
Preserve the approved engineering project, network parameters and application data used by the installed system.
Product Overview
The Siemens SINAMICS S210 servo drive converts a 200 to 480 V three-phase supply into a controlled three-phase motor output for high-dynamic single-axis motion applications.
The converter operates from 200 to 480 V three-phase AC at 45 to 66 Hz. The motor output supports frequencies up to 550 Hz with an 8 kHz pulse frequency. Dedicated fail-safe input circuitry supports the documented STO and SS1 safety functions.
Key Functions
Wide Three-Phase Supply Range
The converter operates from 200 to 480 V three-phase AC at 45 to 66 Hz.
Servo Output Control
The motor output supports frequencies up to 550 Hz with an 8 kHz pulse frequency.
Integrated Safety Inputs
Dedicated fail-safe input circuitry supports the documented STO and SS1 safety functions.
Official Specifications
| Standard Digital Inputs | 5, including 2 usable for fail-safe input assignment |
|---|---|
| Fail-Safe Digital Input | 1, for STO or SS1 |
| Input Phases | 3 AC |
| Line Voltage | 200 to 480 V AC, ±10% |
| Line Frequency | 45 to 66 Hz |
| Rated Input Current | 2.8 A |
| Inrush Current | 4.3 A |
| Output Phases | 3 AC |
| Rated Power at 400 V | 0.75 kW |
| Rated Power at 240 V | 0.45 kW |
| Rated Output Current | 2.3 A |
| Maximum Output Current | 7.6 A |
| Pulse Frequency | 8 kHz |
| Servo Output Frequency | 0 to 550 Hz |
| Degree of Protection | IP20 |
| Frame Size | A |
| Dimensions | 50 x 270 x 220 mm |
Frequently Asked Questions
Which line supply is required for 6SL3210-5HE10-8UF0?
Use a three-phase 200 to 480 V AC source within the stated voltage tolerance and frequency range.
What motor power can 6SL3210-5HE10-8UF0 deliver at 400 V?
The rated motor power is 0.75 kW at a 400 V supply.
Can 6SL3210-5HE10-8UF0 implement Safe Torque Off?
Yes; the fail-safe input is intended for the documented STO or SS1 function.
What is the maximum output current of 6SL3210-5HE10-8UF0?
The maximum motor-side output current is 7.6 A.
Which output frequency range is available from 6SL3210-5HE10-8UF0?
Servo control supports an output frequency from 0 to 550 Hz.
Does 6SL3210-5HE10-8UF0 require installation inside an enclosure?
Yes; the IP20 converter must be mounted in a suitable electrical enclosure.
What must be retained before replacing 6SL3210-5HE10-8UF0?
Preserve the drive project, motor data, safety configuration, network settings, tuning parameters and commissioning backup.
Compatibility & Ordering Notes
Compatibility Checklist
- Use a motor, cable and feedback arrangement released for the engineered S210 axis.
- Recreate the STO or SS1 wiring and validate the safety function before enabling torque.
- Restore the approved drive parameters and repeat axis commissioning checks after replacement.
