330130-030-00-05 3300 XL Standard Extension Cable

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	330130-030-00-05
Minimum Order Quantity:	1
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

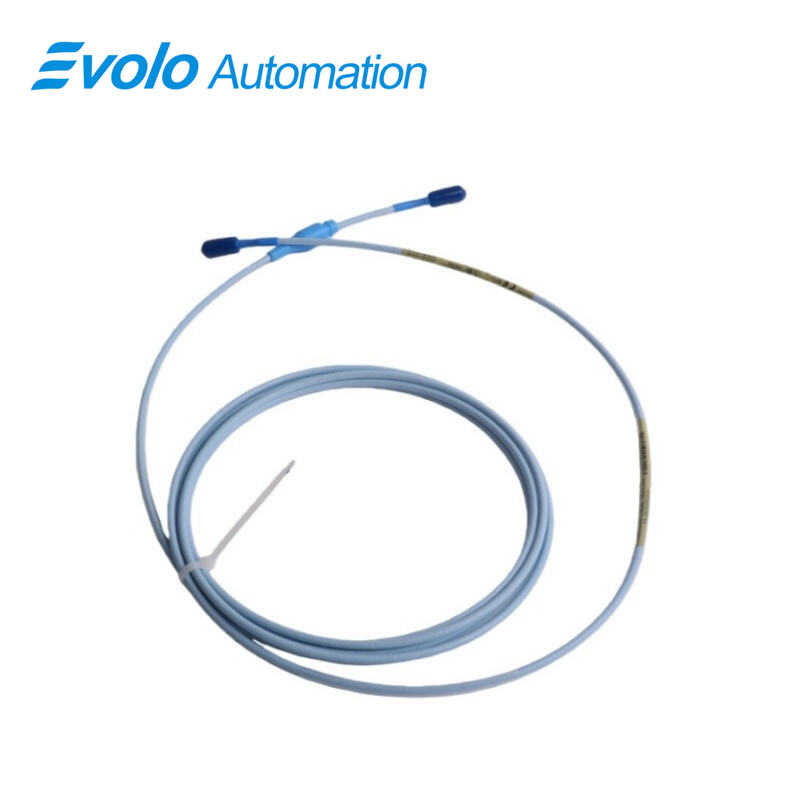

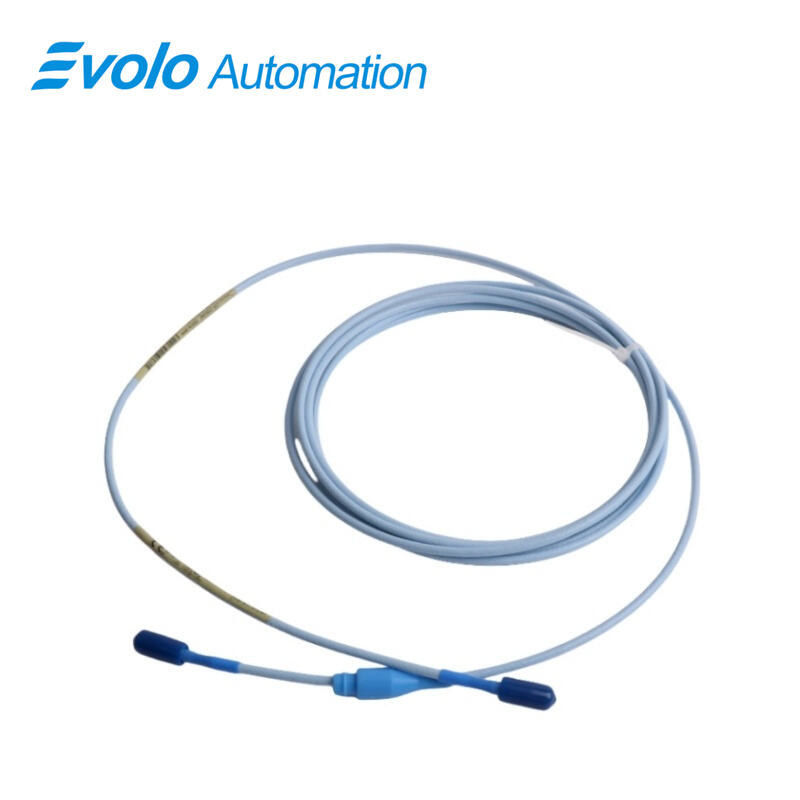

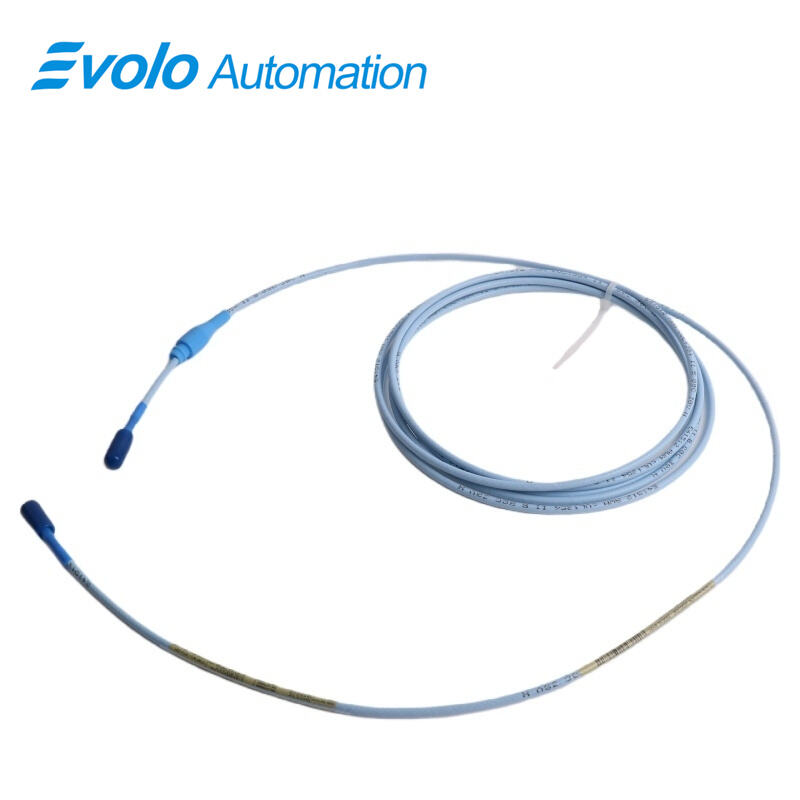

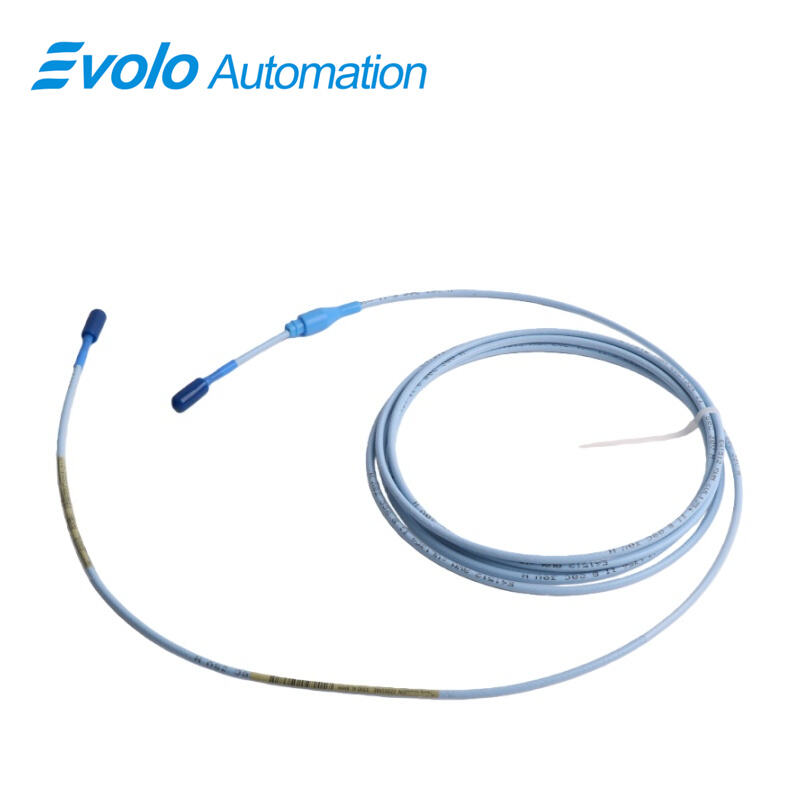

The 330130-030-00-05 3300 XL Standard Extension Cable is a high-performance, 3.0-meter (9.8 feet) extension cable specifically engineered for the 3300 XL 8 mm Proximity Transducer System, ensuring precise signal transmission for vibration and position monitoring in industrial automation applications. Constructed with 75 Q triaxial, FEP-insulated material, this extension cable maintains minimal output voltage variation, with less than 2 mV change per volt of input, and features a typical capacitance of 69.9 pF/m (21.3 pF/ft). Its 50 Ω output resistance and linear range of 2 mm (80 mils) provide reliable performance across field wiring distances up to 305 meters (1000 feet). Compatible with CSA, ATEX, and IECEx approved systems, the 3300 XL extension cable supports field wiring from 0.2 to 1.5 mm² (16–24 AWG), ensuring robust connectivity and high signal fidelity. This cable enables seamless interchangeability with 3300 XL probes and Proximitor sensors, enhancing automation efficiency, reducing maintenance downtime, and guaranteeing compliance with API 670 standards for mechanical configuration, linearity, and temperature stability.

Applications

1. Rotating Machinery Vibration Monitoring
The 3300 XL extension cable enables precise signal transmission from 8 mm proximity probes to monitor vibration in fluid-film bearings, turbines, and motors. Its low capacitance (69.9 pF/m) ensures accurate vibration measurement over long cable runs up to 305 meters, supporting predictive maintenance programs.

2. Shaft Position Sensing
Used with 3300 XL proximity probes, this extension cable provides linear distance measurements of rotating shafts with a 2 mm range, allowing real-time position monitoring in pumps, compressors, and generators. Accuracy is maintained across operating temperatures from -52°C to +177°C.

3. Keyphasor Reference Signal Transmission
The cable reliably transmits Keyphasor signals for rotor speed and phase reference applications. With less than 2 mV change in output per volt input change, it ensures consistent speed signal quality for critical automation control systems.

4. Industrial Automation Systems Integration
Ideal for integration with PLCs and vibration monitoring systems in petrochemical plants, refineries, and power generation facilities. Its CSA, ATEX, and IECEx approvals ensure compliance in hazardous areas, making it suitable for automated control loops and safety systems.

5. Harsh Environment Applications
The FEP-insulated 75 Q triaxial construction resists oil, moisture, and chemical exposure, making it suitable for high-temperature or corrosive environments. The standard cable option supports robust operation without signal degradation in industrial settings.

Specifications

Competitive Advantage

1. Long-Distance Signal Integrity
Supports up to 305 meters (1000 feet) of field wiring while maintaining linearity and frequency response (0–10 kHz, +0/-3 dB), ensuring accurate vibration and position measurements over long distances.

2. Superior Environmental Resistance
Constructed with FEP-insulated 75 Q triaxial material, providing robust resistance to oils, chemicals, and temperature extremes, enhancing cable longevity and reducing replacement costs.

3. High Interchangeability and Compatibility
Fully compatible with 3300 XL 8 mm probes and Proximitor sensors, as well as older 3300 series components, eliminating the need for bench calibration or matching, simplifying automation system upgrades.

4. Enhanced Mechanical Reliability
Cable and probe assembly feature patented CableLoc design with 330 N (75 lbf) pull strength and TipLoc molded probe tip, preventing detachment and ensuring robust mechanical connection under vibration and movement.

5. Regulatory Compliance
Meets CSA, ATEX, and IECEx approvals for hazardous areas and complies with API 670 standards for linearity, accuracy, and temperature stability, providing safe and reliable operation in industrial automation environments.
