330101-00-84-20-02-00 3300 XL 8 mm Proximity Probe

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	330101-00-84-20-02-00
Minimum Order Quantity:	1
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

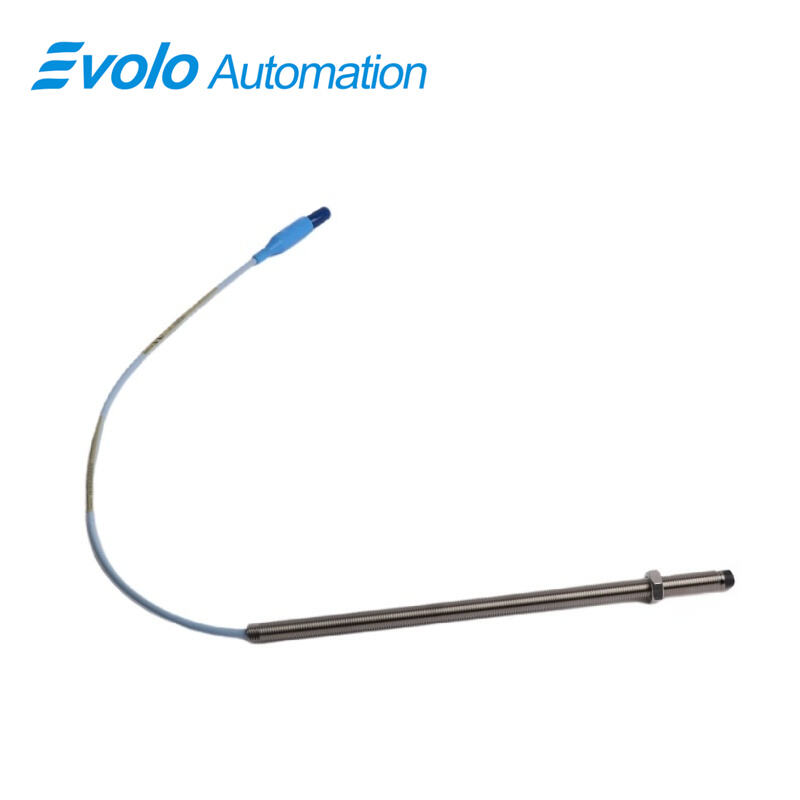

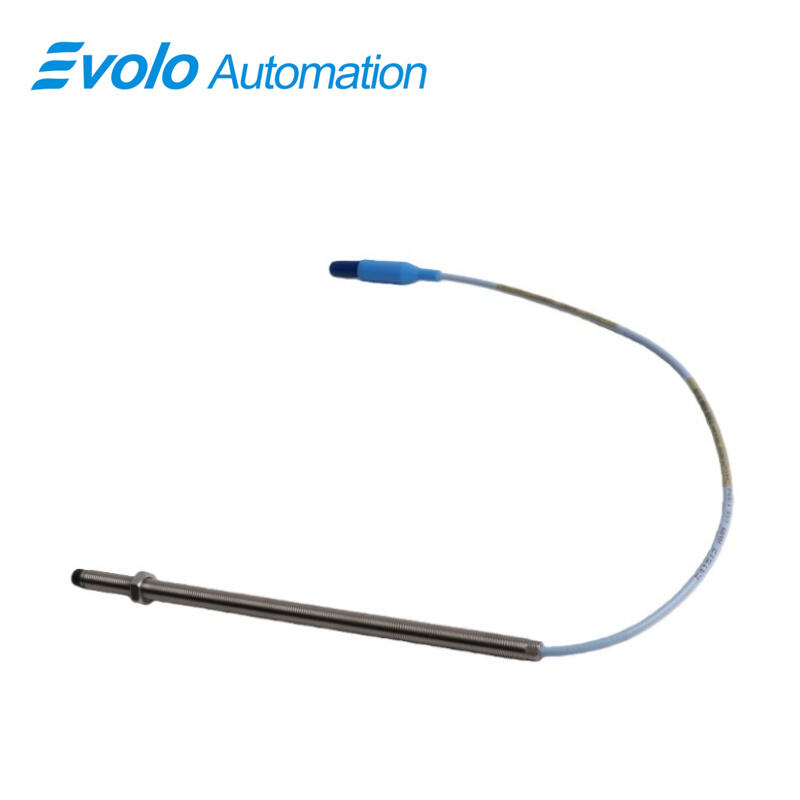

The 330101-00-84-20-02-00 3300 XL 8 mm Proximity Probe is a high-precision eddy-current transducer optimized for advanced industrial automation and condition monitoring systems. It produces an output voltage directly proportional to the distance between the probe tip and a conductive target, enabling highly accurate static position and dynamic vibration measurements in critical machinery. Featuring an overall case length of 8.4 inches and a 2.0-meter miniature coaxial ClickLoc cable, this probe is designed for robust performance and secure installation in high-speed rotating equipment.

Operating reliably in extreme environments from -52°C to +177°C (-62°F to +350°F), the probe provides a linear measurement range of 2 mm (80 mils), output resistance of 50 Ω, and supply sensitivity of less than 2 mV per volt, ensuring precise measurements in automated systems even under voltage fluctuations. Structural enhancements include the patented TipLoc molding for a secure probe tip bond and CableLoc design offering 330 N (75 lbf) pull strength. An optional FluidLoc cable protects against oil or liquid leakage, enhancing safety and reliability in industrial automation setups. The 3300 XL 8 mm probe is fully compatible with other 3300 series probes, extension cables, and Proximitor sensors, supporting fast maintenance and interchangeability without recalibration.

Applications

1. Turbine and Generator Vibration Monitoring
Measures radial and axial vibrations in turbines and generators with 2 mm linear range, providing automated diagnostics for predictive maintenance.

2. Shaft Position Feedback in Automated Systems
Monitors shaft displacement with high accuracy, enabling precise automated alignment and control in pumps, compressors, and other rotating machinery.

3. Keyphasor Signal Generation for Speed Measurement
Delivers phase reference signals for automated speed analysis, critical for real-time condition monitoring and feedback in high-speed machinery.

4. High-Temperature Process Automation
Operates reliably from -52°C to +177°C, making it suitable for automated monitoring in high-temperature chemical, petrochemical, and power plant applications.

5. Maintenance-Free System Integration
Supports rapid probe and cable replacement in automated systems without the need for bench calibration, ensuring continuous operation and minimal downtime.

Specifications

Competitive Advantage

1. Exceptional Measurement Accuracy
Provides a precise 2 mm linear range and minimal supply sensitivity (<2 mV/V), guaranteeing reliable static and dynamic readings for automated monitoring systems.

2. Robust Structural Design
TipLoc and CableLoc designs deliver superior probe tip bonding and cable pull strength (330 N / 75 lbf), ensuring durability in high-vibration industrial environments.

3. Enhanced Fluid Protection
Optional FluidLoc cable prevents leaks of oil and liquids, improving system safety and reducing maintenance in automated machinery.

4. Complete Component Interchangeability
Fully compatible with all 3300 XL and standard 3300 series probes, extension cables, and Proximitor sensors, simplifying automated system maintenance.

5. API 670 Standard Compliance
Meets industry requirements for mechanical configuration, linearity, temperature stability, and accuracy, delivering reliable performance in automated, high-reliability applications.
