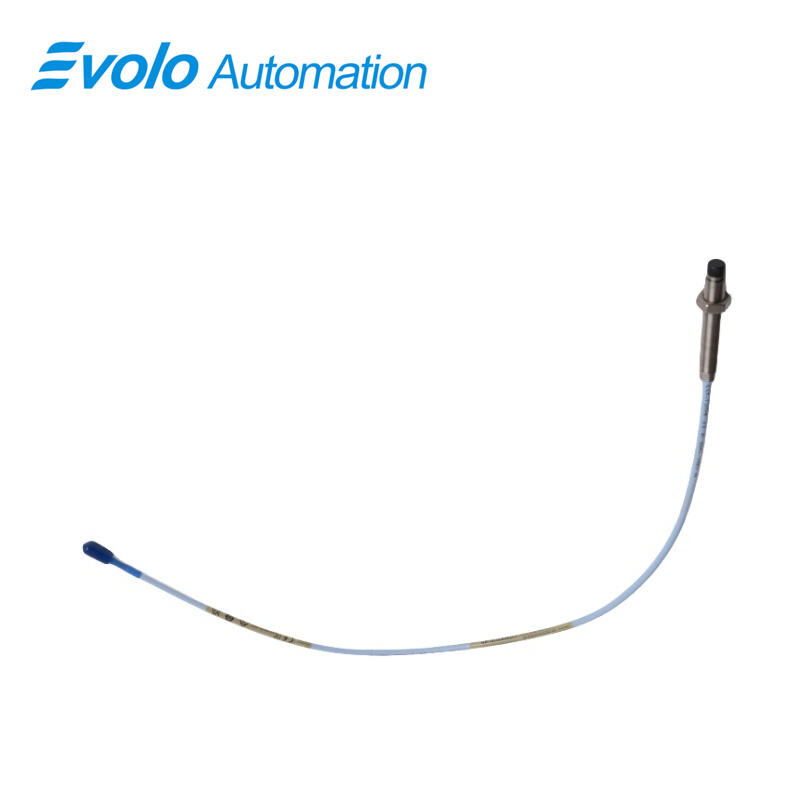

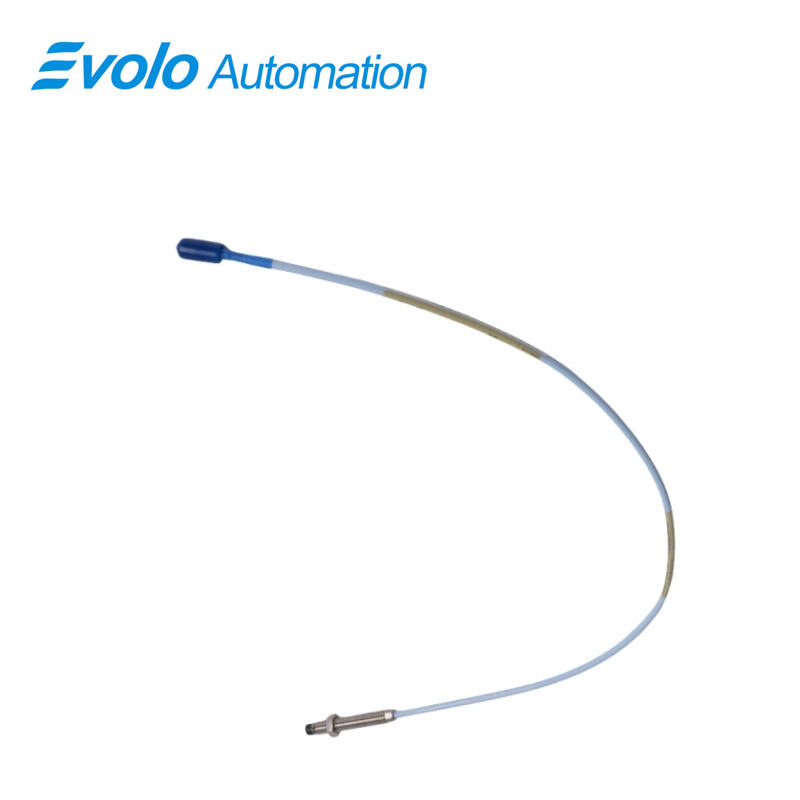

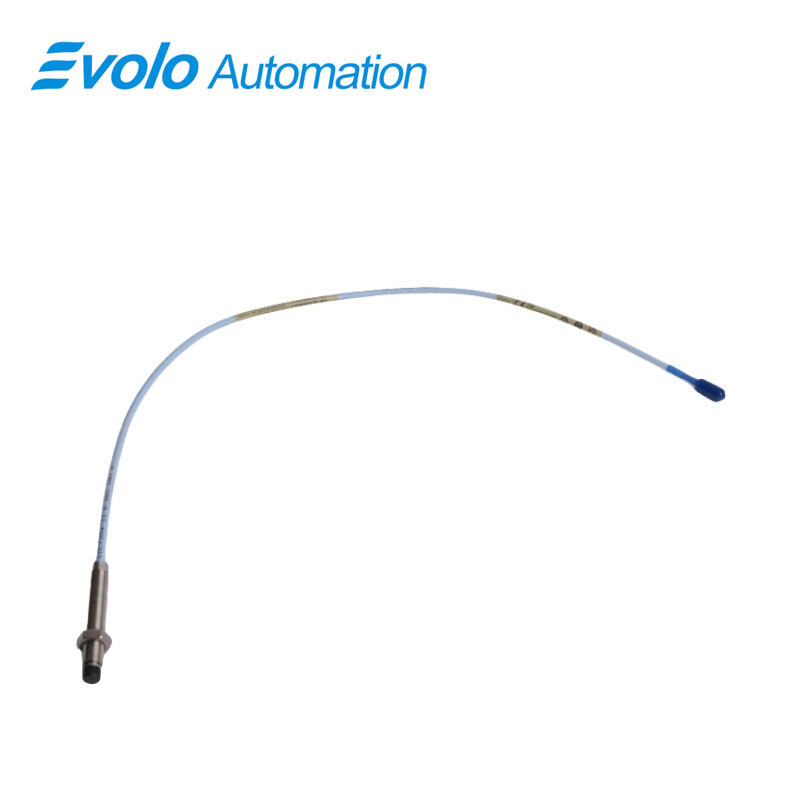

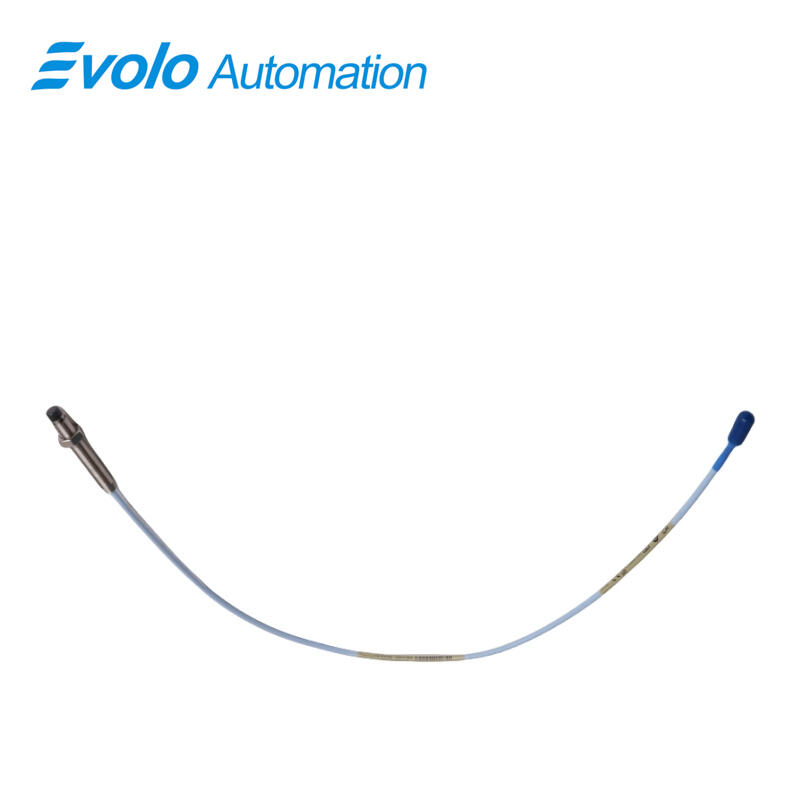

330101-00-24-05-02-05 3300 XL 8 mm Proximity Probe

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	330101-00-24-05-02-05
Minimum Order Quantity:	1
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

The 330101-00-24-05-02-05 3300 XL 8 mm Proximity Probe is a precision eddy current transducer designed for high-performance automation and industrial monitoring applications. Featuring a 2.4-inch overall case length and 0.5-meter total cable length, this probe delivers highly accurate position and vibration measurements for rotating machinery. Equipped with a 3/8-24 UNF threaded probe case and miniature coaxial ClickLoc connector, the probe supports CSA, ATEX, and IECEx approvals, making it suitable for hazardous environments. Its linear range of 2 mm (80 mils) and supply sensitivity of less than 2 mV/V ensure precise measurement across a wide operating temperature range from -52°C to +177°C (-62°F to +350°F). The 3300 XL 8 mm system is fully compatible with extension cables and Proximitor sensors, offering robust interchangeability and backward compatibility with other 3300 series components. Advanced design features such as the patented TipLoc probe molding and CableLoc system provide enhanced mechanical stability and 330 N (75 lbf) pull strength, while the optional FluidLoc cable prevents oil or liquid leaks, ensuring reliability in demanding industrial automation applications.

Applications

1. Vibration Monitoring in Turbomachinery
The 3300 XL 8 mm probe precisely measures shaft vibration on fluid-film bearings in turbines and compressors. Its 2 mm linear range and 50 Ω output resistance enable accurate dynamic monitoring, critical for predictive maintenance in industrial plants.

2. Position Measurement in Rotating Equipment
This probe provides accurate shaft position readings with minimal drift. Operating across -52°C to +177°C, it is ideal for high-temperature pumps and generators where precise rotor positioning is required.

3. Keyphasor Reference Signal Generation
The probe generates reliable Keyphasor signals for speed measurement and synchronization. The miniature coaxial ClickLoc connector ensures secure connection for automation control systems in energy and petrochemical facilities.

4. Hazardous Area Instrumentation
Certified to CSA, ATEX, and IECEx standards, the 3300 XL 8 mm probe operates safely in explosive or flammable environments, making it suitable for petrochemical refineries and offshore oil platforms.

5. Integration with API 670-Compliant Systems
Fully compatible with API 670 standards, the 3300 XL 8 mm probe integrates into vibration monitoring and control systems for turbines, motors, and generators, supporting standardized industrial automation and reducing calibration complexity.

Specifications

Competitive Advantage

1. High Accuracy and Stability
With supply sensitivity under 2 mV/V and a linear range of 2 mm, the probe delivers precise measurements of both position and vibration under extreme industrial conditions.

2. Robust Mechanical Design
Patented TipLoc molding and CableLoc attachment provide superior mechanical strength, supporting up to 330 N (75 lbf) pull force, ensuring reliability in harsh industrial environments.

3. Broad Environmental Compatibility
Operating temperatures from -52°C to +177°C (-62°F to +350°F) and oil-resistant optional FluidLoc cables allow seamless integration in extreme thermal and fluid exposure conditions.

4. Full Component Interchangeability
Probes, extension cables, and Proximitor sensors are backward compatible with 3300 series components, eliminating the need for custom calibration and simplifying maintenance logistics.

5. Hazardous Area Compliance
CSA, ATEX, and IECEx approvals enable safe deployment in explosive and flammable environments, giving users confidence in automation applications within petrochemical and power generation industries.
