Overview
Siemens • SINAMICS S120

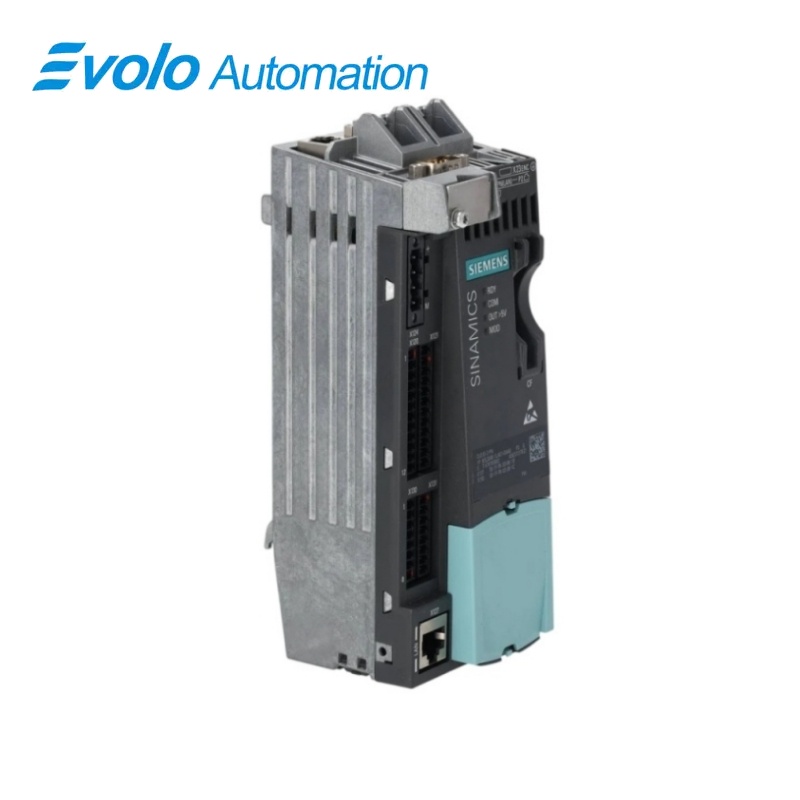

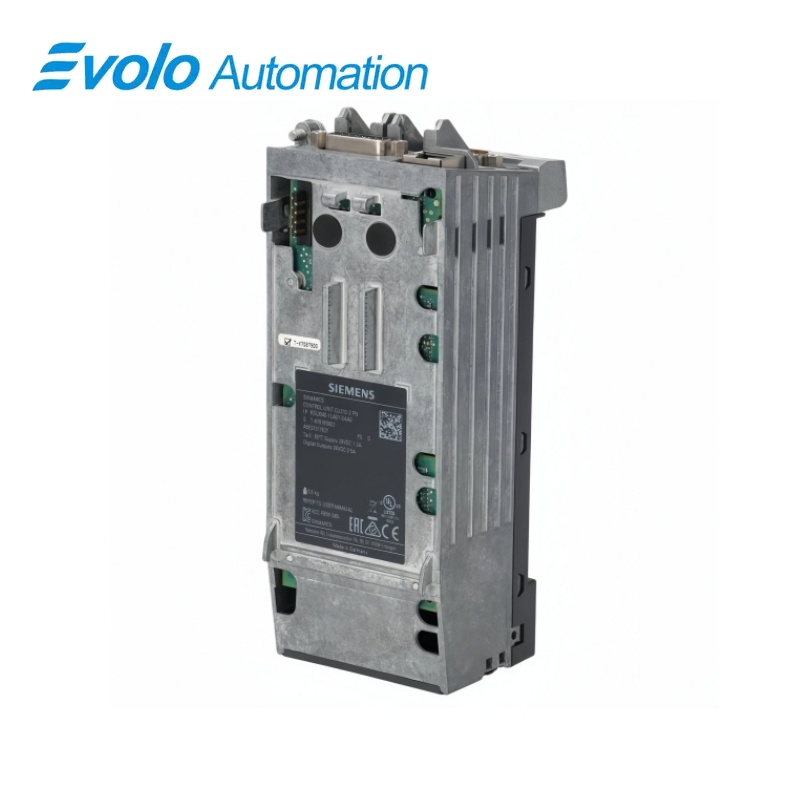

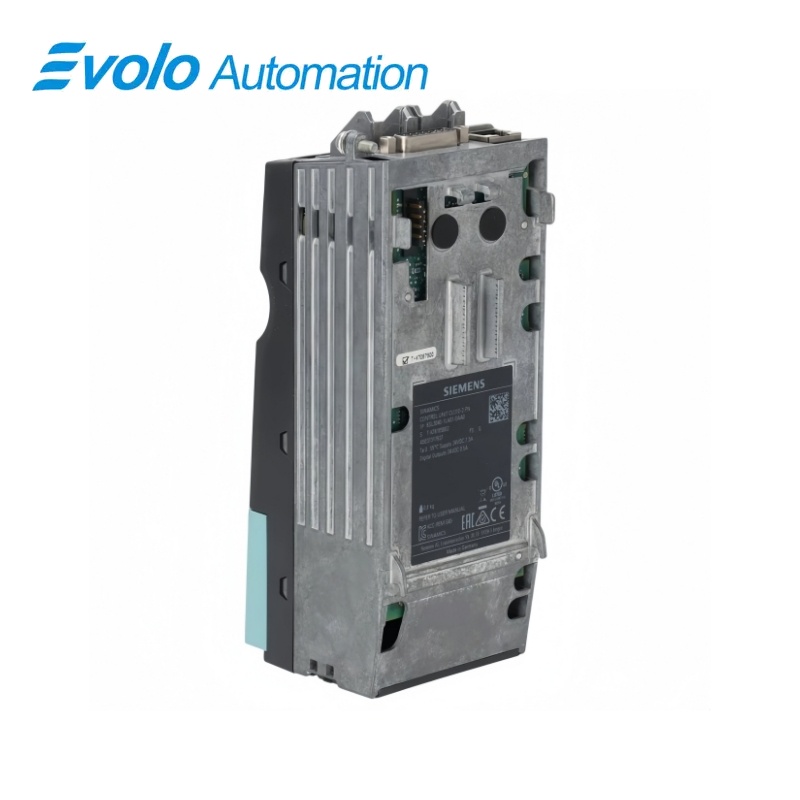

6SL3040-1LA01-0AA0 SINAMICS S120 CU310-2 PN Control Unit
The CU310-2 PN is a SINAMICS S120 control unit with an integrated PROFINET interface for single-axis drive applications and is supplied without a CompactFlash card.
At a Glance
| Brand | Siemens |
|---|---|
| Model | 6SL3040-1LA01-0AA0 |
| Product Type | Single-axis drive control unit |
| Core Function | Executes single-axis drive control functions |
| Application or Compatible Series | SINAMICS S120 drive systems using CU310-2 architecture |
Exact Identification
Match 6SL3040-1LA01-0AA0 character by character and confirm the complete SINAMICS S120 CU310-2 PN Control Unit designation.
Interface Arrangement
Confirm the installed supply, ports, field connections and required accessories before wiring the replacement.
Configuration Check
Preserve the approved engineering project, network parameters and application data used by the installed system.
Product Overview
The CU310-2 PN is a SINAMICS S120 control unit with an integrated PROFINET interface for single-axis drive applications and is supplied without a CompactFlash card.
The control unit exchanges cyclic control data, diagnostics and engineering traffic over PROFINET. The unit provides the control hardware for supported SINAMICS S120 power modules and application functions. The required CompactFlash card and its drive project must be selected and prepared separately.
Key Functions
PROFINET Drive Integration
The control unit exchanges cyclic control data, diagnostics and engineering traffic over PROFINET.
Single-Axis Control Platform
The unit provides the control hardware for supported SINAMICS S120 power modules and application functions.
Removable Project Storage
The required CompactFlash card and its drive project must be selected and prepared separately.
Official Specifications
| Electronics Power Supply | 24 V DC (20.4 to 28.8 V) |
|---|---|
| Maximum Current Consumption | 0.8 A |
| Maximum Power Loss | 20 W |
| Maximum Protective Fuse | 20 A |
| Digital Inputs | 11 channels |
| Digital Input Voltage Range | -3 to 30 V |
| Digital Input Signal Levels | Low: -3 to 5 V; high: 15 to 30 V |
| Digital Input Response Time | 50 µs low-to-high; 150 µs high-to-low |
| Bidirectional Digital I/O | 8 non-isolated channels configurable as input or output |
| Digital I/O Input Response Time | 5 µs low-to-high; 50 µs high-to-low |
| Digital Output Electrical Rating | 24 V DC, maximum 500 mA per output, continuous short-circuit protection |
| Analog Input | 1 channel switchable between voltage and current input |
| Analog Voltage Input | -10 to 10 V; 12-bit resolution plus sign |
| Analog Current Input | -20 to 20 mA; 11-bit resolution plus sign |
| Communication Connections | 1 DRIVE-CLiQ, 2 PROFINET, and 1 Ethernet |
| Measurement and Sensor Connections | 3 measuring sockets and 1 temperature-sensor connection |
| Flash Card Slot | 1 |
| Protective Earth Connection | 1 M5 screw |
| Supply Conductor Cross-Section | Maximum 2.5 mm² (AWG 14) |
| Digital Signal Conductor Cross-Section | Maximum 1.5 mm² (AWG 16) |
Frequently Asked Questions
Does 6SL3040-1LA01-0AA0 ship with a CompactFlash card?
No; install the approved card containing the validated drive firmware and project.
Which plant network connects to 6SL3040-1LA01-0AA0?
Use the integrated PROFINET interface with the configured device name and IP parameters.
What should I copy before replacing 6SL3040-1LA01-0AA0?
Back up the complete STARTER or Startdrive project, parameters, safety settings, licenses and card contents.
Can I pair 6SL3040-1LA01-0AA0 with any SINAMICS power module?
No; verify the supported power-module type, firmware combination and DRIVE-CLiQ topology.
How should I handle the memory card for 6SL3040-1LA01-0AA0?
Remove and insert the approved CompactFlash card only under the documented power and electrostatic-discharge conditions.
What safety data must be retained for 6SL3040-1LA01-0AA0?
Preserve the safety parameter set, checksums, passwords and acceptance documentation used by the installed drive.
Which checks complete commissioning of 6SL3040-1LA01-0AA0?
Verify PROFINET communication, encoder feedback, DRIVE-CLiQ nodes, parameters, safety functions and the authorized motion test.
Compatibility & Ordering Notes
Compatibility Checklist
- Use only a supported SINAMICS S120 power module and firmware combination.
- Preserve the validated CompactFlash contents and drive parameter set.
- Repeat the required safety acceptance after hardware replacement.
