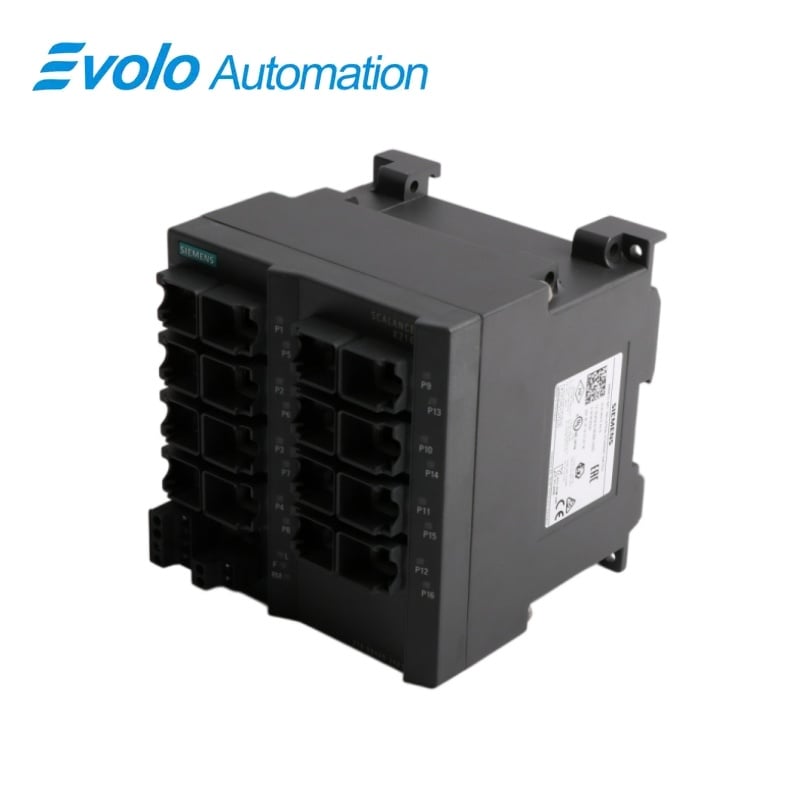

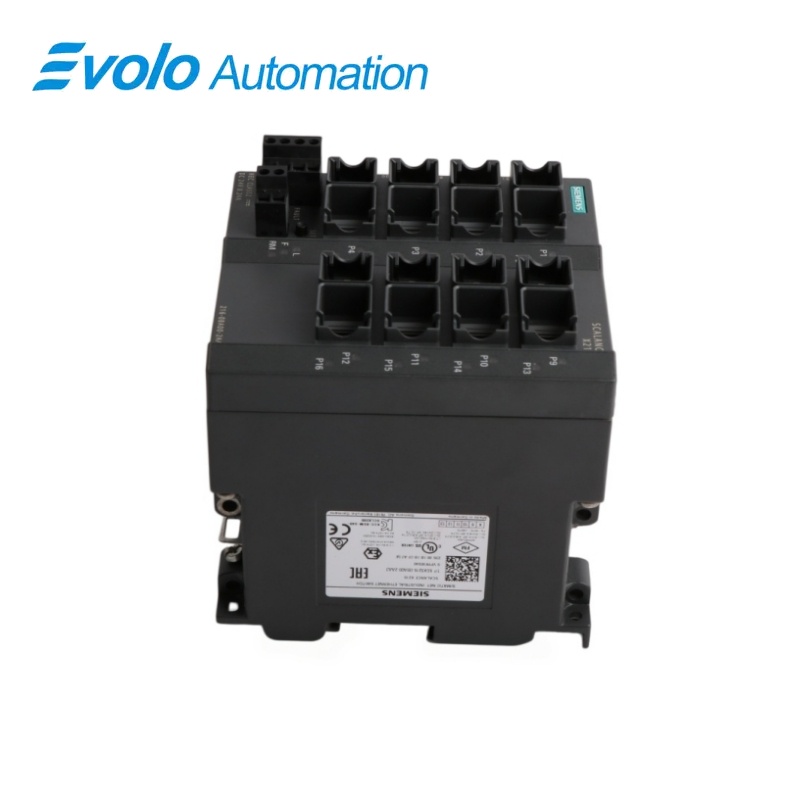

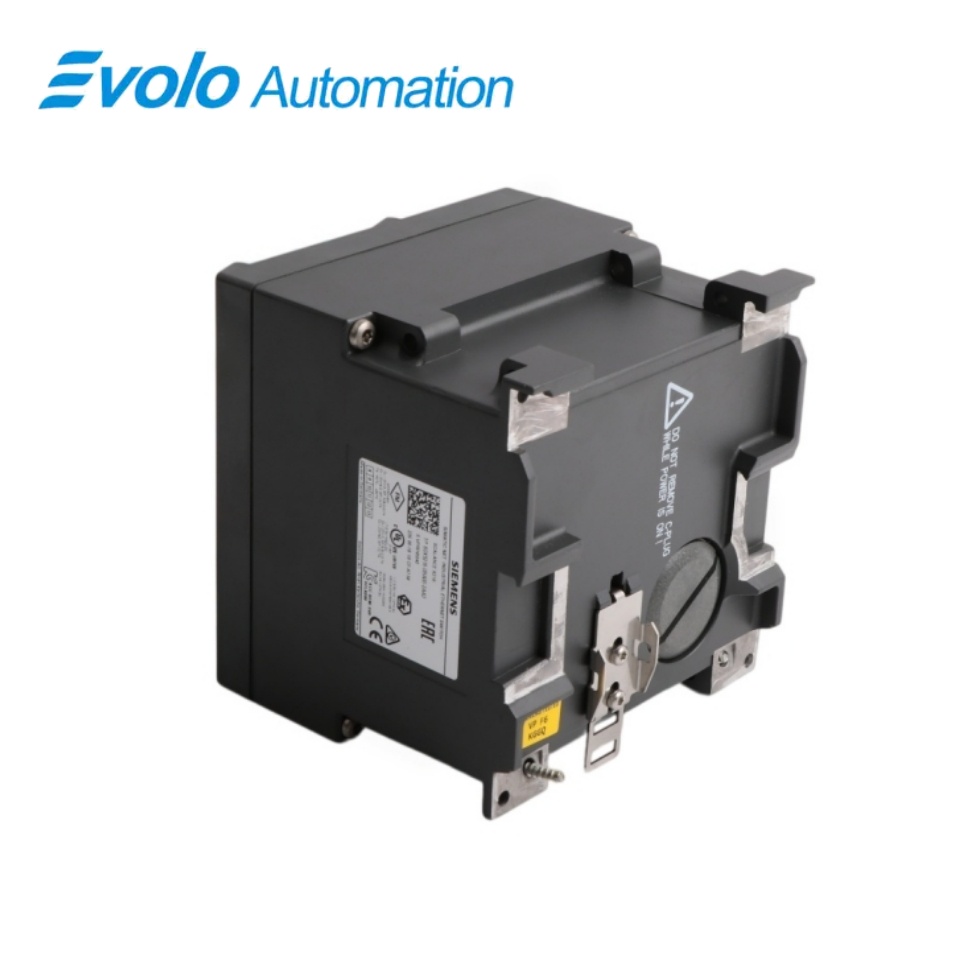

Siemens SCALANCE X216 Managed Industrial Ethernet Switch 6GK5216-0BA00-2AA3
Manufacturer: Siemens
Condition: Brand New
Lead Time: In Stock
Origin: Germany
Warranty: 12 Months
Email: [email protected]
whatsApp: +86-18150117685
- Overview
- Product Overview
- Key Functions
- Official Specifications
- Frequently Asked Questions
- Compatibility & Ordering Notes
- Hot Selling Models
- Recommended Products
Overview
Siemens • SCALANCE X-200 Managed Switches
6GK5216-0BA00-2AA3 SCALANCE X216 Managed Industrial Ethernet Switch
The SCALANCE X216 is a managed Industrial Ethernet switch with sixteen 10/100 Mbit/s RJ45 ports, PROFINET IO device functionality, network management, integrated redundancy management and optional C-PLUG storage.
At a Glance
| Brand | Siemens |
|---|---|
| Model | 6GK5216-0BA00-2AA3 |
| Product Type | Managed Layer 2 Industrial Ethernet switch |
| Core Function | Connects and supervises sixteen Fast Ethernet copper devices with network redundancy |
| Application or Compatible Series | PROFINET machine networks requiring managed 10/100 Mbit/s ports, diagnostics and redundant 24 V DC power |
Exact Identification
Match 6GK5216-0BA00-2AA3 character by character and confirm the complete SCALANCE X216 Managed Industrial Ethernet Switch designation.
Interface Arrangement
Confirm the installed supply, ports, field connections and required accessories before wiring the replacement.
Configuration Check
Preserve the approved engineering project, network parameters and application data used by the installed system.
Product Overview
The SCALANCE X216 is a managed Industrial Ethernet switch with sixteen 10/100 Mbit/s RJ45 ports, PROFINET IO device functionality, network management, integrated redundancy management and optional C-PLUG storage.
Sixteen RJ45 connections provide switched 10/100 Mbit/s access for controllers, distributed I/O and other industrial devices. LEDs, a signaling contact, PROFINET diagnostics and the integrated redundancy manager support plant-network supervision. An optional C-PLUG can retain device configuration for faster replacement and service.
Key Functions
Sixteen Managed Copper Ports
Sixteen RJ45 connections provide switched 10/100 Mbit/s access for controllers, distributed I/O and other industrial devices.
Network and Ring Diagnostics
LEDs, a signaling contact, PROFINET diagnostics and the integrated redundancy manager support plant-network supervision.
Replaceable Configuration Media
An optional C-PLUG can retain device configuration for faster replacement and service.
Official Specifications
| Transmission Rates | 10 and 100 Mbit/s |
|---|---|
| RJ45 Network Ports | 16 |
| RJ45 Port Type | 10/100 Mbit/s with retaining collar |
| Signaling Contacts | 1 via 2-pole terminal block |
| Signaling Contact Rating | 24 V DC, 0.1 A maximum |
| Supply Connection | 4-pole terminal block |
| Rated Supply Voltage | 24 V DC |
| Maximum Current Consumption | 0.24 A |
| Nominal Power Loss | 5.76 W |
| Redundant Power Input | Supported |
| Input Fuse Protection | Integrated |
| Removable Configuration Media | Optional C-PLUG |
| Operating Temperature | -40 to 60 °C |
| Storage and Transport Temperature | -40 to 70 °C |
| Degree of Protection | IP30 |
| Dimensions | 120 x 125 x 124 mm |
| Approximate Net Weight | 1.2 kg |
| Successor | SCALANCE XC216, 6GK5216-0BA00-2AC2 |
Frequently Asked Questions
Can 6GK5216-0BA00-2AA3 be used as a PROFINET IO device?
Yes; assign the validated device name and IP settings, then restore its diagnostic integration in the controller project.
How is a ring configured on 6GK5216-0BA00-2AA3?
Set the approved redundancy role and ring ports so they match the existing topology before closing the network loop.
Does 6GK5216-0BA00-2AA3 support redundant power feeds?
Yes; connect two suitable 24 V DC sources to the separate supply inputs and test loss of each feed.
What is the purpose of the C-PLUG in 6GK5216-0BA00-2AA3?
It can hold the switch configuration so a compatible replacement can resume service with the saved settings.
What must be backed up before replacing 6GK5216-0BA00-2AA3?
Export the switch configuration and record the IP address, PROFINET name, VLANs, redundancy settings, alarms and port assignments.
How should unused ports on 6GK5216-0BA00-2AA3 be handled?
Disable or secure them according to the approved network design and document any intentional port-state changes.
What should be checked after commissioning 6GK5216-0BA00-2AA3?
Verify all sixteen links, duplex and speed states, management access, redundancy recovery, signaling contact and controller diagnostics.
Compatibility & Ordering Notes
Compatibility Checklist
- Restore the exact managed-switch configuration and PROFINET device identity.
- Match every RJ45 port assignment and ring-redundancy setting.
- Verify both 24 V power feeds, the signaling contact and optional C-PLUG.
