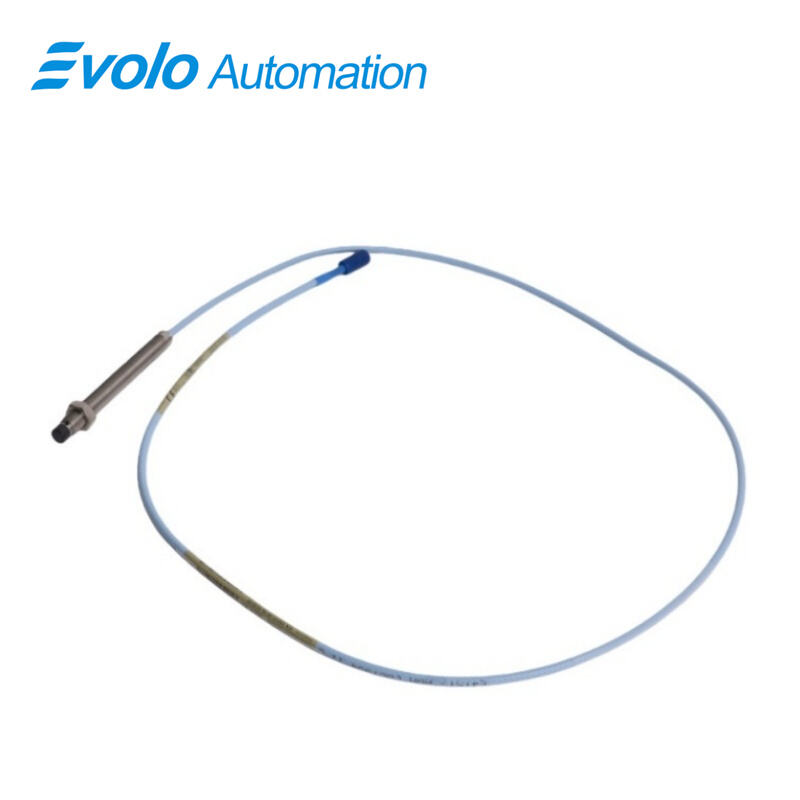

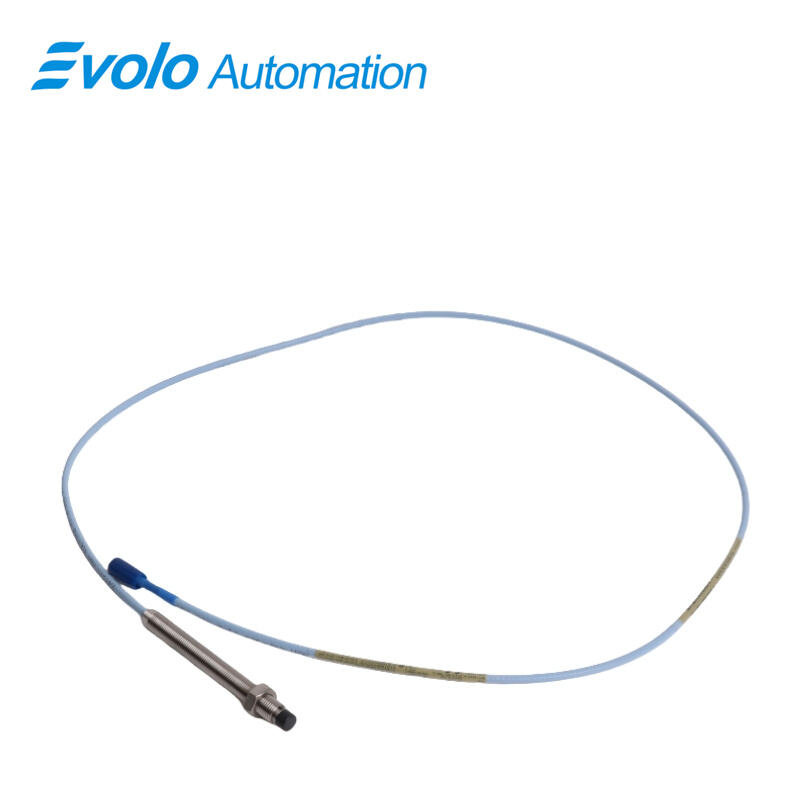

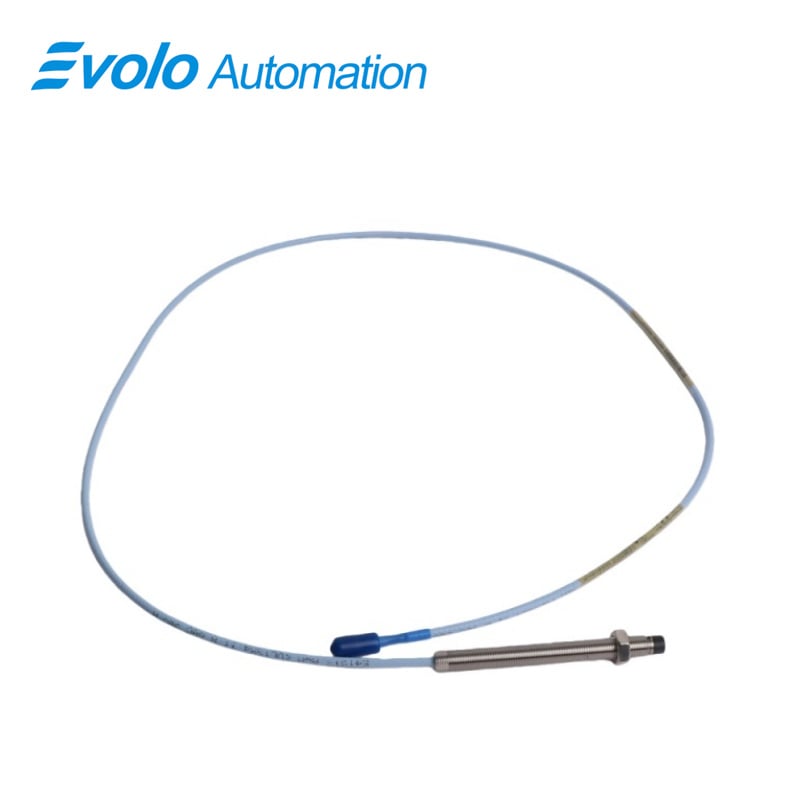

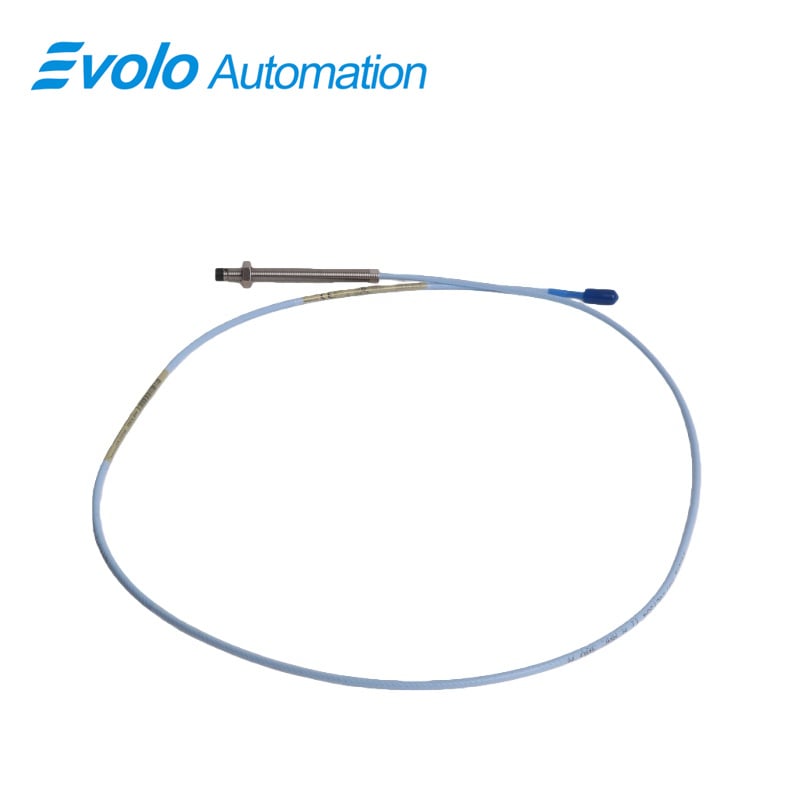

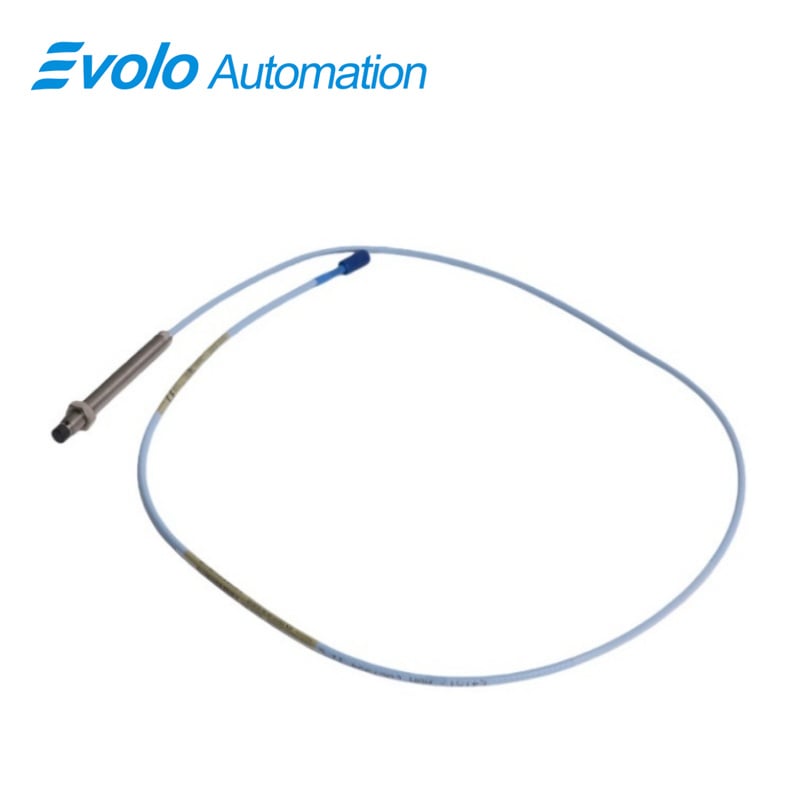

330101-00-36-15-02-05 3300 XL 8 mm Proximity Probe

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	330101-00-36-15-02-05
Minimum Order Quantity:	1
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

The 330101-00-36-15-02-05 3300 XL 8 mm Proximity Probe is a precision eddy current transducer engineered for industrial automation, predictive maintenance, and vibration monitoring. This probe produces a voltage output directly proportional to the distance between the probe tip and the target conductive surface, enabling accurate measurement of both static position and dynamic vibration. Featuring a 3.6-inch overall case length and a 1.5-meter miniature coaxial ClickLoc cable, the probe ensures reliable signal integrity and robust connection in automated machinery systems.

Designed to operate in extreme conditions from -52°C to +177°C (-62°F to +350°F), it delivers a 2 mm (80 mils) linear range, 50 Ω output resistance, and less than 2 mV/V supply sensitivity, offering high-precision, stable measurements. Mechanical enhancements include a patented TipLoc molding method for a reinforced tip-to-body bond and a CableLoc design with 330 N (75 lbf) pull strength for secure cable attachment. Optional FluidLoc cables prevent fluid leakage from machines, maintaining operational integrity. With CSA, ATEX, and IECEx approvals, the probe meets global industrial standards for safety and performance, and its full compatibility with 3300 XL and standard 3300 series components allows plug-and-play replacement without recalibration, supporting seamless integration in automated systems.

Applications

1. High-Speed Turbine Vibration Monitoring
Monitors vibration patterns in turbines and compressors with a 2 mm linear range, enabling automated predictive maintenance to avoid unplanned downtime.

2. Rotor and Shaft Position Measurement
Delivers precise position feedback for fluid-film bearing shafts and rotors, optimizing alignment and rotational stability in automated industrial equipment.

3. Keyphasor Reference and Speed Measurement
Provides accurate Keyphasor signals for high-speed machinery, supporting automated speed control and synchronization in industrial processes.

4. Hazardous Environment Operations
CSA, ATEX, and IECEx approvals allow safe operation in explosive or high-risk industrial environments, such as petrochemical plants and refineries.

5. Maintenance-Free Component Replacement
Supports backward compatibility and interchangeability with other 3300 series probes and extension cables, minimizing downtime and maintenance complexity in automated systems.

Specifications

Competitive Advantage

1. Superior Measurement Accuracy
Delivers high-precision output with less than 2 mV/V supply sensitivity and a 2 mm linear range, ensuring reliable position and vibration data.

2. Robust Mechanical Design
Patented TipLoc and CableLoc features provide a strong tip-body bond and 330 N pull strength, maintaining signal reliability under high-vibration conditions.

3. Global Safety Compliance
CSA, ATEX, and IECEx approvals enable operation in hazardous zones, providing a competitive edge for industries requiring certified safety equipment.

4. Optional Fluid Containment
Optional FluidLoc cable prevents oil or liquid ingress, maintaining system integrity and avoiding contamination or equipment damage.

5. Easy Integration and Interchangeability
Fully compatible with 3300 XL and standard 3300 series components, enabling plug-and-play installation and replacement without the need for recalibration.
