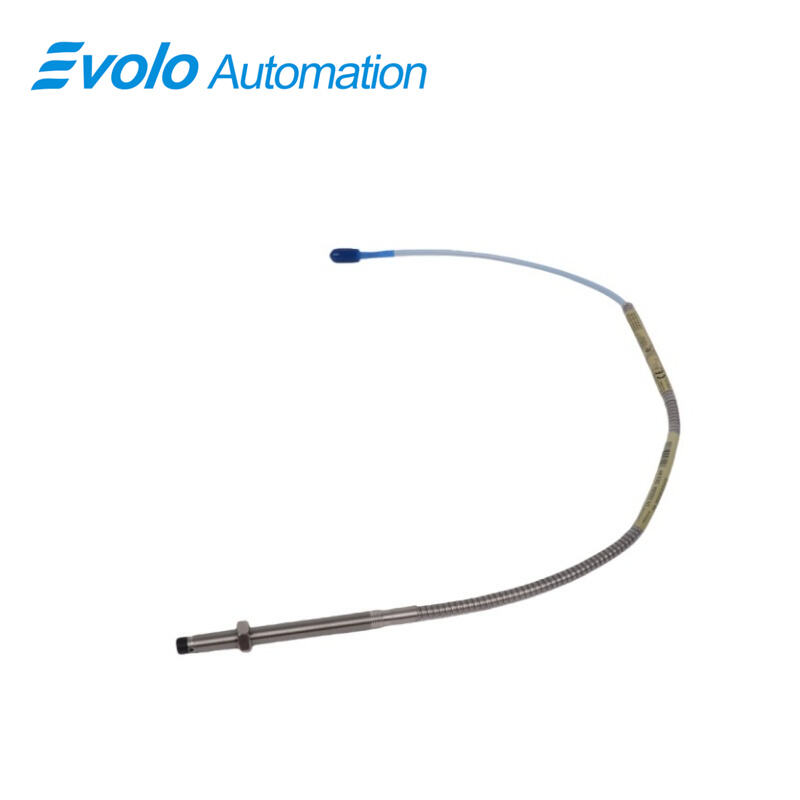

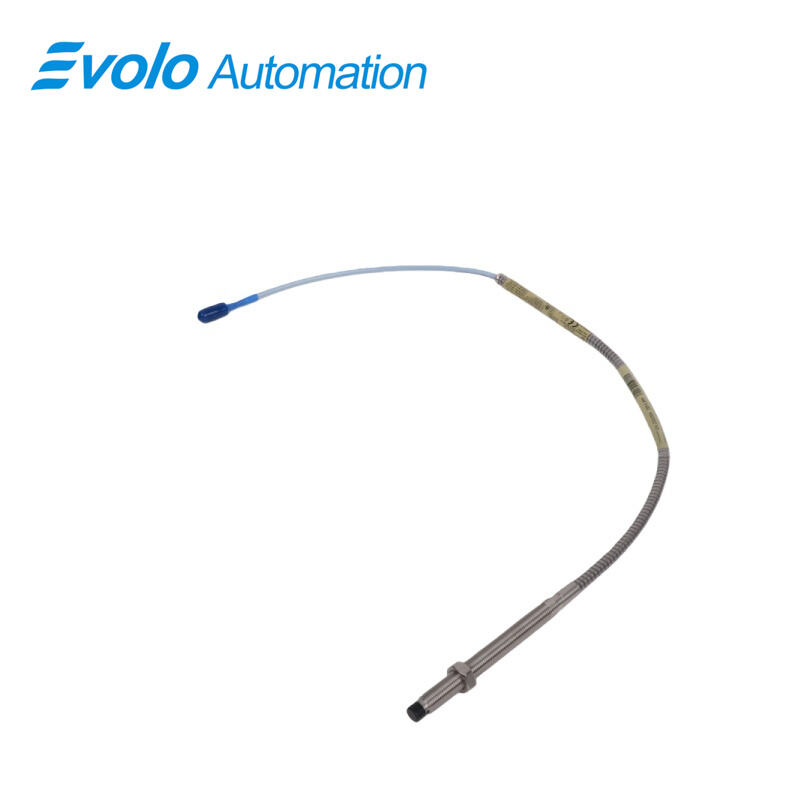

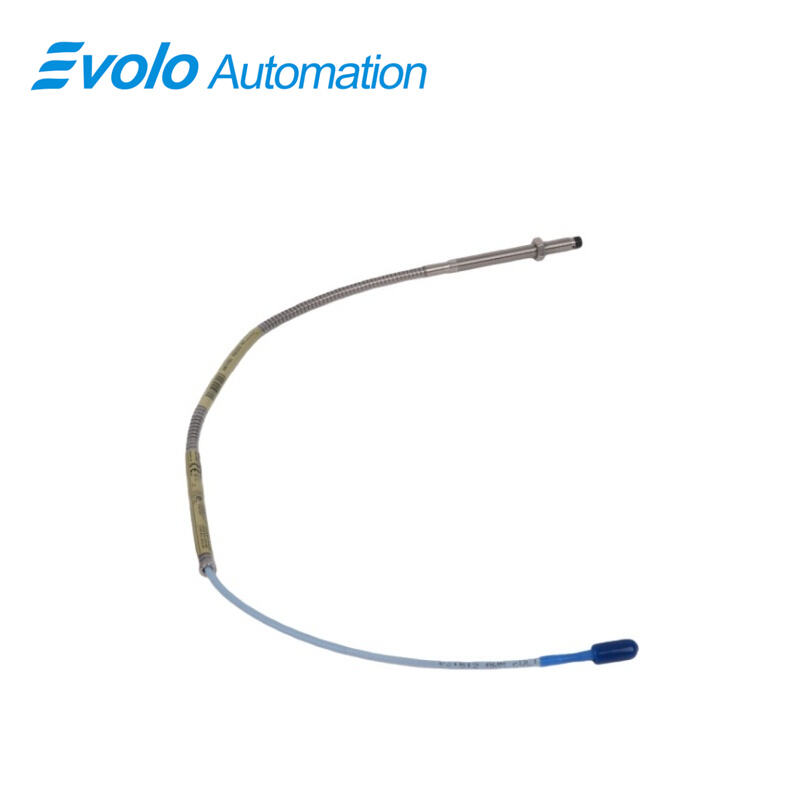

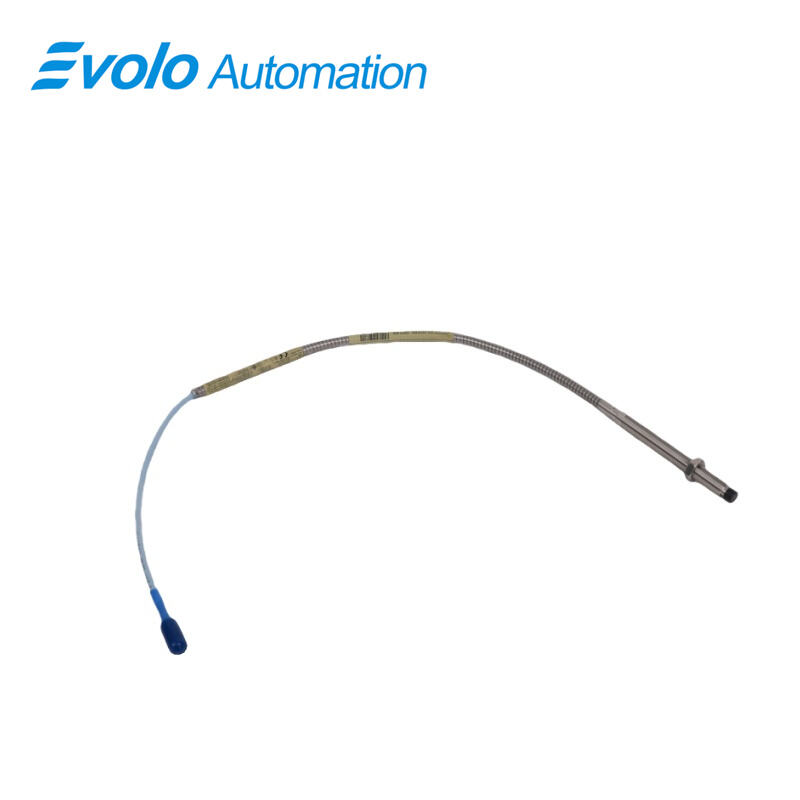

330102-00-36-05-02-05 3300 XL 8 mm Proximity Probe

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	330102-00-36-05-02-05
Minimum Order Quantity:	1
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

The 3300 XL 8 mm Proximity Probe (Model 330102-00-36-05-02-05) is a high-performance eddy current transducer designed for precision measurement in industrial automation. This probe delivers an output voltage directly proportional to the distance between the probe tip and the target conductive surface, enabling accurate static position and dynamic vibration measurements. With a total length of 0.5 meters (1.6 feet) and a 3.6-inch overall case length, the 3300 XL 8 mm probe supports seamless integration with standard miniature coaxial ClickLoc connectors and extension cables. Engineered to operate in extreme temperatures from -52°C to +177°C (-62°F to +350°F), and featuring CSA, ATEX, and IECEx approvals, the 3300 XL 8 mm ensures reliable performance in hazardous or demanding environments. Its linear range of 2 mm (80 mils), 50 Ω output resistance, and supply sensitivity of less than 2 mV per volt of input variation make it ideal for fluid-film bearing machines and Keyphasor reference applications. Enhanced TipLoc and CableLoc designs improve probe durability, with a 330 N (75 lbf) pull strength, while the optional FluidLoc cable prevents oil or fluid leakage, ensuring precise, long-term operation in automated machinery. Fully API 670-compliant, this probe system guarantees interchangeability with other 3300 XL 5 mm and 8 mm transducer components, enabling flexible retrofitting and reducing maintenance downtime.

Applications

1. Fluid-Film Bearing Vibration Monitoring
The 3300 XL 8 mm probe accurately detects vibration in pumps, turbines, and compressors, supporting machinery predictive maintenance. Its linear range of 2 mm and temperature tolerance of -52°C to +177°C ensure stable readings in high-speed rotating machinery.

2. Shaft Position Sensing
Used for precise shaft displacement measurements, the probe enables automated control of critical process equipment. The output voltage proportionality allows millivolt-level detection of shaft movements under dynamic operating conditions.

3. Keyphasor Signal Generation
In rotating machinery, the 3300 XL 8 mm provides reliable Keyphasor reference signals for synchronous vibration monitoring and speed measurement, improving process control and automated diagnostics.

4. Hazardous Area Automation
Certified with CSA, ATEX, and IECEx approvals, the probe can be safely deployed in explosive atmospheres, such as chemical and petrochemical plants, while maintaining accurate distance measurement and vibration monitoring.

5. Oil-Lubricated Machinery Protection
The optional FluidLoc cable prevents fluid leakage from machine interiors, ensuring that automated lubrication systems remain contamination-free while the probe continues to provide precise vibration and position data.

Specifications

Competitive Advantage

1. High Durability with TipLoc and CableLoc Designs
Patented TipLoc molding and CableLoc design provide a 330 N (75 lbf) pull strength, offering superior mechanical integrity and reducing probe failure in automated equipment.

2. Wide Temperature Range and Harsh Environment Operation
The probe operates reliably from -52°C to +177°C (-62°F to +350°F), making it suitable for extreme industrial automation environments, including high-speed turbines and compressors.

3. API 670 Compliance and Component Interchangeability
Full compliance with API 670 ensures linear range, accuracy, and temperature stability. All components, including probes, extension cables, and Proximitor sensors, are interchangeable without recalibration, saving maintenance time.

4. High Measurement Accuracy and Sensitivity
Output resistance of 50 Ω and supply sensitivity under 2 mV per volt enable precise monitoring of vibration and shaft position, critical for automated predictive maintenance and real-time process control.

5. Enhanced Safety and Fluid Containment
Optional FluidLoc cable design prevents oil or fluid leaks, maintaining both machine integrity and workplace safety while ensuring uninterrupted automated operations in lubrication-dependent systems.
