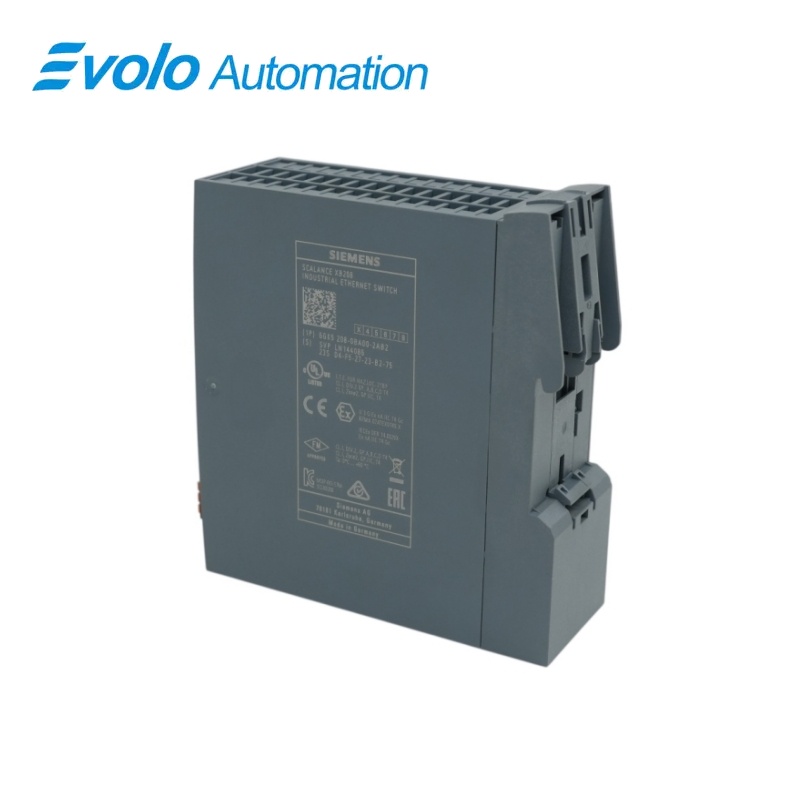

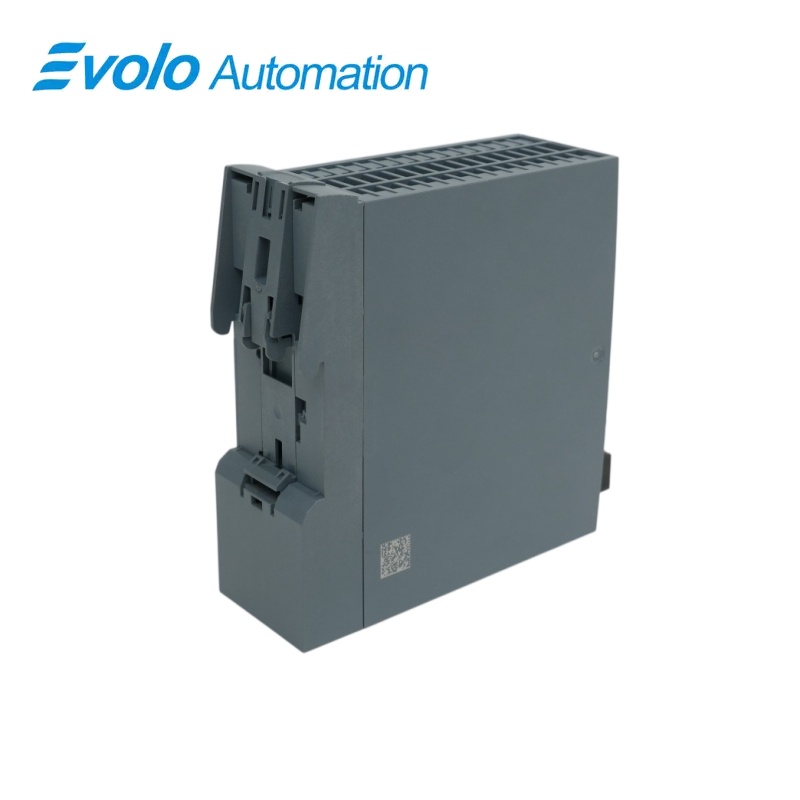

Siemens 6GK5208-0BA00-2AB2 SCALANCE XB208 Managed Ethernet Switch
Manufacturer: Siemens
Condition: Brand New
Lead Time: In Stock
Origin: Germany
Warranty: 12 Months
Email: [email protected]
whatsApp: +86-18150117685
- Overview
- Hot Selling Models
- Recommended Products
Overview
- Connect the eight 10/100 Mbit/s RJ45 links to the intended ports.
- Apply 24 V DC within the permitted 19.2 to 28.8 V DC range.
- Restore the correct switch configuration and PROFINET device identity.
- Check ring-redundancy and redundant-supply operation after replacement.
PROFINET NETWORKING
6GK5208-0BA00-2AB2 SCALANCE XB208 Managed Ethernet Switch
Managed Layer 2 switch with eight 10/100 Mbit/s RJ45 ports, redundant 24 V DC input and PROFINET-ready network functions.
At a Glance
| Brand | Siemens |
|---|---|
| Model | 6GK5208-0BA00-2AB2 |
| Product Type | Managed Layer 2 Industrial Ethernet switch |
| Core Function | Managed eight-port PROFINET networking |
| Compatible Series | SCALANCE XB-200 |
Managed switching
Web, CLI and network management interfaces support configuration and diagnostics.
Network redundancy
MRP support and redundant power input help maintain industrial network availability.
PROFINET integration
The switch operates as a PROFINET IO device with diagnostics and default PROFINET settings.
Product Overview

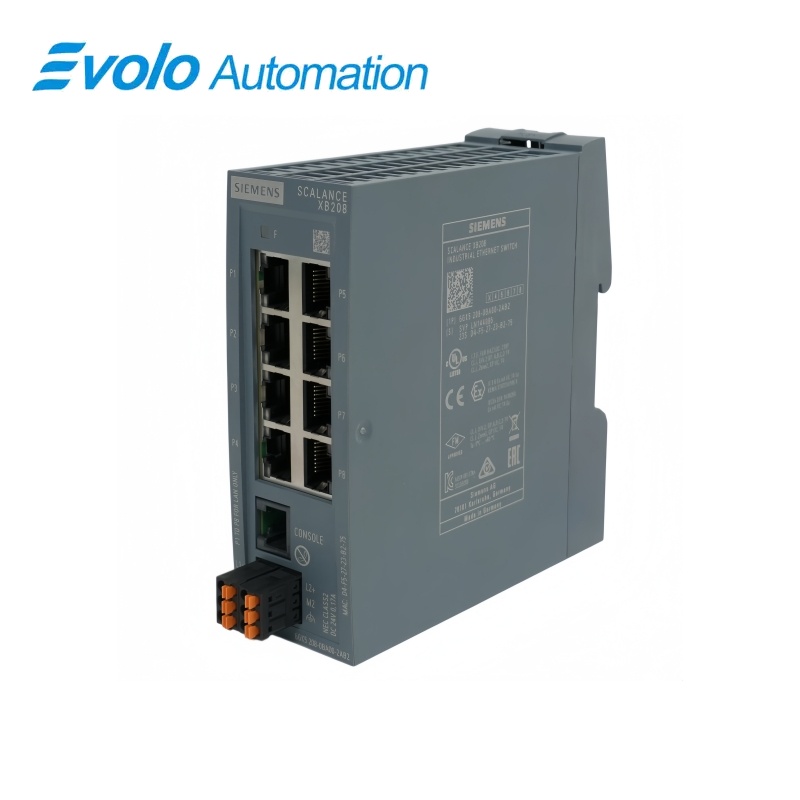

6GK5208-0BA00-2AB2 is a managed SCALANCE XB208 Layer 2 switch for industrial Ethernet and PROFINET networks. Eight Fast Ethernet RJ45 ports connect controllers and field devices, while a console interface supports service work.
The device combines redundant power connection, port diagnostics, MRP ring redundancy and DIN-rail mounting in a compact IP20 enclosure.
Key Functions
Configure traffic segmentation
Port-based VLANs provide a controlled way to separate network traffic, with up to 257 VLANs.
Maintain network continuity
The switch supports Media Redundancy Protocol for suitable ring topologies and a redundant power connection.
Diagnose communication
Port diagnostics, packet statistics and SysLog information help locate network faults.
Official Specifications
| Ethernet data rates | 10 and 100 Mbit/s |
|---|---|
| Electrical network ports | 8 × RJ45 |
| Operator console | 1 × RJ11 |
| Management connection | 1 × RJ45 |
| Rated supply voltage | 24 V DC |
| Supply voltage range | 19.2 to 28.8 V DC |
| Maximum current consumption | 0.17 A |
| Power connection | 6-pole terminal block with redundant voltage input |
| Operating temperature | 0 to +60 °C |
| Storage and transport temperature | −40 to +70 °C |
| Maximum relative humidity | 95% at 25 °C, non-condensing |
| Degree of protection | IP20 |
| Dimensions (W × H × D) | 40 × 117 × 109 mm |
| Maximum VLANs | 257 |
| Maximum Ethernet frame length | 1632 bytes |
| PROFINET conformity class | B |
Frequently Asked Questions
Can 6GK5208-0BA00-2AB2 be used in a PROFINET network?
The managed switch is preset for PROFINET and supports PROFINET IO device diagnostics.
Which Ethernet port speed does 6GK5208-0BA00-2AB2 provide?
Its eight RJ45 network ports support 10 and 100 Mbit/s links.
How can I configure 6GK5208-0BA00-2AB2?
Web-based management and a command-line interface are available for configuration.
Does 6GK5208-0BA00-2AB2 support a redundant supply?
Its power connection accepts a redundant 24 V DC voltage input.
Can 6GK5208-0BA00-2AB2 participate in an MRP ring?
The switch supports Media Redundancy Protocol for suitable ring networks.
How many VLANs can I configure on 6GK5208-0BA00-2AB2?
The device supports up to 257 VLANs.
What diagnostics can I use on 6GK5208-0BA00-2AB2?
Port diagnostics, packet statistics and SysLog help identify communication faults.
